150MM/24T SCORE SAW 30MM BORE

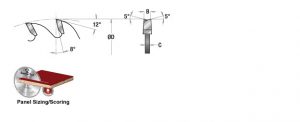

Specifications
(D) Diameter: 150mm
Teeth: 24
(d) Bore: 30mm
Tooth Grind: CONICAL
Hook Angle: 8°
Kerf (B): .173 – .212 (4.4 – 5.4mm)
Machine: Mayer, Irion
Plate (C): .126 (3.2mm)
Used on panel saws with separate scoring units for chip-free cuts on both sides of the material. With conical type scoring blades, the kerf width changes with depth of penetration. Used in combination with our industrial saw blades ‘7’ series only (#714721, etc.). Also used in combination with the new DITEC™ series panel saw main blades. Kerf range should match the main blade.
