Sale!

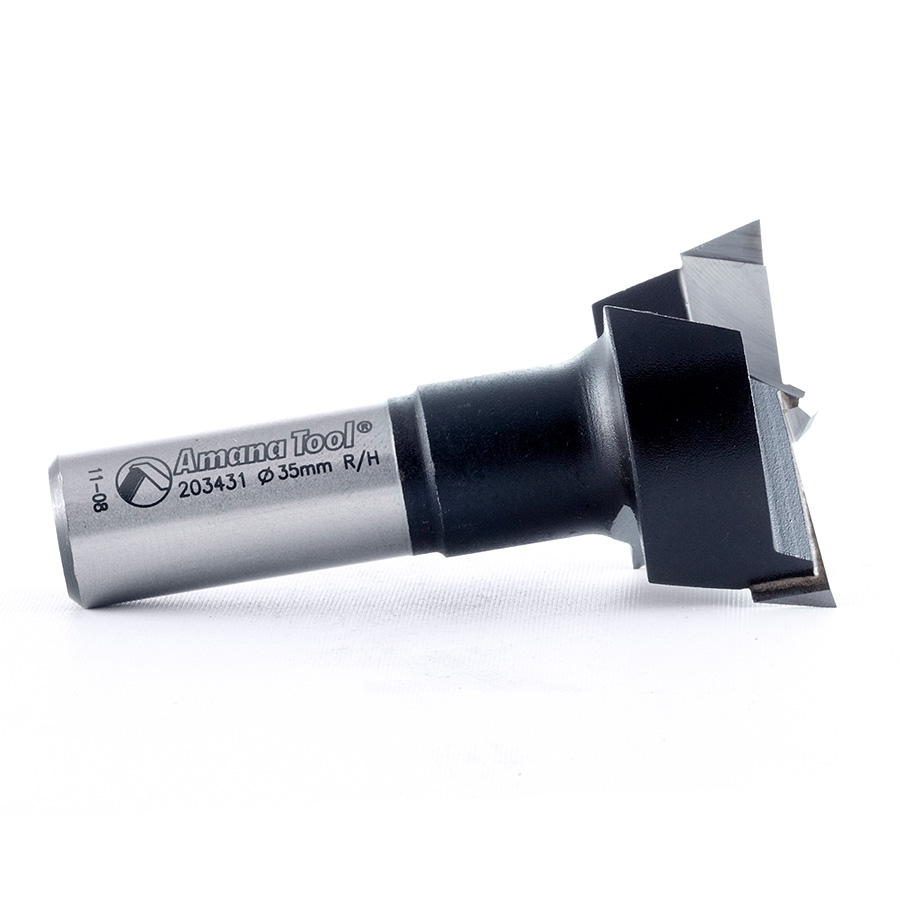

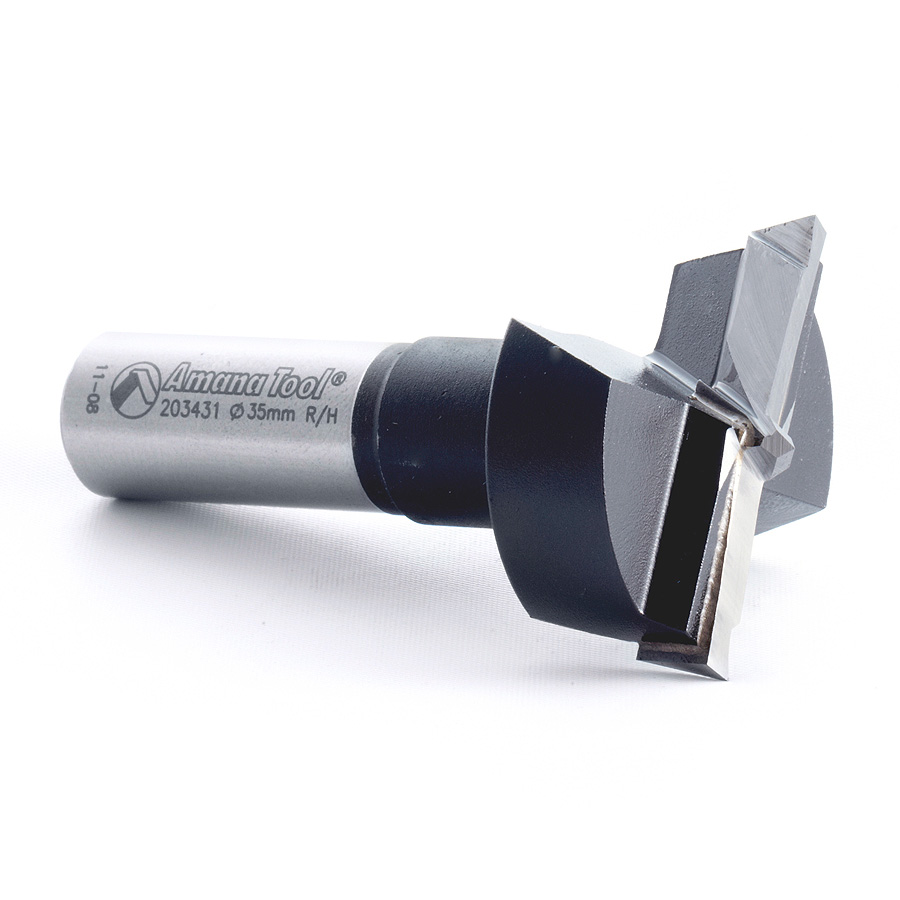

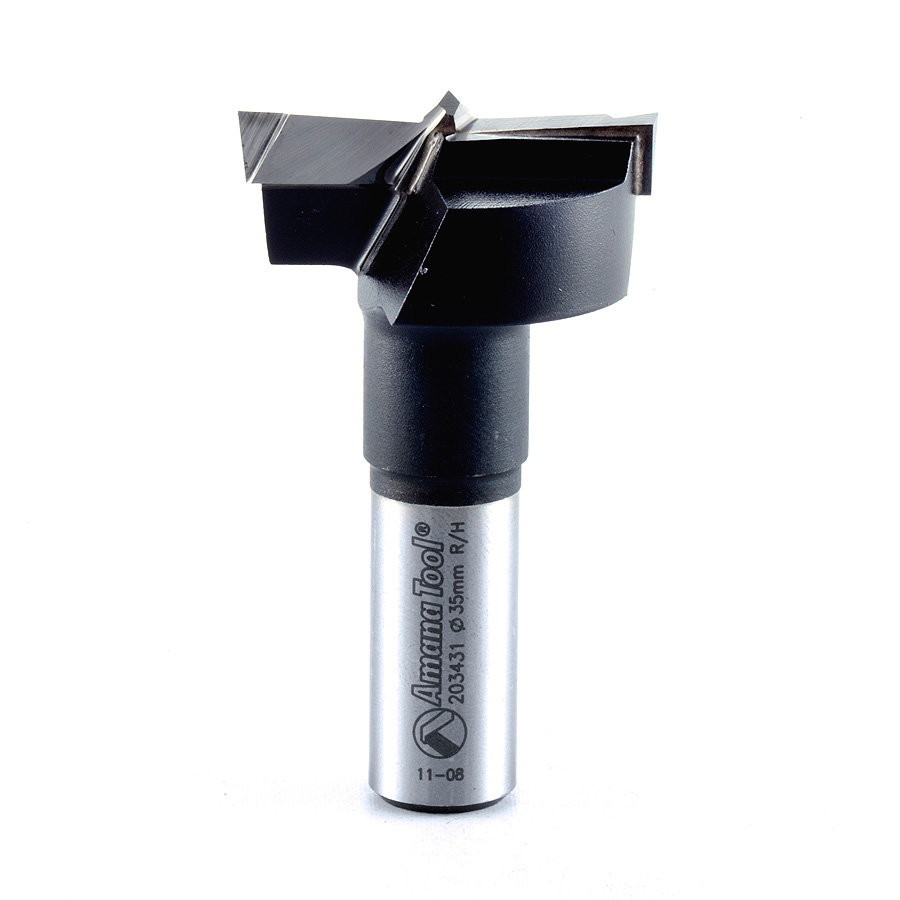

203431 Carbide Tipped Hinge Boring Bit R/H 35mm Dia x 60mm Long x 1/2 Inch Shank

Amana 203431 Carbide Tipped Hinge Boring Bit R/H 35mm Dia x 60mm Long x 1/2 Inch Shank

Name: Amana 203431 Carbide Tipped Hinge Boring Bit R/H 35mm Dia x 60mm Long x 1/2 Inch Shank
SKU: Amana 203431
Availability: InStock

Original price was: $89.65.Current price is: $62.76.

35MM HINGE BORING FOR ROUTER

UPC: 738685203439 SKU: Amana 203431 Categories: Amana Tool, Boring & Drilling Bits, Hinge Boring Bits, Hinge Boring Bits 60mm Long for Routers

Item Description

Designed for plunge routers, CNC routers, machining centers and point-to-point machines.

Note:**Maximum RPM is 8,000.

Not to be used in portable drills or hand held routers.

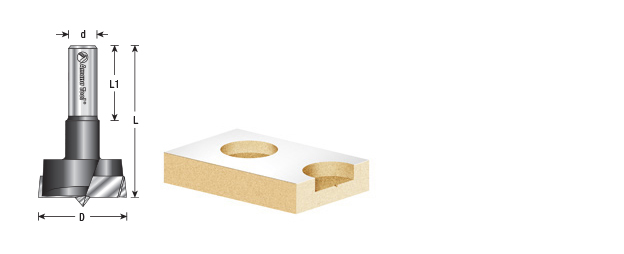

Specifications

(D) Diameter	35mm
(d) Shank	1/2
Overall Length (L)	60mm
L1	(30mm)

Weight	0.2 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
