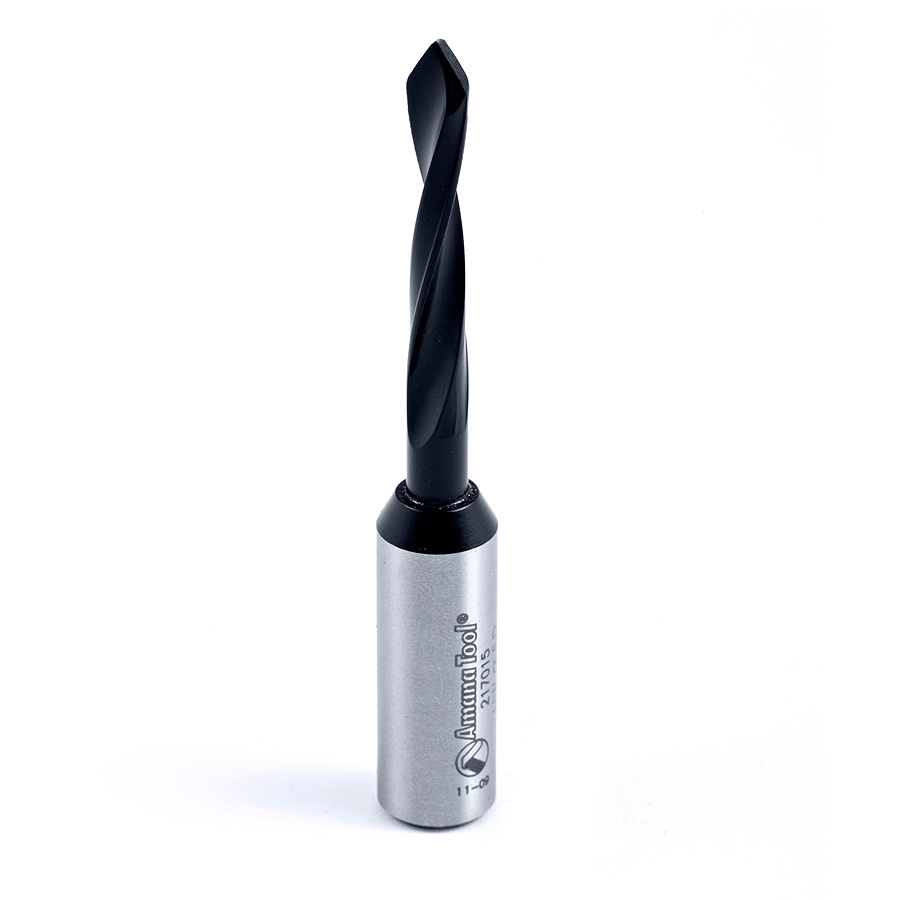

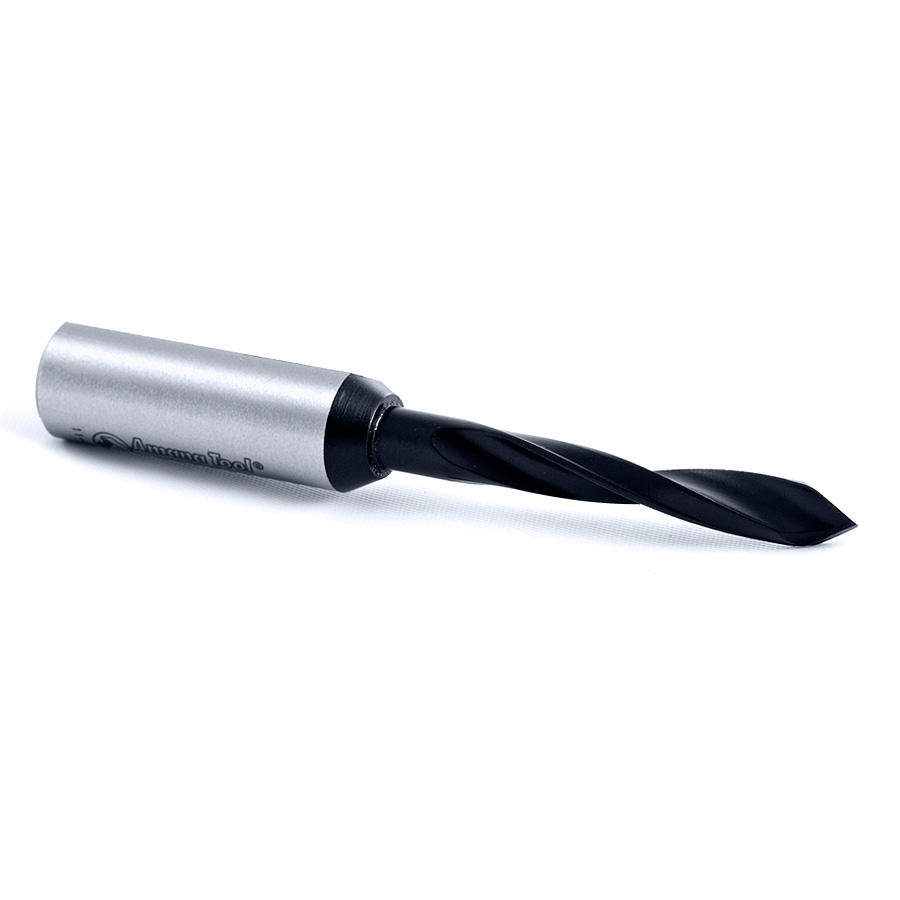

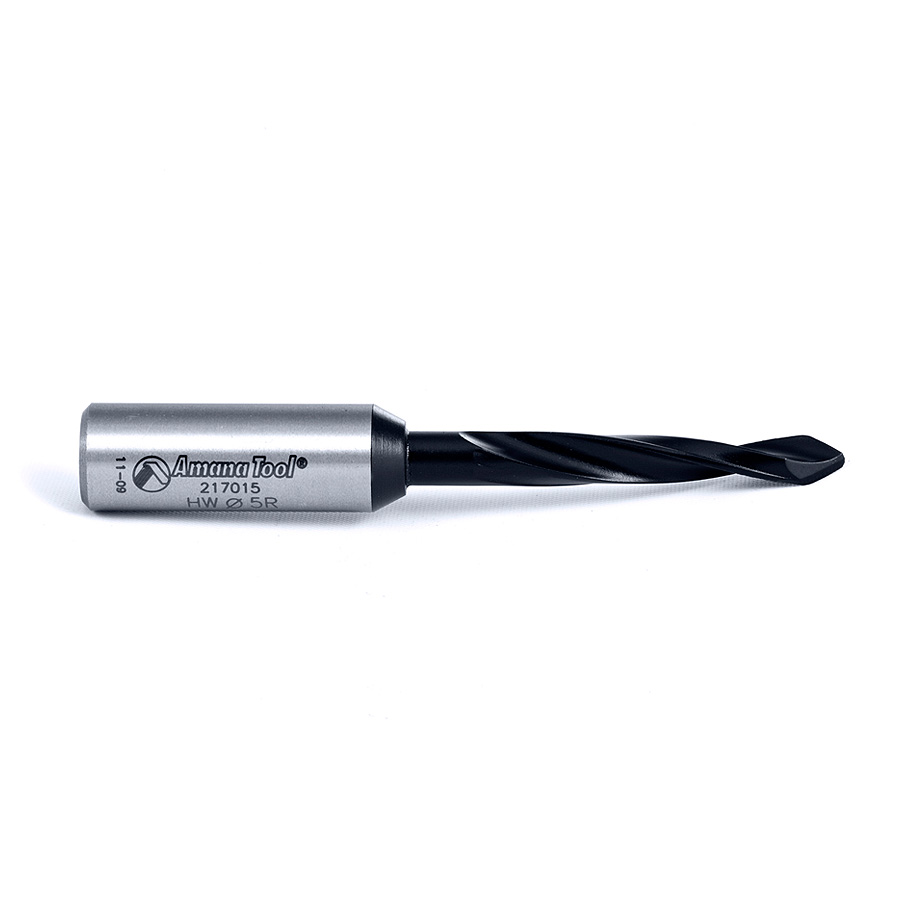

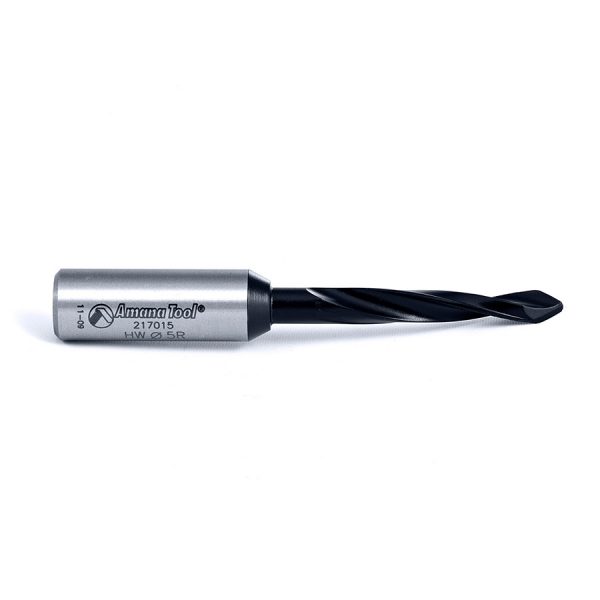

217015 Solid Carbide Through-Hole Dowel Drill Boring Bit R/H 5mm Dia x 70mm Long x 10mm Shank

Amana 217015 Solid Carbide Through-Hole Dowel Drill Boring Bit R/H 5mm Dia x 70mm Long x 10mm Shank

Name: Amana 217015 Solid Carbide Through-Hole Dowel Drill Boring Bit R/H 5mm Dia x 70mm Long x 10mm Shank
SKU: Amana 217015
Availability: InStock

Original price was: $38.35.Current price is: $26.85.

5MM SC THROUGH-HOLE R/H 70MM L

UPC: 738685217153 SKU: Amana 217015 Categories: Amana Tool, Boring & Drilling Bits, Solid Carbide Through-Hole Dowel Drills, Through-Hole Boring Bits

Item Description

Special solid carbide grade cutting flute for long lasting performance.

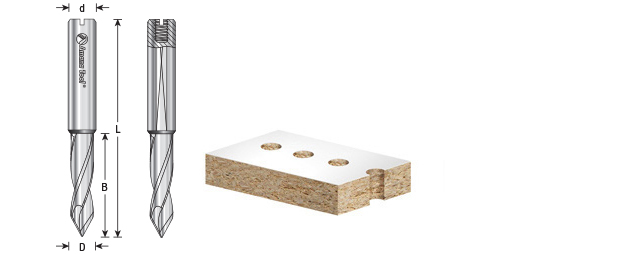

Specifications

(D) Diameter	5mm
(B) Cutting Height	30mm
(d) Shank	10mm
Overall Length (L)	70mm
Rotation	Right Hand

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Rotation	Tool No.
3mm	18mm	10mm	70mm	Right	217013
3mm	18mm	10mm	70mm	Left	317013
5mm	30mm	10mm	70mm	Left	317015
8mm	35mm	10mm	70mm	Right	217018

Weight	0.08 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
