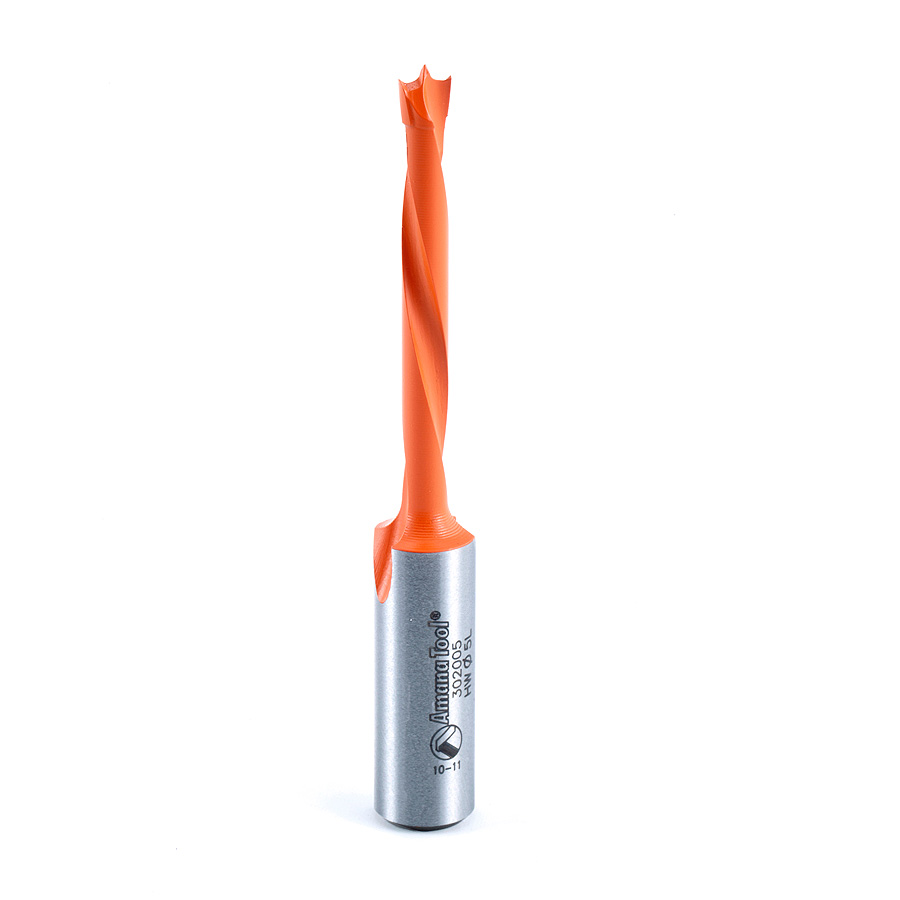

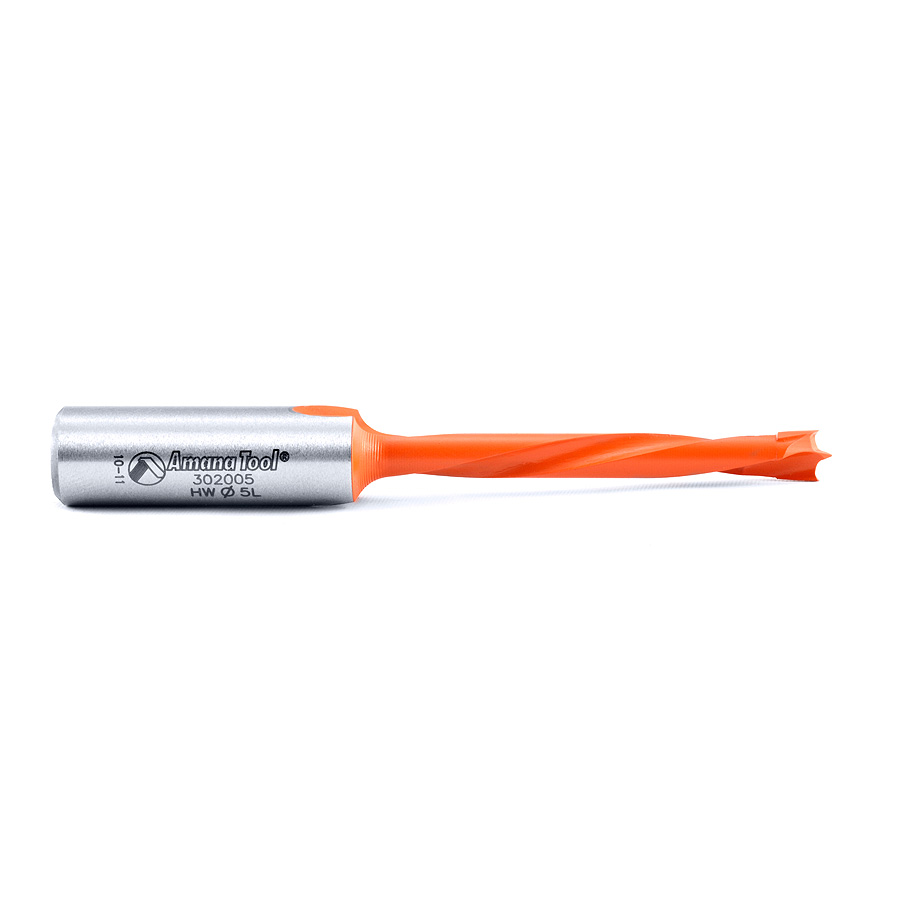

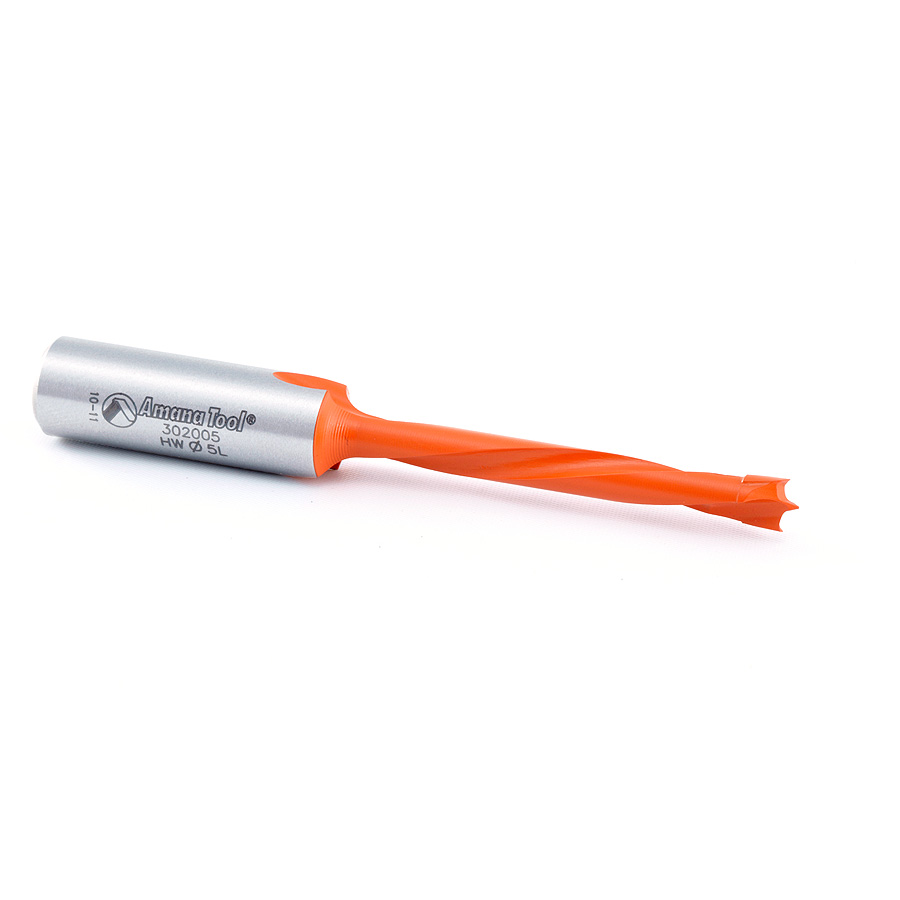

302005 Carbide Tipped Brad Point Boring Bit L/H 5mm Dia x 77mm Long x 10mm Shank

Amana 302005 Carbide Tipped Brad Point Boring Bit L/H 5mm Dia x 77mm Long x 10mm Shank

Name: Amana 302005 Carbide Tipped Brad Point Boring Bit L/H 5mm Dia x 77mm Long x 10mm Shank
SKU: Amana 302005
Availability: InStock

Original price was: $31.40.Current price is: $21.98.

5MM BRAD POINT L/H 77MM LONG.

UPC: 738685320051 SKU: Amana 302005 Categories: 77mm Long Brad Point Boring Bits, Amana Tool, Boring & Drilling Bits, Brad Point Boring Bits

Item Description

Industrial Brad Point Boring Bits are coated with a non-stick coating for longer lasting cutting edge and tool life.

Amana Tool® dowel drills are coated with a special Polytetrafluoroethylene (PTFE), a non-stick color coating. In cases where the carbide tip cutting edges are coated, there is no need to sand the coating off before use. Once the tool starts drilling, the coating is cleared off the needed cutting edge right away.

Amana’s coating is applied onto the bit at a temperature of 570° F. The coating reduces the friction between the chip and the body inside the flute and it helps to clear the chips out of the hole during the drilling creating a cooler drilling area, no burning and longer lasting cutting edge.

Specifications

(D) Diameter	5mm
(B) Cutting Height	44mm
(d) Shank	10mm
Overall Length (L)	77mm
Rotation	Left Hand

Other Sizes Available

(B) Cutting Height	(D) Diameter	(d) Shank	Overall Length (L)	Rotation	Tool No.
44mm	4mm	10mm	77mm	Right	202004
44mm	4mm	10mm	77mm	Left	302004
44mm	5mm	10mm	77mm	Right	202005
44mm	5.2mm	10mm	77mm	Right	202052
44mm	7mm	10mm	77mm	Right	202070
44mm	8mm	10mm	77mm	Right	202008
44mm	8mm	10mm	77mm	Left	302008
44mm	8.2mm	10mm	77mm	Right	202082
44mm	8.2mm	10mm	77mm	Left	302082
44mm	10mm	10mm	77mm	Right	202010
44mm	12mm	10mm	77mm	Right	202012

Weight	0.05 lbs
