Sale!

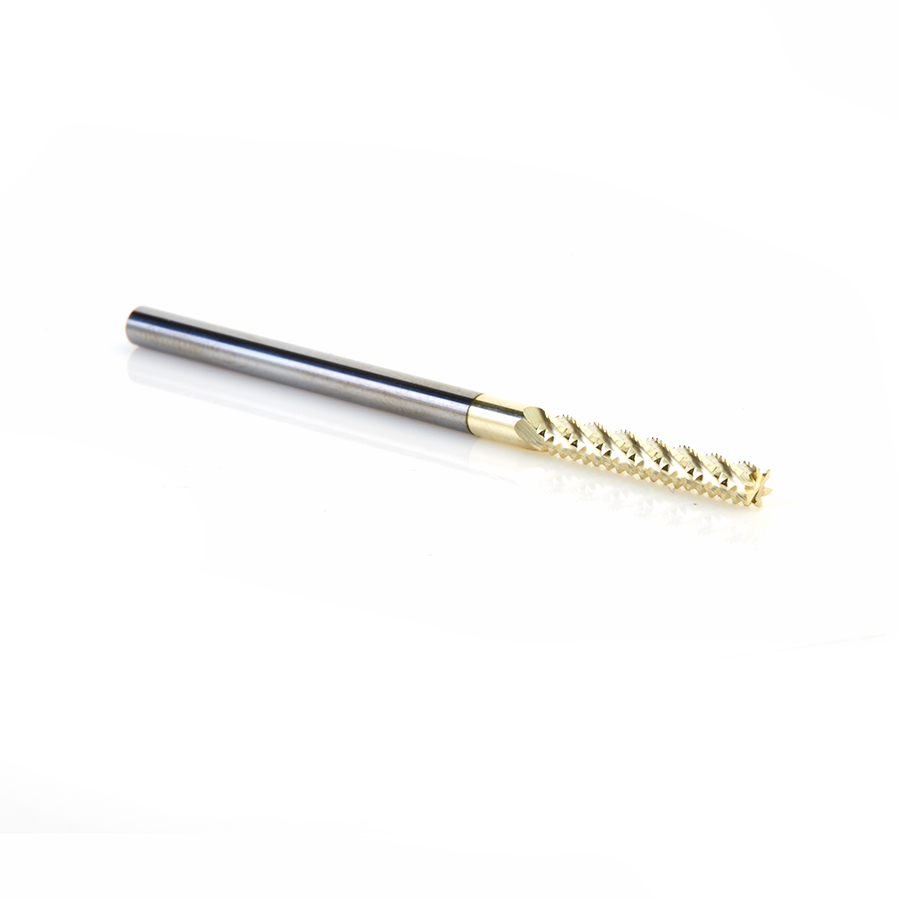

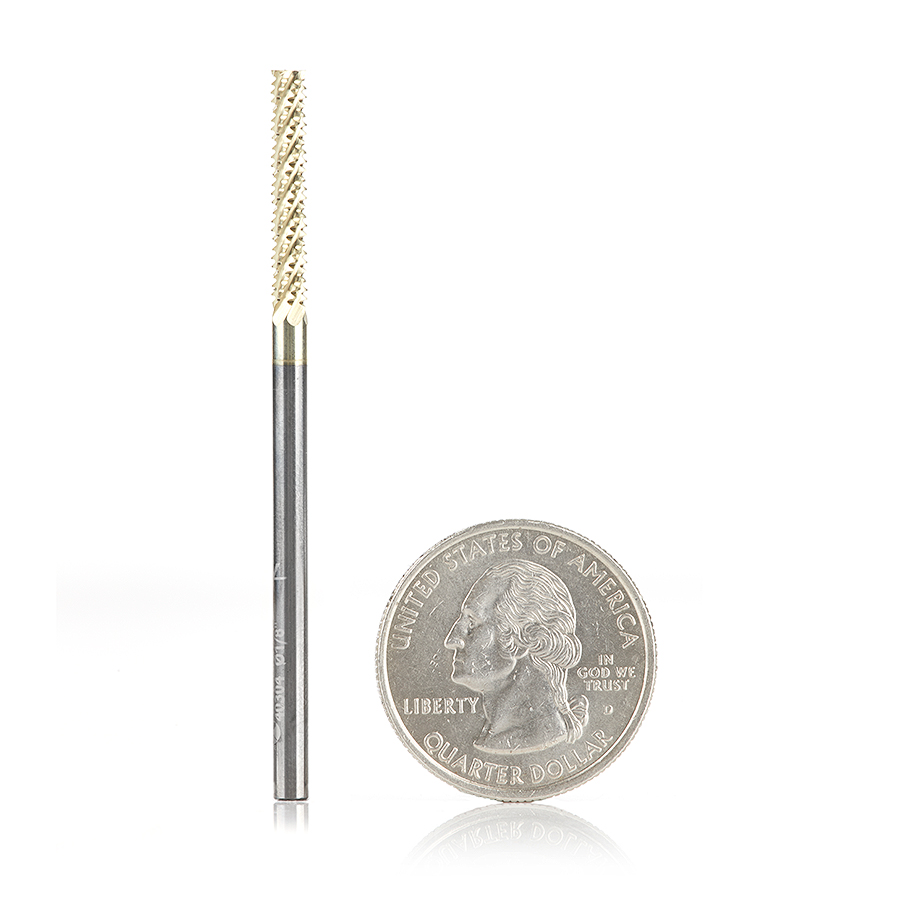

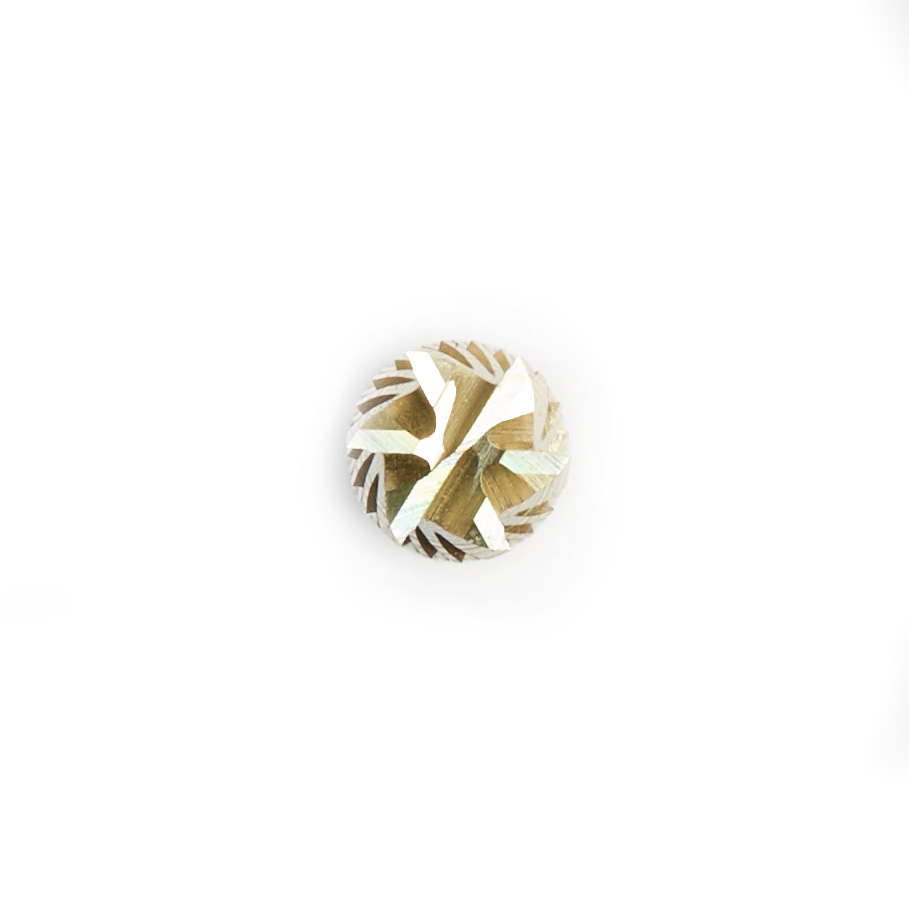

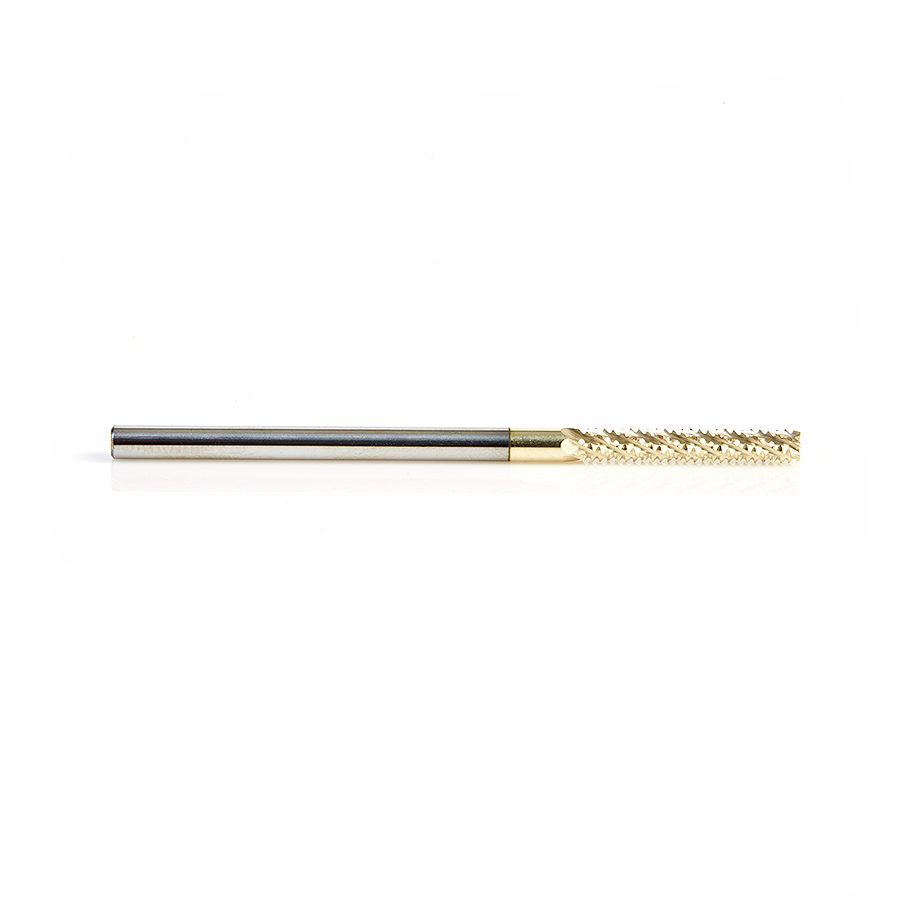

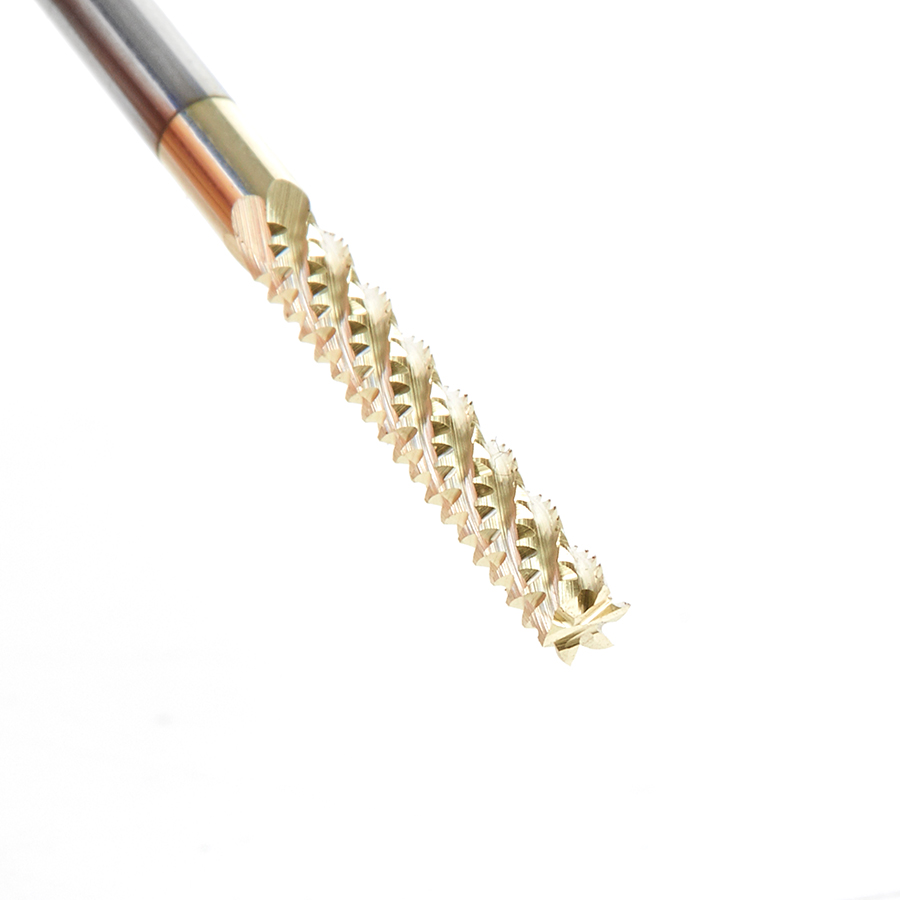

40304 CNC Solid Carbide ZrN Coated Honeycomb Cutting Hogger 1/8 Dia x 13/16 x 1/8 Shank x 2-1/2 Inch Long x 6-Flute

Amana 40304 CNC Solid Carbide ZrN Coated Honeycomb Cutting Hogger 1/8 Dia x 13/16 x 1/8 Shank x 2-1/2 Inch Long x 6-Flute

Name: Amana 40304 CNC Solid Carbide ZrN Coated Honeycomb Cutting Hogger 1/8 Dia x 13/16 x 1/8 Shank x 2-1/2 Inch Long x 6-Flute
SKU: Amana 40304
Availability: InStock

Original price was: $86.25.Current price is: $64.69.

1/8 ZrN HONEYCOMB HOGGER BIT

UPC: 738685403044 SKU: Amana 40304 Categories: Amana Tool, CNC Router Bits - Industrial CNC Tooling, Honeycomb Cutting CNC Router Bits, Solid Carbide Spiral Honeycomb Hogger CNC Router Bits

Item Description

Designed to cut a large variety of honeycomb materials, hogger geometry is excellent for shredding and chip evacuation while maintaining a smooth surface.

Amana Tool’s “hogger” style routers for honeycomb composites incorporate a precision-ground “knuckle” profile, allowing a freer-cutting action that reduces power requirements and less sidewall pressure in low output spindles while giving impressive gains in feed-rates. ZrN coating greatly enhances durability in highly abrasive composites.

Excellent for cutting:

Honeycomb
Composite Materials
Acrylonitrile-Butadiene-Styrene (ABS)
Lexan™
Pressed Cardboard
Vegetable Material

Benefits of ZrN Coating:

Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
High resistance to wear
Extended tool life
Less friction & heat buildup
High resistance to wear

Please note:**For optimal results and to extend tool life please use mist lubricant system or air cooling.Please inspect cut and adjust accordingly.

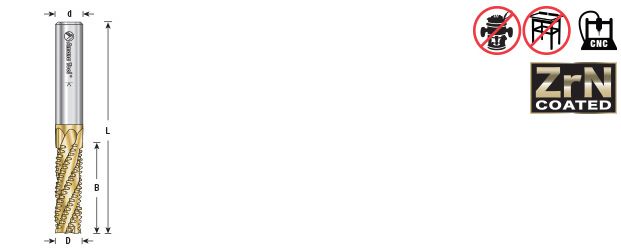

Specifications

(D) Diameter	1/8
(B) Cutting Height	13/16
(d) Shank	1/8
Overall Length (L)	2-1/2
Max RPM	25,000
Flutes	6

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Tool No.
1/4 (6.35mm)	1-1/4	1/4 (6.35mm)	4 (101.60mm)	6	46306
3/8 (9.53mm)	2 (50.80mm)	3/8 (9.53mm)	4 (101.60mm)	8	46305
1/2 (12.70mm)	3 (76.20mm)	1/2 (12.70mm)	6 (152.40mm)	8	46309

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
