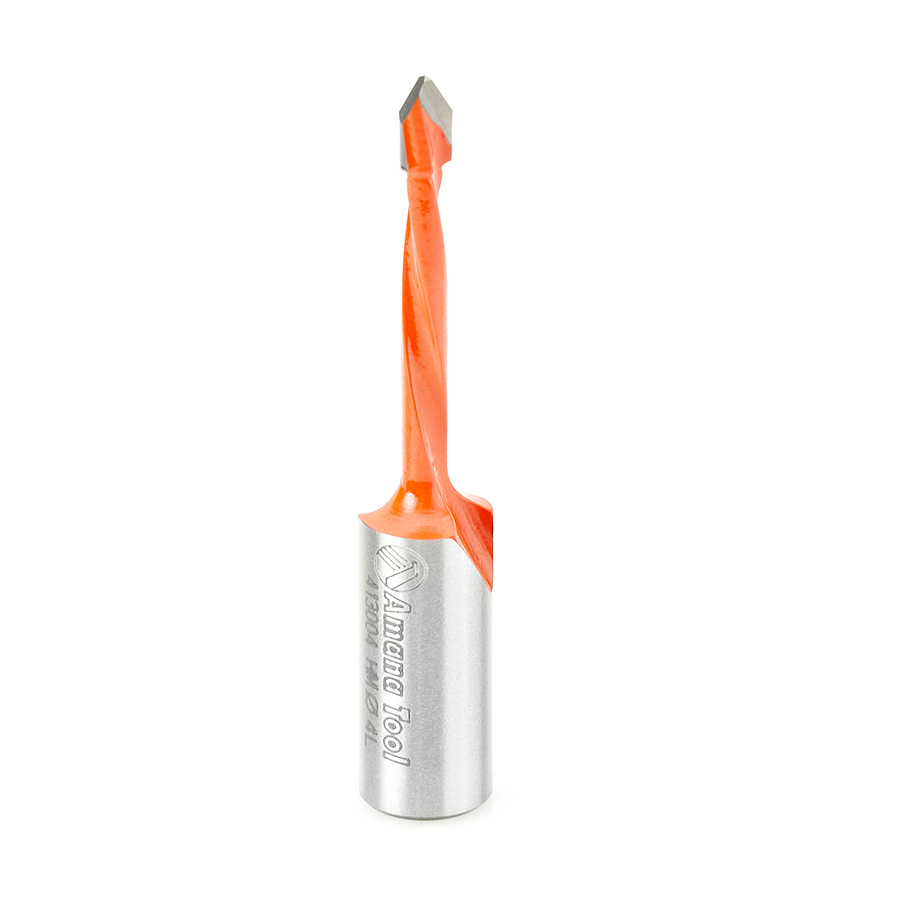

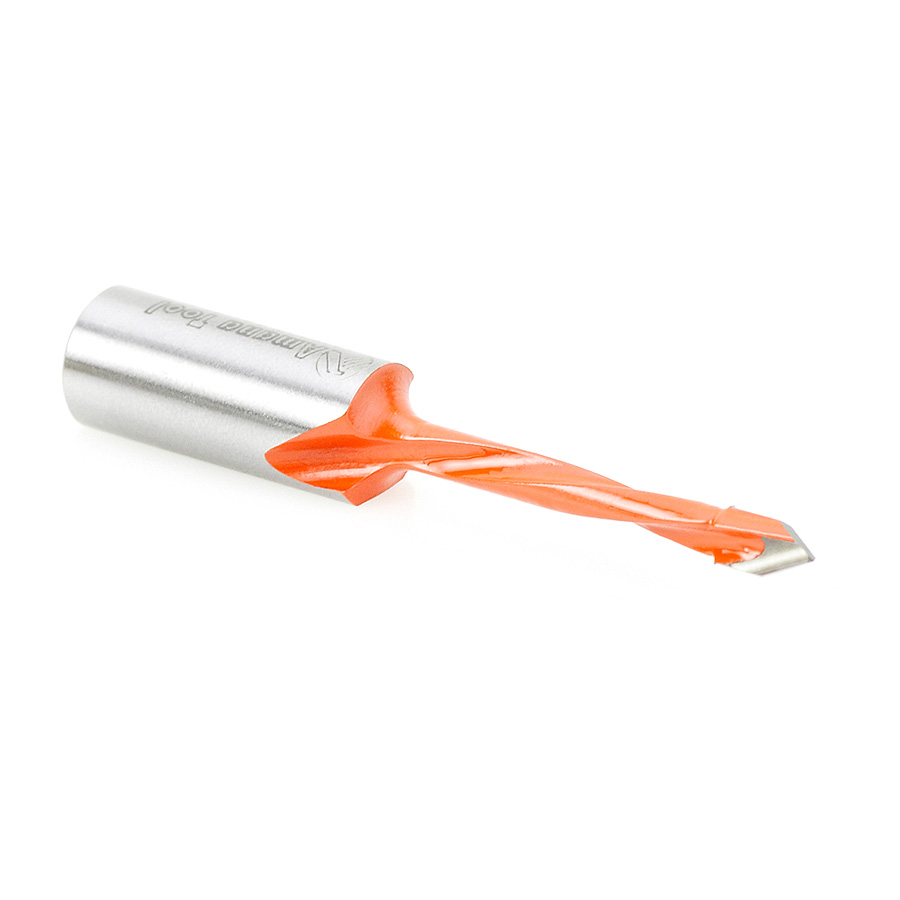

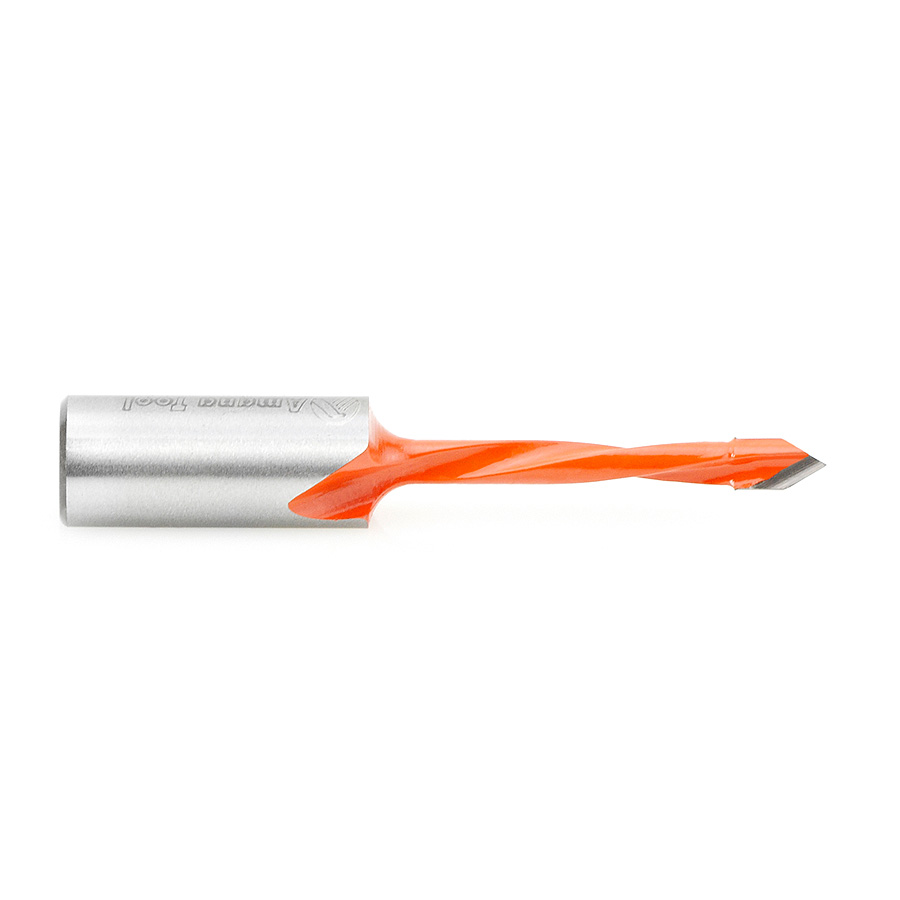

413004 Carbide Tipped Through-Hole Boring Bit L/H 4mm Dia x 58mm Long x 10mm Shank

Amana 413004 Carbide Tipped Through-Hole Boring Bit L/H 4mm Dia x 58mm Long x 10mm Shank

Name: Amana 413004 Carbide Tipped Through-Hole Boring Bit L/H 4mm Dia x 58mm Long x 10mm Shank
SKU: Amana 413004
Availability: InStock

Original price was: $36.25.Current price is: $25.38.

4MM THROUGH-HOLE L/H 57MM LONG

UPC: 738685400319 SKU: Amana 413004 Categories: 57mm Long Through-Hole Boring Bits, Amana Tool, Boring & Drilling Bits, Through-Hole Boring Bits

Item Description

Industrial Through-Hole with V-Point Boring Bits are coated with a non-stick coating for longer lasting cutting edge and tool life.

Amana Tool® dowel drills are coated with a special Polytetrafluoroethylene (PTFE), a non-stick color coating. In cases where the carbide tip cutting edges are coated, there is no need to sand the coating off before use. Once the tool starts drilling, the coating is cleared off the needed cutting edge right away.

Amana’s coating is applied onto the bit at a temperature of 570° F. The coating reduces the friction between the chip and the body inside the flute and it helps to clear the chips out of the hole during the drilling creating a cooler drilling area, no burning and longer lasting cutting edge.

Specifications

(D) Diameter	4mm
(B) Cutting Height	35mm
(d) Shank	10mm
Overall Length (L)	57mm
Rotation	Left Hand

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Rotation	Tool No.
4mm	35mm	10mm	57mm	Right	313004
5mm	35mm	10mm	57mm	Right	313005
5mm	35mm	10mm	57mm	Left	413005
6mm	35mm	10mm	57mm	Left	413006
1/4 (6.35mm)	35mm	10mm	57mm	Left	413007
7mm	35mm	10mm	57mm	Right	313070
7mm	35mm	10mm	57mm	Left	413070
8mm	35mm	10mm	57mm	Right	313008
8mm	35mm	10mm	57mm	Left	413008
9mm	35mm	10mm	57mm	Left	413090
3/8 (9.53mm)	35mm	10mm	57mm	Right	313009
3/8 (9.53mm)	35mm	10mm	57mm	Left	413009
10mm	35mm	10mm	57mm	Right	313010
10mm	35mm	10mm	57mm	Left	413010
12mm	35mm	10mm	57mm	Left	413012
1/2 (12.70mm)	35mm	10mm	57mm	Left	413013

Weight	0.05 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
