Sale!

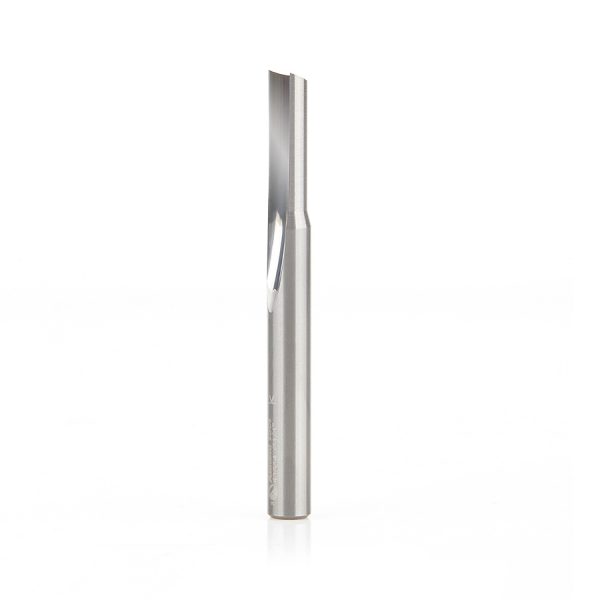

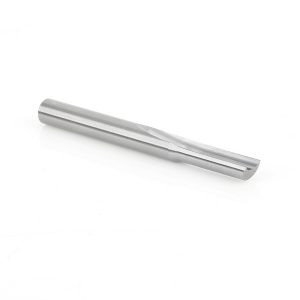

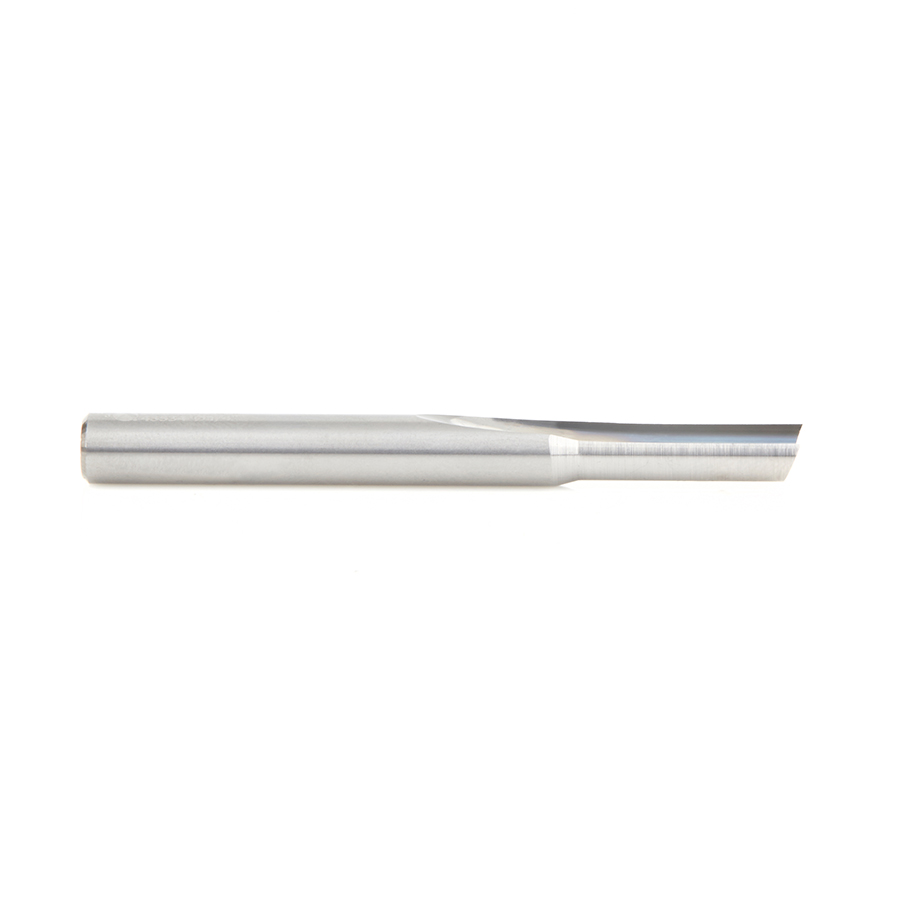

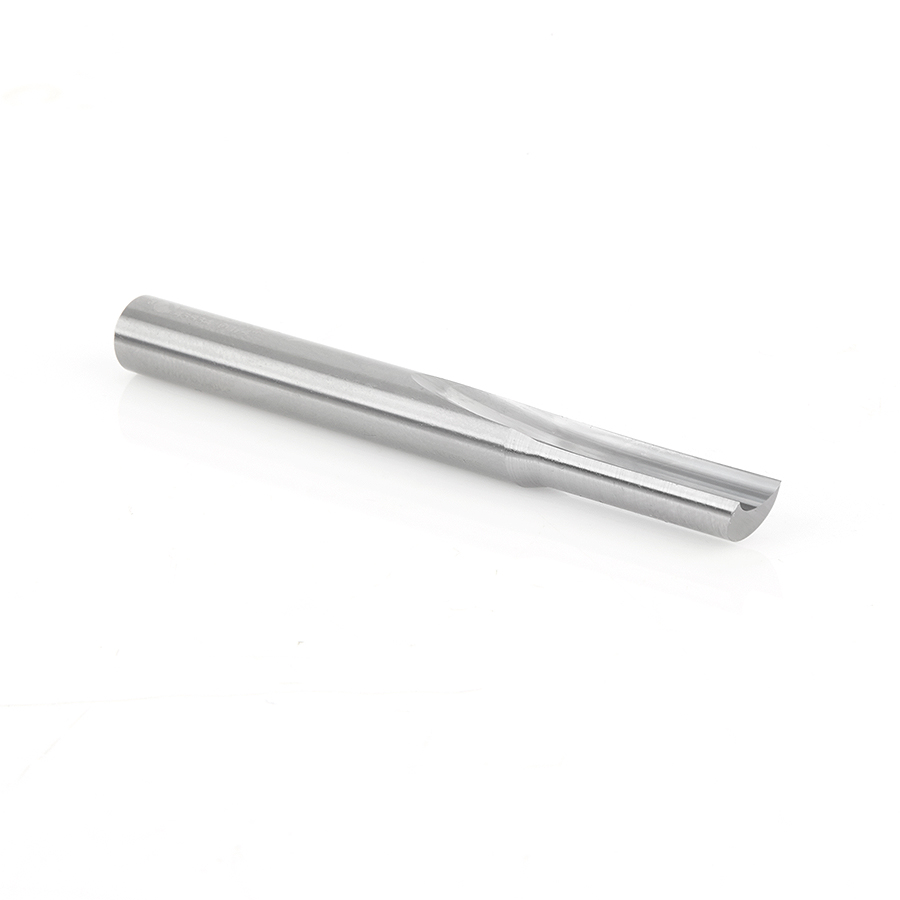

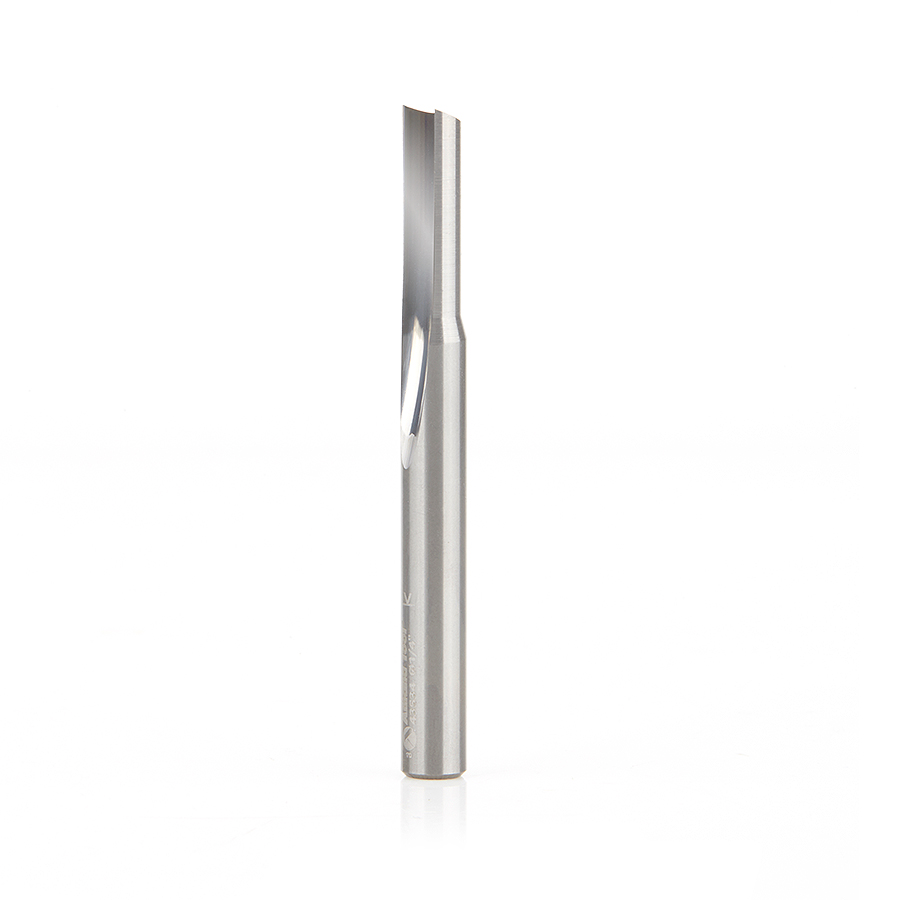

Amana 43534 Solid Carbide Single ‘O’ Flute Straight Grind Aluminum Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank

Name: Amana 43534 Solid Carbide Single 'O' Flute Straight Grind Aluminum Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank
SKU: Amana 43534
Availability: InStock

Original price was: $55.90.Current price is: $41.93.

1/4″ SC 1FL STRAIGHT ALUMINUM

UPC: 738685435342 SKU: Amana 43534 Categories: Aluminum/Non Ferrous Metal Cutting Router Bits, Amana Tool, Router Bits, Solid Carbide Single 'O' Flute Straight Grind Aluminum Cutting Router Bits

Item Description

Combining “mirror finished” fluting which insures the best of cutting edges possible in a solid carbide tool, along with a strong, straight-fluted design, these aggressive ‘O’ flute tools will give longer tool life.

Excellent for Cutting:

Aluminum
Fomex® with Aluminum Face
Natural Wood

Specifications

Diameter (D)	1/4
Cutting Height (B)	3/4
Shank (d)	1/4
Overall Length (L)	2-1/2
Flutes	1

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	43530
1/8 (3.18mm)	13/16 (20.64mm)	1/4 (6.35mm)	2 (50.80mm)	1	43531
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	43532
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	1	43539

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
