Sale!

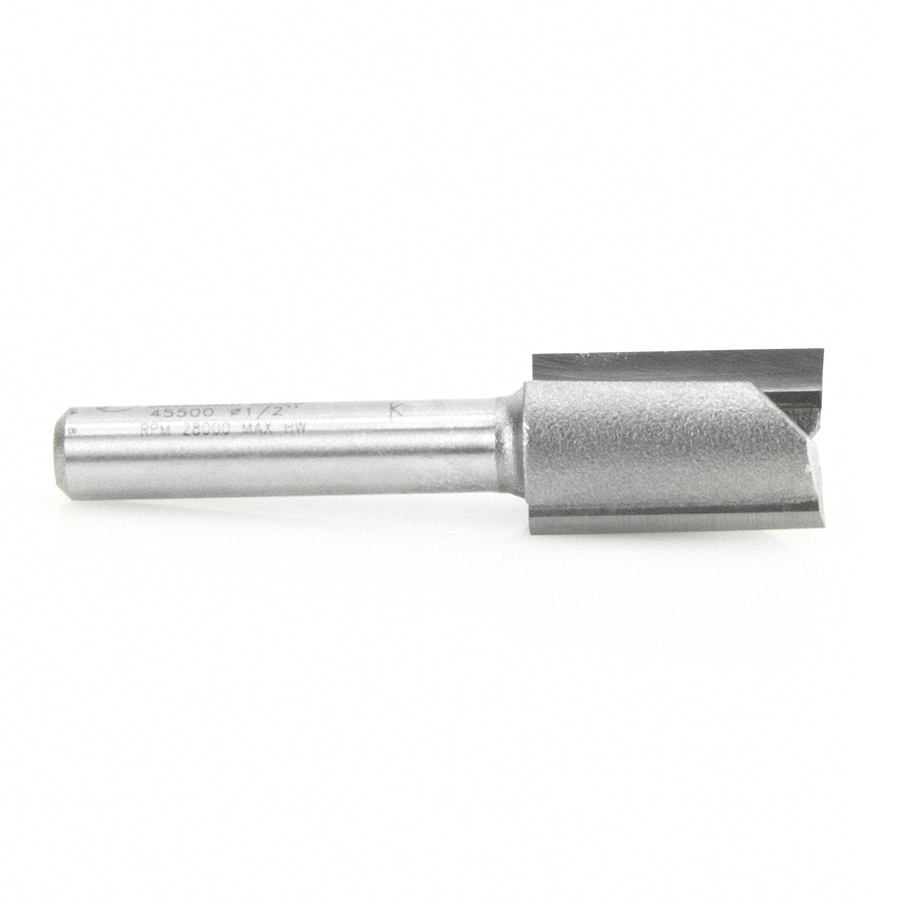

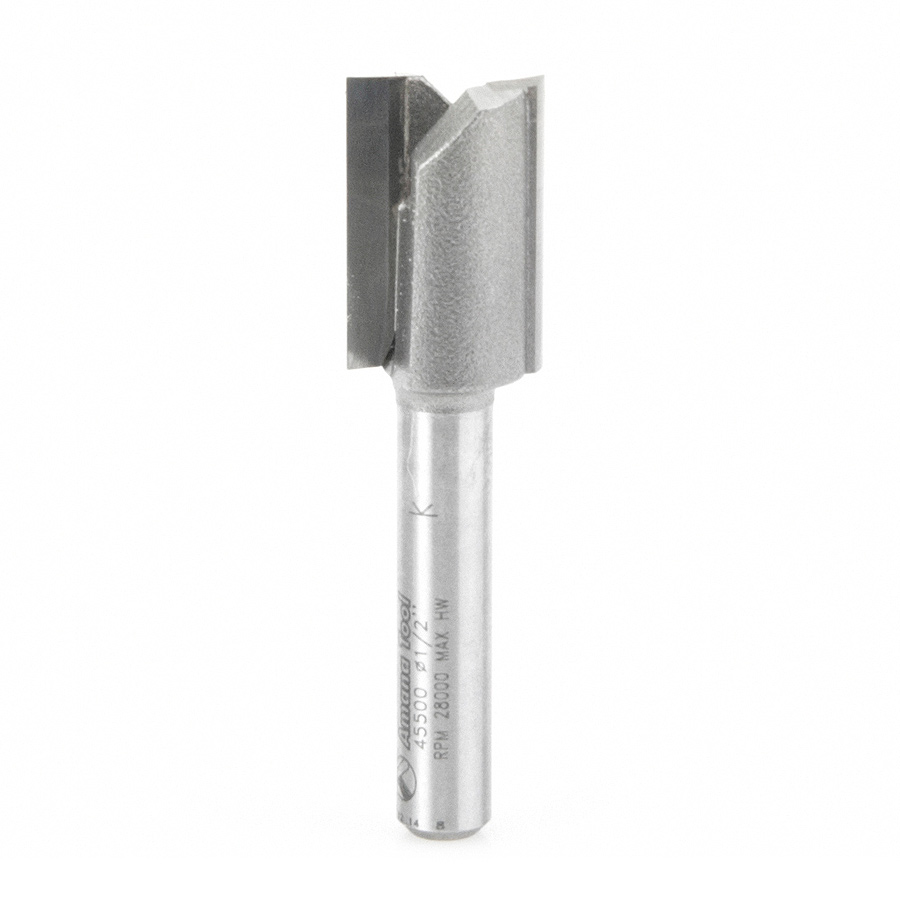

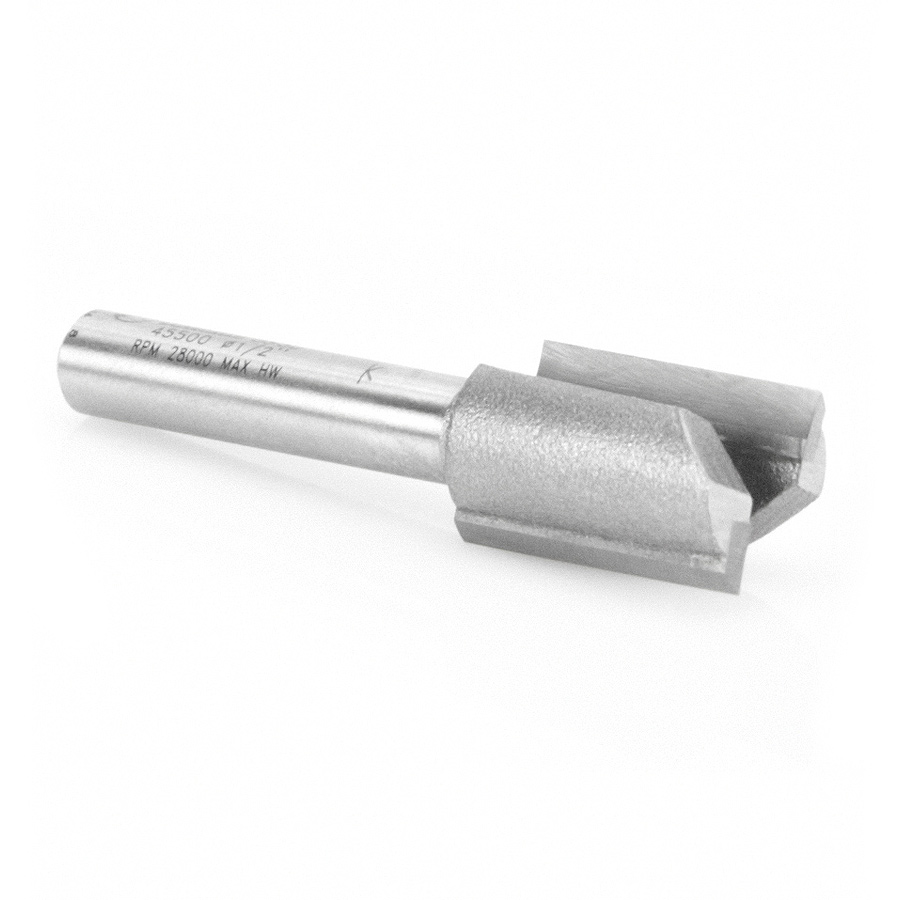

45500 Carbide Tipped Mortising 1/2 Dia x 3/4 x 1/4 Inch Shank

Amana 45500 Carbide Tipped Mortising 1/2 Dia x 3/4 x 1/4 Inch Shank

Name: Amana 45500 Carbide Tipped Mortising 1/2 Dia x 3/4 x 1/4 Inch Shank
SKU: Amana 45500
Availability: InStock

Original price was: $32.85.Current price is: $24.64.

MORTISING 1/2 DIA. 1/4 SHANK

UPC: 738685855003 SKU: Amana 45500 Categories: Amana Tool, Mortising Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

Cutting mortises for hinges and locks can be challenging; the mortise depth must be accurate for smooth operation and the edges must be sharp for a clean, professional installation. These mortise bits make hardware installation a snap. The large gullet between the two flutes clears chips away quickly and the cutter geometry creates a crisp outline for a perfect fit.

Specifications

Diameter (D)	1/2
Cutting Height (B)	3/4
Shank (d)	1/4
Overall Length (L)	2
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412-5
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415-5
1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45500-5
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45502
3/4 (19.05mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/4	2	45181
3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45504
1-1/4	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	2	45183
1-1/4	3/4 (19.05mm)	1/2 (12.70mm)	2-1/4	2	45505

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
