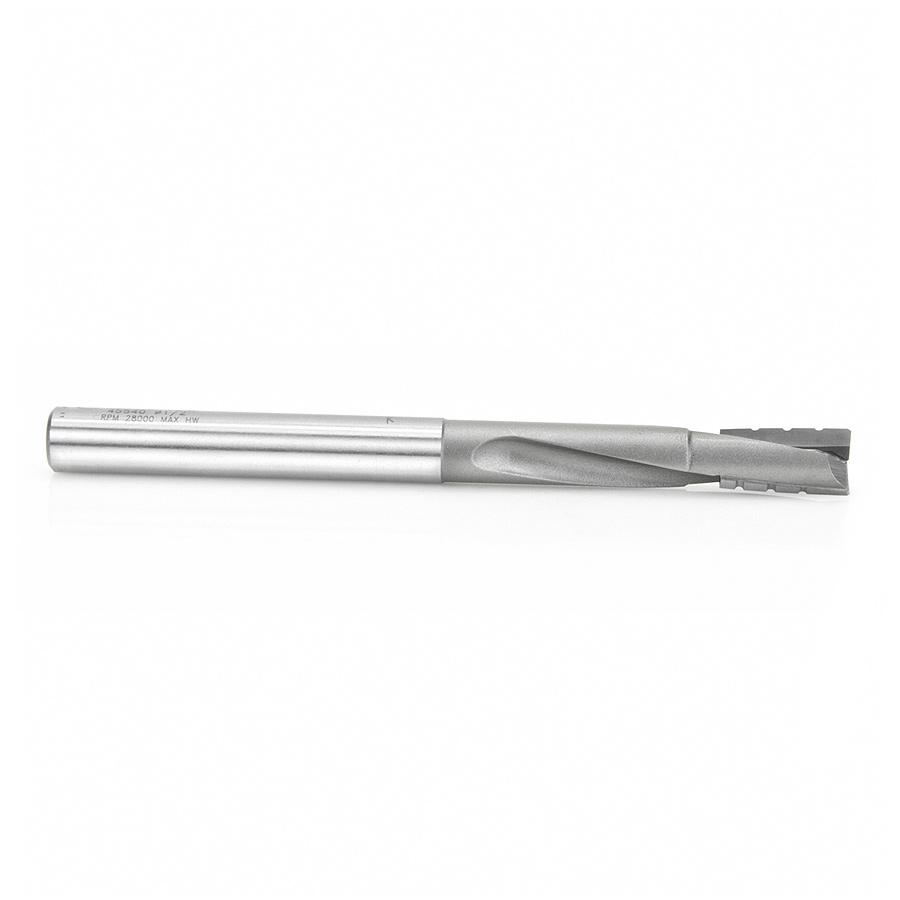

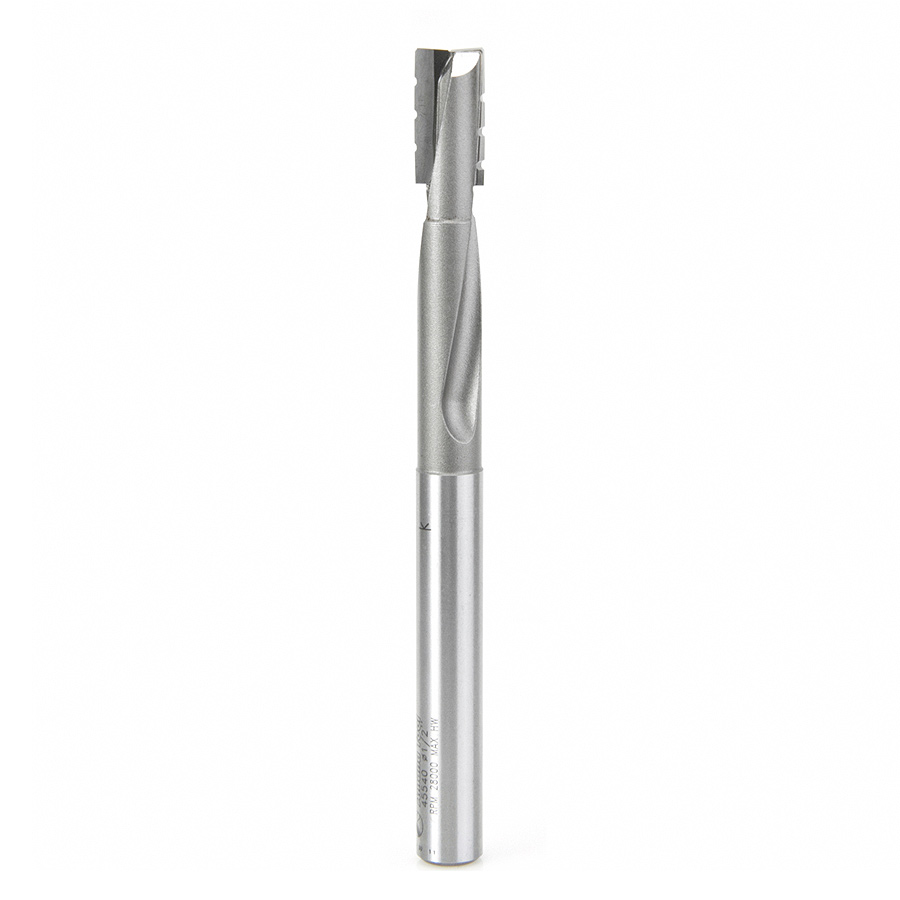

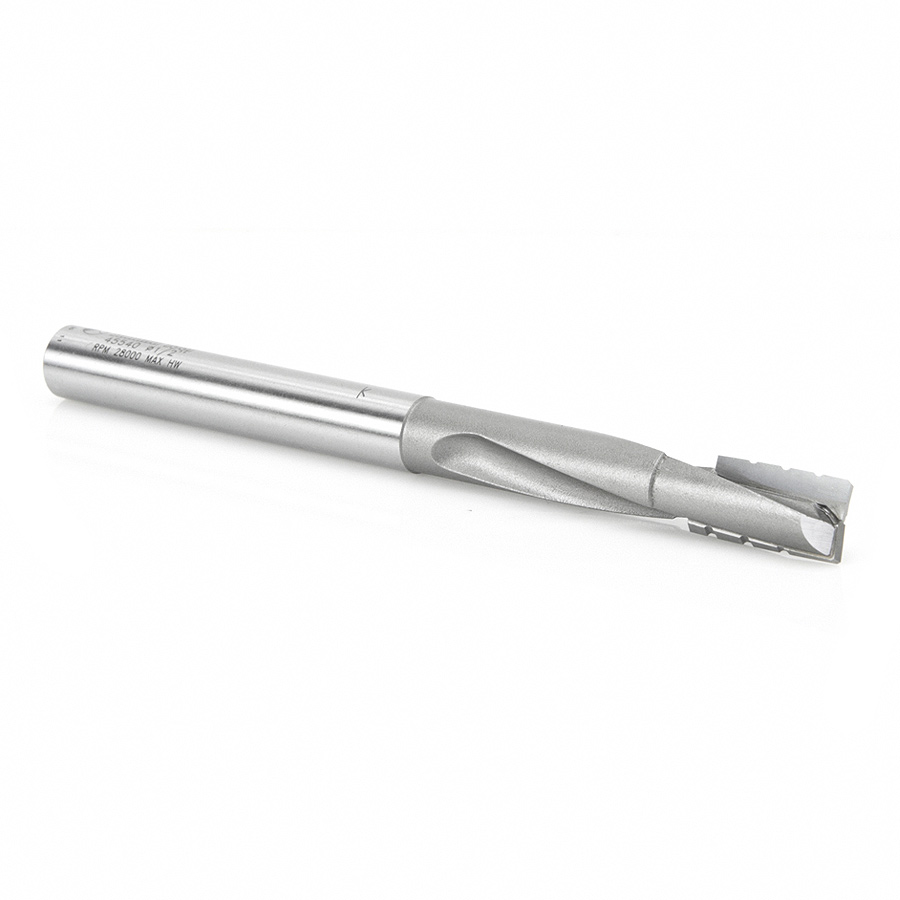

45540 Carbide Tipped Up-Shear Bit Slot Mortiser 1/2 Dia x 1 Inch x 1/2 Shank

Amana 45540 Carbide Tipped Up-Shear Bit Slot Mortiser 1/2 Dia x 1 Inch x 1/2 Shank

Name: Amana 45540 Carbide Tipped Up-Shear Bit Slot Mortiser 1/2 Dia x 1 Inch x 1/2 Shank
SKU: Amana 45540
Availability: InStock

Original price was: $108.75.Current price is: $81.57.

MORTISING 1/2″ DIA. 1/2″ SHANK

UPC: 738685455401 SKU: Amana 45540 Categories: Amana Tool, Mortising Router Bits, Router Bits, Straight Plunge Router Bits Tag: Superior Geometric Design

Item Description

These bits are designed to do deep slot and holes for tenon, especially in doors, chairs, tables etc. Special carbide with a 1″ long up-shear and chipbreaker for fast cuts and chip clearance. For use in lock mortising machines and door machines.

Warning:****DO NOT USE THESE BITS ON A DRILL PRESS MACHINE****UNDER ANY CIRCUMSTANCES!

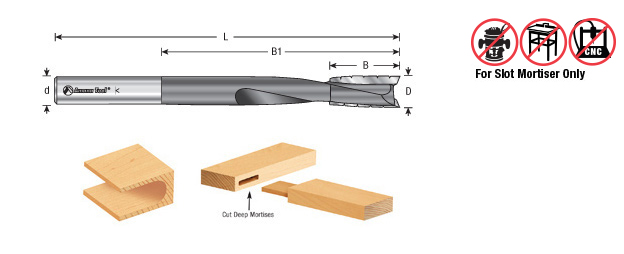

Specifications

Diameter (D)	1/2
Cutting Height (B)	1
B1	2-3/4
Shank (d)	1/2
Overall Length (L)	6
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Tool No.
5/8 (15.88mm)	1 (25.40mm)	4-3/4	1/2 (12.70mm)	6-5/8	45542
3/4 (19.05mm)	1 (25.40mm)	4-3/4	1/2 (12.70mm)	6-5/8	45544

Weight	0.44 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
