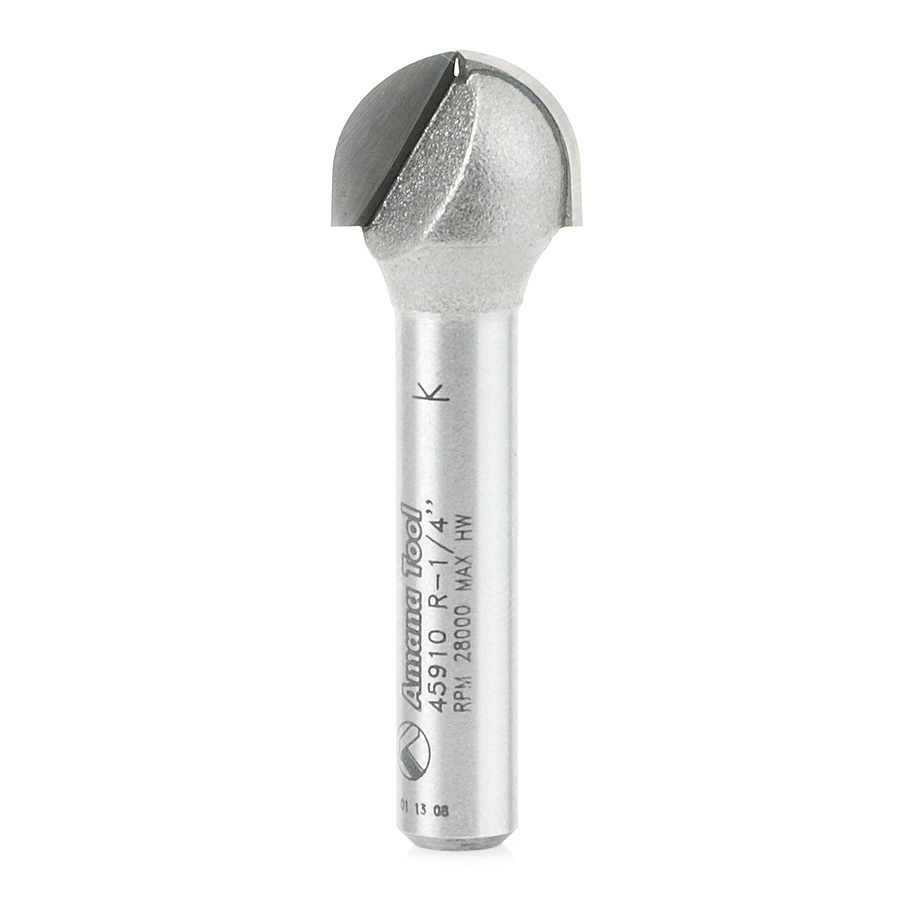

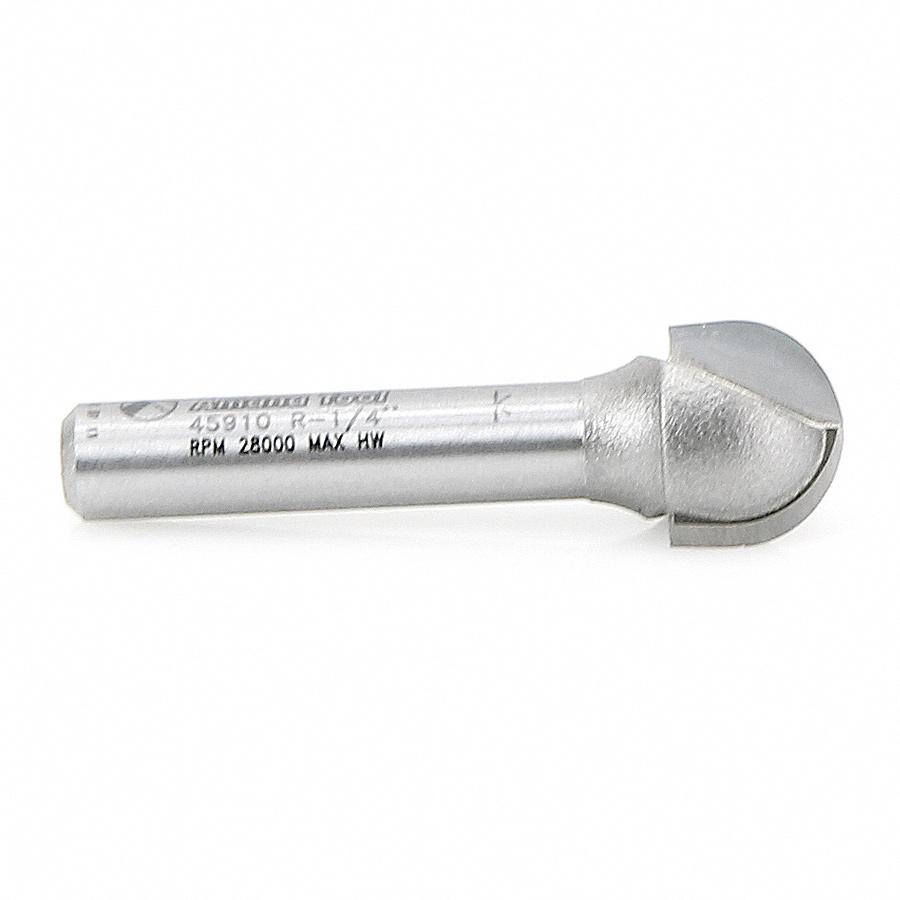

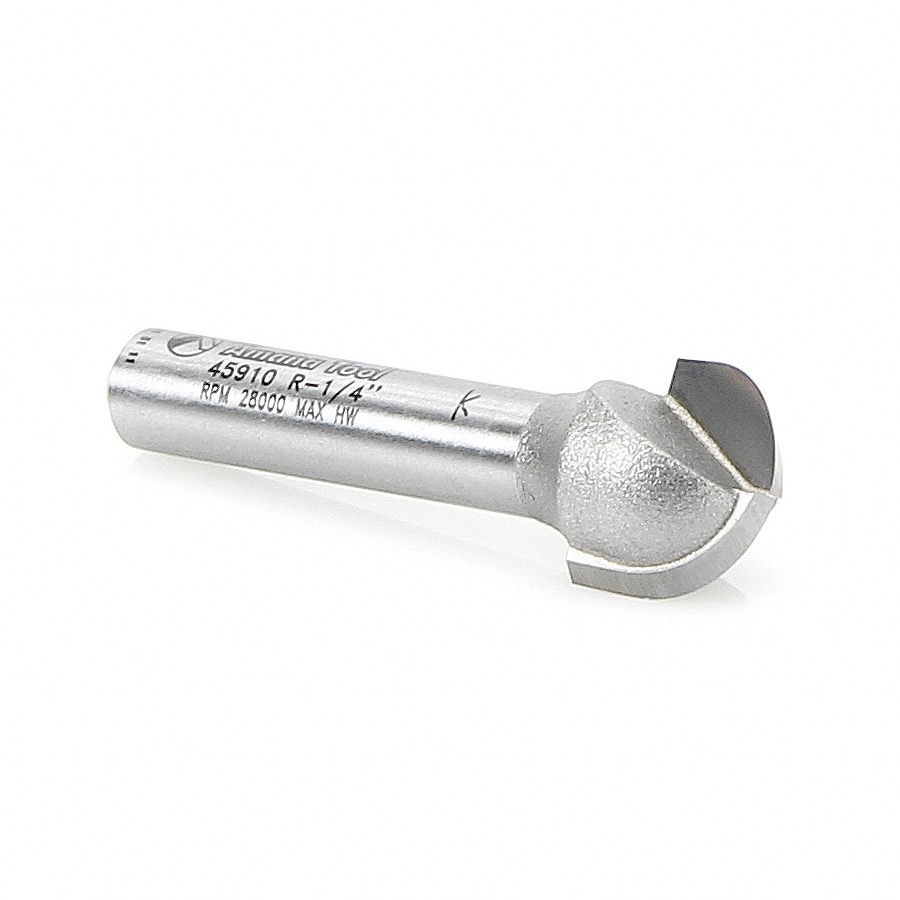

45910 Carbide Tipped Core Box 1/4 Radius x 1/2 Dia x 3/8 x 1/4 Inch Shank

Amana 45910 Carbide Tipped Core Box 1/4 Radius x 1/2 Dia x 3/8 x 1/4 Inch Shank

Name: Amana 45910 Carbide Tipped Core Box 1/4 Radius x 1/2 Dia x 3/8 x 1/4 Inch Shank
SKU: Amana 45910
Availability: InStock

Original price was: $54.05.Current price is: $40.54.

CORE BOX 1/4 RADIUS 1/4 SHANK

UPC: 738685859100 SKU: Amana 45910 Categories: Amana Tool, Core Box Router Bits, Profiling Router Bits, Router Bits

Item Description

Cut half-round grooves for fluted moldings, columns, millwork and signs using a core box bit. Used with an edge guide, it can cut coves. Can be used with handheld, table-mounted and CNC routers. Perfect for making flutes on CNC machines.

Perfect for juice groove in cutting boards.

Excellent for cutting:

H igh Density Urethane (HDU Board)
Laminate
MDF
Softwood/Hardwood
Veneered Plywood

Vectric compatible tool file for 45910 available for download,click here.

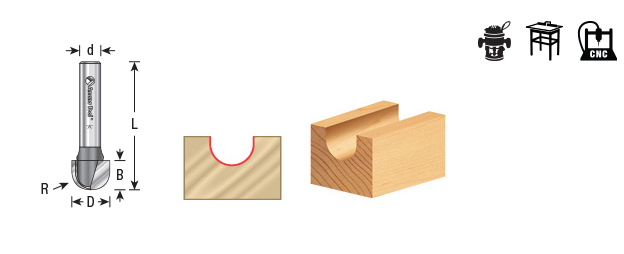

Specifications

Diameter (D)	1/2
Radius (R)	1/4
Cutting Height (B)	3/8
Shank (d)	1/4
Overall Length (L)	1-1/2
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Type	Replacement Collar	Replacement Bearing	Tool No.
1/8 (3.18mm)	1/16 (1.59mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-3/4	2	–	–	–	45900
3/16 (4.76mm)	3/32 (2.38mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-3/4	2	–	–	–	45902
1/4 (6.35mm)	1/8 (3.18mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-5/8	2	–	–	–	45904
1/4 (6.35mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-1/4	2	–	–	–	45911
1/4 (6.35mm)	1/8 (3.18mm)	7/32 (5.56mm)	1/4 (6.35mm)	1-1/2	—-	–	–	–	MRB0604
5/16 (7.94mm)	5/32 (3.97mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	–	–	45903
5/16 (7.94mm)	5/32 (3.97mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-5/8	2	–	–	–	45905
3/8 (9.53mm)	3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	–	–	45901
3/8 (9.53mm)	3/16 (4.76mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	2	–	–	–	45906
3/8 (9.53mm)	3/16 (4.76mm)	1/4 (6.35mm)	1/2 (12.70mm)	2 (50.80mm)	2	–	–	–	45908
1/2 (12.70mm)	1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/4	2	–	–	–	45907
1/2 (12.70mm)	1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-1/2	2	–	–	–	45910-5
1/2 (12.70mm)	1/4 (6.35mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-1/8	2	–	–	–	45912
1/2 (12.70mm)	1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	2	Core Box	47724	47701	45950
5/8 (15.88mm)	5/16 (7.94mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	–	–	45909
5/8 (15.88mm)	5/16 (7.94mm)	7/16 (11.11mm)	1/4 (6.35mm)	1-5/8	2	–	–	–	45914
5/8 (15.88mm)	5/16 (7.94mm)	7/16 (11.11mm)	1/2 (12.70mm)	2 (50.80mm)	2	–	–	–	45916
3/4 (19.05mm)	3/8 (9.53mm)	7/16 (11.11mm)	1/4 (6.35mm)	1-3/4	2	–	–	–	45918
3/4 (19.05mm)	3/8 (9.53mm)	7/16 (11.11mm)	1/2 (12.70mm)	2 (50.80mm)	2	–	–	–	45920
7/8 (22.23mm)	7/16 (11.11mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-1/4	2	–	–	–	45922
1 (25.40mm)	1/2 (12.70mm)	5/8 (15.88mm)	1/4 (6.35mm)	1-3/4	2	–	–	–	45924
1 (25.40mm)	1/2 (12.70mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-1/8	2	–	–	–	45926
1-1/4	5/8 (15.88mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-5/16	2	–	–	–	45928

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
