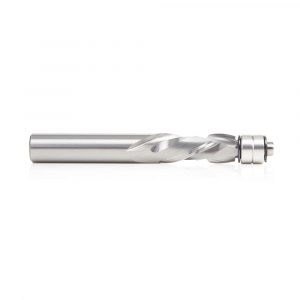

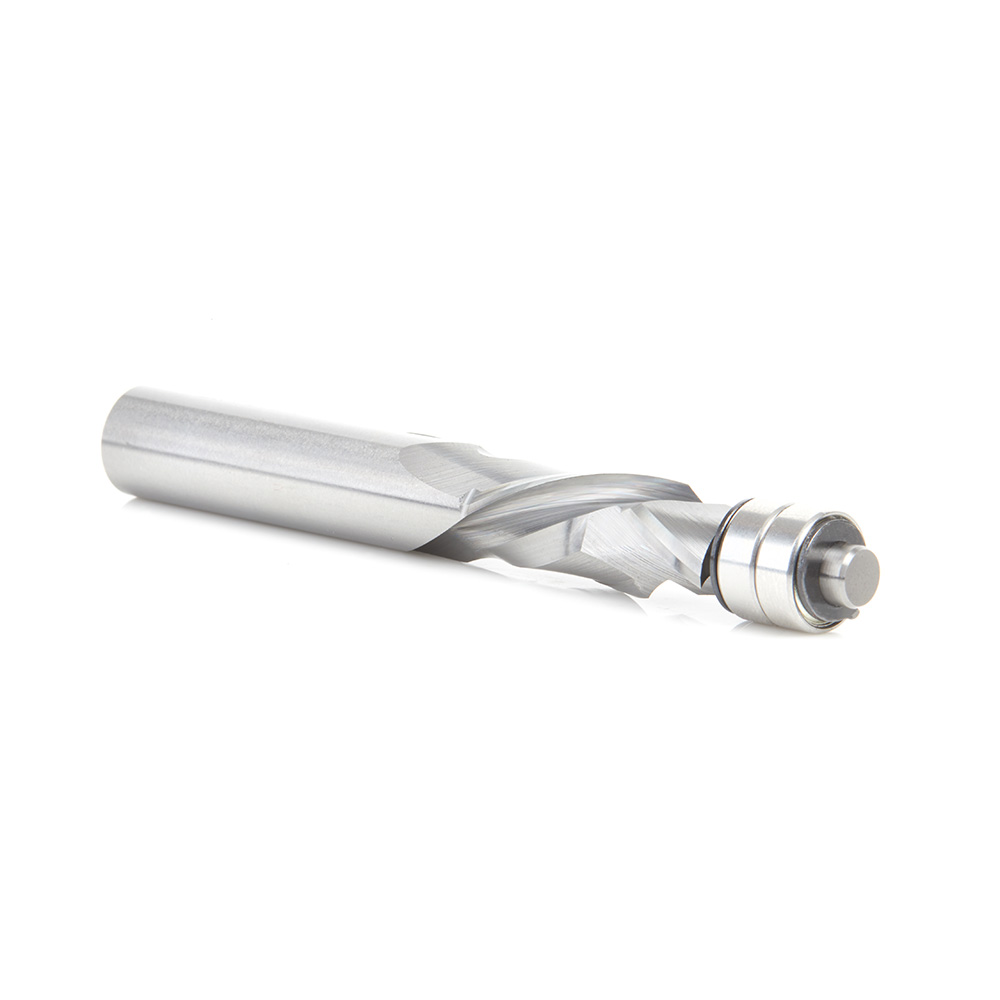

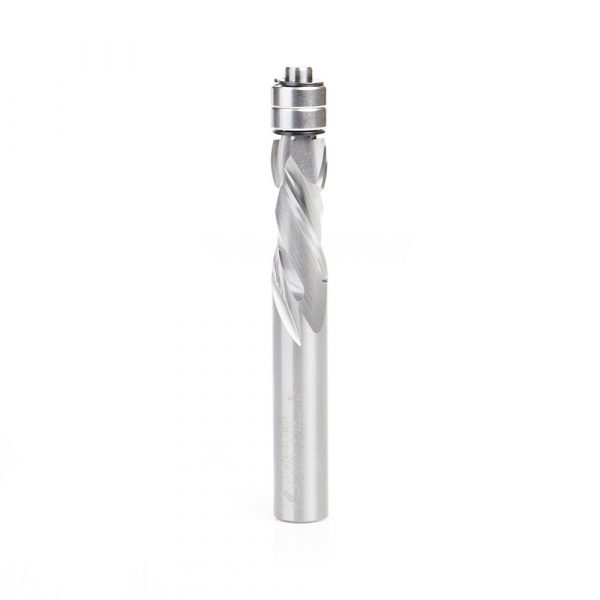

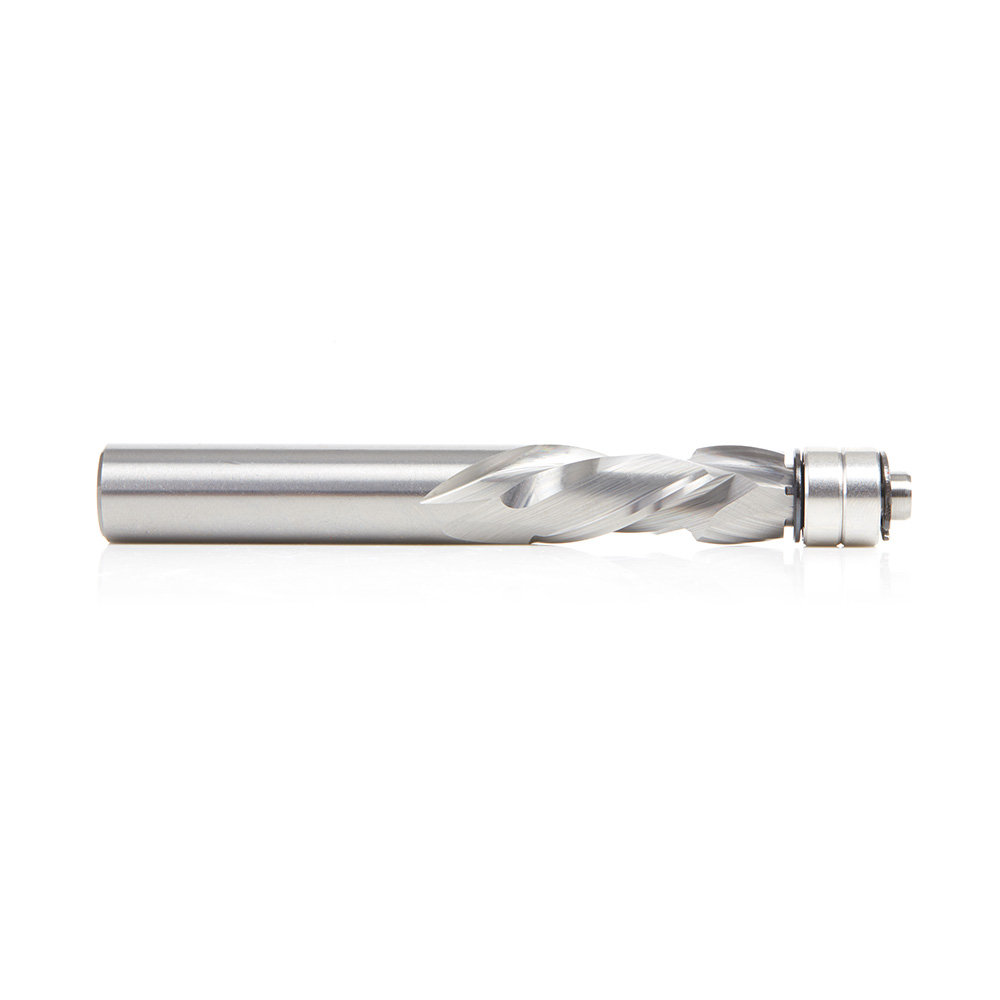

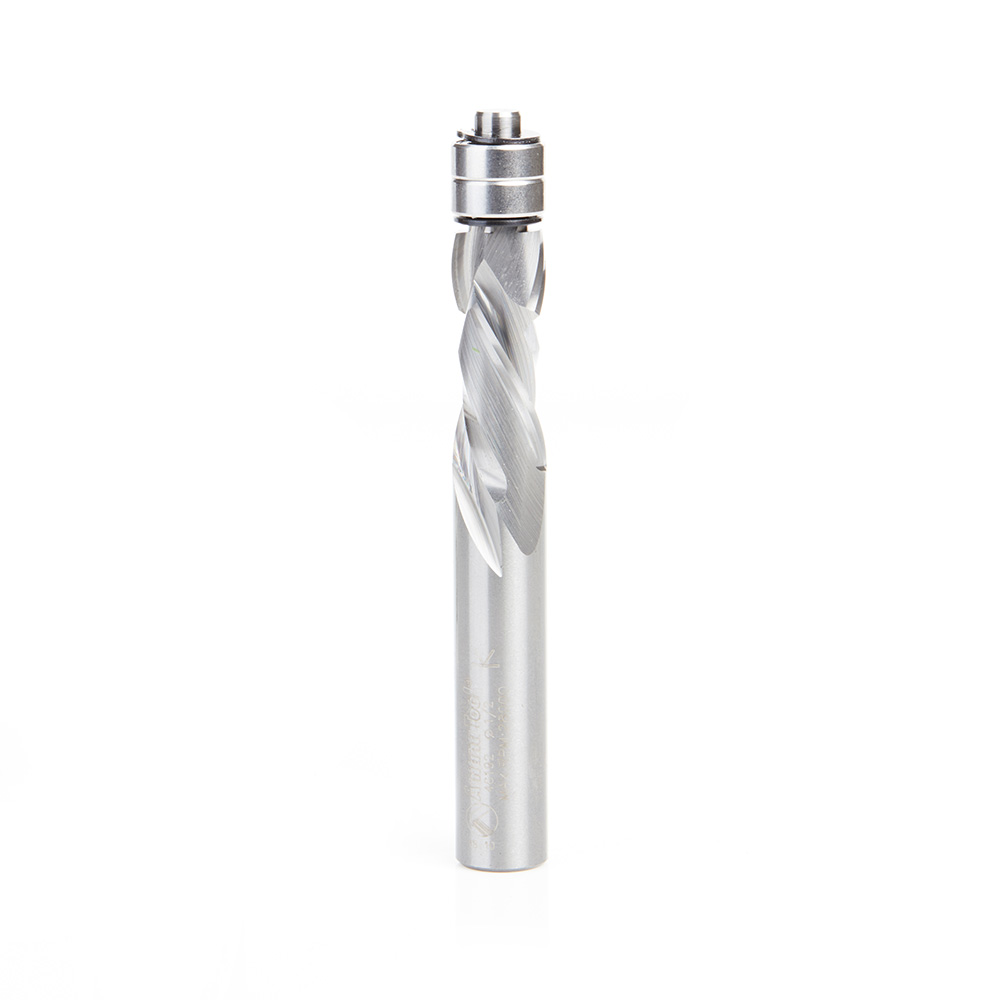

46192 Solid Carbide Compression Spiral 1/2 Dia x 1-1/4 x 1/2 Inch Shank with Double Ball Bearing

Amana 46192 Solid Carbide Compression Spiral 1/2 Dia x 1-1/4 x 1/2 Inch Shank with Double Ball Bearing

Name: Amana 46192 Solid Carbide Compression Spiral 1/2 Dia x 1-1/4 x 1/2 Inch Shank with Double Ball Bearing
SKU: Amana 46192
Availability: InStock

Original price was: $256.25.Current price is: $192.19.

1/2″ COMPRESSION SPIRAL W/BB

UPC: 738685461921 SKU: Amana 46192 Categories: Amana Tool, Router Bits, Solid Carbide Compression Spiral Bits, Straight Plunge Router Bits

Item Description

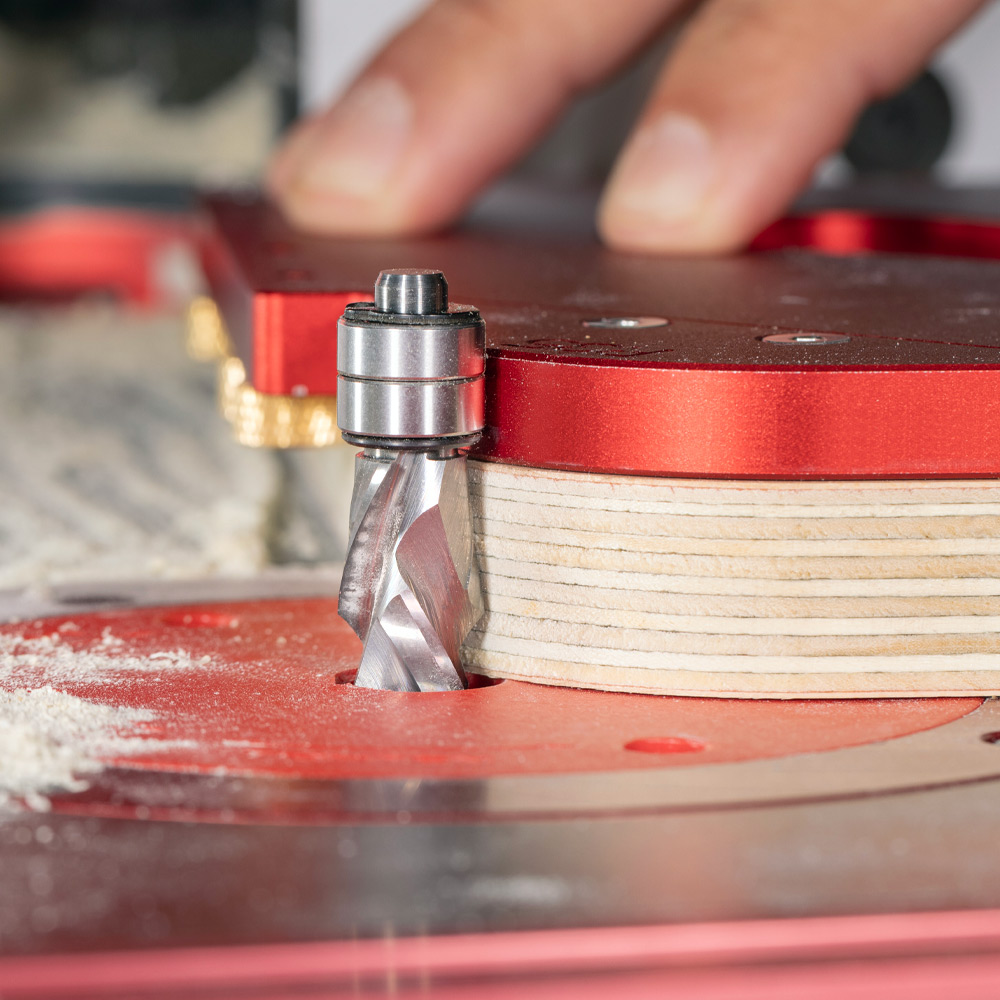

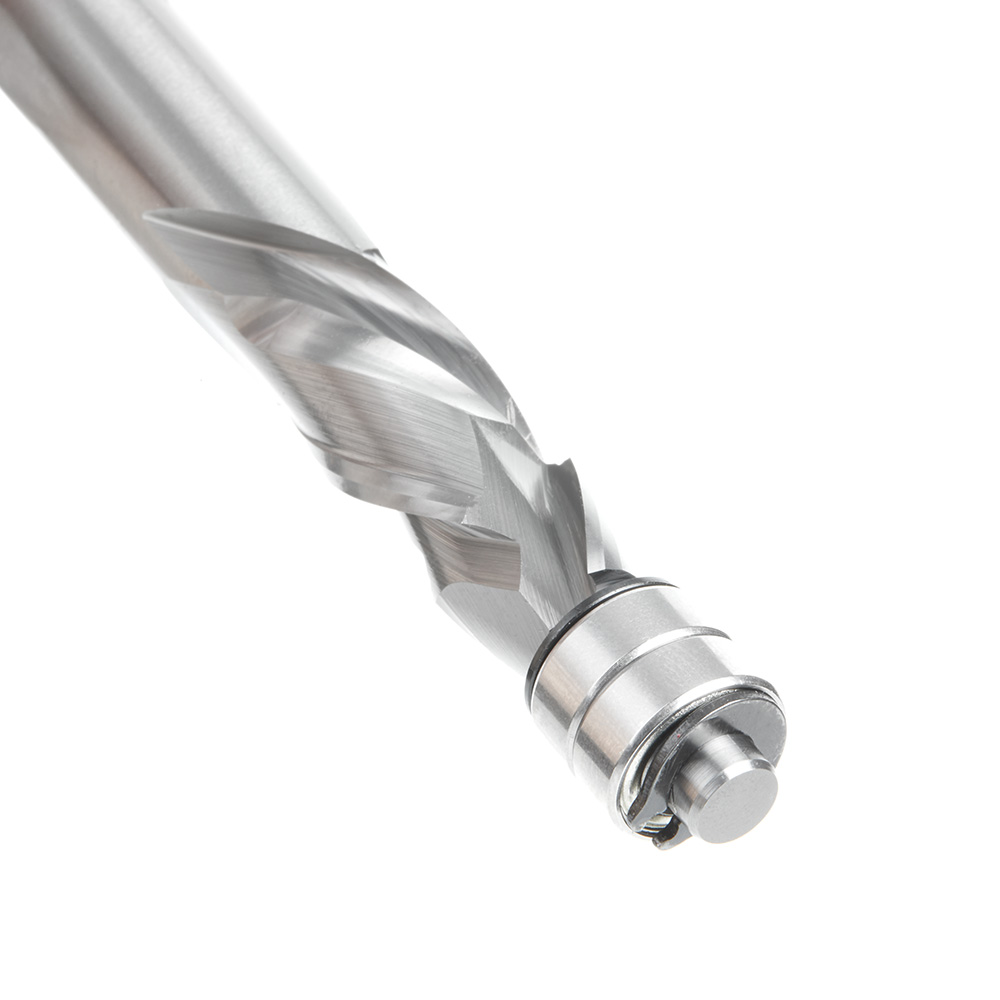

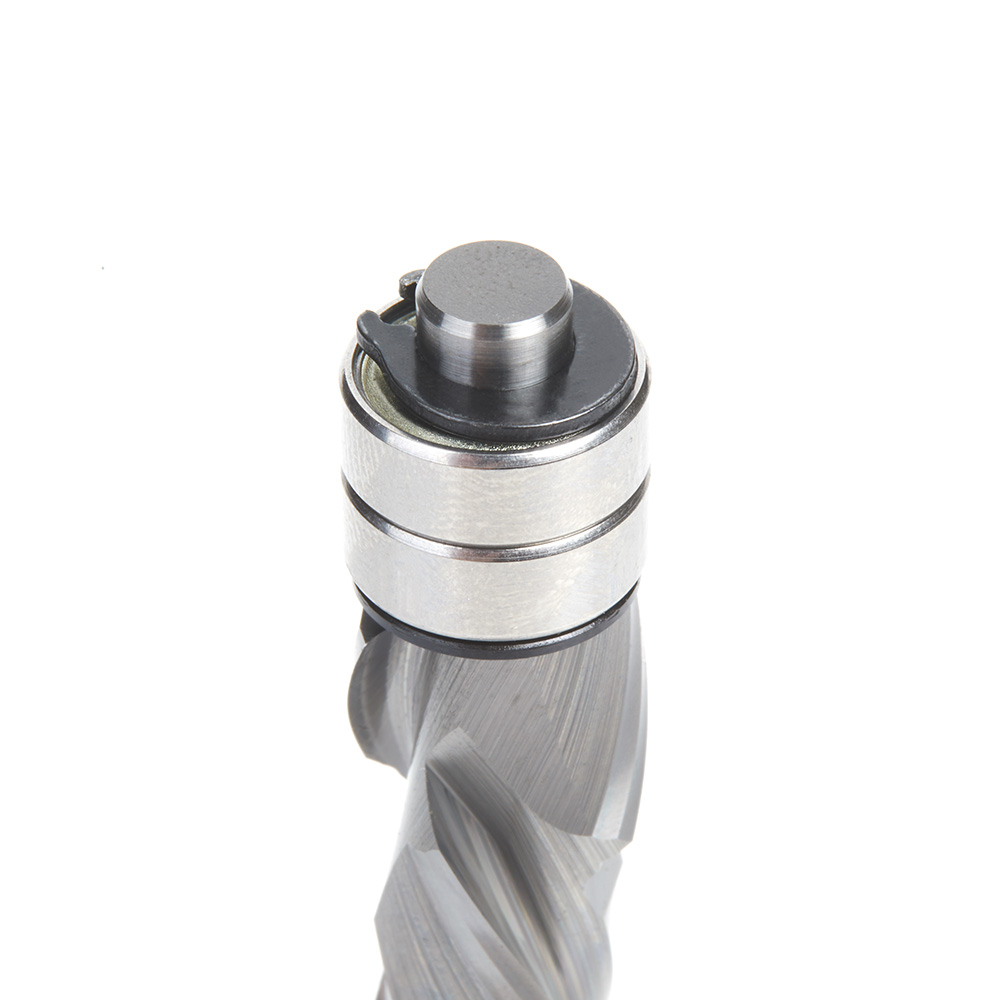

Spiral bits produce razor-sharp cutting edges in flush trimming. The twin ball-bearing pilot enhances the stability of the tool. This bit offers an ‘Up-Cut’ and ‘Down-Cut’ combination.

Replacement Parts

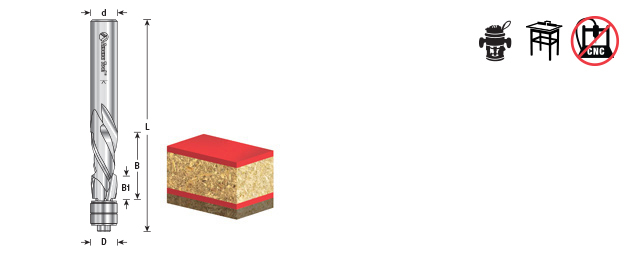

Specifications

Diameter (D)	1/2
Cutting Height (B)	1-1/4
B1	7/16
Shank (d)	1/2
Overall Length (L)	4
Replacement Bearing	47701 (2)
Washer	67053
Locking Ring	47752
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Replacement Bearing	Washer	Locking Ring	Flutes	Tool No.
1/4 (6.35mm)	1-1/4	7/16 (11.11mm)	1/4 (6.35mm)	3-1/4	47723	–	–	2	59606

Weight	0.26 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
