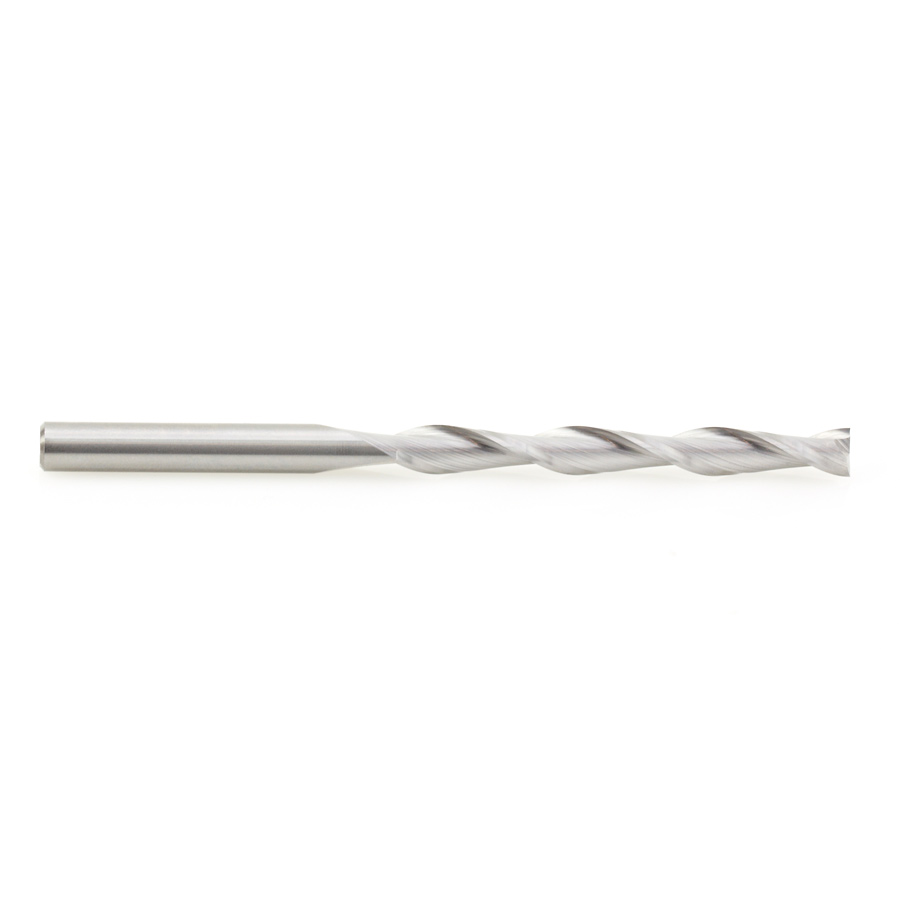

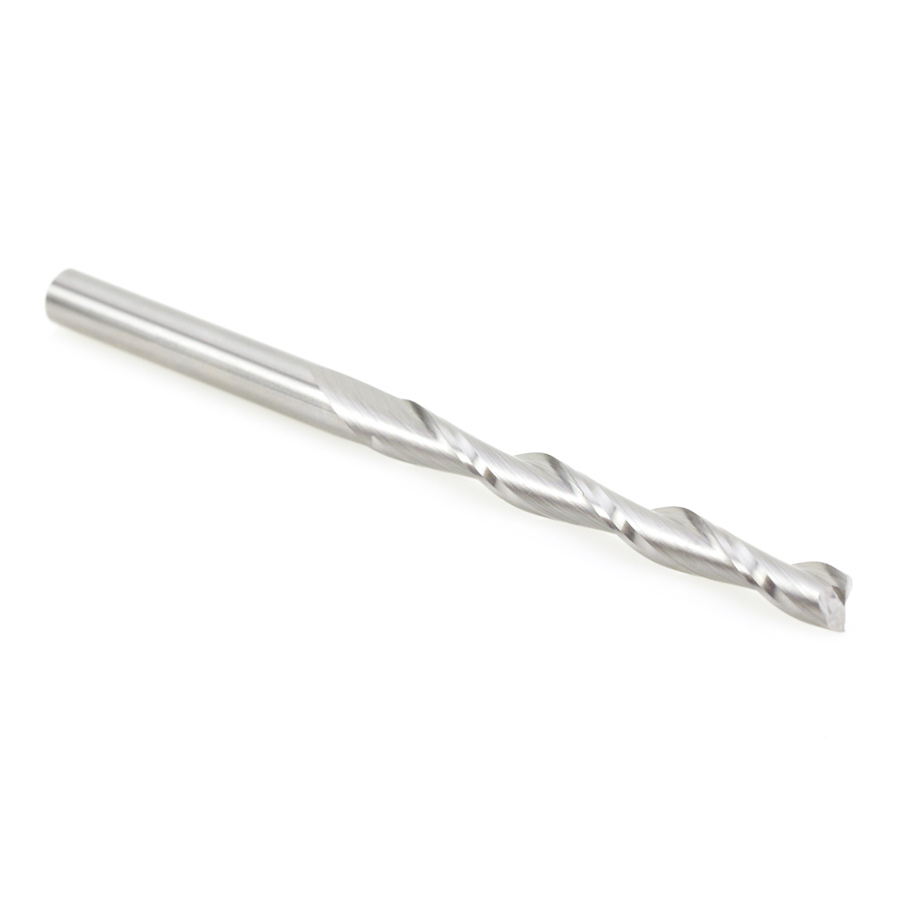

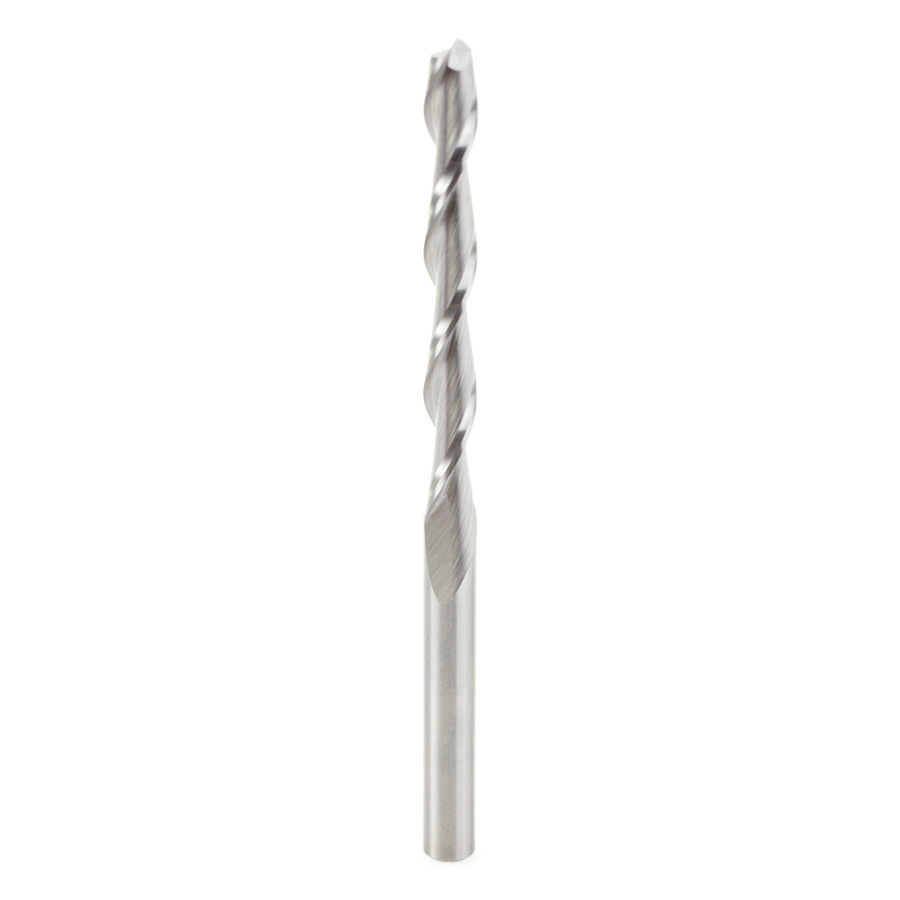

46272 Solid Carbide CNC Foam Up-Cut Cutting Square End Spiral 1/4 Dia x 2-1/4 x 1/4 Shank x 2-1/2 Inch Long Router Bit

Amana 46272 Solid Carbide CNC Foam Up-Cut Cutting Square End Spiral 1/4 Dia x 2-1/4 x 1/4 Shank x 2-1/2 Inch Long Router Bit

Name: Amana 46272 Solid Carbide CNC Foam Up-Cut Cutting Square End Spiral 1/4 Dia x 2-1/4 x 1/4 Shank x 2-1/2 Inch Long Router Bit
SKU: Amana 46272
Availability: InStock

Original price was: $114.50.Current price is: $85.88.

1/4 SC UP-CUT SPIRAL FOAM BIT

UPC: 738685462720 SKU: Amana 46272 Categories: Amana Tool, CNC Router Bits, Foam Cutting Router Bits, Solid Carbide Spiral Foam Cutting CNC Router Bits

Item Description

Ensure your foam projects are milled with unparalleled accuracy detail and clarity. Achieve both precision and depth for foam carving and milling applications. Provides deeper cuts and larger slices with fewer passes in thick materials resulting in improved productivity and less assembly. The up-cut spiral ejects chips away from the workpiece.

Specifically designed for milling:

Crosslinked Polyethylene Foam (XLPE)
Ethafoam**
Ethylene-vinyl Acetate Foam (EVA)
Expanded Polypropylene (EPP)*
Expanded Polystyrene (EPS)
Extruded Polystyrene Foam (XPS)
Flexible Polyurethane Foam (FPF)

Fomex®
High Density Urethane (HUD Board)
PALFOAM™
Polycarbonate (Lexan™)†
Polyethylene Foam**
Polylam**
Polyurethane Foam

Expanded polypropylene (EPP) is a foam form of polypropylene.

Ethafoam Polyethylene and Polylam are durable flexible closed-cell foams with excellent memory.

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

For thick material with up-cut chip removal. For 2D & 3D CNC routing applications.

Vectric and Fusion 360 compatible tool files for 46272 available for download,click here.

Specifications

Direction	Up-Cut
(D) Diameter	1/4
(B) Cutting Height	2-1/4
(d) Shank	1/4
Overall Length (L)	4
Type	Square End
Flutes	2

Other Sizes Available

(D) Diameter	(B) Cutting Height	(R) Radius	(d) Shank	Overall Length (L)	Flutes	Type	Direction	Description	Tool No.
3mm	28mm	–	6mm	64mm	2	Square End	Up-Cut	–	48442
1/8 (3.18mm)	1-1/8	1/16 (1.59mm)	1/4 (6.35mm)	2-1/2	2	Ball End	Up-Cut	–	46030
1/8 (3.18mm)	1-1/16	–	1/8 (3.18mm)	3 (76.20mm)	2	Square End	Up-Cut	–	46269
1/8 (3.18mm)	1-1/8	–	1/4 (6.35mm)	2-1/2	2	Square End	Up-Cut	–	46270
1/8 (3.18mm)	1-1/16	–	1/8 (3.18mm)	3 (76.20mm)	2	Square End	Down-Cut	–	46562
1/8 (3.18mm)	1-1/8	–	1/4 (6.35mm)	2-1/2	2	Square End	Down-Cut	–	46564
1/8 (3.18mm)	1/2 (12.70mm)	–	1/4 (6.35mm)	4 (101.60mm)	3	Square End	Up-Cut	–	48461
3/16 (4.76mm)	1-1/8	–	3/16 (4.76mm)	3 (76.20mm)	2	Square End	Up-Cut	–	46271
3/16 (4.76mm)	1-5/8	–	3/16 (4.76mm)	4 (101.60mm)	2	Square End	Up-Cut	–	46273
3/16 (4.76mm)	1 (25.40mm)	–	1/4 (6.35mm)	3 (76.20mm)	3	Square End	Up-Cut	–	48460
6mm	57mm	–	6mm	100mm	2	Square End	Up-Cut	–	48444
1/4 (6.35mm)	2-1/4	1/8 (3.18mm)	1/4 (6.35mm)	4 (101.60mm)	2	Ball End	Up-Cut	–	46032
1/4 (6.35mm)	2-1/4	–	1/4 (6.35mm)	4 (101.60mm)	2	Square End	Up-Cut	5	46272-5
1/4 (6.35mm)	1-1/4	–	1/4 (6.35mm)	2-1/2	2	Square End	Up-Cut	–	46274
1/4 (6.35mm)	3 (76.20mm)	–	1/4 (6.35mm)	6 (152.40mm)	2	Square End	Up-Cut	–	46275
1/4 (6.35mm)	2-1/4	–	1/4 (6.35mm)	4 (101.60mm)	2	Square End	Down-Cut	–	46566
1/4 (6.35mm)	2 (50.80mm)	–	1/4 (6.35mm)	4 (101.60mm)	3	Square End	Up-Cut	–	48462
3/8 (9.53mm)	4 (101.60mm)	–	3/8 (9.53mm)	6 (152.40mm)	2	Square End	Up-Cut	–	46277
3/8 (9.53mm)	3-1/2	–	3/8 (9.53mm)	6 (152.40mm)	2	Square End	Up-Cut	–	46278
3/8 (9.53mm)	4-1/2	–	3/8 (9.53mm)	7 (177.80mm)	2	Square End	Up-Cut	–	46279

Weight	0.1 lbs
