Sale!

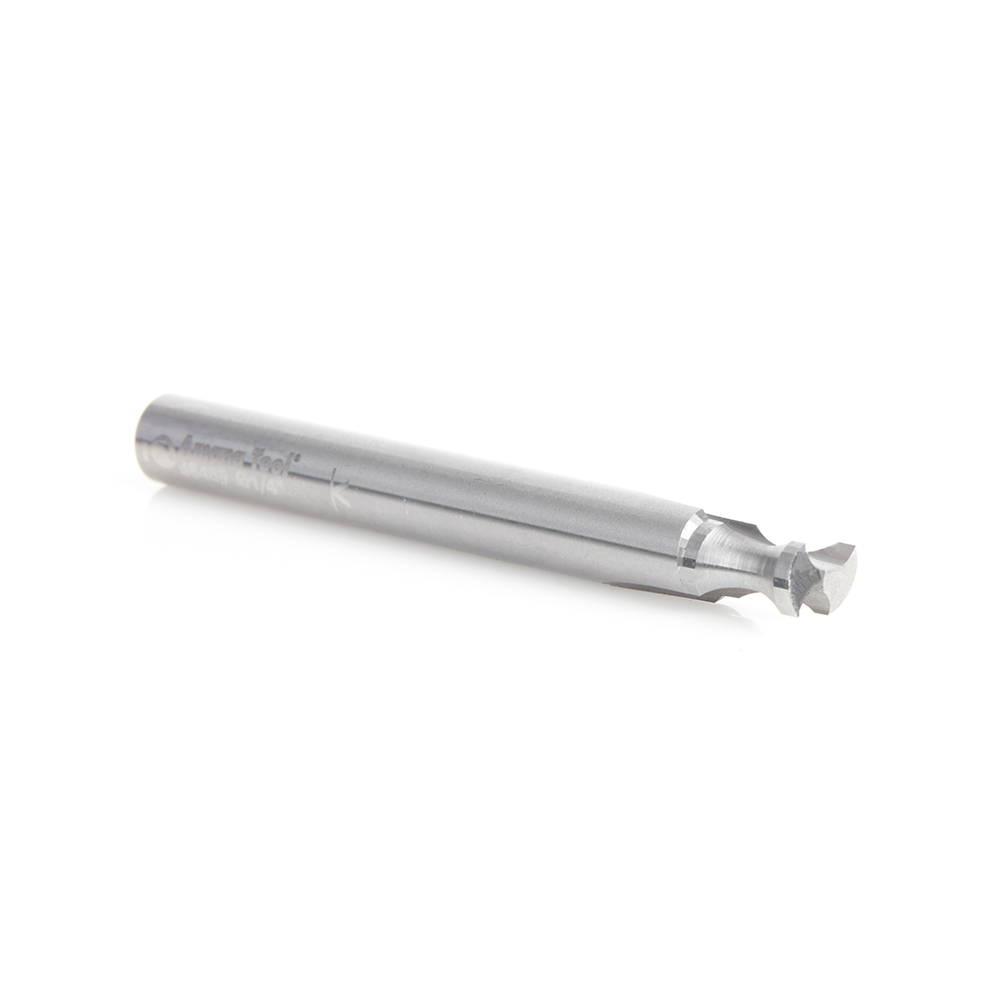

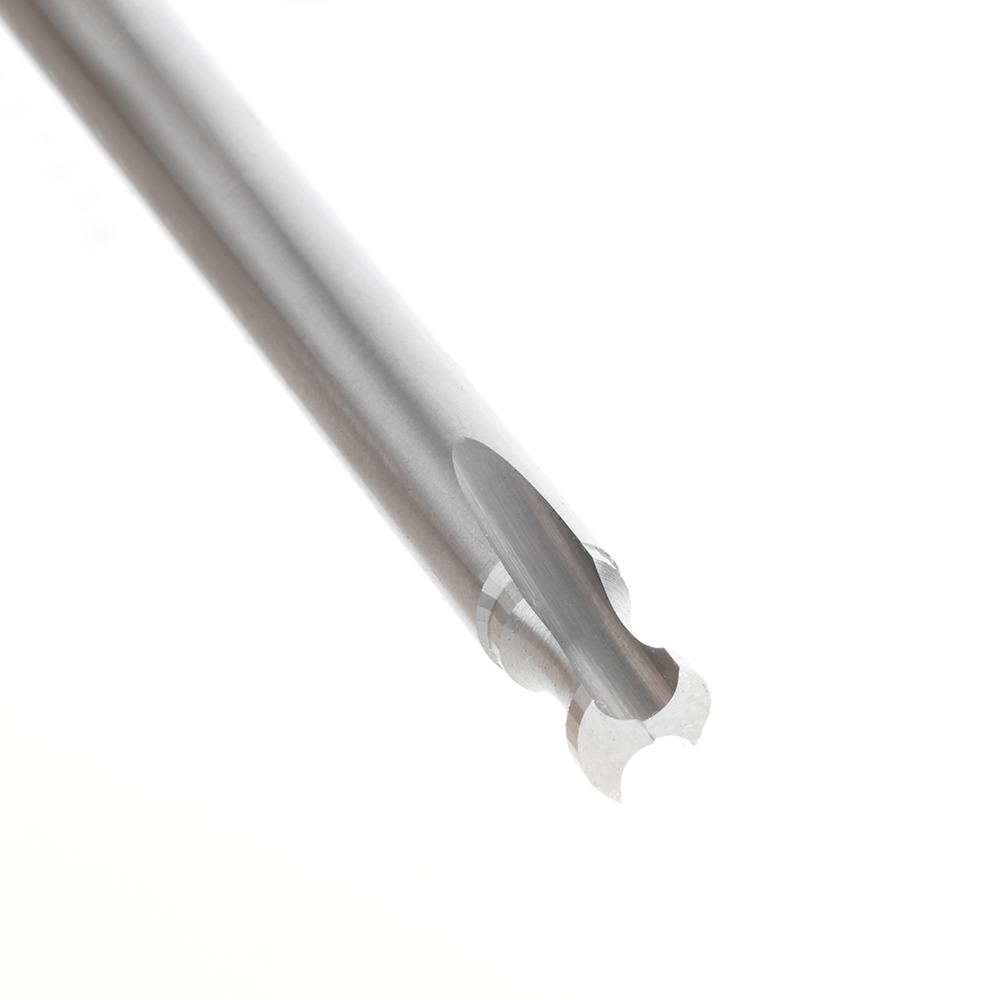

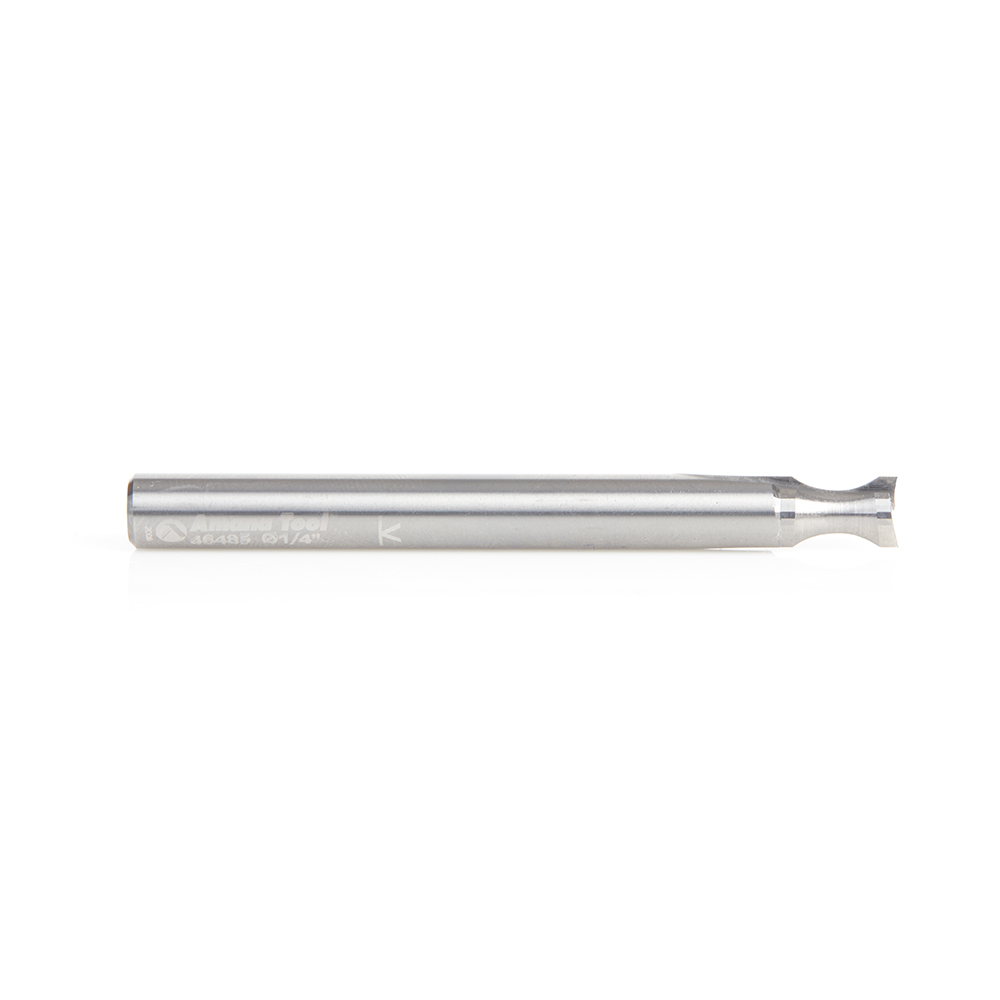

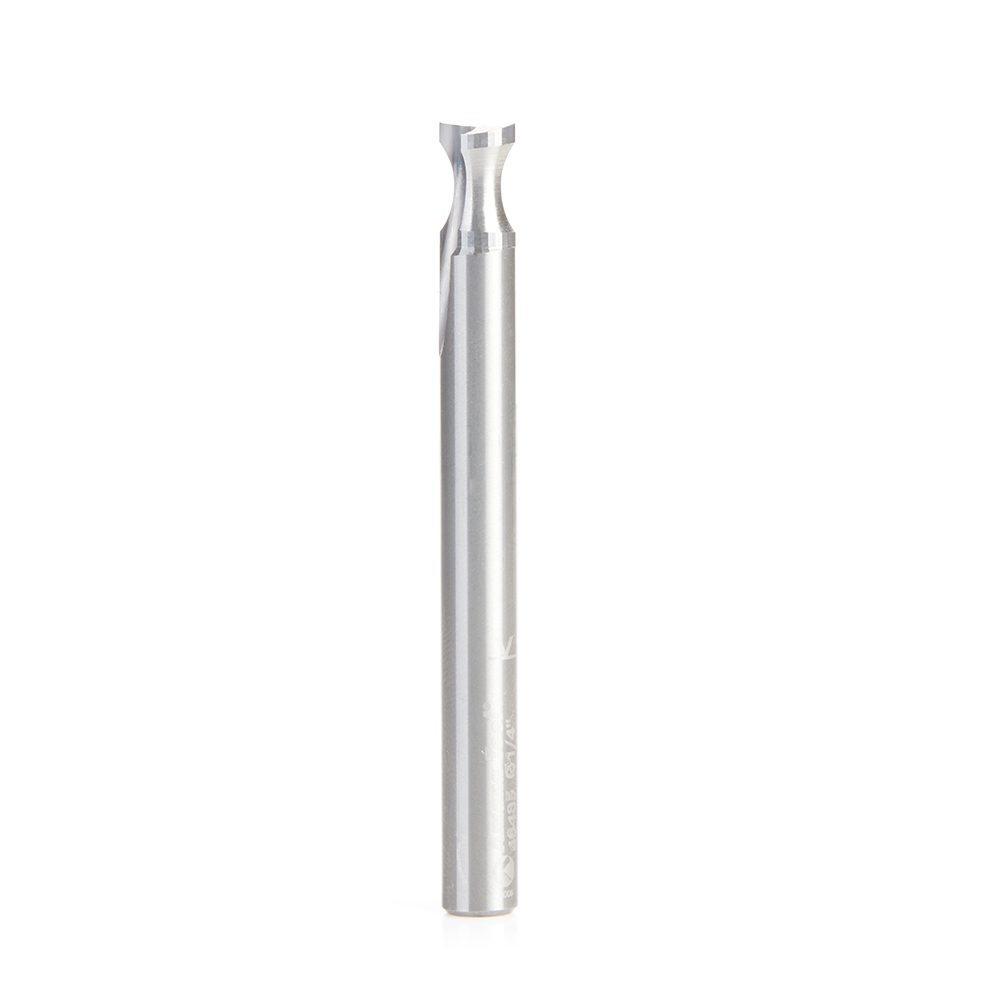

Amana 46485 Solid Carbide Double ‘O’ Flute Plastic Edge Rounding 1/4 Dia x 1/4 Radius x 3/8 x 1/4 Inch Shank

Name: Amana 46485 Solid Carbide Double 'O' Flute Plastic Edge Rounding 1/4 Dia x 1/4 Radius x 3/8 x 1/4 Inch Shank
SKU: Amana 46485
Availability: InStock

Original price was: $100.15.Current price is: $75.12.

1/4″Dx1/4″SHK STRAIGHT PLASTIC

UPC: 738685464854 SKU: Amana 46485 Categories: Amana Tool, CNC Router Bits, Plastic Cutting Router Bits, Solid Carbide Plastic 'O' Flute Router Bits for Edge Rounding

Item Description

Designed for rounding the edge of plastic sheets or parts.

Excellent for rounding:

Plastic
Acrylics
Acrylic Stone
Acrylonitrile Butadiene Styrene (ABS)
Corian
Coroplast®*
Epoxy
Expanded PVC
Fomex®
High Impact Polystyrene (HIPS)
High Pressure Laminates (HPL)
Hydroxy-Terminated Polyether (HTPE)
Low Density Polyethylene (LDPE)

LubX®
Perspex® Cast Acrylic Sheet
Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
Poly (methyl methacrylate) (PMMA)
Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
Sign Foam
StarBoard® (King StarBoard ‘R’) High Density Polyethylene Sheet (HDPE)
Thermoplastic Polyolefin (TPO)
Urethane

A soft plastic cardboard made with super soft super flexible PVC.

Specifications

(D) Diameter	1/4
(R) Radius	1/4
(B) Cutting Height	3/8
B1	9/32
(d) Shank	1/4
Overall Length (L)	2-1/2
Type	Straight, for Plastic Thickness 1/4"
Flutes	2

Other Sizes Available

(D) Diameter	(R) Radius	(B) Cutting Height	B1	(d) Shank	Overall Length (L)	Flutes	Type	Tool No.
1/4 (6.35mm)	1/8 (3.18mm)	3/8 (9.53mm)	5/32 (3.97mm)	1/4 (6.35mm)	2-1/2	1	Straight, for Plastic Thickness 1/8"Straight, for Plastic Thickness 1/8 Straight, for Plastic Thickness 1/8 Straight, for Plastic Thickness 1/8	46441
1/4 (6.35mm)	1/4 (6.35mm)	3/8 (9.53mm)	9/32 (7.14mm)	1/4 (6.35mm)	2-1/2	1	Straight, for Plastic Thickness 1/4"Straight, for Plastic Thickness 1/4 Straight, for Plastic Thickness 1/4 Straight, for Plastic Thickness 1/4	46443
1/4 (6.35mm)	3/16 (4.76mm)	3/8 (9.53mm)	7/32 (5.56mm)	1/4 (6.35mm)	2-1/2	1	Straight, for Plastic Thickness 3/16"Straight, for Plastic Thickness 3/16 Straight, for Plastic Thickness 3/16 Straight, for Plastic Thickness 3/16	46452
1/4 (6.35mm)	3/16 (4.76mm)	3/8 (9.53mm)	7/32 (5.56mm)	1/4 (6.35mm)	2-1/2	1	Spiral, for Plastic Thickness 3/16"Spiral, for Plastic Thickness 3/16 Spiral, for Plastic Thickness 3/16 Spiral, for Plastic Thickness 3/16	46465
1/4 (6.35mm)	1/4 (6.35mm)	3/8 (9.53mm)	9/32 (7.14mm)	1/4 (6.35mm)	2-1/2	1	Spiral, for Plastic Thickness 1/4"Spiral, for Plastic Thickness 1/4 Spiral, for Plastic Thickness 1/4 Spiral, for Plastic Thickness 1/4	46466
1/4 (6.35mm)	1/8 (3.18mm)	3/8 (9.53mm)	5/32 (3.97mm)	1/4 (6.35mm)	2-1/2	2	Straight, for Plastic Thickness 1/8"Straight, for Plastic Thickness 1/8 Straight, for Plastic Thickness 1/8 Straight, for Plastic Thickness 1/8	46481

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
