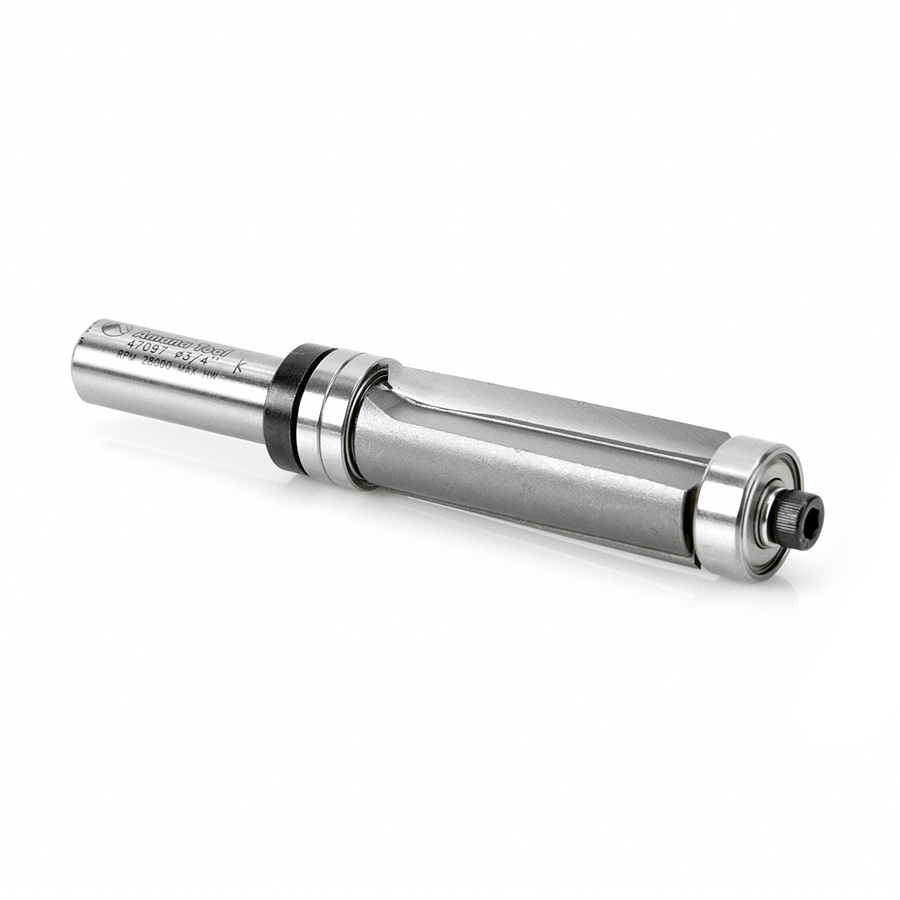

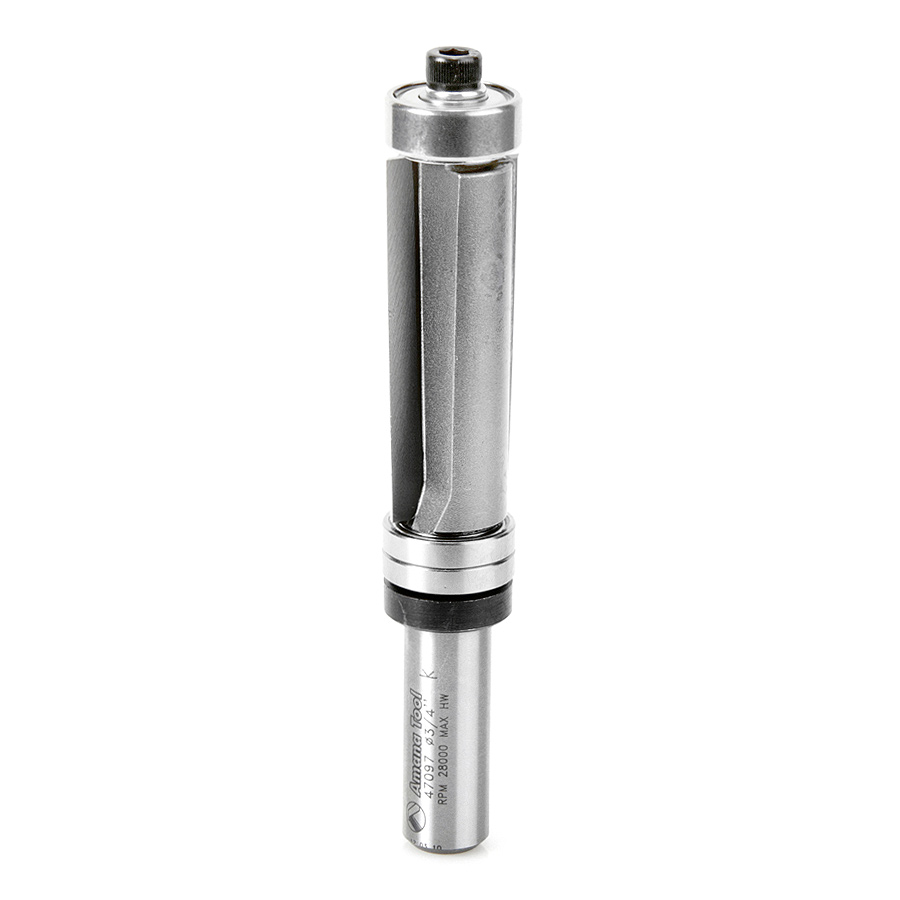

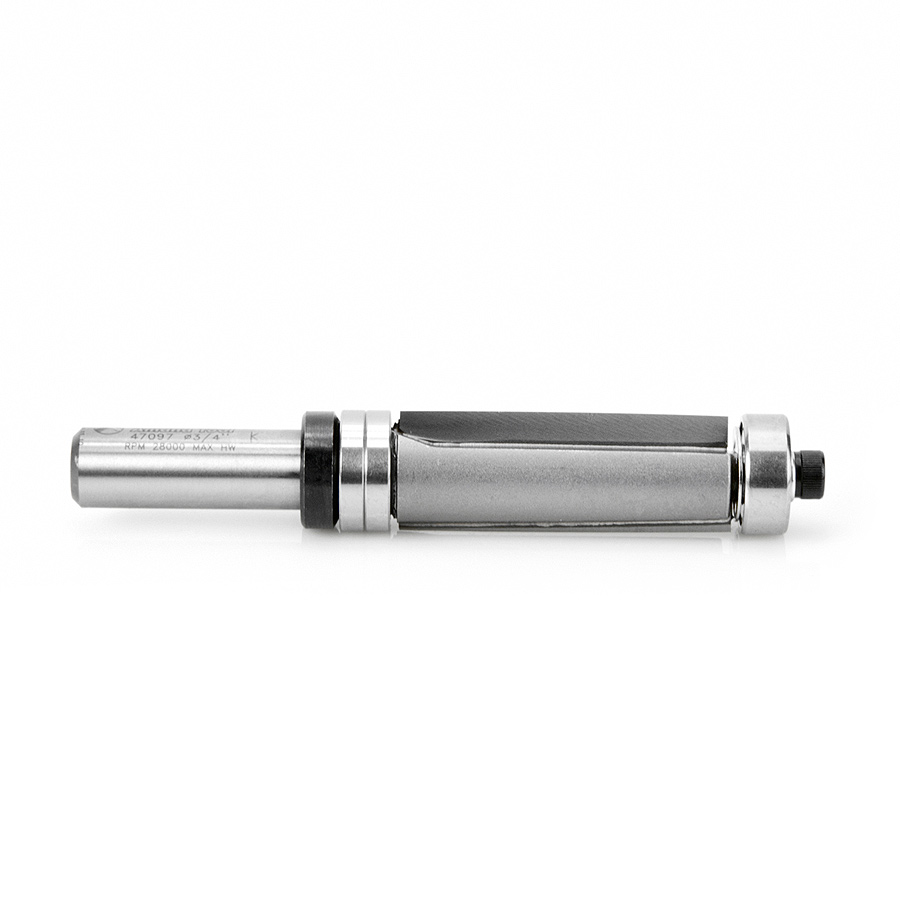

47097 Carbide Tipped Down-Shear Multi Trimmer 3/4 Dia x 2 Inch x 1/2 Shank with Ball Bearings

Amana 47097 Carbide Tipped Down-Shear Multi Trimmer 3/4 Dia x 2 Inch x 1/2 Shank with Ball Bearings

Name: Amana 47097 Carbide Tipped Down-Shear Multi Trimmer 3/4 Dia x 2 Inch x 1/2 Shank with Ball Bearings
SKU: Amana 47097
Availability: InStock

Original price was: $113.65.Current price is: $85.24.

FLUSH TRIM DOUBLE BB 3/4 DIA

UPC: 738685470978 SKU: Amana 47097 Categories: Amana Tool, Down-Shear Multi Trimmer Router Bits, Router Bits, Trimming Router Bits

Item Description

This adaptable double bearing guided cutter has down-shear design, which ensures a clean cut even in difficult materials. The two-bearing design allows the cutter to be used with the template mounted on either side of the work and, consequently, it is possible to cut from either direction using only one template and without moving the template to the other side of the work piece.

This is especially useful when cutting curves which run both with and against the grain.

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

Specifications

Diameter (D)	3/4
Cutting Height (B)	2
Shank (d)	1/2
Overall Length (L)	4-5/16
Replacement Bearing	(U)47721 (L)47714

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Tool No.
1/2 (12.70mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-19/32	47701, 47706	47094
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-15/16	47701, 47706	47095
3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	3-3/4	47721, 47714	47096

Weight	0.36 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
