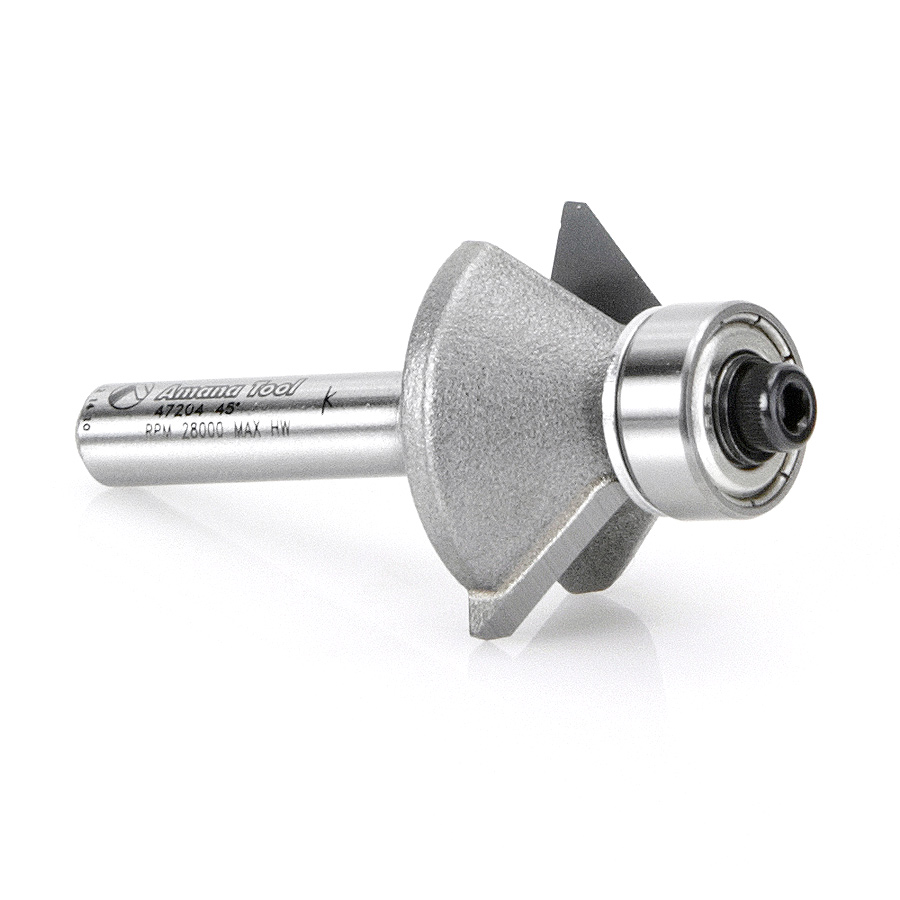

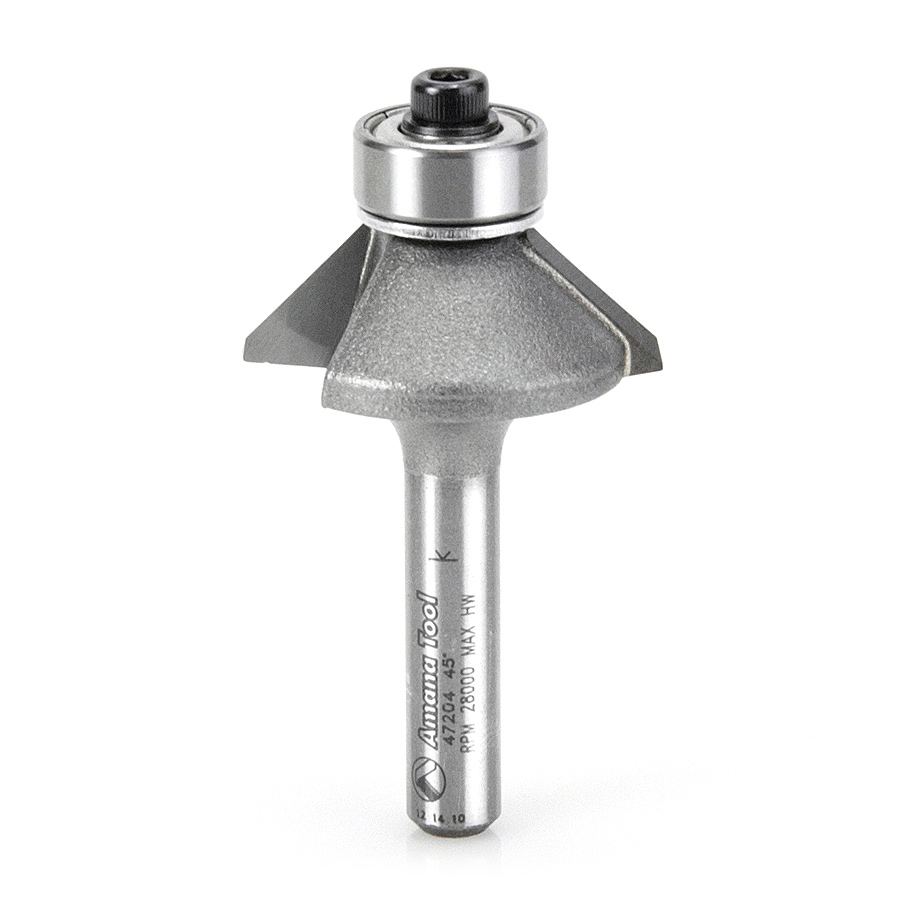

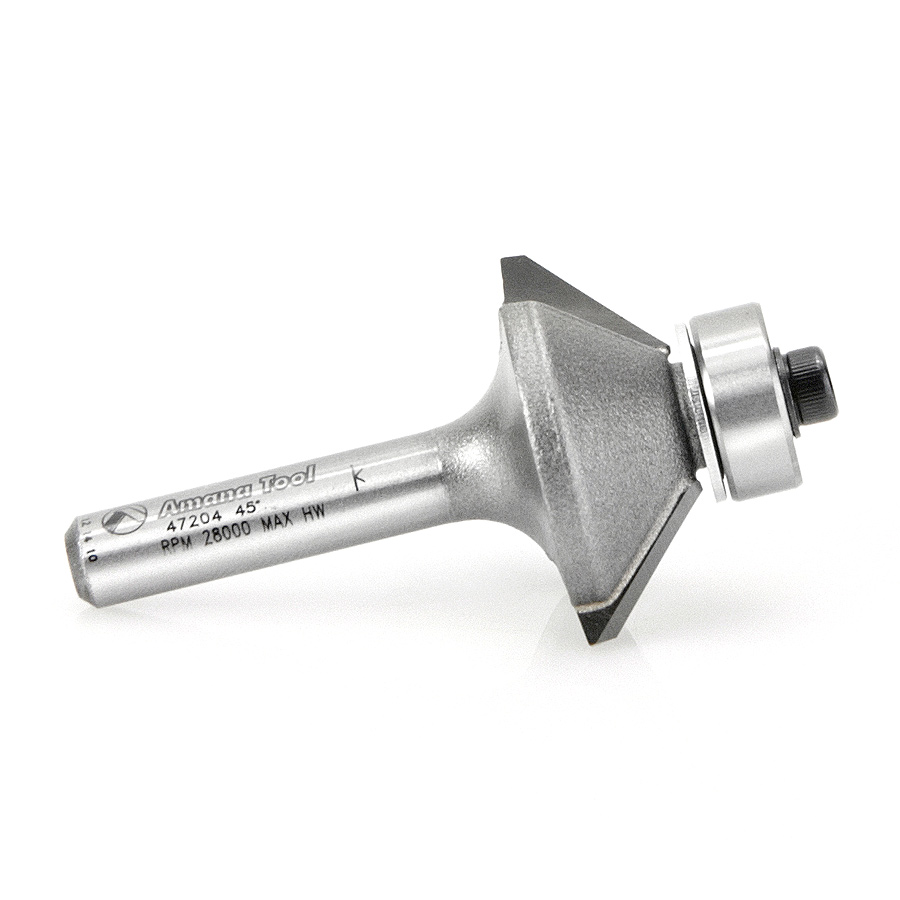

47204 Carbide Tipped Bevel Laminate Trim 45 Deg x 1-1/16 Dia x 1/4 x 1/4 Inch Shank with Ball Bearing

Amana 47204 Carbide Tipped Bevel Laminate Trim 45 Deg x 1-1/16 Dia x 1/4 x 1/4 Inch Shank with Ball Bearing

Name: Amana 47204 Carbide Tipped Bevel Laminate Trim 45 Deg x 1-1/16 Dia x 1/4 x 1/4 Inch Shank with Ball Bearing
SKU: Amana 47204
Availability: InStock

Original price was: $50.65.Current price is: $37.99.

BEVEL BIT 45 DEGREE 1/4 SHANK

UPC: 738685872048 SKU: Amana 47204 Categories: Amana Tool, Bevel Trim Router Bits, Router Bits, Trimming Router Bits

Item Description

This is a steel-bodied, carbide-tipped bit for bevel trimming laminate with a standard router. The solid construction reduces vibration for the smoothest cut possible with a two-flute bit.

Specifications

Angle (a°)	45°
Diameter (D)	1-1/16
Cutting Height (B)	9/32
Shank (d)	1/4
Overall Length (L)	2
Replacement Bearing	47706
Flutes	2

Other Sizes Available

Diameter (D)	Angle (a°)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Replacement Bearing	D1	Tool No.
1/4 (6.35mm)	7°	5/16 (7.94mm)	1/4 (6.35mm)	1-7/8	2	–	3/16 (4.76mm)	MR0106
1/2 (12.70mm)	22°	5/16 (7.94mm)	1/4 (6.35mm)	1-3/4	2	47723	–	47201
1/2 (12.70mm)	22.5°	1/2 (12.70mm)	1/4 (6.35mm)	1-7/8	2	–	3/16 (4.76mm)	MR0107
9/16 (14.29mm)	45°	1/4 (6.35mm)	1/4 (6.35mm)	1-7/8	2	–	3/16 (4.76mm)	MR0108
9/16 (14.29mm)	45°	1/4 (6.35mm)	1/4 (6.35mm)	1-7/8	2	–	3/16 (4.76mm)	MR0108-5
5/8 (15.88mm)	15°	1/4 (6.35mm)	1/4 (6.35mm)	2-3/32	2	47706	–	47200
3/4 (19.05mm)	25°	1/4 (6.35mm)	1/4 (6.35mm)	2-3/32	2	47706	–	47202
3/4 (19.05mm)	25°	27/64 (10.72mm)	1/4 (6.35mm)	2-3/64	2	47702	–	47206
25/32 (19.84mm)	45°	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	—-	47703	8mm	MSL2454

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
