47210 Carbide Tipped Special Bevel Trim 8 Deg x 5/8 Dia x 1/4 x 1/4 Inch Shank

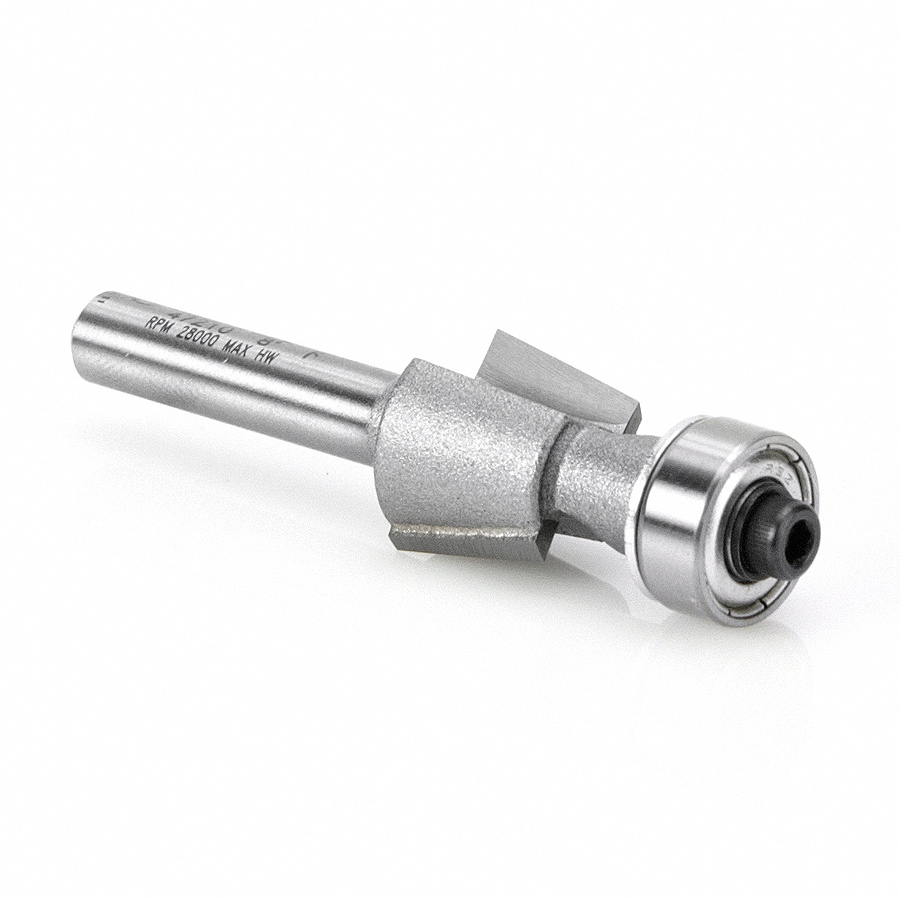

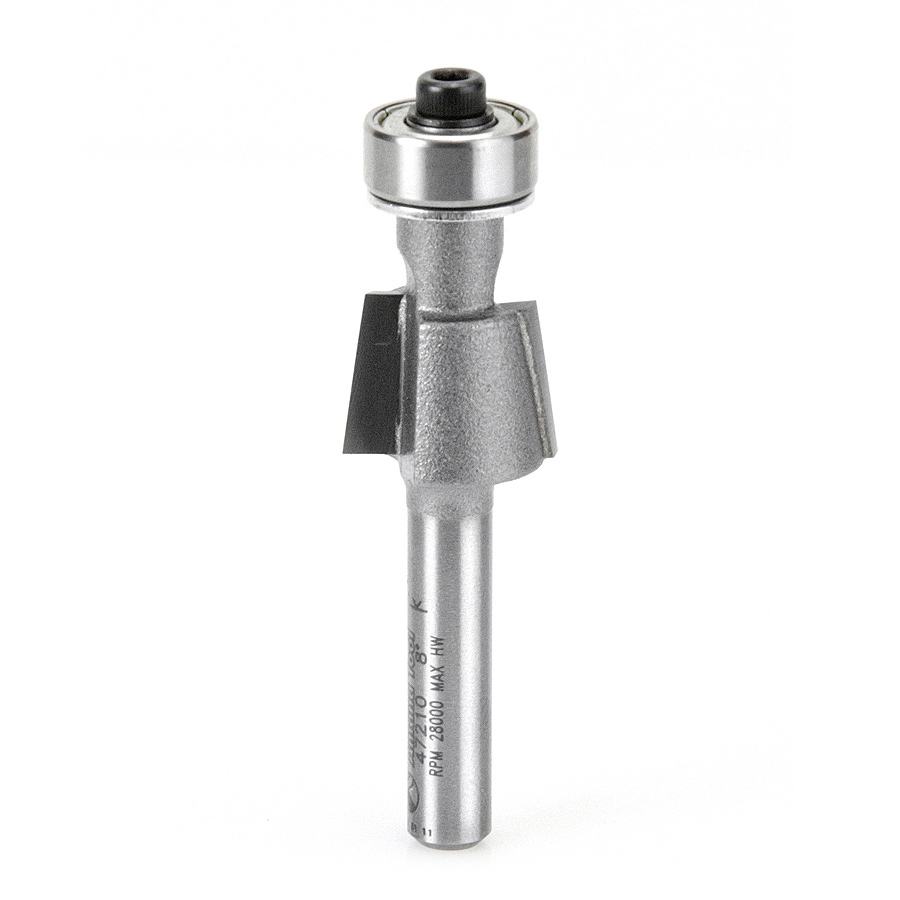

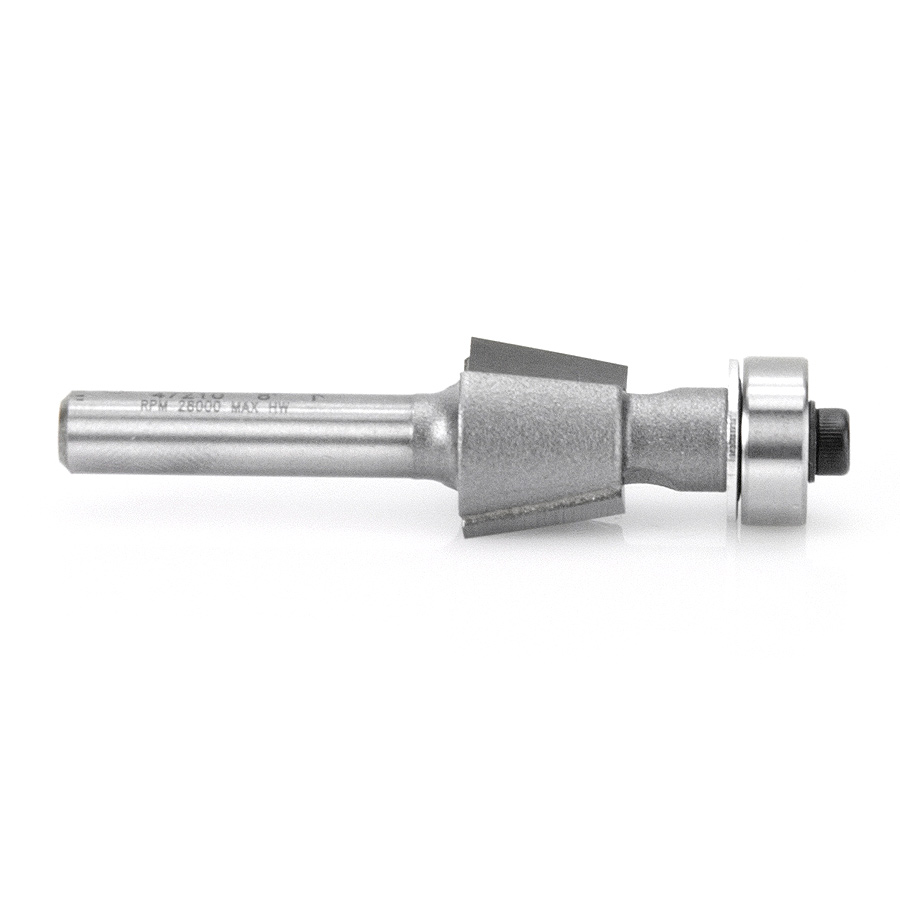

Amana 47210 Carbide Tipped Special Bevel Trim 8 Deg x 5/8 Dia x 1/4 x 1/4 Inch Shank

Name: Amana 47210 Carbide Tipped Special Bevel Trim 8 Deg x 5/8 Dia x 1/4 x 1/4 Inch Shank
SKU: Amana 47210
Availability: InStock

Original price was: $51.45.Current price is: $38.59.

8 DEGREE BEVEL 5 DEGREE SHEAR

UPC: 738685872109 SKU: Amana 47210 Categories: Amana Tool, Bevel Trim Router Bits, Router Bits, Trimming Router Bits

Item Description

A very shallow bevel angle and the gap between the cutting edges and the ball-bearing pilot are the key features of this carbide-tipped bit. The gap collects adhesive residue that usually fouls the pilot and thus degrade the cut. Tool is a special 8° bevel tool with a gap (.287″) to reduce glue build-up.

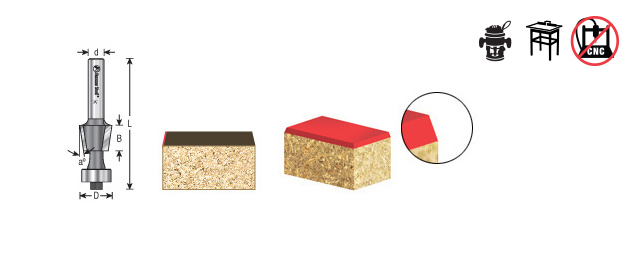

Specifications

Angle (a°)	8°
Diameter (D)	5/8
Cutting Height (B)	15/32
Shank (d)	1/4
Overall Length (L)	2-1/4
Replacement Bearing	47706
Flutes	2

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
