Sale!

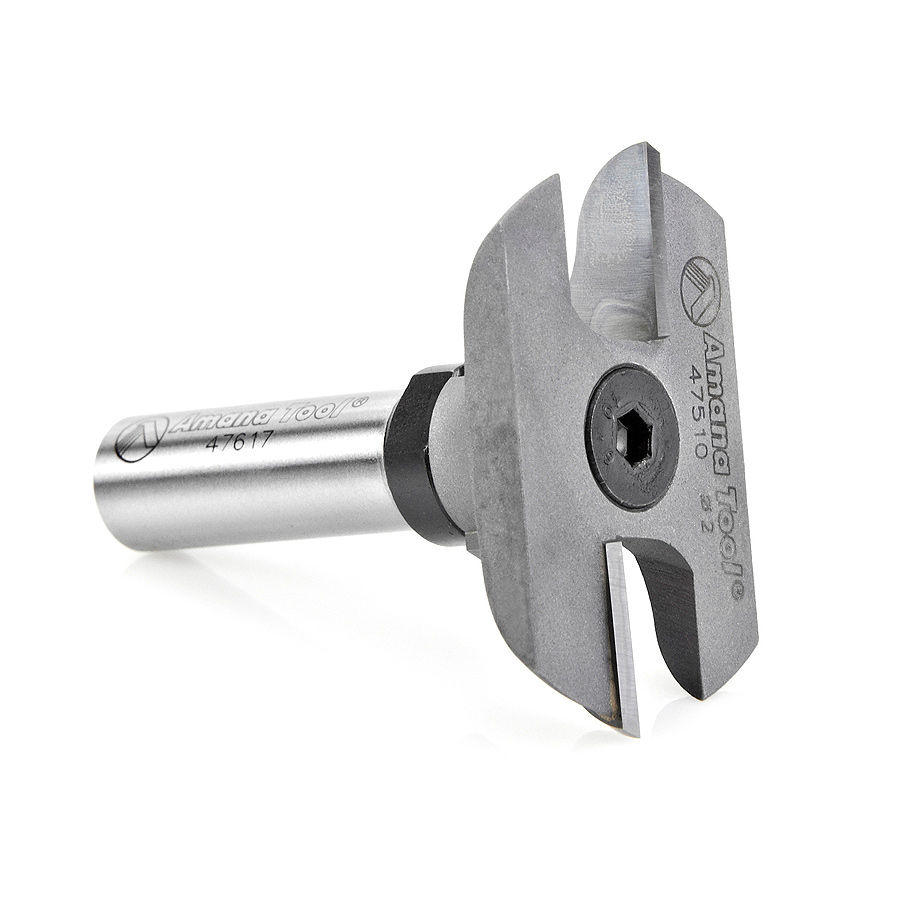

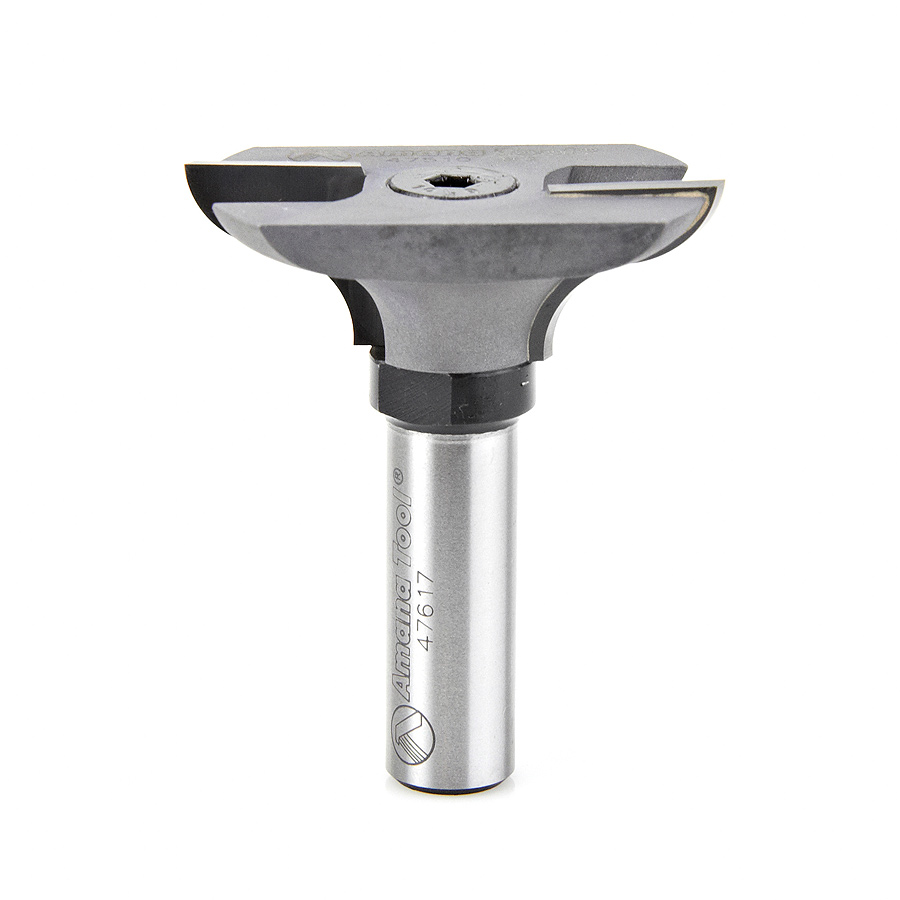

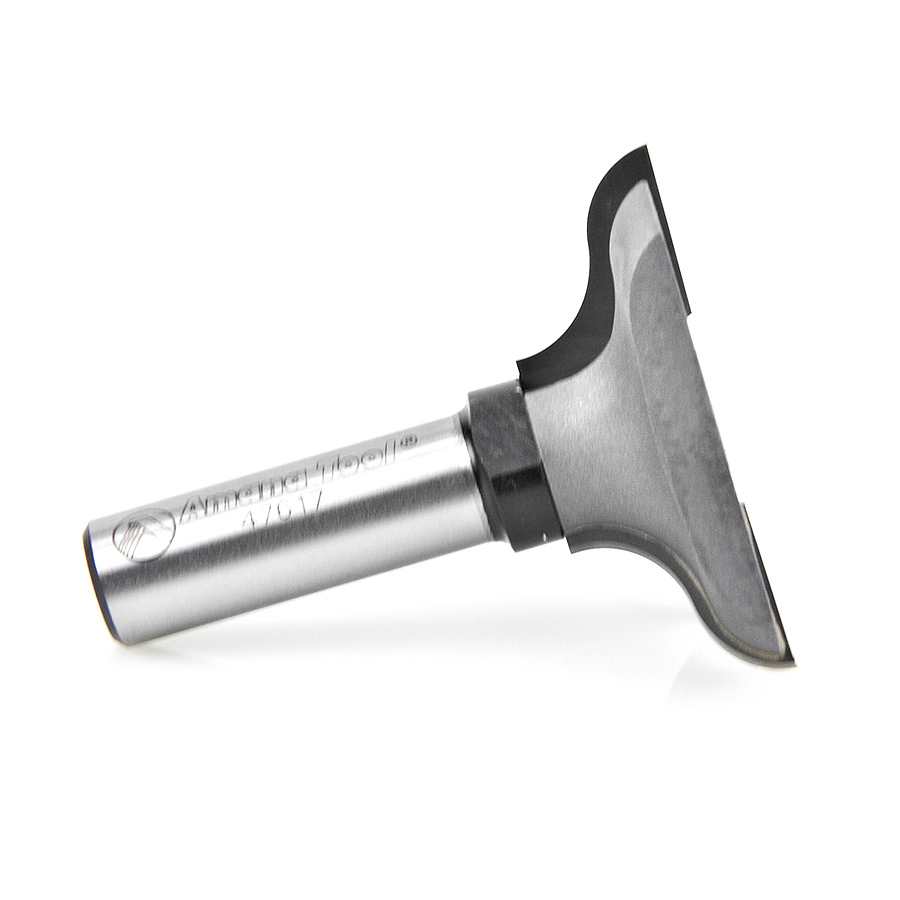

47511 Carbide Tipped Cope Cutter with Stub Spindle - 11/32 Radius x 2 Inch Dia x 11/16 x 1/2 Shank for 1-3/4 Material

Amana 47511 Carbide Tipped Cope Cutter with Stub Spindle – 11/32 Radius x 2 Inch Dia x 11/16 x 1/2 Shank for 1-3/4 Material

Name: Amana 47511 Carbide Tipped Cope Cutter with Stub Spindle - 11/32 Radius x 2 Inch Dia x 11/16 x 1/2 Shank for 1-3/4 Material
SKU: Amana 47511
Availability: InStock

Original price was: $127.60.Current price is: $95.70.

COPE/ STUB SPINDLE ENTRY DOOR

UPC: 738685475119 SKU: Amana 47511 Categories: Amana Tool, Door Making Router Bits, Entry Door Making Router Bits, Router Bits

Item Description

Want the beauty of traditional cope and stick doors with the strength and longevity of true mortise-and-tenon joinery? Our newest design allows you to make beautiful doors with tenons of any length you choose.

This unique door-making system utilizes a “stub” spindle & cope cutter arrangement. The counterbored cope cutter is secured to the spindle with a cap screw. A matching profile bit is used to shape the decorative ogee “sticking” along the edges of the stiles and rails. As the cope is cut on the ends of the rails, the tenon passes over the top of the bit unobstructed.

This set is for making 1-3/4″ thick entry doors with an ogee sticking.

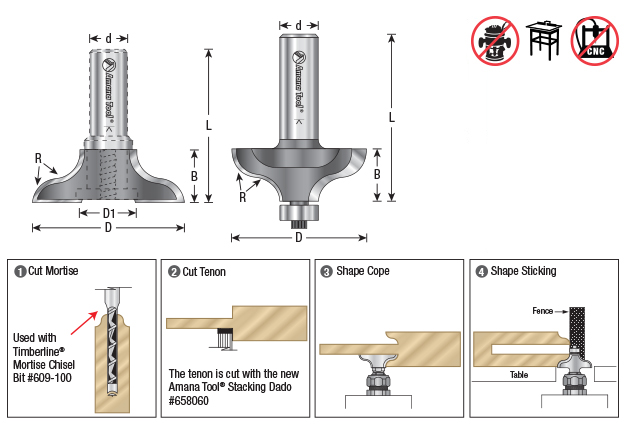

Specifications

Diameter (D)	2
D1	3/4
Radius (R)	11/32
Cutting Height (B)	11/16
Shank (d)	1/2
Overall Length (L)	2
Type	Cope Cutter with Stub Spindle
Material size	1-3/4"
Flutes	2

Weight	0.28 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
