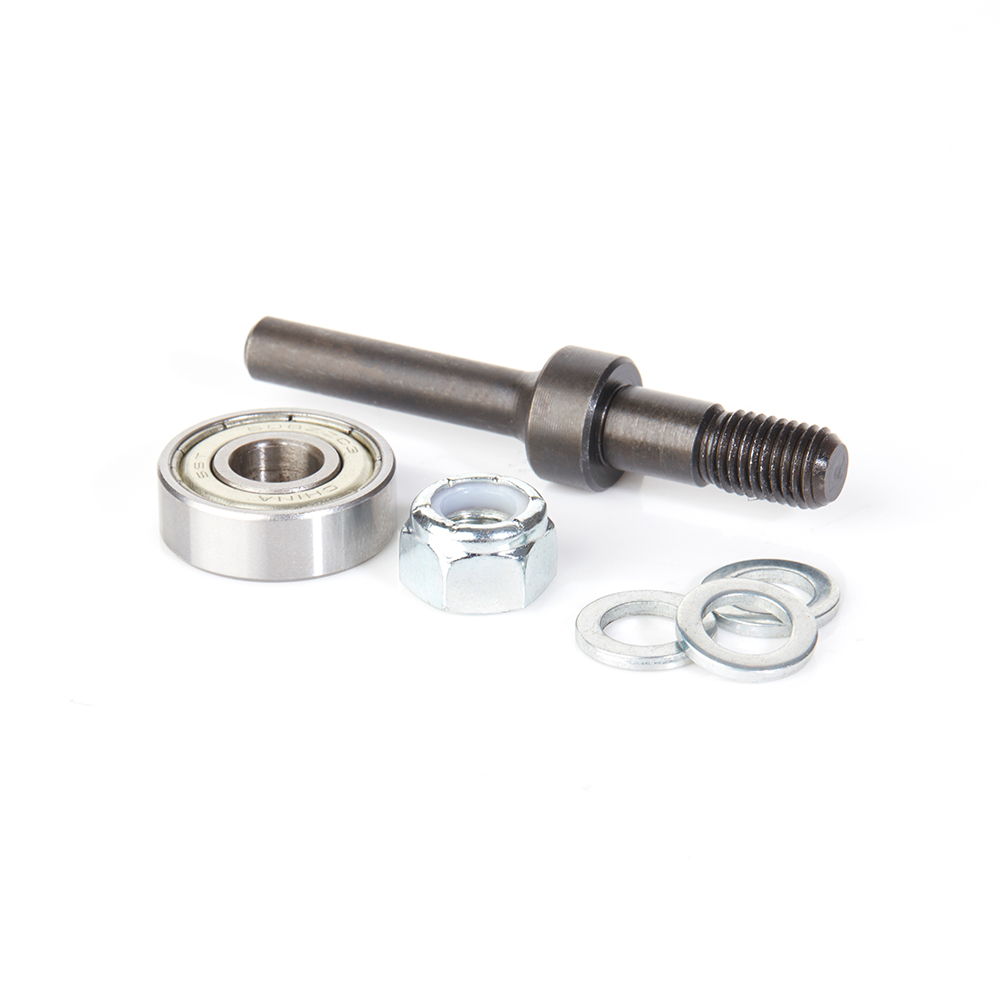

Amana 47601 Router Arbor with Hex Nut, Washers and Ball Bearing 5/16-24 NF Dia x 7/8 Height x 1/4 Inch Shank

Name: Amana 47601 Router Arbor with Hex Nut, Washers and Ball Bearing 5/16-24 NF Dia x 7/8 Height x 1/4 Inch Shank
SKU: Amana 47601
Availability: InStock

Original price was: $19.25.Current price is: $14.44.

1/4″ARBOR,BEARING,NUT ASSEMBLY

UPC: 738685476017 SKU: Amana 47601 Categories: Amana Tool, Router Arbors with Hex Nut, Washers and Ball Bearing, Router Bit Parts & Accessories, Router Bits

Item Description

Groove edges for T-moldings, splines or biscuits, and other purposes. Rout tongue-and-groove joinery. Slotting cutters are available with either 2-wing or 3-wing cutters. Use in a handheld or table-mounted router.

Includes:

#67204: Washers (3)

#67088: Nut

#47708: Bearing 5/16 x .865″

Replacement Parts

Bearing	Nut	Washers (3)
47708	67088	67204

Specifications

Diameter (D)	5/16-24 NF
Shank (d)	1/4
Overall Length (L)	2-3/8
L1	1-1/4
Application	2 & 3-Wing slotting assemblies, and single 4-wing trim cutter assemblies.
B	7/8

Other Sizes Available

Application	Diameter (D)	B	Shank (d)	Overall Length (L)	L1	Tool No.
2 &	5/16-24	1 (25.40mm)	1/2 (12.70mm)	2-3/8	1-3/8	47605

Weight	0.12 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
