47644 10mm Shank Dowel Drill/Boring Bit Adapter for CNC Standard Collet/Tool Holder

Amana 47644 10mm Shank Dowel Drill/Boring Bit Adapter for CNC Standard Collet/Tool Holder

Name: Amana 47644 10mm Shank Dowel Drill/Boring Bit Adapter for CNC Standard Collet/Tool Holder
SKU: Amana 47644
Availability: InStock

Original price was: $41.55.Current price is: $31.17.

CNC 10mm BORING ADAPTER 10mSHK

UPC: 738685476444 SKU: Amana 47644 Categories: 10mm Shank Boring Adapters with Retaining Screw, Amana Tool, Boring & Drilling Accessories, Boring & Drilling Bits

Item Description

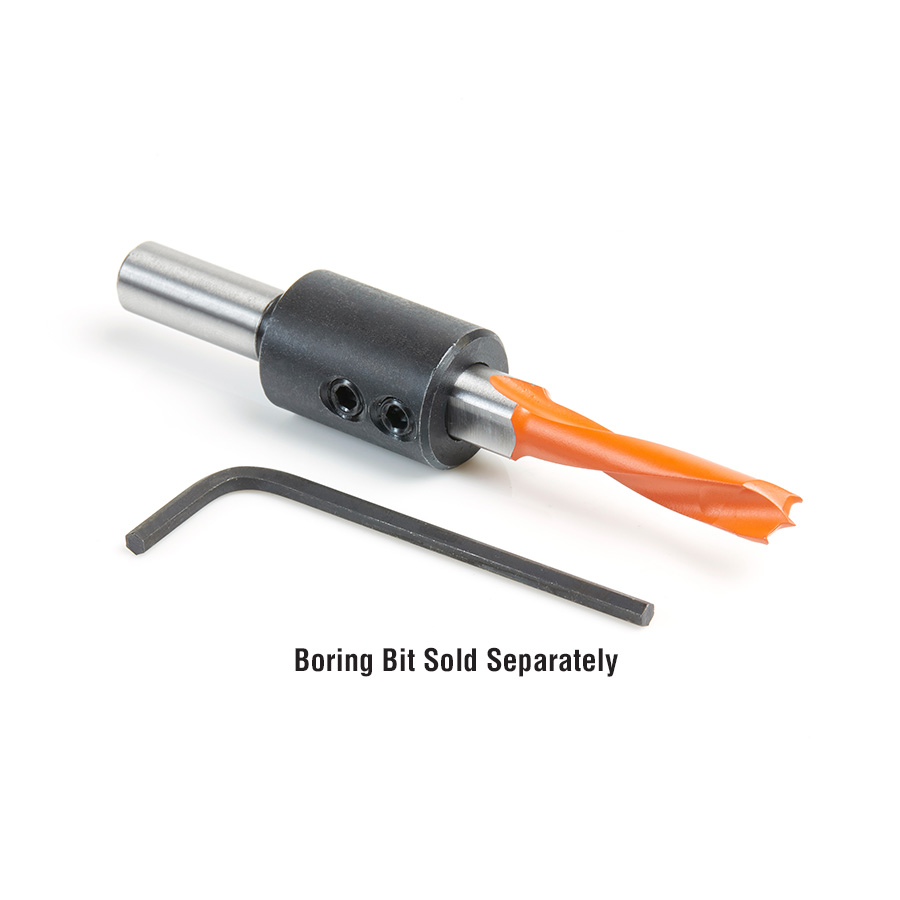

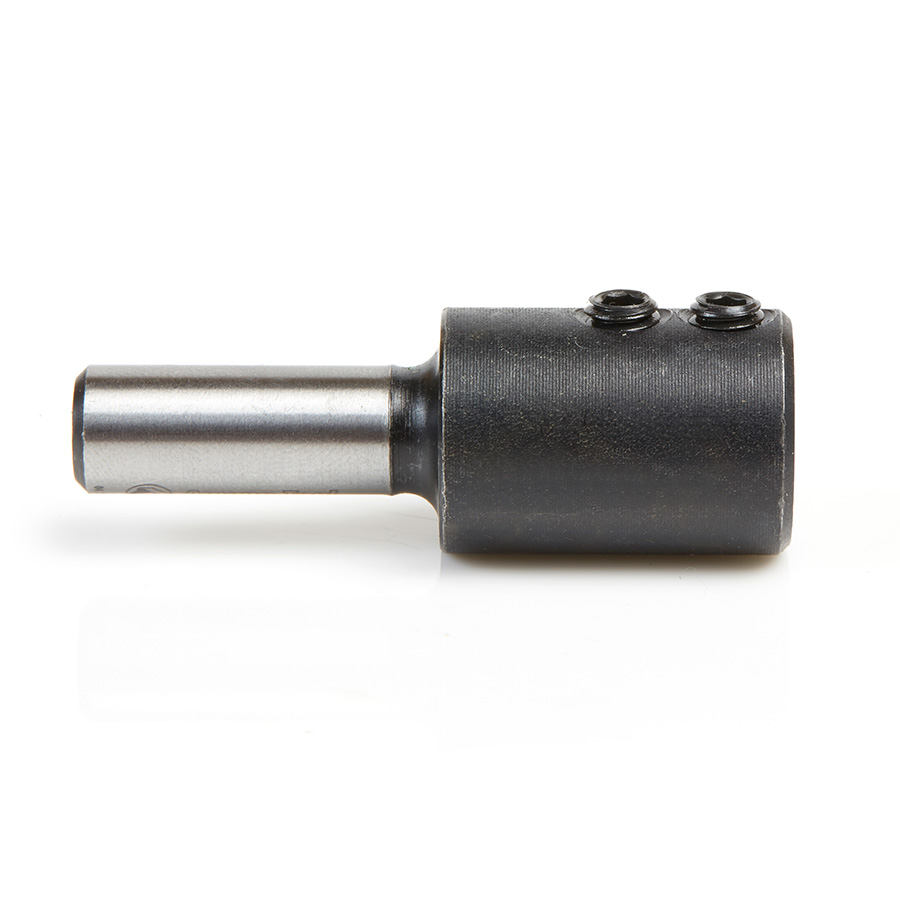

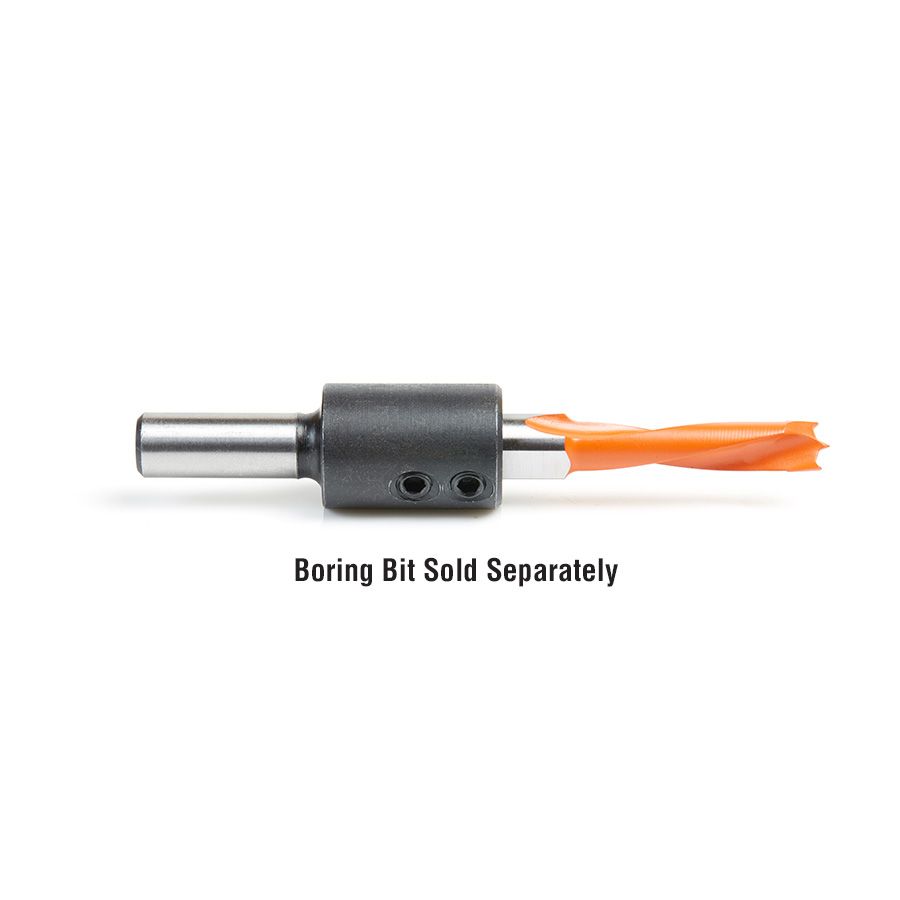

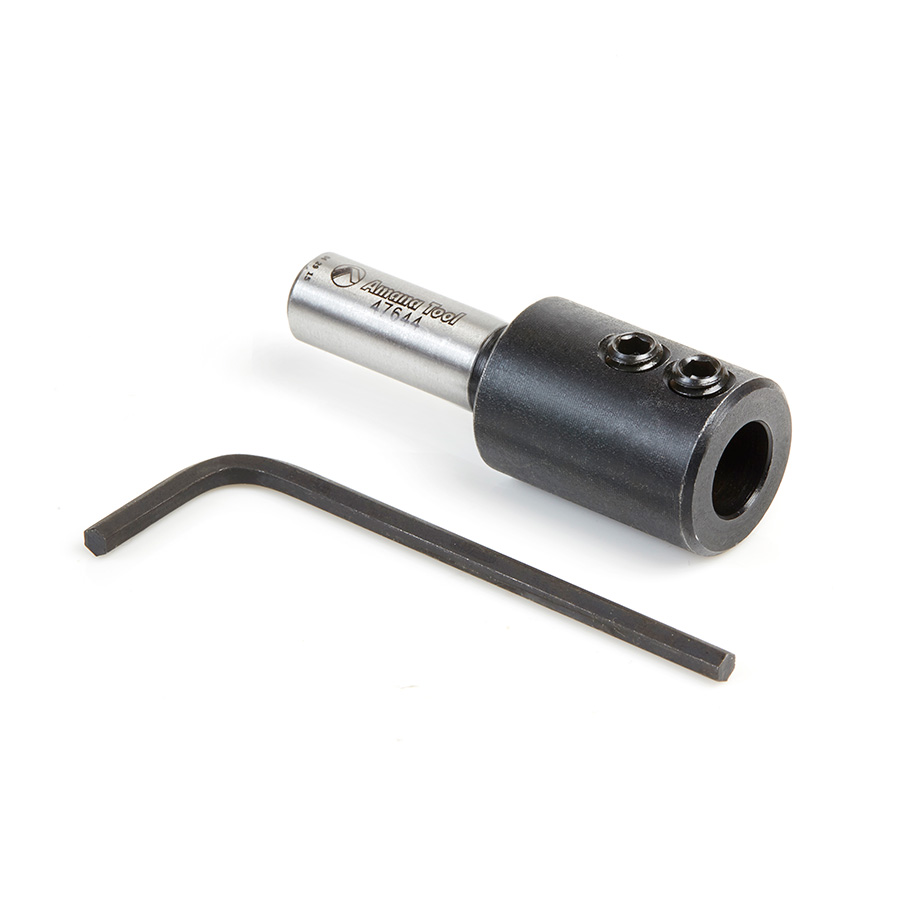

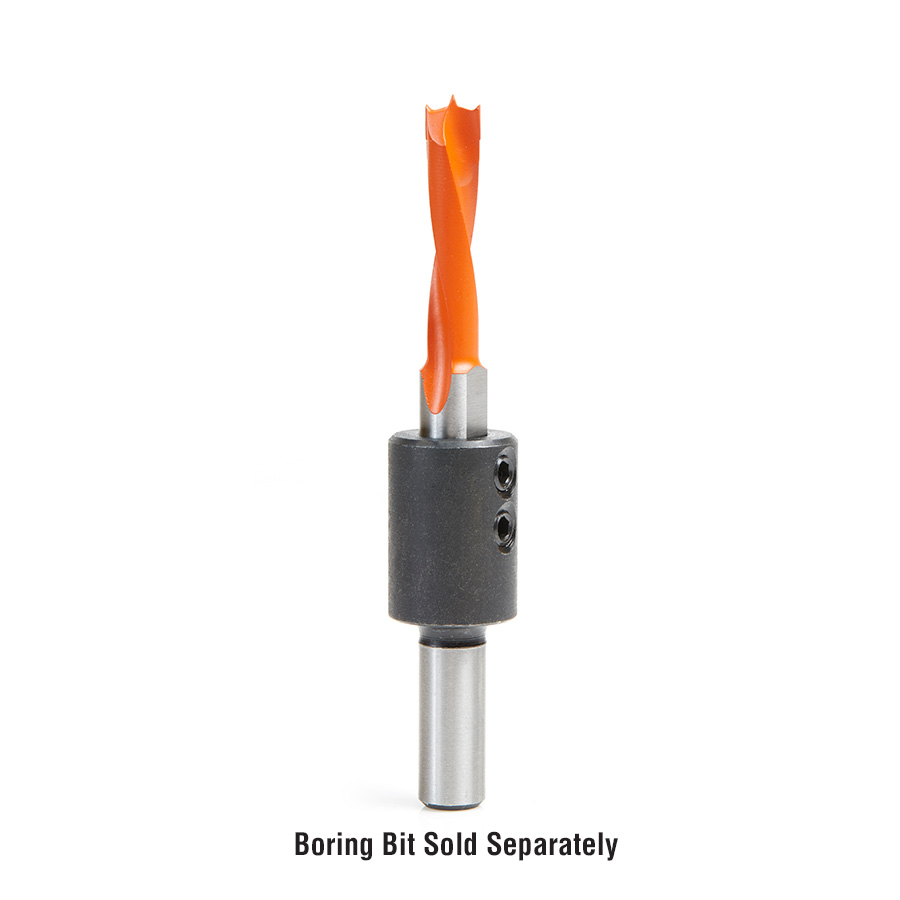

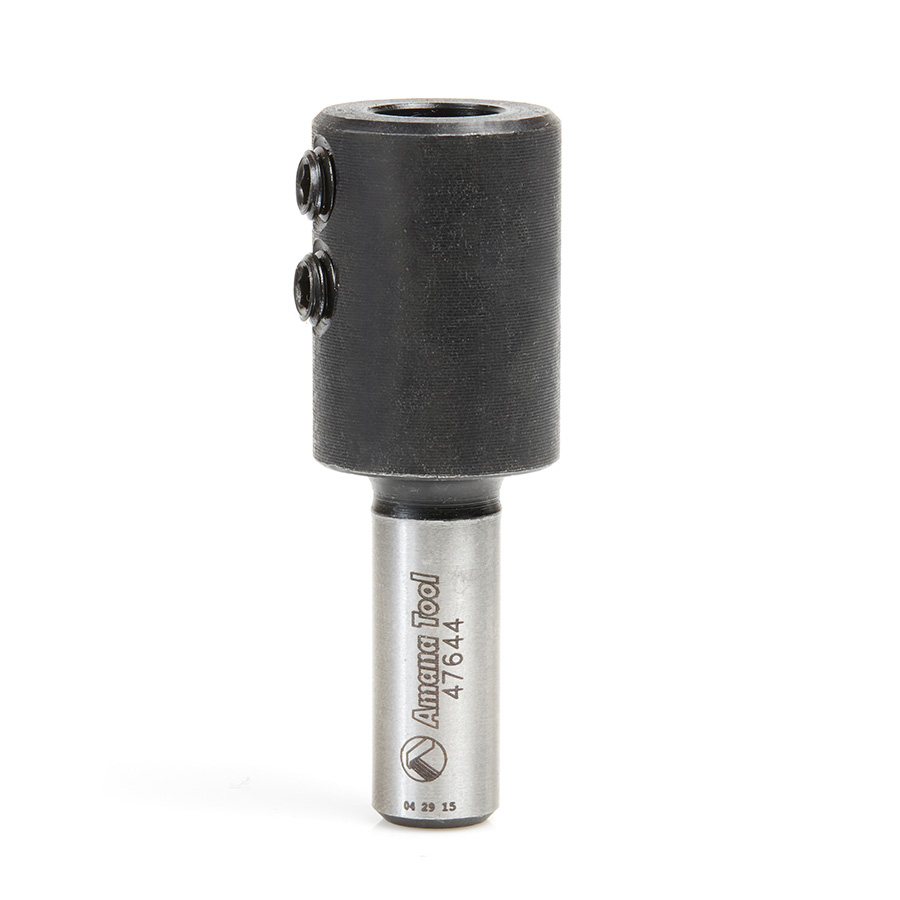

Made especially to run 10mm shank dowel drills and boring bits on a CNC machine. Accommodates the flat area on the 10mm round drill bit shank, secure with the 2 set screws (M6), same method as on boring machines.

Total Indicated Run-out (TIR) is 0.00118″ (0.03mm)

Note:** When securing drill bit into the adapter, make sure to align the flat part of the shank with both set screws.

Warning:**Max RPM = 10,000

Replacement Parts

M6 X 5 Screw (2 Required)	Torx Key
67075	5004

Specifications

(D) Diameter	3/4
(d) Shank	10mm
Overall Length (L)	2-5/32
D1	10mm
L1	1-1/16

Other Sizes Available

D1	(d) Shank	(D) Diameter	Overall Length (L)	L1	Tool No.
10mm	1/4 (6.35mm)	3/4 (19.05mm)	2-5/32	1-1/16	47636
10mm	1/2 (12.70mm)	3/4 (19.05mm)	2-7/16	1-1/16	47638
10mm	6mm	3/4 (19.05mm)	2-5/32	1-1/16	47643

Weight	0.16 lbs

Brand

Amana Tool
