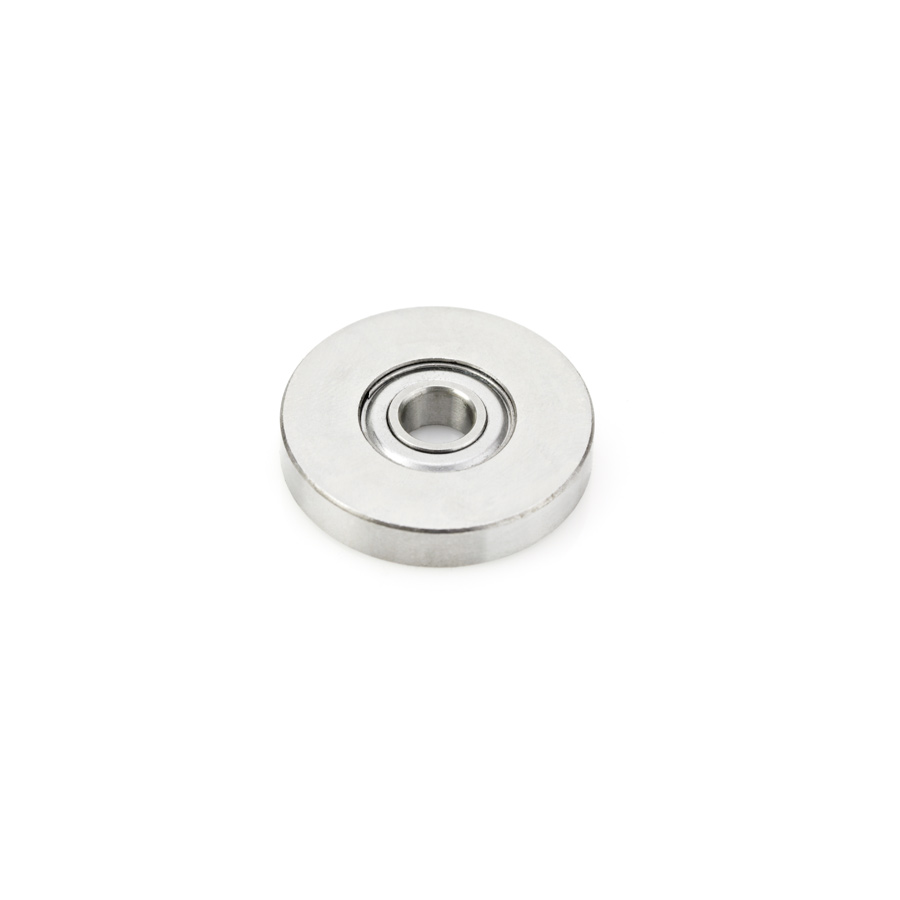

Amana 47772 Metric Steel Ball Bearing Guide 1-3/8 Overall Dia x 8mm Inner Dia x 1/4 Height

Name: Amana 47772 Metric Steel Ball Bearing Guide 1-3/8 Overall Dia x 8mm Inner Dia x 1/4 Height
SKU: Amana 47772
Availability: InStock

Original price was: $23.45.Current price is: $17.59.

1-3/8″x8mmx1/4″ BEARING GUIDE

UPC: 738685477724 SKU: Amana 47772 Categories: Amana Tool, Metric Steel Ball Bearing Guides, Router Bit Parts & Accessories, Router Bits

Item Description

Amana Tool® uses only the finest industrial quality precision ball bearings available. Bearings are double steel-shielded for extra rigidity and to inhibit dust. A special high-performance, high-temperature grease is used for maximum life.

Note:** Solvents should not be used to clean ball bearings, as this will deteriorate the special grease. ‘Frozen’ bearings (ones that do not rotate freely), should be replaced immediately.

Specifications

Diameter (D)	1-3/8
Application	TRS-310 (Timberline®)
B	1/4
d	8mm

Other Sizes Available

Application	d	Diameter (D)	B	Tool No.
Miniature	4mm	8mm	3mm	47703
49342 & 49346	4mm	9mm	4mm	47660
49342 & 49346	4mm	10mm	4mm	47661
47193 (1198704.60mm)	5mm	10mm	4mm	47794
49342 & 49346	4mm	11mm	4mm	47662
49342 & 49346	4mm	12mm	4mm	47663
49342 & 49346	4mm	13mm	4mm	47664
54220.	5mm	13mm	4mm	47705
54229	8mm	16mm	5mm	47713
54164	5mm	16mm	5mm	47716
RC	6mm	19mm	6mm	47711
47174 (1198222.00mm)	6mm	22mm	7mm	47798
45467.45467.00	15mm	1 (25.40mm)	.218	47754
TRS-310	8mm	1 (25.40mm)	1/4 (6.35mm)	47770
45466.45466.00	10mm	26mm	8mm	47722
55392.	8mm	28mm	9mm	47736
56150.	15mm	35mm	11mm	47734
TRS-310	8mm	1-1/8	1/4 (6.35mm)	47771
TRS-310	15mm	2 (50.80mm)	13mm	47760
55392 (1406959.61mm)	8mm	1-21/32	7mm	47834
45567 (1157404.11mm)	15mm	1-1/2	.343	47758

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
