Sale!

48010 Solid Carbide Medium Burr with End Mill Point Fiberglass and Composite Cutting 1/8 Dia x 1 x 1/8 Shank Router Bit

Amana 48010 Solid Carbide Medium Burr with End Mill Point Fiberglass and Composite Cutting 1/8 Dia x 1 x 1/8 Shank Router Bit

Name: Amana 48010 Solid Carbide Medium Burr with End Mill Point Fiberglass and Composite Cutting 1/8 Dia x 1 x 1/8 Shank Router Bit
SKU: Amana 48010
Availability: InStock

Original price was: $41.55.Current price is: $31.17.

FIBERGLASS 1/8 DIA.FINE 1/8″SH

UPC: 738685481998 SKU: Amana 48010 Categories: Amana Tool, CNC Router Bits, Composite, Fiberglass & Phenolic Cutting CNC Router Bits, Solid Carbide Fiberglass and Composite CNC Router Bits

Item Description

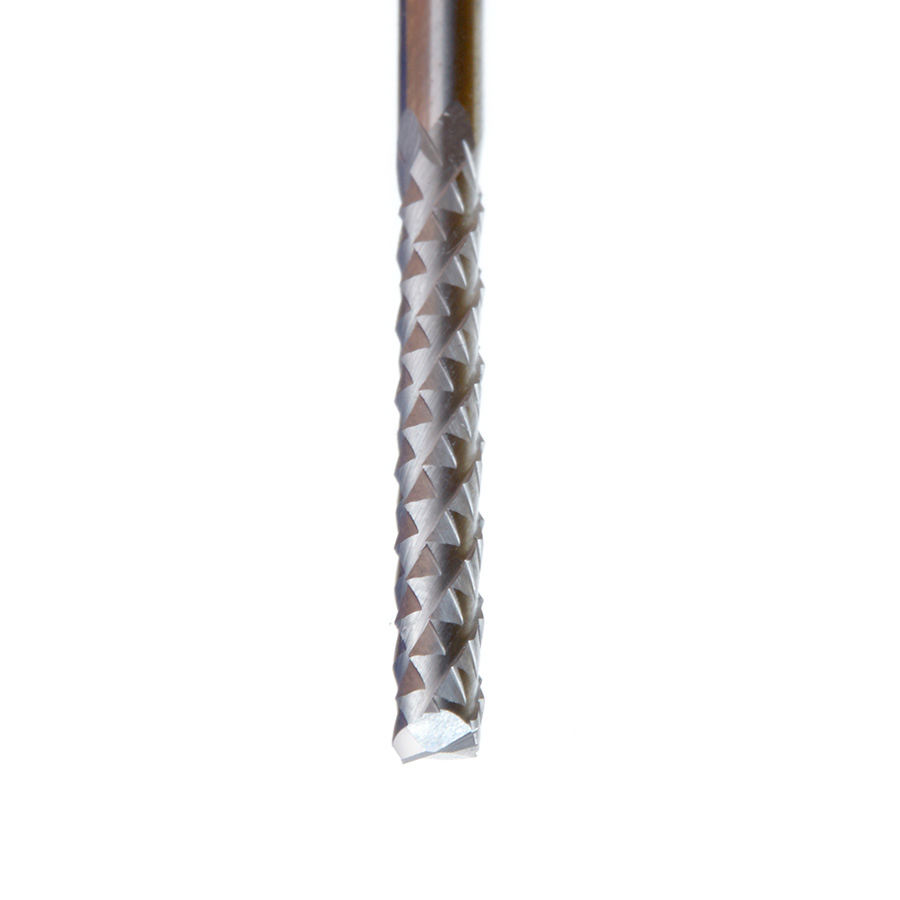

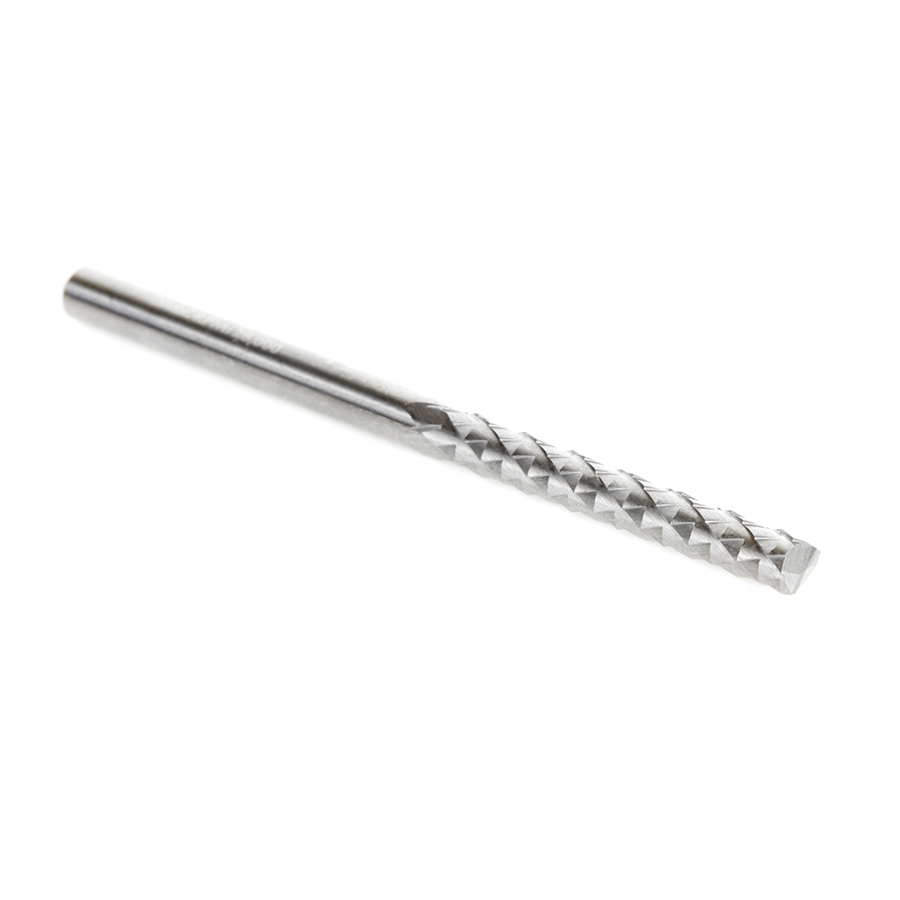

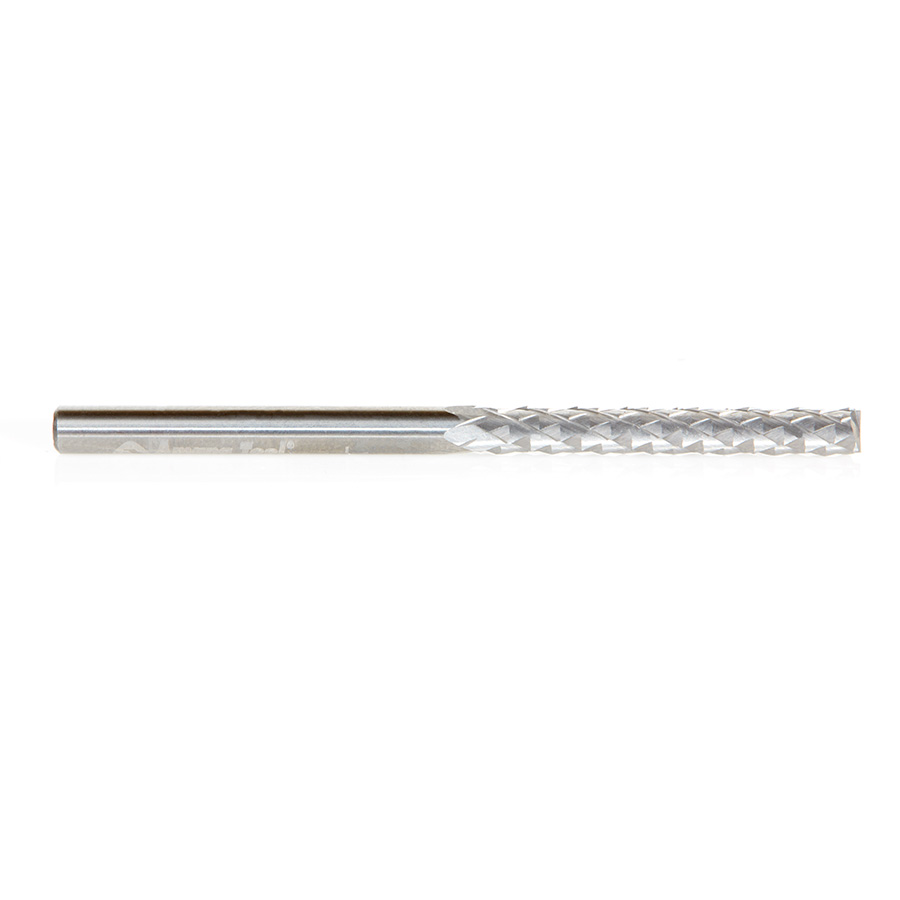

Amana Tool’s FiberGlass Router (FGR) burs incorporate reciprocating diamond-fluted geometry, strong negative rake angles and generous fluting to provide the best cutting action in a wide variety of woven resin bond fiberglass and composite materials.

Excellent for Cutting:

Carbon Fiber
Edging and Slotting All Carbon Fiber Reinforced Polymer – Plastic Materials (CFRP)
Composite Materials
Fiberglass
Fiberglass PCB Board
Fiber Reinforced Plastic (FRP)
Glass Reinforced Plastic (GRP)

G10 / FR-4 and G11 / FR-5 Glass Epoxy Composite Laminate Material
Micarta® (Brand name for composites of linen, canvas, paper, fiberglass, carbon fiber or other fabric in a thermosetting plastic.)
Phenolic
Thermoset Composites
Thermosetting Plastics

Router collet reducer[RB-102](http://www.amanatool.com/rb-102-router-shank-reduction-bushing-1-4-overall-dia-x-1-8-inner-dia-x-1-length.html)(1/4 to 1/8) available for 1/8 shank bits.

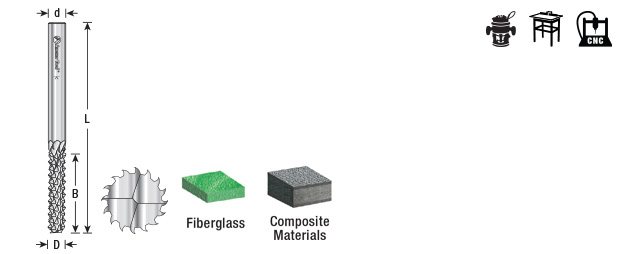

Specifications

(D) Diameter	1/8
(B) Cutting Height	1
(d) Shank	1/8
Overall Length (L)	2
Type	End Mill Point

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Type	Tool No.
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	End Mill Point	48011
1/4 (6.35mm)	1-1/8	1/4 (6.35mm)	3 (76.20mm)	End Mill Point	48012
1/4 (6.35mm)	1-1/2	1/4 (6.35mm)	3 (76.20mm)	End Mill Point	48014

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
