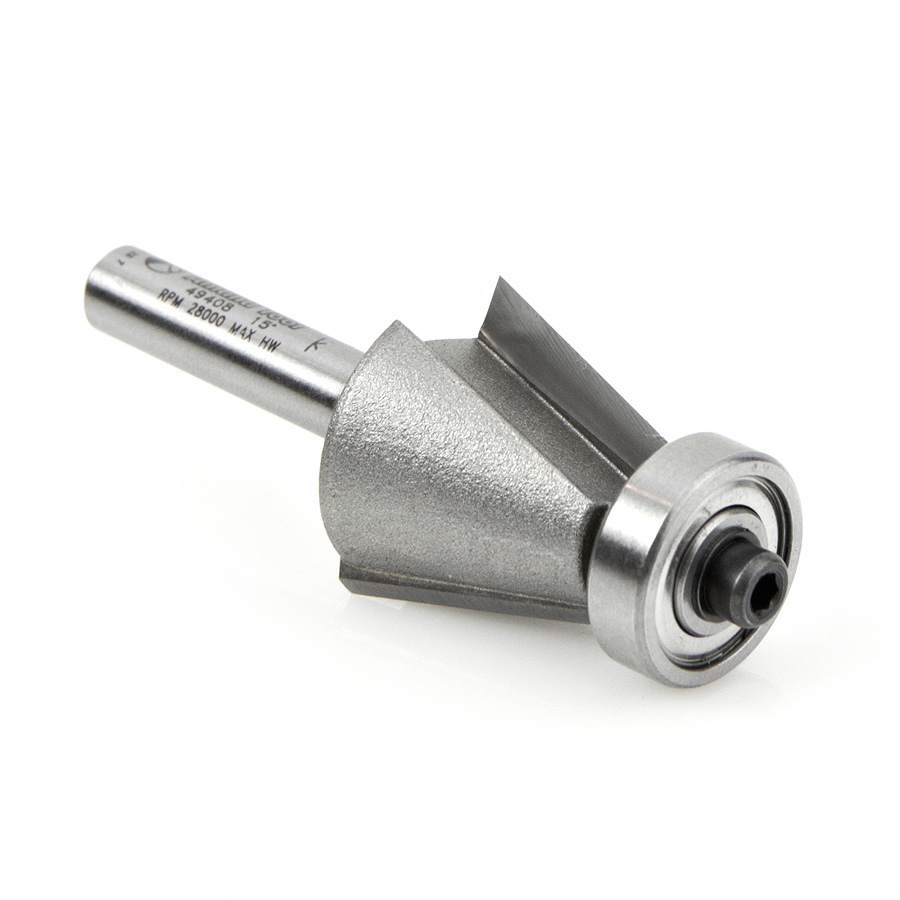

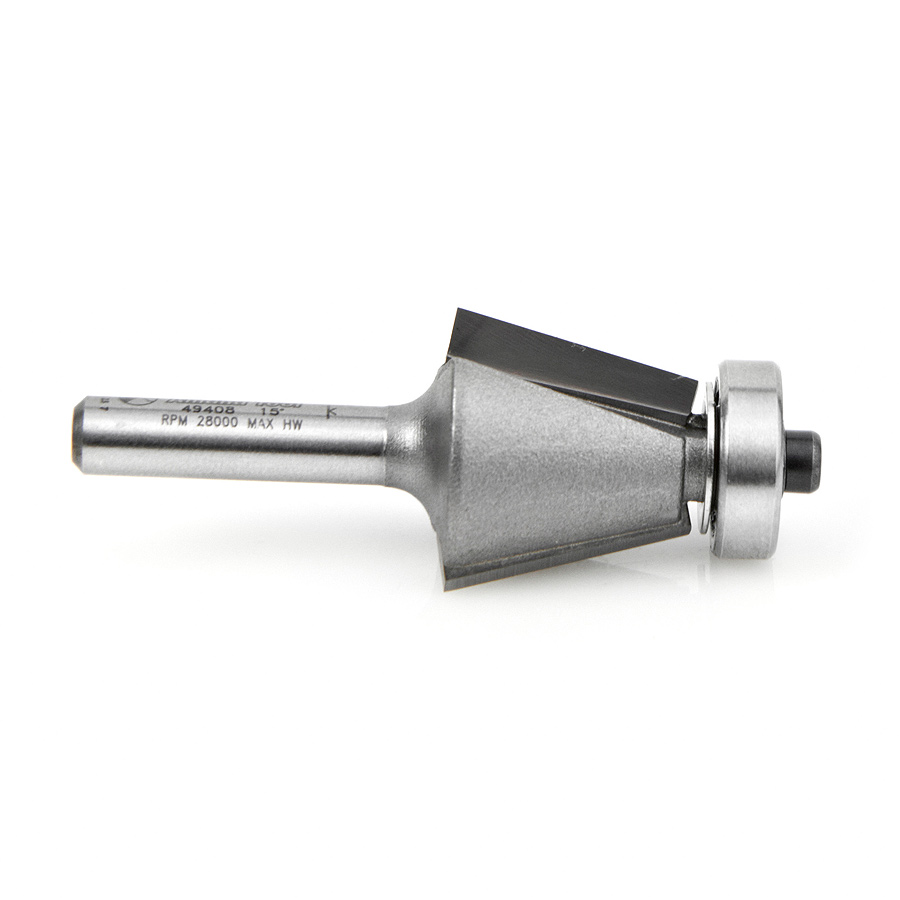

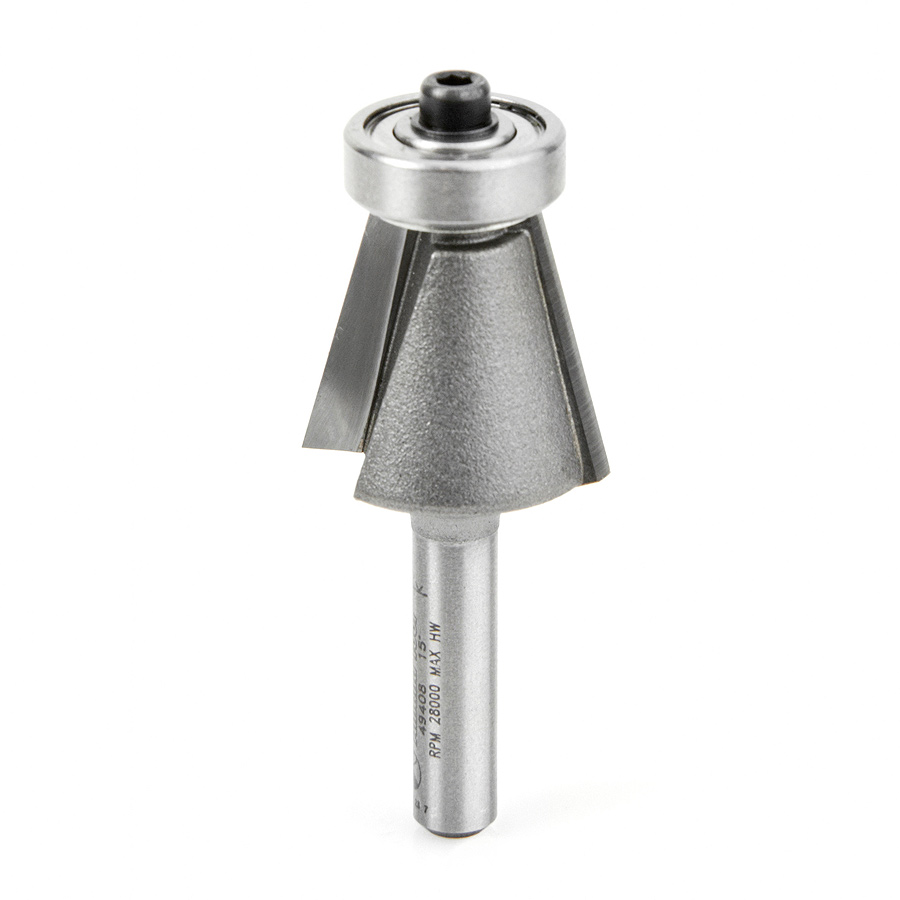

49408 Carbide Tipped Chamfer 15 Degree x 7/8 Dia x 3/4 x 1/4 Inch Shank

Amana 49408 Carbide Tipped Chamfer 15 Degree x 7/8 Dia x 3/4 x 1/4 Inch Shank

Name: Amana 49408 Carbide Tipped Chamfer 15 Degree x 7/8 Dia x 3/4 x 1/4 Inch Shank
SKU: Amana 49408
Availability: InStock

Original price was: $63.75.Current price is: $47.82.

15 DEGREE CHAMFER 1/4 SHANK

UPC: 738685894088 SKU: Amana 49408 Categories: Amana Tool, Chamfer Router Bits, Profiling Router Bits, Router Bits

Item Description

Chamfer or bevel edges for decorative effect or to form edge miter joints. Produce crisp, uniform edges at accurate angles to make 4-, 6-, 8-, 12-, or 16-sided boxes. For best results use in a router table.

Excellent for cutting:

Acrylic
Laminate
MDF/HDF
Melamine
Wood
Plywood

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
49408	47706	67096	67098	67202

Specifications

Angle (a°)	15°
Diameter (D)	7/8
Cutting Height (B)	3/4
Shank (d)	1/4
Overall Length (L)	2-1/4
Replacement Bearing	47706
Flutes	2
C	21/32

Other Sizes Available

Angle (a°)	Diameter (D)	Cutting Height (B)	C	Shank (d)	Overall Length (L)	Tool No.
11-1/4°27.75	7/8 (22.23mm)	1 (25.40mm)	1 (25.40mm)	1/2 (12.70mm)	2-7/8	49407
30°	1-3/8	13/16 (20.64mm)	7/8 (22.23mm)	1/4 (6.35mm)	2-1/4	49412
30°	1-3/8	13/16 (20.64mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-3/4	49414
45°	1-19/64	7/16 (11.11mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	47306
45°	1-19/64	7/16 (11.11mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-3/8	47308
45°	1-3/4	3/4 (19.05mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-13/16	47309
45°	1-1/4	1/2 (12.70mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	49400
45°	1 (25.40mm)	5/16 (7.94mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	49401
45°	1-1/4	1/2 (12.70mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-3/8	49402
45°	1-1/4	1/2 (12.70mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-3/8	49402-5
45°	1-3/8	7/16 (11.11mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/2	49403
45°	1-31/32	3/4 (19.05mm)	1-1/16	1/2 (12.70mm)	2-23/32	49404
45°	3 (76.20mm)	1-1/16	1-3/8	1/2 (12.70mm)	3 (76.20mm)	49405
45°	2-3/8	1 (25.40mm)	1-3/8	1/2 (12.70mm)	2-7/8	49406
60°	2-1/2	5/8 (15.88mm)	1-5/32	1/2 (12.70mm)	2-63/64	49416
60°	1-1/2	5/8 (15.88mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-5/8	49420
–	–	–	–	–	–	AMS-184
22-1/2°110.5	1-1/4	15/16 (23.81mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-7/8	49410

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
