Sale!

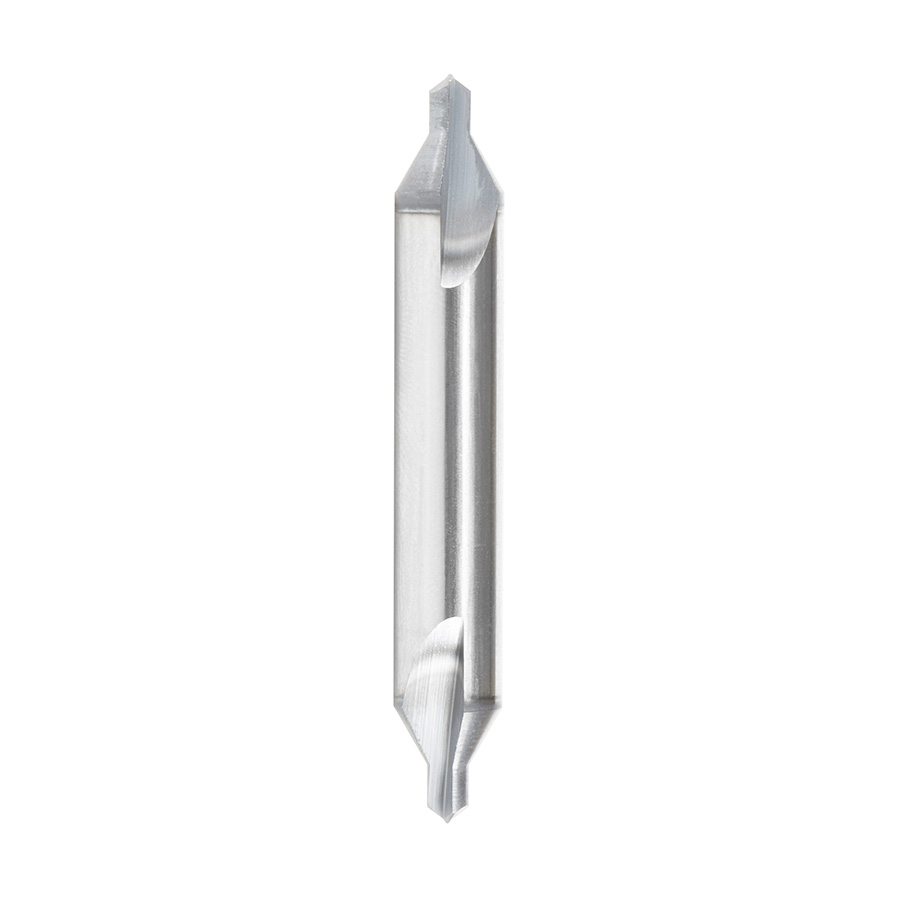

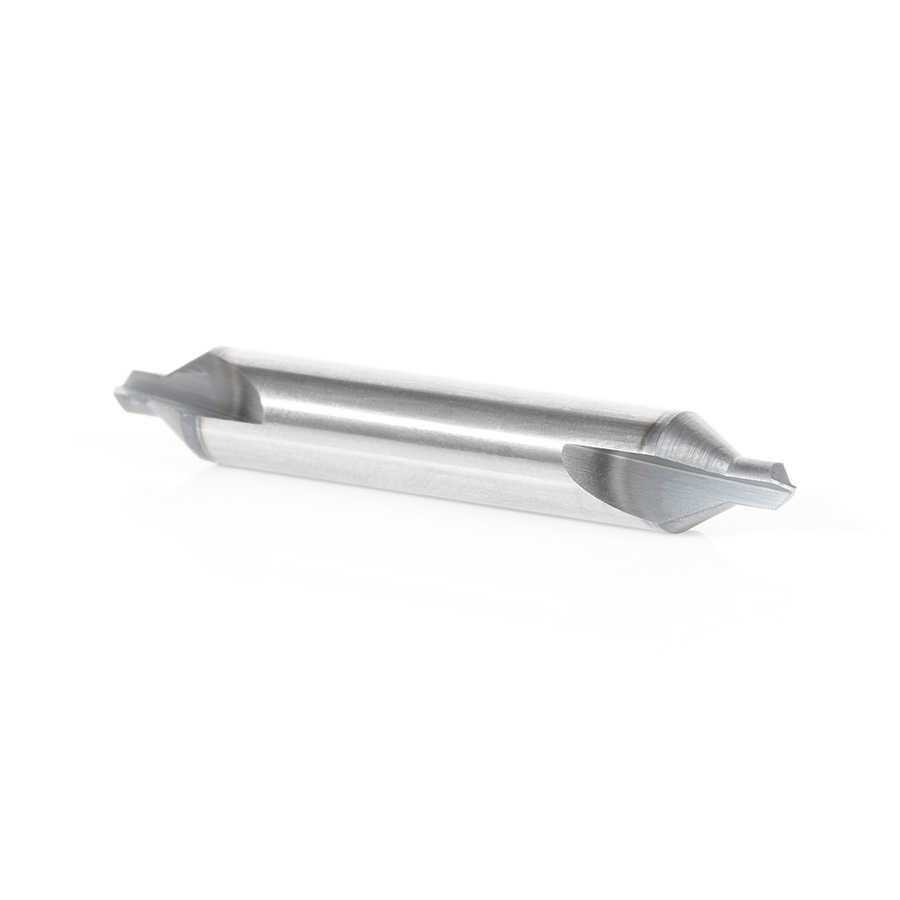

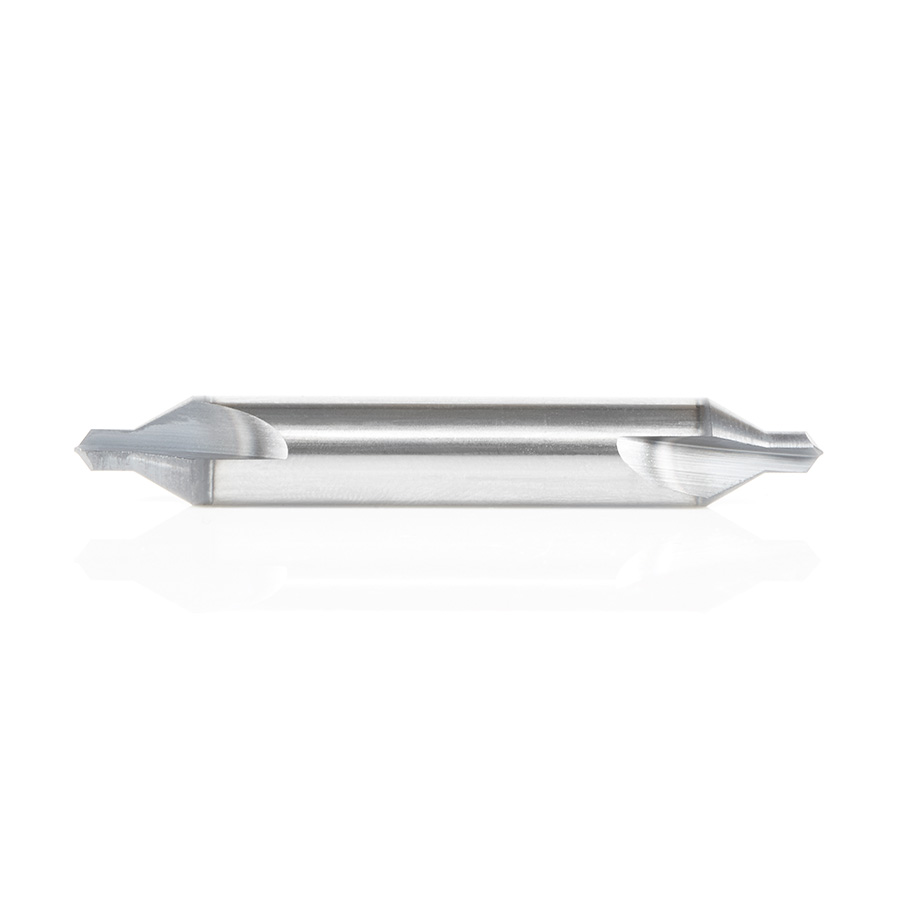

51672 CNC 118 Degree Point Center Drill High Performance Solid Carbide 60 Degree Countersink 5/16 Dia x 1/8 x 5/16 Shank AlTiN Coated Router Bit

Amana 51672 CNC 118 Degree Point Center Drill High Performance Solid Carbide 60 Degree Countersink 5/16 Dia x 1/8 x 5/16 Shank AlTiN Coated Router Bit

Original price was: $99.95.Current price is: $74.97.

1/8″D DRILL &COUNTERSINK AlTiN

Item Description

Countersinks drill downwards a small amount in order to make a quality starting hole and a profile. Follow up with a secondary drill for the full depth of cut of the work-piece. They don’t route along a slot. Combination drill/countersinks provides exceptional starting positioning for secondary drills, plus provide qualified countersink dimensions for screw heads, etc. Premium Aluminum Titanium Nitride (AlTiN) coating provides quantum increases in productivity, either in terms of speed or longevity, with or without coolant.

Use on a manual or CNC driven lathes and manual or CNC driven milling machines.

Not for use in handheld drills or handheld routers.

Excellent for cutting:

Stainless Steel
Steel
Titanium
Cast Iron
Soft Plastics
Composites

Cermet*
Corian
Poly (methyl methacrylate) (PMMA)
Acrylic Stone
Coroplast®**

Cermets are composites in which ceramic materials and metals join together.

A soft plastic cardboard made with super soft super flexible PVC.

AlTiN coating has many benefits:

Extra wear resistance
Allows for faster feed and speed rates
Cutting edge protected from wear
Better chip evacuation
Less heat build up
Superior cutting quality and extended tool life

WARNING**:****Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage.

Note:** For optimal results and extended tool life use mist lubricant system or air cooling.

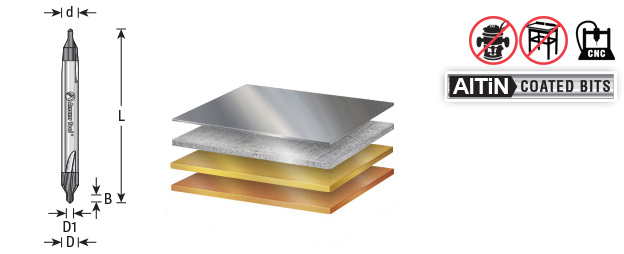

Specifications

(D) Diameter	5/16
D1	1/8
(B) Cutting Height	1/8
(d) Shank	5/16
Overall Length (L)	2-1/8
Flutes	2
Wood Screw Size	#4

Other Sizes Available

(D) Diameter	D1	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Wood Screw Size	Tool No.
3/16 (4.76mm)	5/64 (1.98mm)	5/64 (1.98mm)	3/16 (4.76mm)	2 (50.80mm)	2	#2#2#2#2	51670

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
