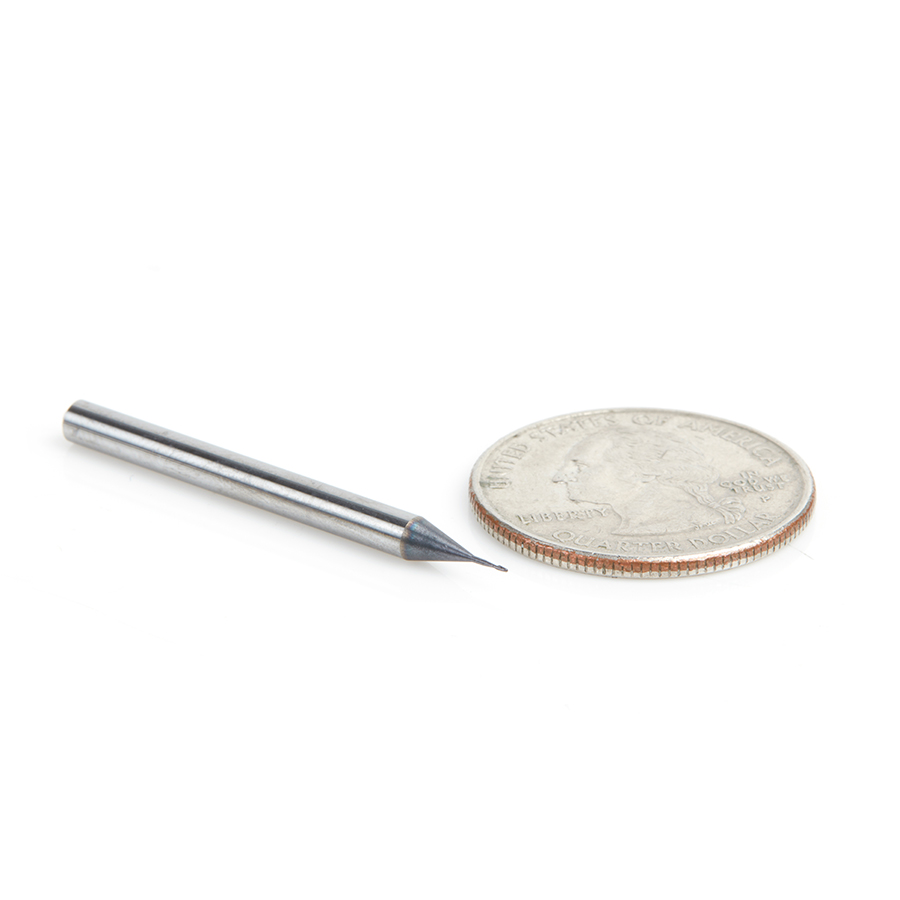

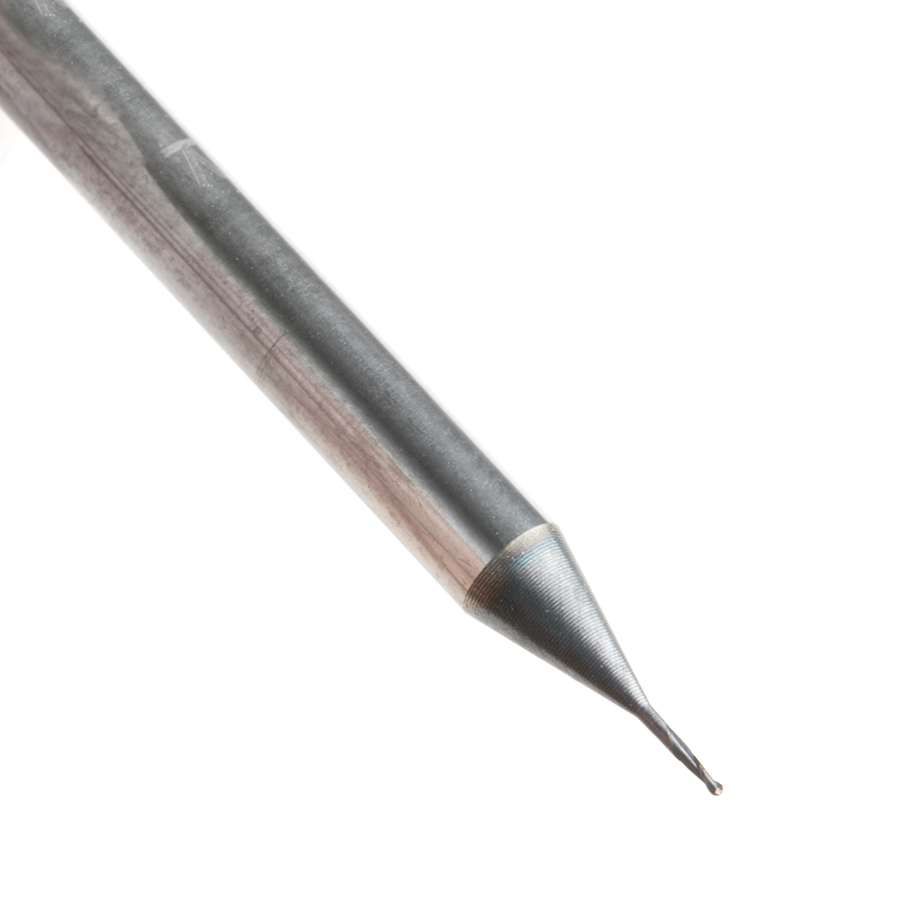

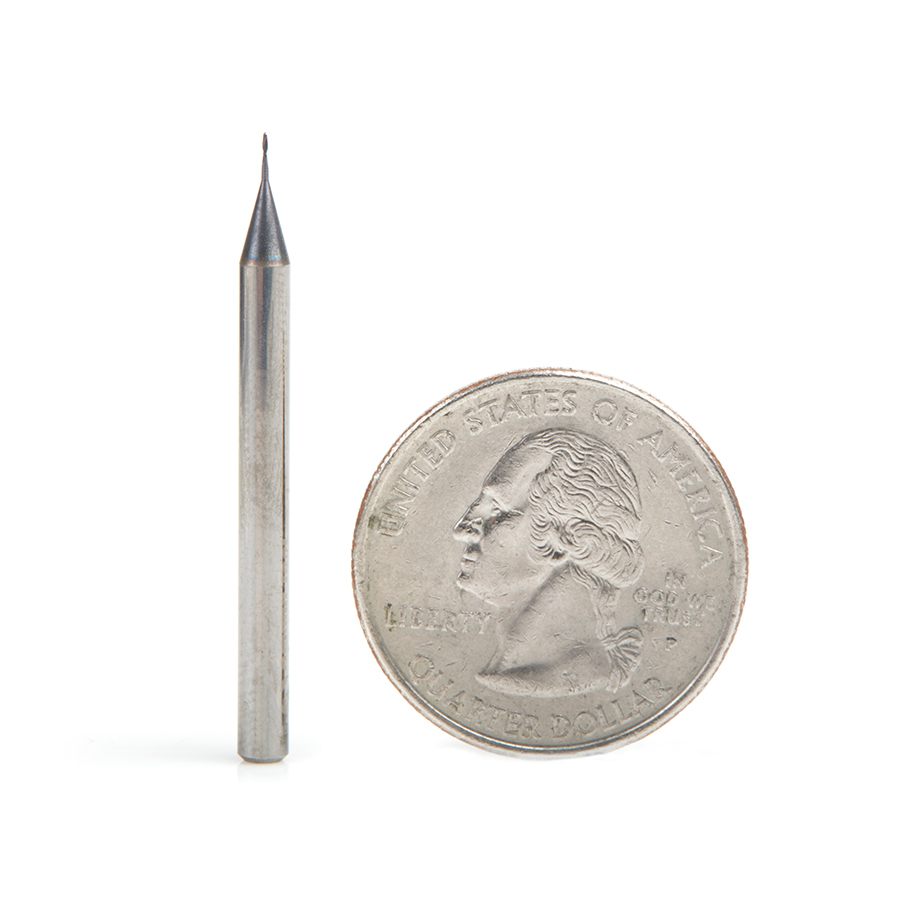

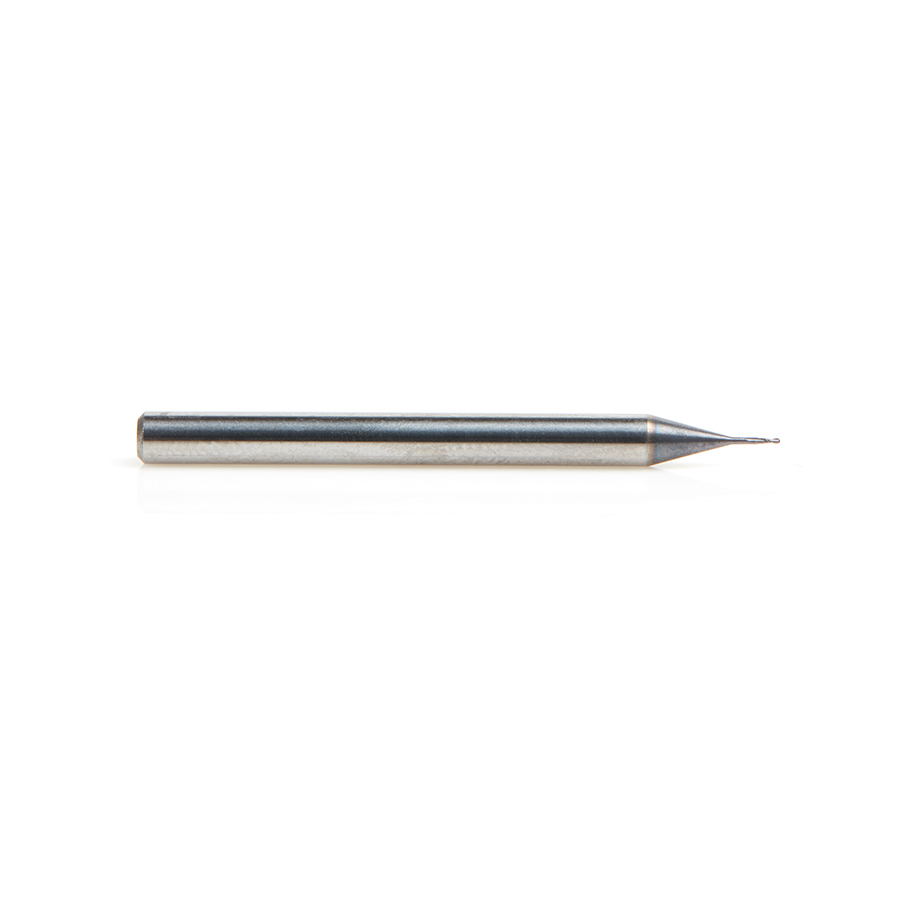

51740 AlTiN Coated CNC Steel, Stainless Steel & Composite Ball End Mini Mill 0.015 Dia x Radius 0.0075 x 0.045 x 1/8 Shank

Amana 51740 AlTiN Coated CNC Steel, Stainless Steel & Composite Ball End Mini Mill 0.015 Dia x Radius 0.0075 x 0.045 x 1/8 Shank

Name: Amana 51740 AlTiN Coated CNC Steel, Stainless Steel &amp; Composite Ball End Mini Mill 0.015 Dia x Radius 0.0075 x 0.045 x 1/8 Shank
SKU: Amana 51740
Availability: InStock

Original price was: $71.30.Current price is: $53.48.

.015″D 2FL BALL MINIMILL AlTiN

UPC: 738685517406 SKU: Amana 51740 Categories: AlTiN Coated CNC Steel, Stainless Steel & Composite Square Mini End Mill, Amana Tool, CNC Router Bits, Steel Cutting CNC Router Bits

Item Description

High performance designed for micro applications. Micro machining applications involve miniature tooling that requires very high attention to tolerances and detail in their construction. These end mills incorporate 30 degree helixes and AlTiN coating to insure a high degree of precision. Miniature end mills also routinely require RPMs in excess of 40,000 RPMs or more so attention to both RPM capacity and accurate chip-loads is mandatory.

Choose 2 flute endmills for efficient vertical plunging, pocketing and slotting operations. 4 fluted tools offer the promise of improved surface finishes, longer service life and increased feed-rates with peripheral milling applications.

Excellent for cutting:

Stainless Steel
Steel
Titanium
Cast Iron

Cermet*
Magnesium
Plastic

Cermets are composites in which ceramic materials and metals join together.

AlTiN coating has many benefits:

Extra wear resistance
Allows for faster feed and speed rates
Cutting edge protected from wear
Better chip evacuation
Less heat build up
Superior cutting quality and extended tool life

Please note:**For optimal results and to extend tool life when trimming/cutting please use mist lubricant system or air cooling. Please inspect cut and adjust accordingly.

Warning:**Due to the extremely small diameters involved please exercise caution to the accurate calculations of all feed and speed rates.

Specifications

Direction	Up-Cut
(D) Diameter	0.015
(R) Radius	0.0075
(B) Cutting Height	0.045
(d) Shank	1/8
Overall Length (L)	1-1/2
Type	Ball End
Flutes	2

Other Sizes Available

(D) Diameter	(R) Radius	(B) Cutting Height	(d) Shank	Overall Length (L)	Type	Flutes	Direction	Tool No.
0.010 (0.25mm)	–	0.030 (0.76mm)	1/8 (3.18mm)	1-1/2	Square End	2	Up-Cut	51660
0.010 (0.25mm)	–	0.030 (0.76mm)	1/8 (3.18mm)	1-1/2	Square End	4	Up-Cut	51719
0.010 (0.25mm)	0.0050 (0.25mm)	0.030 (0.76mm)	1/8 (3.18mm)	1-1/2	Ball End	2	Up-Cut	51739
0.010 (0.25mm)	0.0050 (0.25mm)	0.030 (0.76mm)	1/8 (3.18mm)	1-1/2	Ball End	4	Up-Cut	51750
0.015 (0.51mm)	–	0.045 (1.27mm)	1/8 (3.18mm)	1-1/2	Square End	2	Up-Cut	51661
0.020 (0.51mm)	–	0.060 (1.52mm)	1/8 (3.18mm)	1-1/2	Square End	2	Up-Cut	51662
0.015 (0.51mm)	–	0.045 (1.27mm)	1/8 (3.18mm)	1-1/2	Square End	4	Up-Cut	51720
0.020 (0.51mm)	–	0.060 (1.52mm)	1/8 (3.18mm)	1-1/2	Square End	4	Up-Cut	51721
0.020 (0.51mm)	0.0100 (0.25mm)	0.060 (1.52mm)	1/8 (3.18mm)	1-1/2	Ball End	2	Up-Cut	51741
0.015 (0.51mm)	0.0075 (0.25mm)	0.045 (1.27mm)	1/8 (3.18mm)	1-1/2	Ball End	4	Up-Cut	51751
0.020 (0.51mm)	0.0100 (0.25mm)	0.060 (1.52mm)	1/8 (3.18mm)	1-1/2	Ball End	4	Up-Cut	51752
0.025 (0.76mm)	–	0.075 (2.03mm)	1/8 (3.18mm)	1-1/2	Square End	2	Up-Cut	51663
0.030 (0.76mm)	–	0.090 (2.29mm)	1/8 (3.18mm)	1-1/2	Square End	2	Up-Cut	51664
0.025 (0.76mm)	–	0.075 (2.03mm)	1/8 (3.18mm)	1-1/2	Square End	4	Up-Cut	51722
0.030 (0.76mm)	–	0.090 (2.29mm)	1/8 (3.18mm)	1-1/2	Square End	4	Up-Cut	51723
0.025 (0.76mm)	0.0125 (0.25mm)	0.075 (2.03mm)	1/8 (3.18mm)	1-1/2	Ball End	2	Up-Cut	51742
0.030 (0.76mm)	0.0150 (0.51mm)	0.090 (2.29mm)	1/8 (3.18mm)	1-1/2	Ball End	2	Up-Cut	51743
0.025 (0.76mm)	0.0125 (0.25mm)	0.075 (2.03mm)	1/8 (3.18mm)	1-1/2	Ball End	4	Up-Cut	51753
0.030 (0.76mm)	0.0150 (0.51mm)	0.090 (2.29mm)	1/8 (3.18mm)	1-1/2	Ball End	4	Up-Cut	51754
0.035 (1.02mm)	–	0.105 (2.79mm)	1/8 (3.18mm)	1-1/2	Square End	2	Up-Cut	51665
0.040 (1.02mm)	–	0.120 (3.05mm)	1/8 (3.18mm)	1-1/2	Square End	2	Up-Cut	51666
0.035 (1.02mm)	–	0.105 (2.79mm)	1/8 (3.18mm)	1-1/2	Square End	4	Up-Cut	51724
0.040 (1.02mm)	–	0.120 (3.05mm)	1/8 (3.18mm)	1-1/2	Square End	4	Up-Cut	51725
0.035 (1.02mm)	0.0175 (0.51mm)	0.105 (2.79mm)	1/8 (3.18mm)	1-1/2	Ball End	2	Up-Cut	51744
0.040 (1.02mm)	0.0200 (0.51mm)	0.125 (3.30mm)	1/8 (3.18mm)	1-1/2	Ball End	2	Up-Cut	51745
0.035 (1.02mm)	0.0175 (0.51mm)	0.105 (2.79mm)	1/8 (3.18mm)	1-1/2	Ball End	4	Up-Cut	51755
0.040 (1.02mm)	0.0200 (0.51mm)	0.125 (3.30mm)	1/8 (3.18mm)	1-1/2	Ball End	4	Up-Cut	51756
0.045 (1.27mm)	–	0.135 (3.56mm)	1/8 (3.18mm)	1-1/2	Square End	2	Up-Cut	51667
0.050 (1.27mm)	–	0.174 (4.32mm)	1/8 (3.18mm)	1-1/2	Square End	2	Up-Cut	51668
0.045 (1.27mm)	–	0.135 (3.56mm)	1/8 (3.18mm)	1-1/2	Square End	4	Up-Cut	51726
0.050 (1.27mm)	–	0.174 (4.32mm)	1/8 (3.18mm)	1-1/2	Square End	4	Up-Cut	51727
0.045 (1.27mm)	0.0225 (0.51mm)	0.135 (3.56mm)	1/8 (3.18mm)	1-1/2	Ball End	2	Up-Cut	51746
0.050 (1.27mm)	0.0250 (0.76mm)	0.174 (4.32mm)	1/8 (3.18mm)	1-1/2	Ball End	2	Up-Cut	51747
0.050 (1.27mm)	0.0250 (0.76mm)	0.174 (4.32mm)	1/8 (3.18mm)	1-1/2	Ball End	4	Up-Cut	51758
0.055 (1.52mm)	–	0.267 (6.86mm)	1/8 (3.18mm)	1-1/2	Square End	2	Up-Cut	51669
0.060 (1.52mm)	–	0.360 (9.14mm)	1/8 (3.18mm)	1-1/2	Square End	2	Up-Cut	51679
0.055 (1.52mm)	–	0.267 (6.86mm)	1/8 (3.18mm)	1-1/2	Square End	4	Up-Cut	51728
0.060 (1.52mm)	–	0.360 (9.14mm)	1/8 (3.18mm)	1-1/2	Square End	4	Up-Cut	51729
0.055 (1.52mm)	0.0275 (0.76mm)	0.267 (6.86mm)	1/8 (3.18mm)	1-1/2	Ball End	2	Up-Cut	51748
0.060 (1.52mm)	0.0300 (0.76mm)	0.360 (9.14mm)	1/8 (3.18mm)	1-1/2	Ball End	2	Up-Cut	51749
0.060 (1.52mm)	0.0300 (0.76mm)	0.360 (9.14mm)	1/8 (3.18mm)	1-1/2	Ball End	4	Up-Cut	51760

Weight	0.02 lbs
