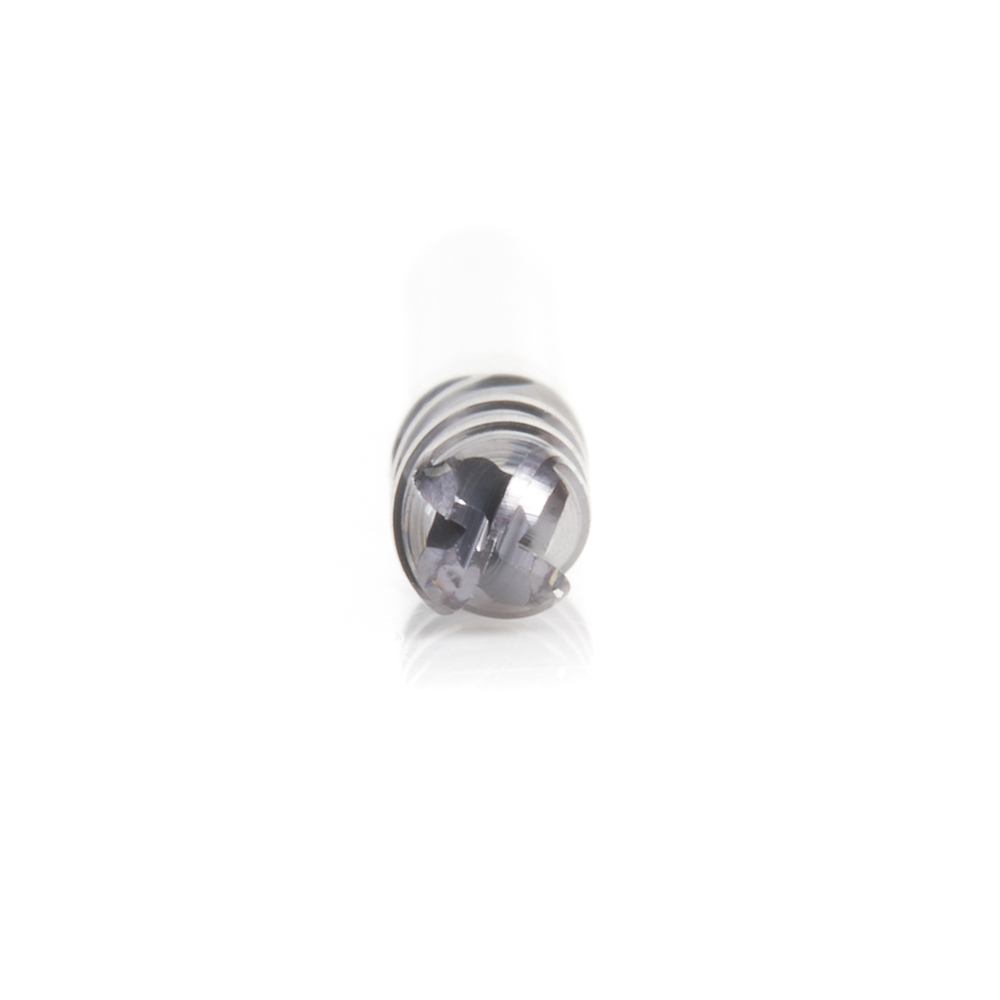

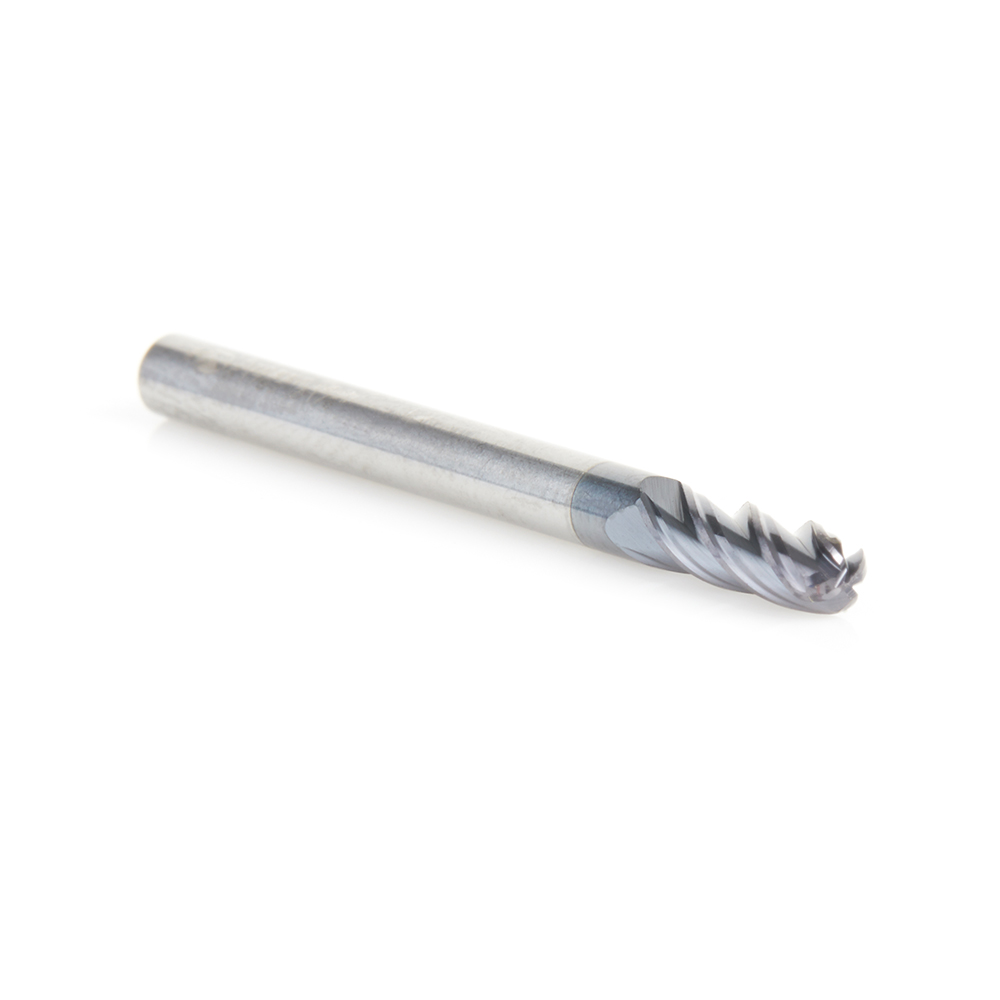

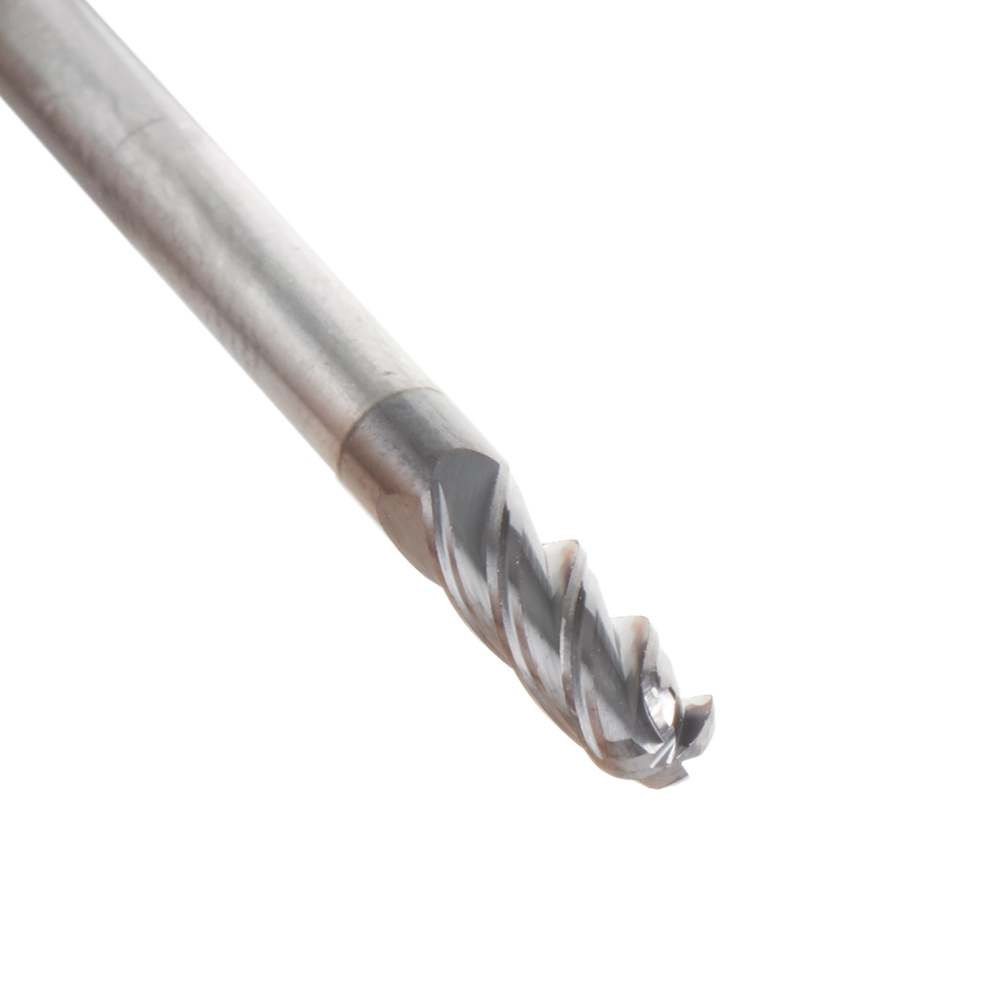

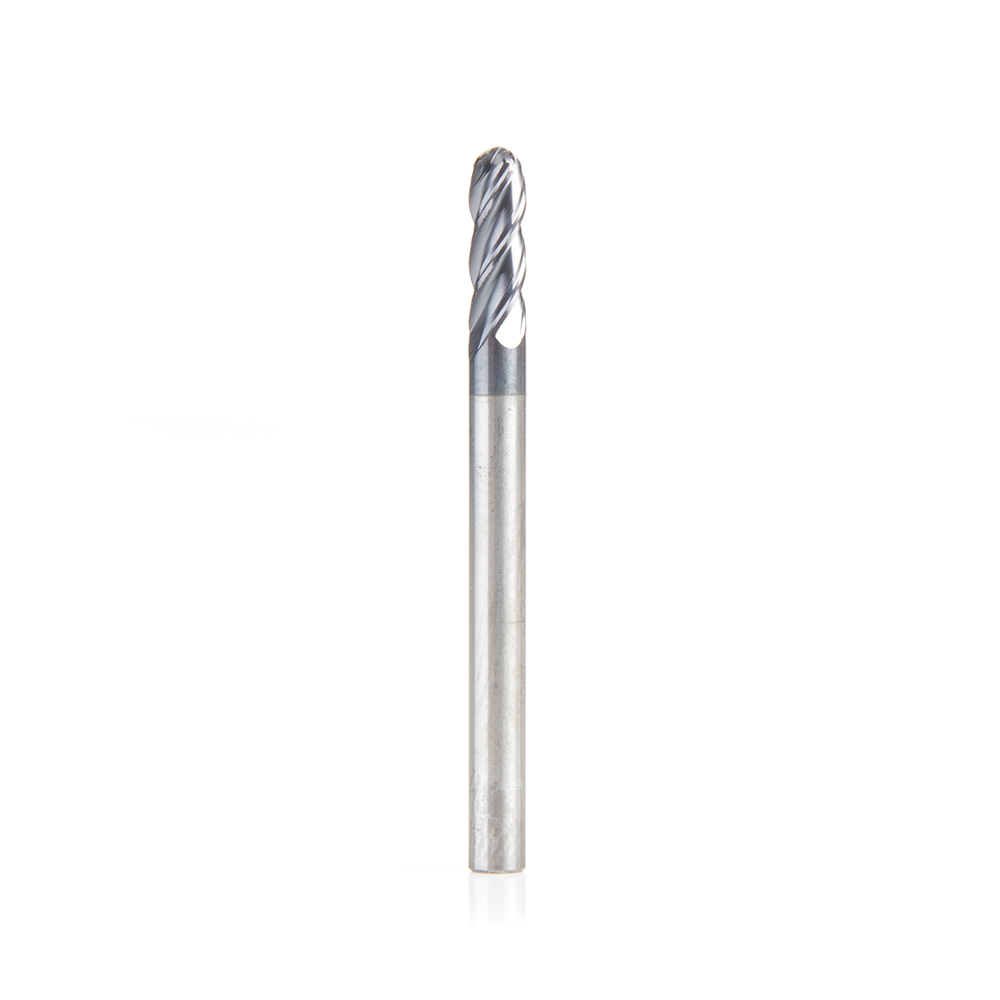

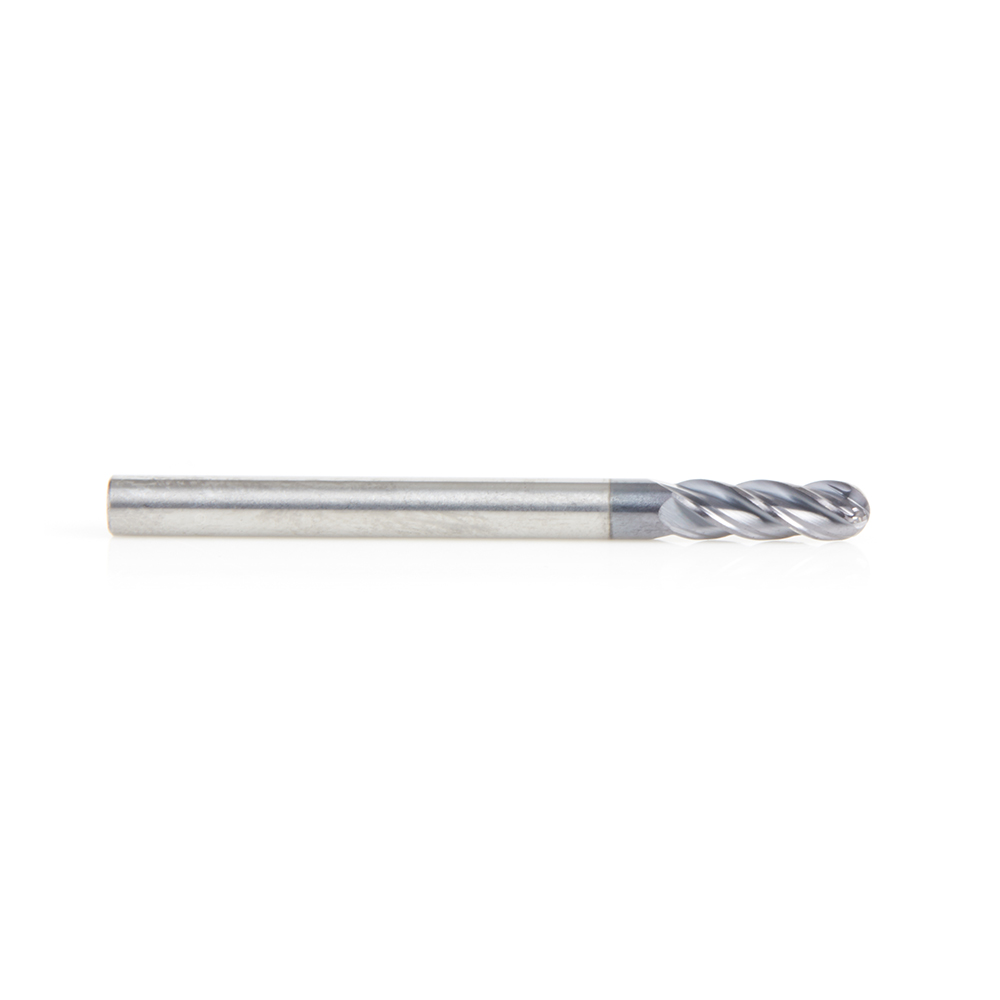

51792 High Performance Solid Carbide CNC Steel, Stainless Steel & Composite Cutting Variable Helix Spiral Ball Nose with AlTiN Coating 4-Flute x 1/8 Dia x 3/8 x 1/8 Shank x 1-1/2 Inch Long Up-Cut Router Bit/End Mill

Amana 51792 High Performance Solid Carbide CNC Steel, Stainless Steel & Composite Cutting Variable Helix Spiral Ball Nose with AlTiN Coating 4-Flute x 1/8 Dia x 3/8 x 1/8 Shank x 1-1/2 Inch Long Up-Cut Router Bit/End Mill

Name: Amana 51792 High Performance Solid Carbide CNC Steel, Stainless Steel &amp; Composite Cutting Variable Helix Spiral Ball Nose with AlTiN Coating 4-Flute x 1/8 Dia x 3/8 x 1/8 Shank x 1-1/2 Inch Long Up-Cut Router Bit/End Mill
SKU: Amana 51792
Availability: InStock

Original price was: $50.60.Current price is: $37.95.

1/8×3/8″ 4FL BALLENDMILL AlTiN

UPC: 738685517925 SKU: Amana 51792 Categories: Amana Tool, CNC Router Bits, High Performance Solid Carbide CNC Steel, Stainless Steel & Composite Cutting Variable Helix Spiral Ball Nose Router Bits, Steel, Stainless Steel & Composite Cutting CNC Router Bits

Item Description

Amana Tool’s variable helix tools are the superstars of carbide end mills for professionals and hobbyists alike. The variable helix eliminates harmonic chatter, so critical when surface finishes part dimension tolerances and tool life are of the utmost importance. Premium Aluminum Titanium Nitride (AlTiN) coating provides quantum increases in productivity either in terms of speed or longevity with or without coolant.

They are outstanding tools for peripheral milling and can take aggressive cuts along the full length of the overall flute length with no issues. They last much longer than general purpose end mills partly because they are coated partly because they dampen vibration which tends to break a sharp cutting edge down very quickly. For use with manual and automatic milling machines, as well as the most sophisticated CNC machines.

Variable helix design for faster speeds and feeds. Quiet operation & better finishes.

Excellent for cutting:

Stainless Steel
Steel
Cast Iron
Cermet*
Composites
Low Carbon Steel

Magnesium
Metal Composite Material (MCM)
Plastics
Super Alloys
Titanium (up to 40HRc Hardness)

Cermets are composites in which ceramic materials and metals join together.

AlTiN coating has many benefits:

Extra wear resistance
Allows for faster feed and speed rates
Cutting edge protected from wear
Better chip evacuation
Less heat build up
Superior cutting quality and extended tool life

WARNING**:****Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage. **Note:** For optimal results and extended tool life use mist lubricant system or air cooling.

Fusion 360 compatible tool file for 51792 available for download, click here.

Specifications

(D) Diameter	1/8
(R) Radius	1/16
(B) Cutting Height	3/8
(d) Shank	1/8
Overall Length (L)	1-1/2
Type	Ball Nose
Flutes	4

Other Sizes Available

(D) Diameter	(R) Radius	(B) Cutting Height	(d) Shank	Overall Length (L)	Type	Tool No.
1/16 (1.59mm)	1/32 (0.79mm)	3/16 (4.76mm)	1/8 (3.18mm)	2-1/2	Ball Nose	51910
1/8 (3.18mm)	1/16 (1.59mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-1/2	Ball Nose	51790
1/8 (3.18mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	Ball Nose	51911
3/16 (4.76mm)	3/32 (2.38mm)	7/16 (11.11mm)	3/16 (4.76mm)	2 (50.80mm)	Ball Nose	51794
1/4 (6.35mm)	1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	Ball Nose	51796
1/4 (6.35mm)	1/8 (3.18mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2"10.50	Ball Nose	51798
1/4 (6.35mm)	1/8 (3.18mm)	1-1/8	1/4 (6.35mm)	3 (76.20mm)	Ball Nose	51800
1/4 (6.35mm)	1/8 (3.18mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	Ball Nose	51912
3/8 (9.53mm)	3/16 (4.76mm)	7/8 (22.23mm)	3/8 (9.53mm)	2-1/2	Ball Nose	51802
3/8 (9.53mm)	3/16 (4.76mm)	1-1/8	3/8 (9.53mm)	3 (76.20mm)	Ball Nose	51913
1/2 (12.70mm)	1/4 (6.35mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	Ball Nose	51804
1/2 (12.70mm)	1/4 (6.35mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	Ball Nose	51806
3/4 (19.05mm)	3/8 (9.53mm)	1-1/2	3/4 (19.05mm)	4 (101.60mm)	Ball Nose	51808

Weight	0.02 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
