51820 CNC Solid Carbide 3 Flute Aluminum and Acrylic Cutting 55º Helix End Mill 10mm Dia x 45mm x 10mm Shank

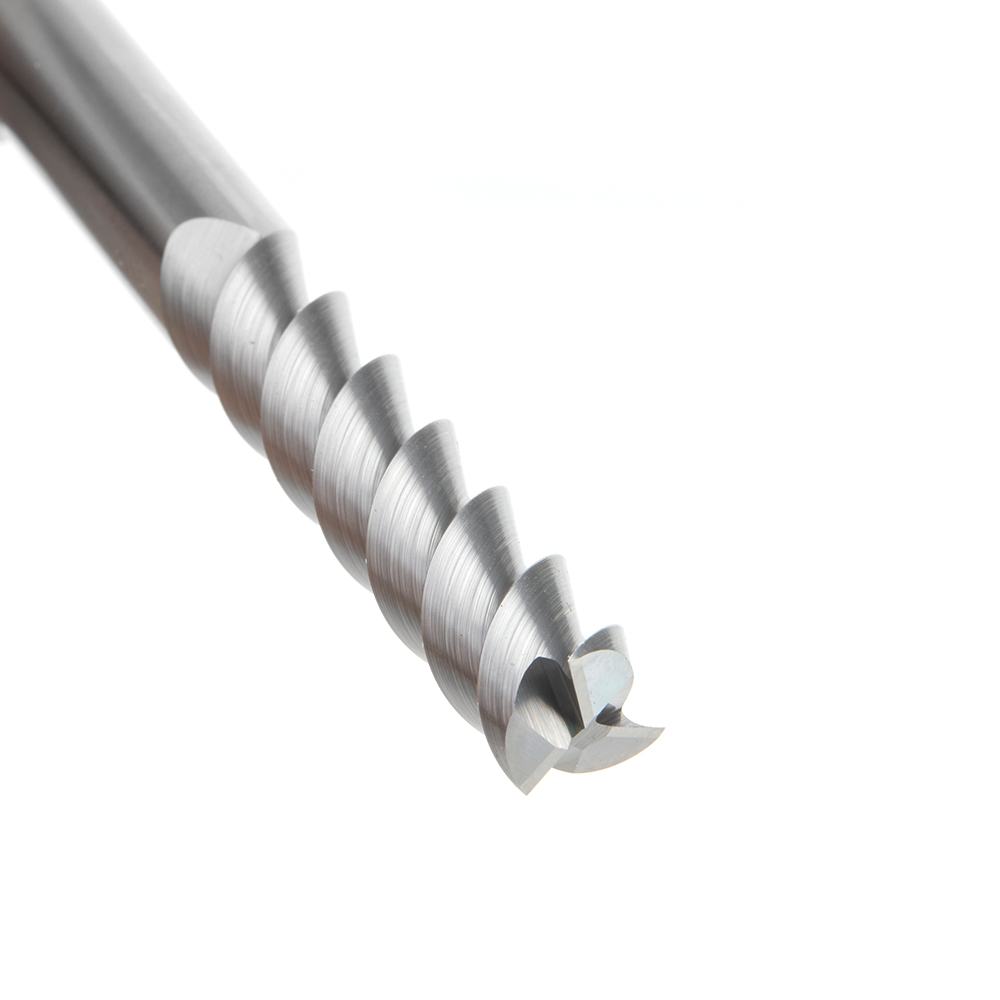

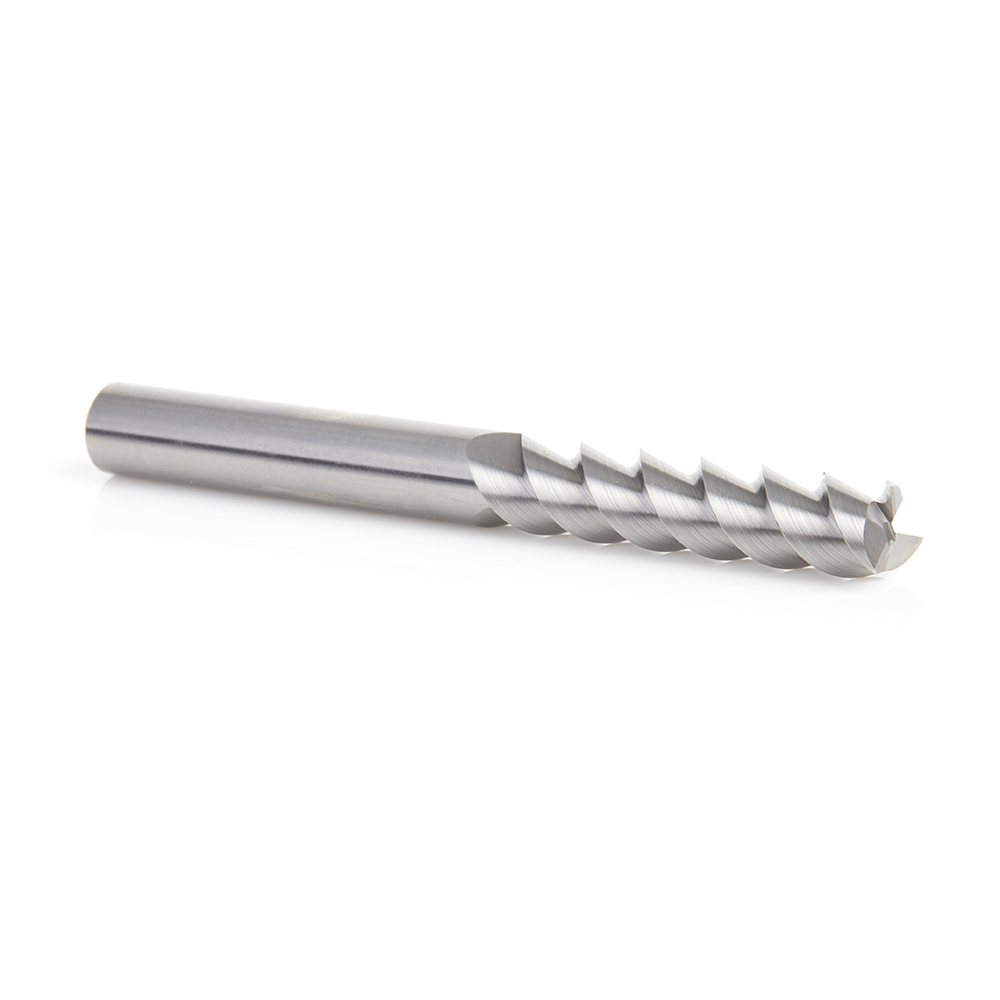

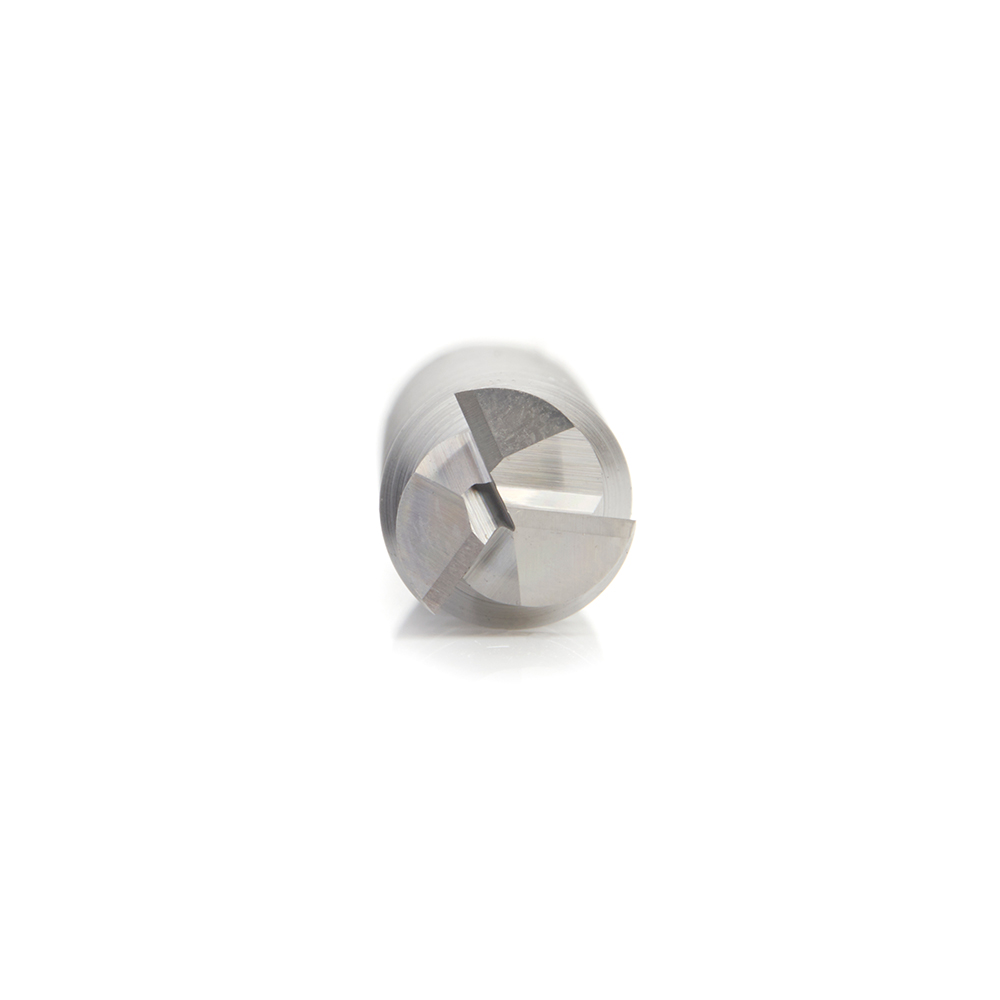

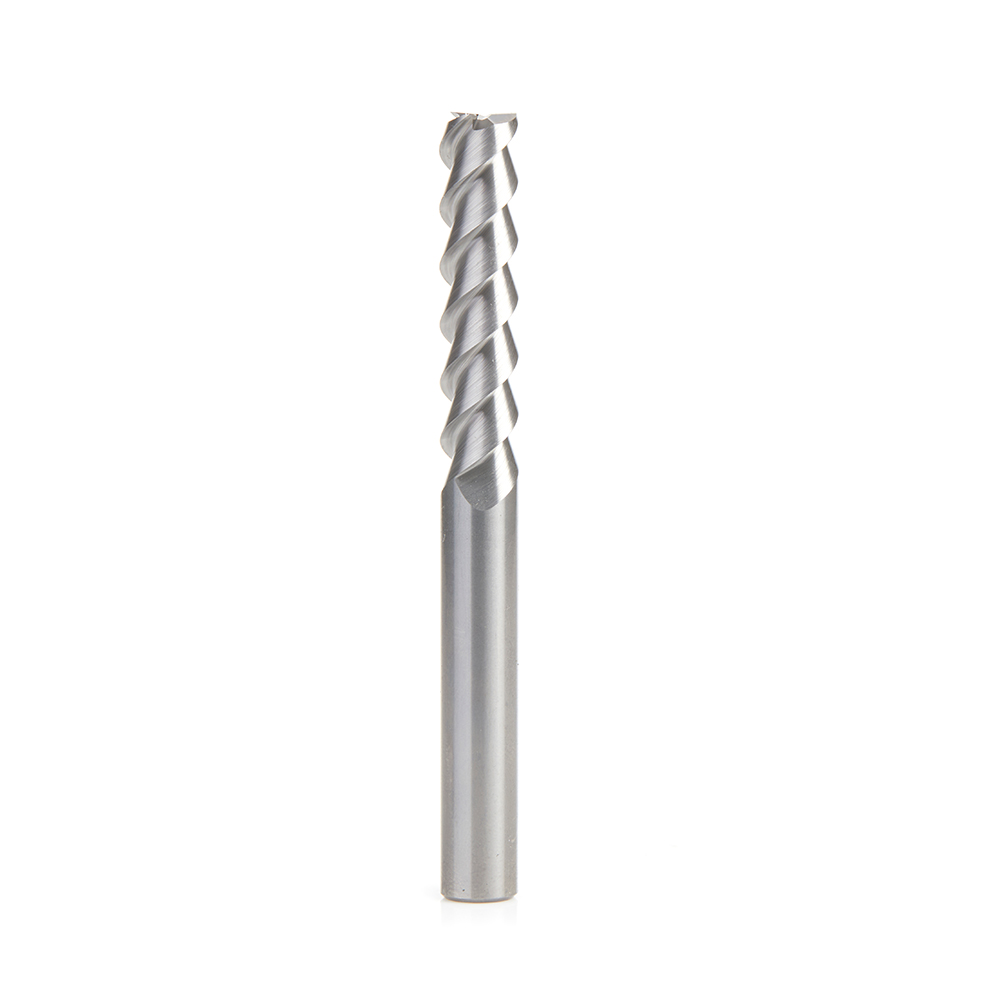

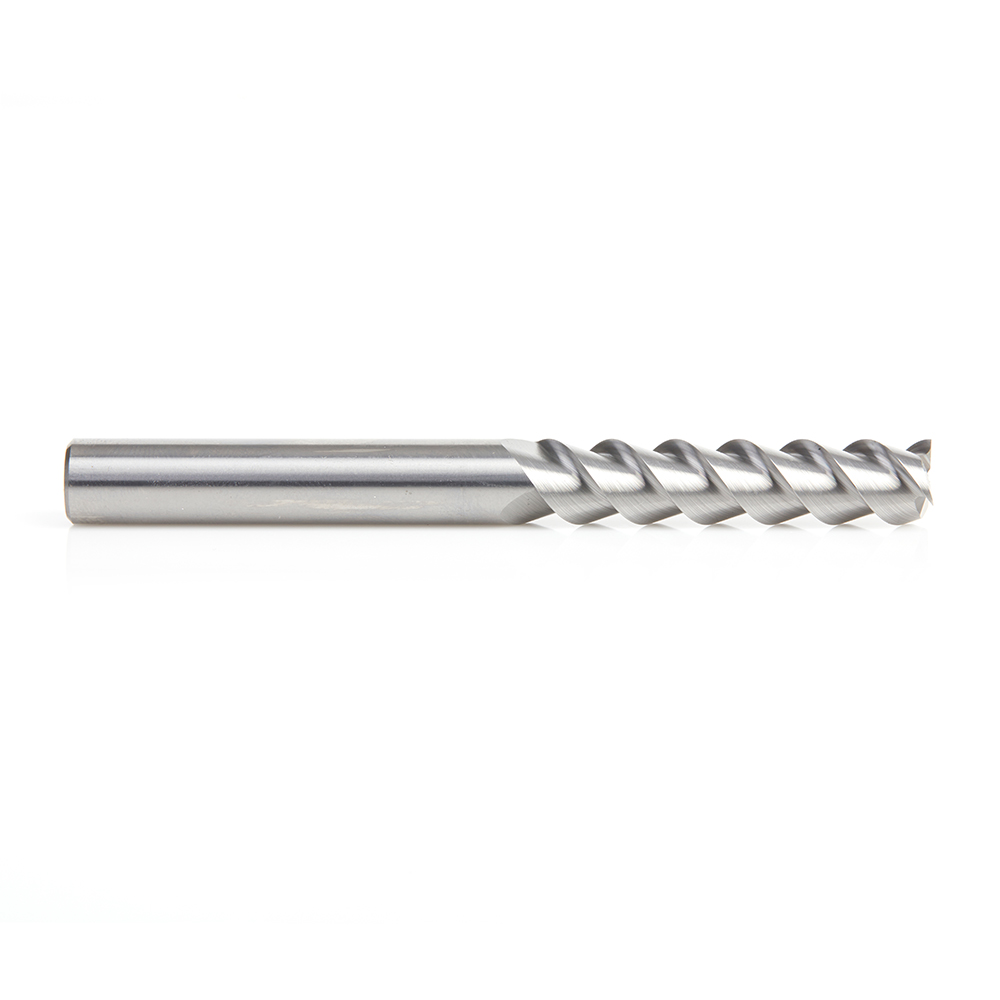

Amana 51820 CNC Solid Carbide 3 Flute Aluminum and Acrylic Cutting 55º Helix End Mill 10mm Dia x 45mm x 10mm Shank

Name: Amana 51820 CNC Solid Carbide 3 Flute Aluminum and Acrylic Cutting 55º Helix End Mill 10mm Dia x 45mm x 10mm Shank
SKU: Amana 51820
Availability: InStock

Original price was: $124.60.Current price is: $93.45.

10x45x10x100 3 FL SQUARE ALUMI

UPC: 738685518205 SKU: Amana 51820 Categories: Aluminum/Non Ferrous Metal Cutting Router Bits, Amana Tool, CNC Router Bits, Solid Carbide Aluminum & Acrylic Cutting 55 Degree Helix End Mills

Item Description

Endmills with upgraded helix angles are your friend when better surface finishes, reduced vibrations, enhanced chip removal and improved dimensional tolerances all take priority over material removal rates.

New 55° helix 2 flute endmills with the ideal geometry for superb finishing of aluminum, acrylic and other non-ferrous materials.

Unique design for cutting aluminum, acrylic, brass, copper, and other non-ferrous materials.

Very capable of leaving a crystal-clear finish on acrylic for both walls and pocket floor surfaces.

Specifications

(D) Diameter	10mm
(B) Cutting Height	45mm
(d) Shank	10mm
Overall Length (L)	100mm
Flutes	3

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Tool No.
3mm	15mm	6mm	75mm	3	51821
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	1-1/2	2	51830
6mm	35mm	6mm	100mm	3	51823
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	2	51832
8mm	45mm	8mm	100mm	3	51824
5/16 (7.94mm)	3/4 (19.05mm)	5/16 (7.94mm)	2-1/2	2	51833
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	2	51835

Weight	0.22 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
