Sale!

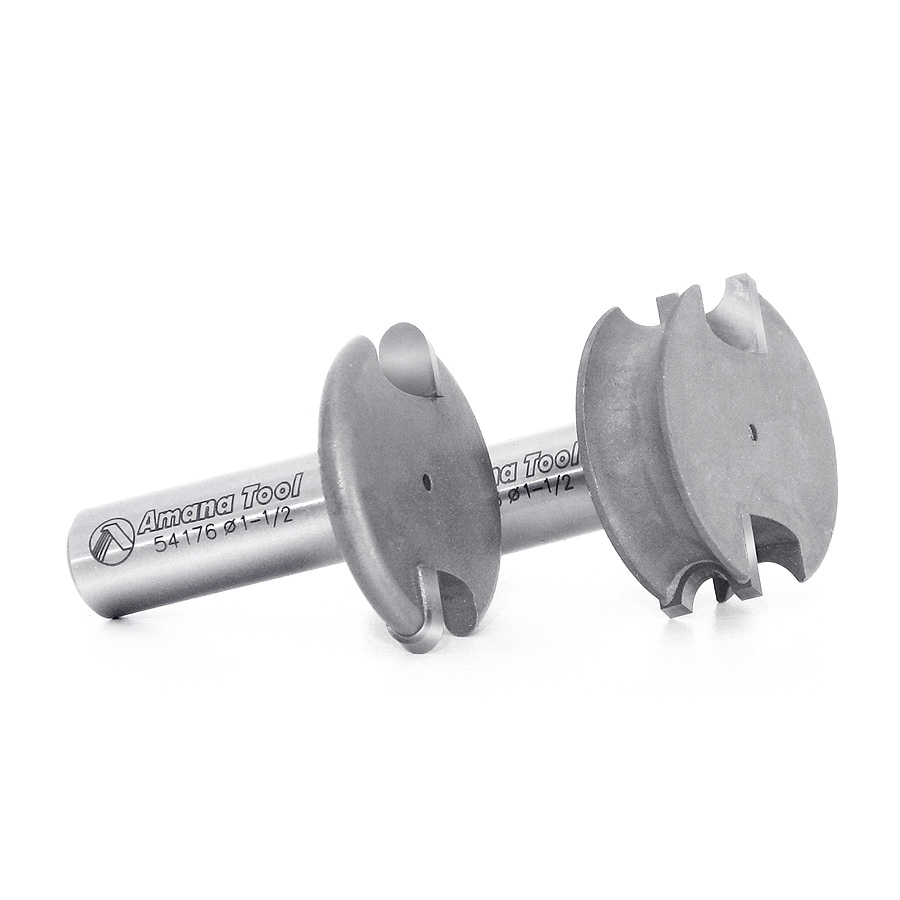

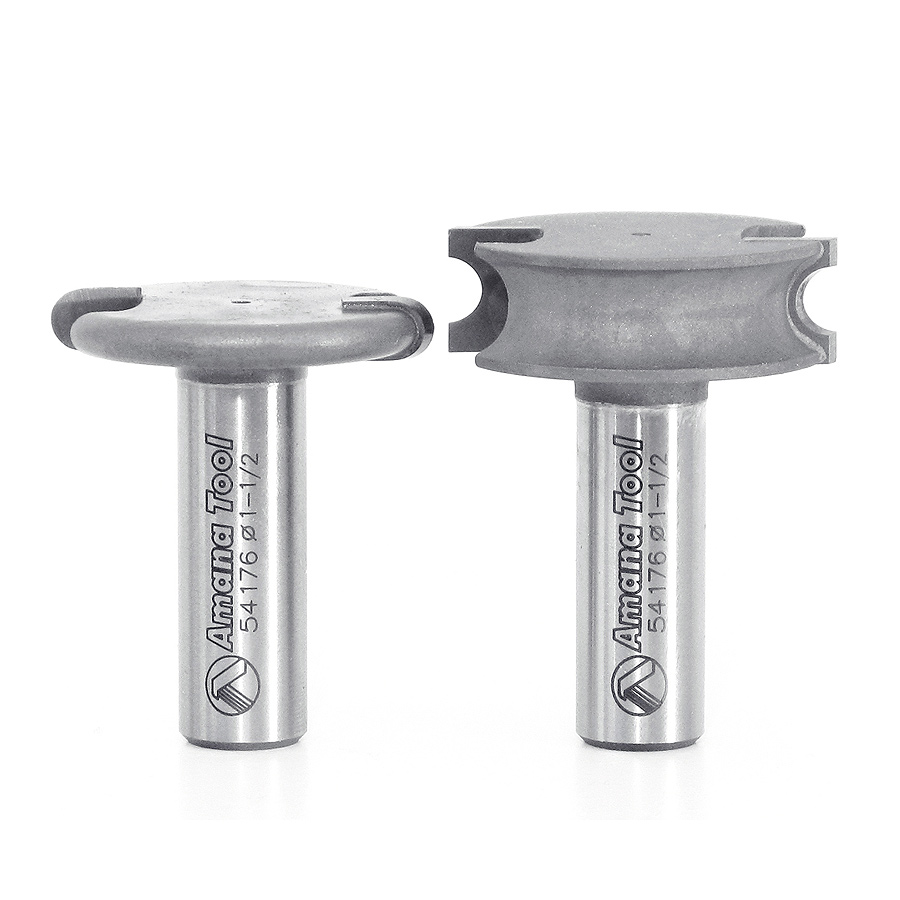

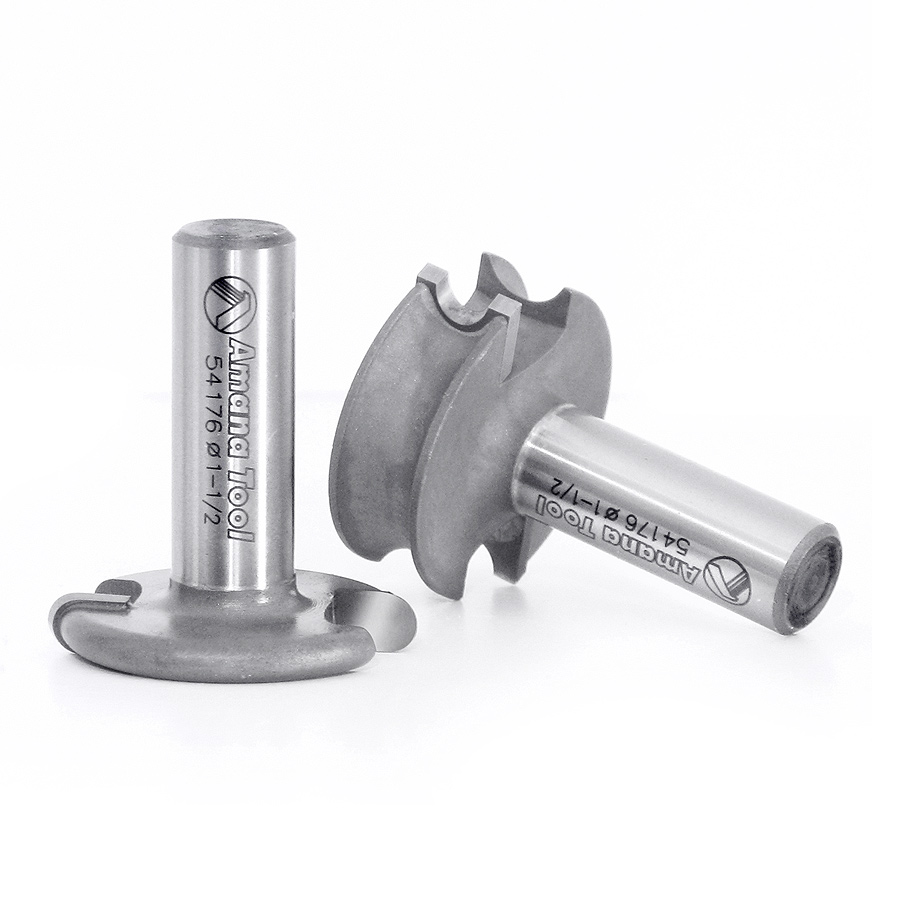

54176 Carbide Tipped Flute & Bead 1/8 Radius x 1-1/2 Dia x 1/2 x 1/2 Inch Shank Set

Amana 54176 Carbide Tipped Flute & Bead 1/8 Radius x 1-1/2 Dia x 1/2 x 1/2 Inch Shank Set

Name: Amana 54176 Carbide Tipped Flute &amp; Bead 1/8 Radius x 1-1/2 Dia x 1/2 x 1/2 Inch Shank Set
SKU: Amana 54176
Availability: InStock

Original price was: $111.65.Current price is: $83.74.

FLUTE AND BEAD SET

UPC: 738685541760 SKU: Amana 54176 Categories: Amana Tool, Profiling Router Bits, Router Bits, Triple Beading & Fluting Router Bits

Item Description

Cut joints for staved assemblies, such as circular planters, canoes, kayaks and hot tubs, with this pair of bits. One bit flutes an edge, and the other forms the mating bead. Use in CNC or table-mounted routers. It will cut plywood, hardwood, softwood and composition materials. For the best and accurate match, we recommend using a table-mounted router.

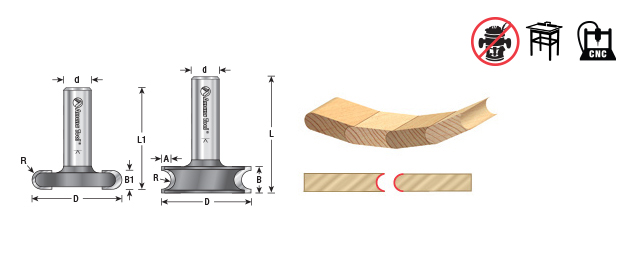

Specifications

Cut Depth (A)	1/8
Diameter (D)	1-1/2
Radius (R)	1/8
Cutting Height (B)	15/32
B1	1/4
Shank (d)	1/2
Overall Length (L)	1-31/32
L1	1-3/4

Weight	0.52 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
