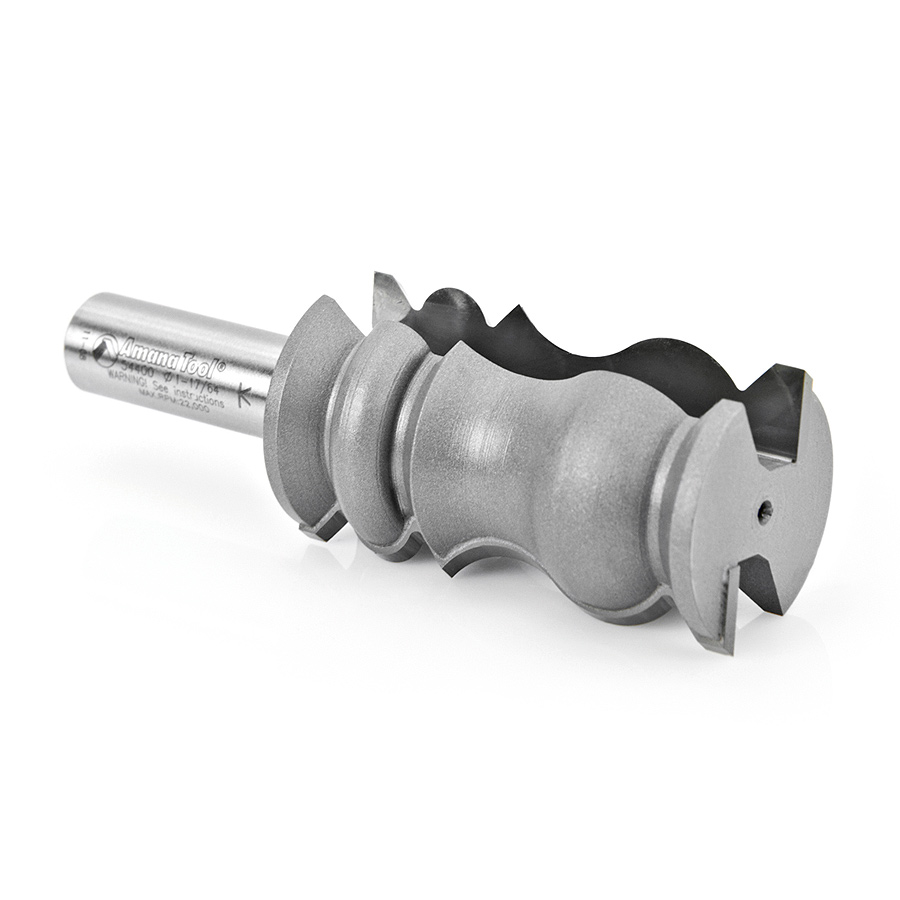

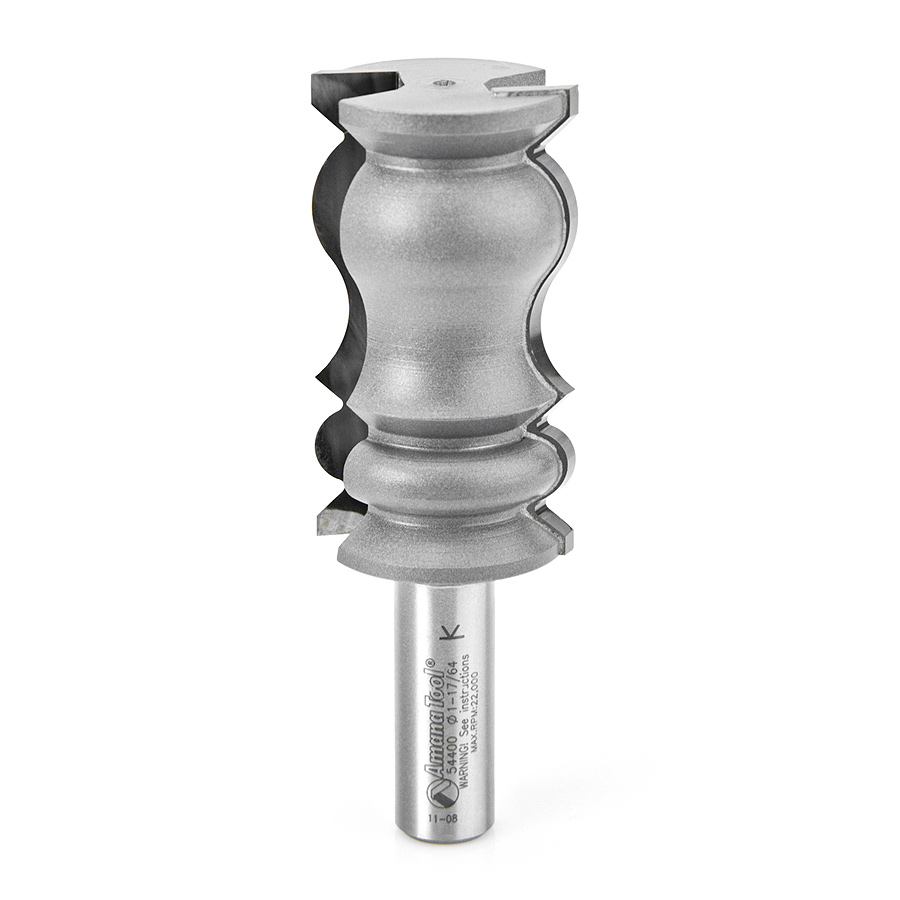

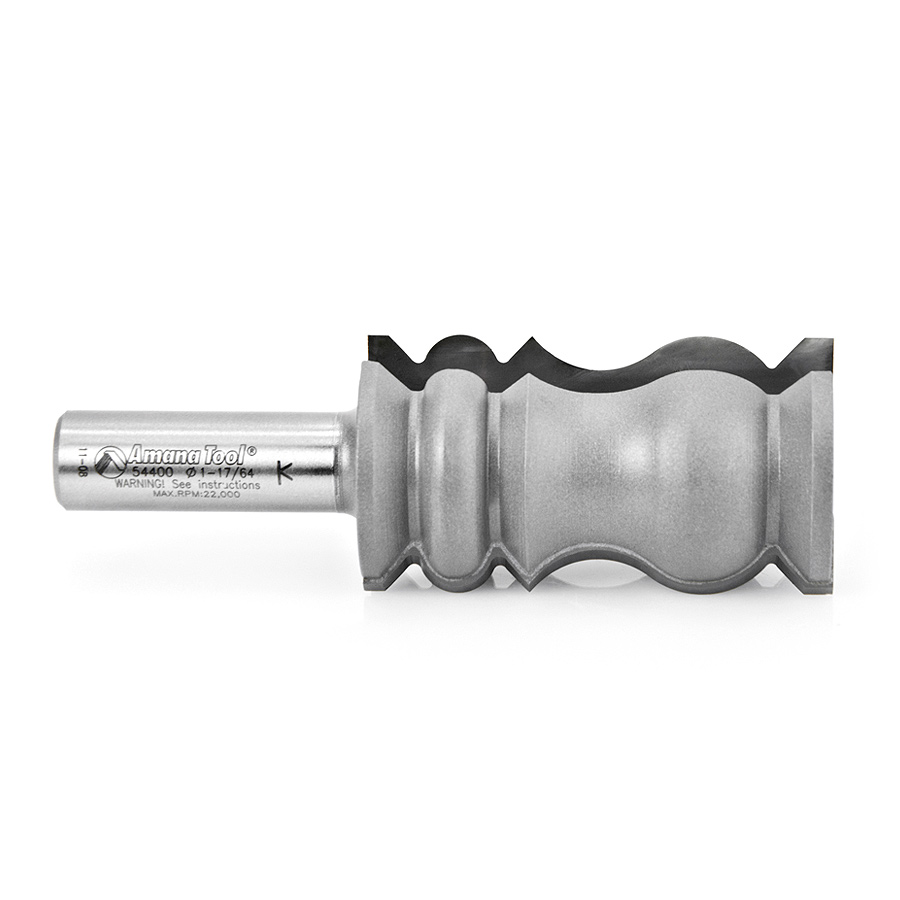

54400 Carbide Tipped Crown Molding 3/16 x 7/16 Radius x 1-1/4 Dia x 2-1/4 x 1/2 Inch Shank

Amana 54400 Carbide Tipped Crown Molding 3/16 x 7/16 Radius x 1-1/4 Dia x 2-1/4 x 1/2 Inch Shank

Name: Amana 54400 Carbide Tipped Crown Molding 3/16 x 7/16 Radius x 1-1/4 Dia x 2-1/4 x 1/2 Inch Shank
SKU: Amana 54400
Availability: InStock

Original price was: $145.95.Current price is: $109.47.

CROWN MOULDING BIT TYPE #1

UPC: 738685944004 SKU: Amana 54400 Categories: Amana Tool, Architectural Router Bits, Crown Molding Router Bits, Router Bits

Item Description

Produce mid-sized crown, cove and bead molding profiles for architectural and furniture applications. The bits cut the profile and bevel, as necessary, which is the show face of the workpiece.

Bevel the top and bottom edges on the table saw to complete the molding. Use a 2+ horsepower router, mounted in a table, with a fence to guide the work. To prolong cutter life, reduce strain on the router. To get the best cut finish, make several passes to achieve full cut depth. Bevel back edges, cutting off 45° excess, with one of our chamfer bits.

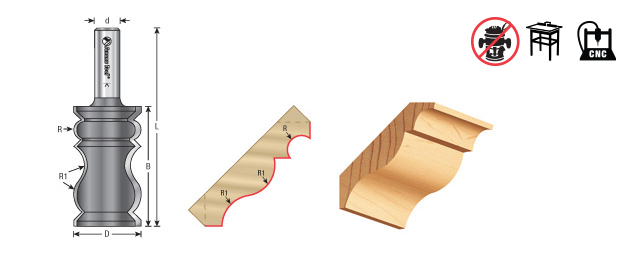

Specifications

Diameter (D)	1-1/4
Radius (R)	3/16
Cutting Height (B)	2-1/4
Shank (d)	1/2
Overall Length (L)	3-3/4
Max RPM	22,000
R1	7/16
Flutes	2

Weight	0.58 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
