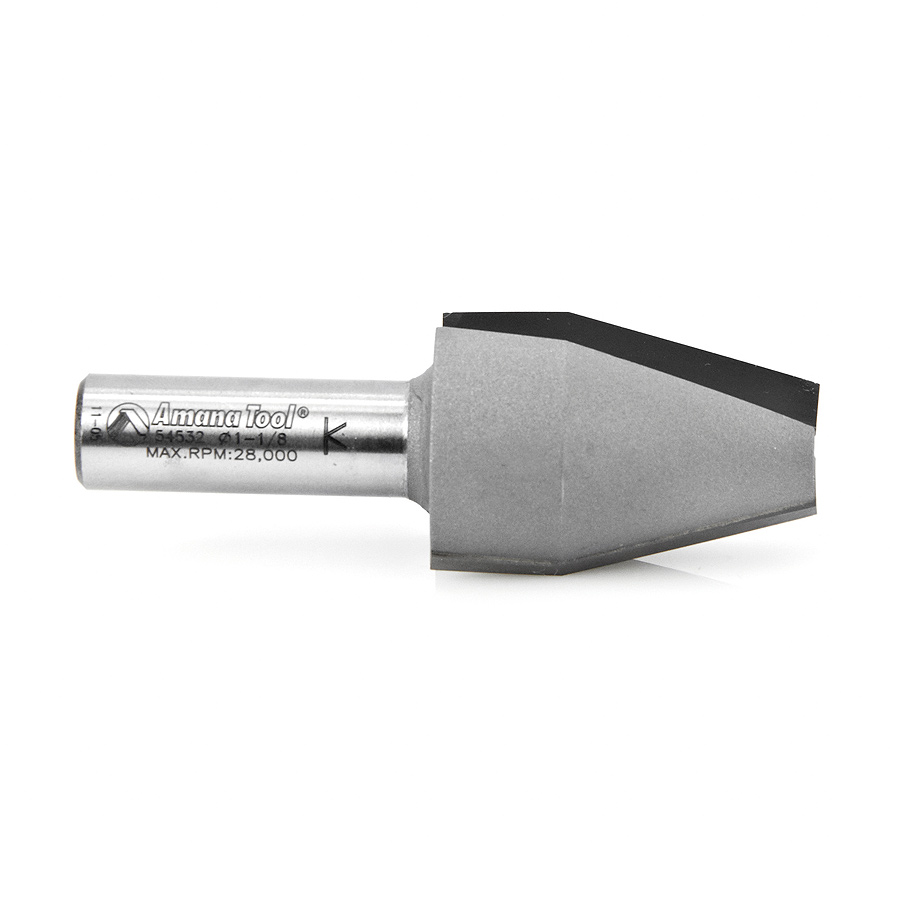

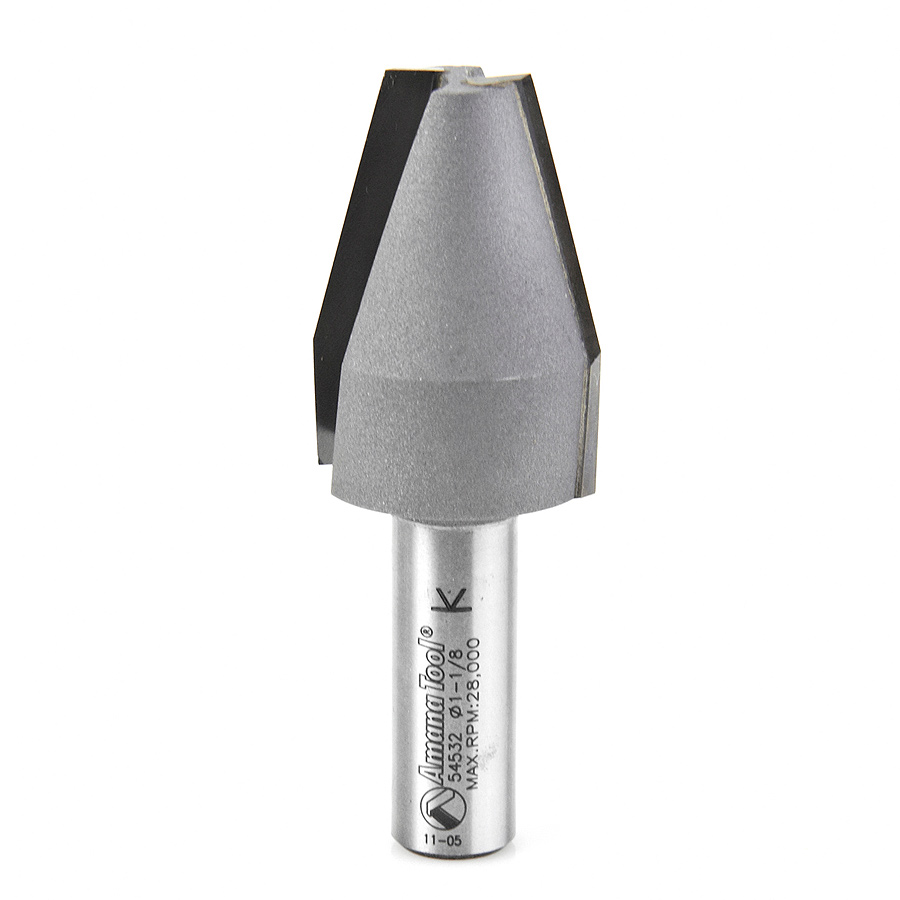

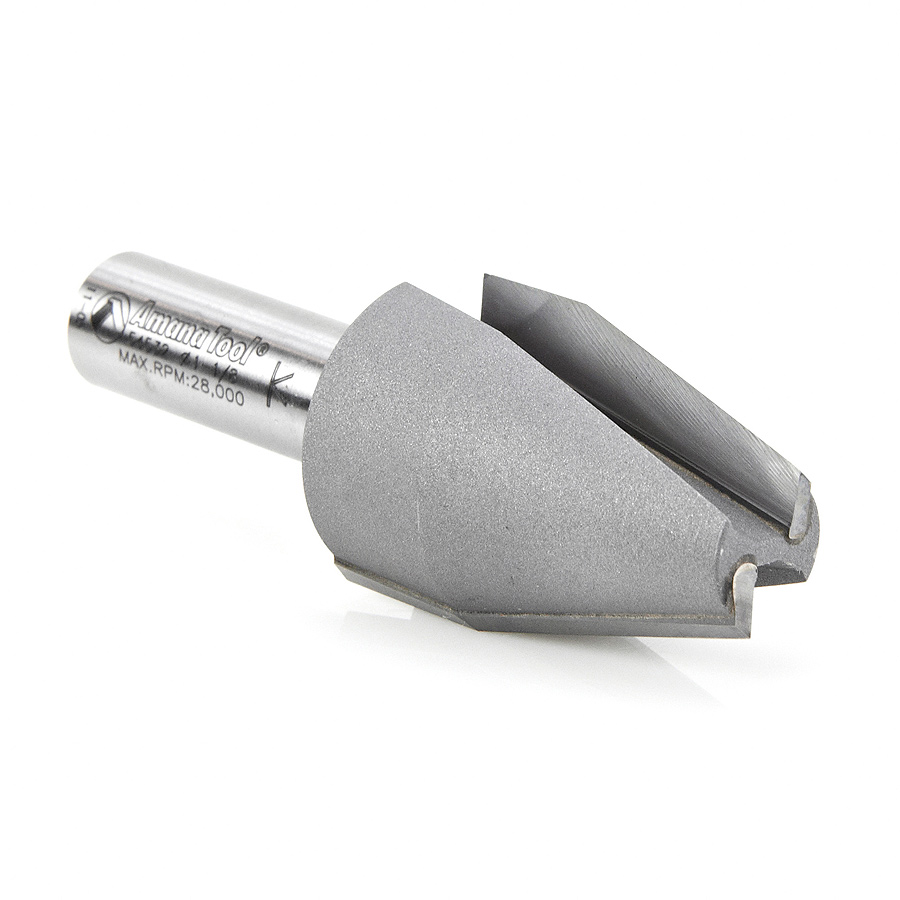

54532 Carbide Tipped Traditional Vertical Raised Panel 15 Deg x 1-1/8 Dia x 1-5/8 x 1/2 Inch Shank

Amana 54532 Carbide Tipped Traditional Vertical Raised Panel 15 Deg x 1-1/8 Dia x 1-5/8 x 1/2 Inch Shank

Name: Amana 54532 Carbide Tipped Traditional Vertical Raised Panel 15 Deg x 1-1/8 Dia x 1-5/8 x 1/2 Inch Shank
SKU: Amana 54532
Availability: InStock

Original price was: $92.20.Current price is: $69.15.

TRADITIONAL VERT. RAISED PANEL

UPC: 738685545324 SKU: Amana 54532 Categories: Amana Tool, Door Making Router Bits, Router Bits, Vertical Raised Panel Router Bits

Item Description

Raised panels with a low-horsepower, fixed speed router using these VERTICAL raised panel bits. You must do the work on a router table, with the work on edge, braced against the fence. Arched or curved shapes (i.e.: “cathedral” door panels) cannot be routed. To prolong tool life and get the best cut finish, several passes are recommended.

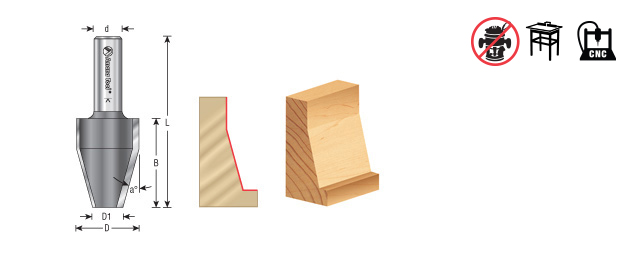

Specifications

Angle (a°)	15°
Diameter (D)	1-1/8
D1	19/32
Cutting Height (B)	1-5/8
Shank (d)	1/2
Overall Length (L)	3-1/8
Type	Traditional
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	D1	Cutting Height (B)	R1	R2	R3	Shank (d)	Overall Length (L)	Type	Tool No.
–	1-3/16	7/16 (11.11mm)	1-5/8	7/8 (22.23mm)	23/32 (18.26mm)	–	1/2 (12.70mm)	3-1/8	Ogee	54520
–	1-1/8	9/32 (7.14mm)	1-5/8	1-9/16	–	–	1/2 (12.70mm)	3-1/8	Cove	54524
–	1-3/16	3/16 (4.76mm)	1-5/8	7/8 (22.23mm)	23/32 (18.26mm)	1/8 (3.18mm)	1/2 (12.70mm)	3-1/8	Ogee with Bead	54528

Weight	0.26 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.
