Sale!

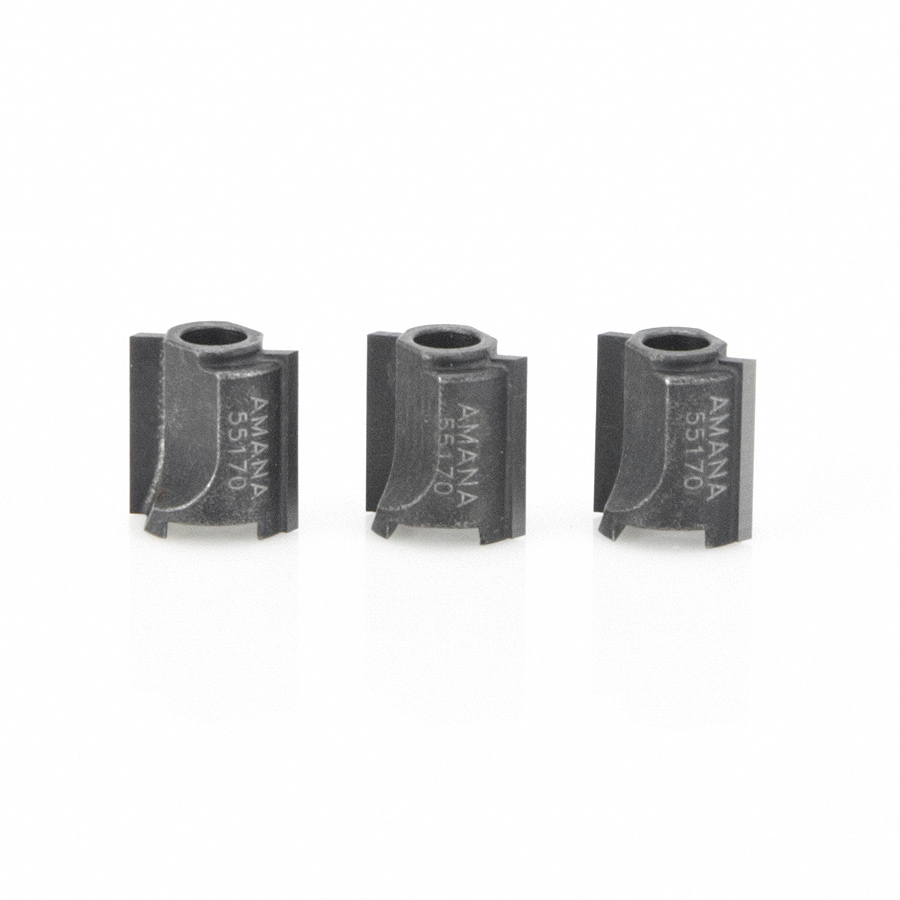

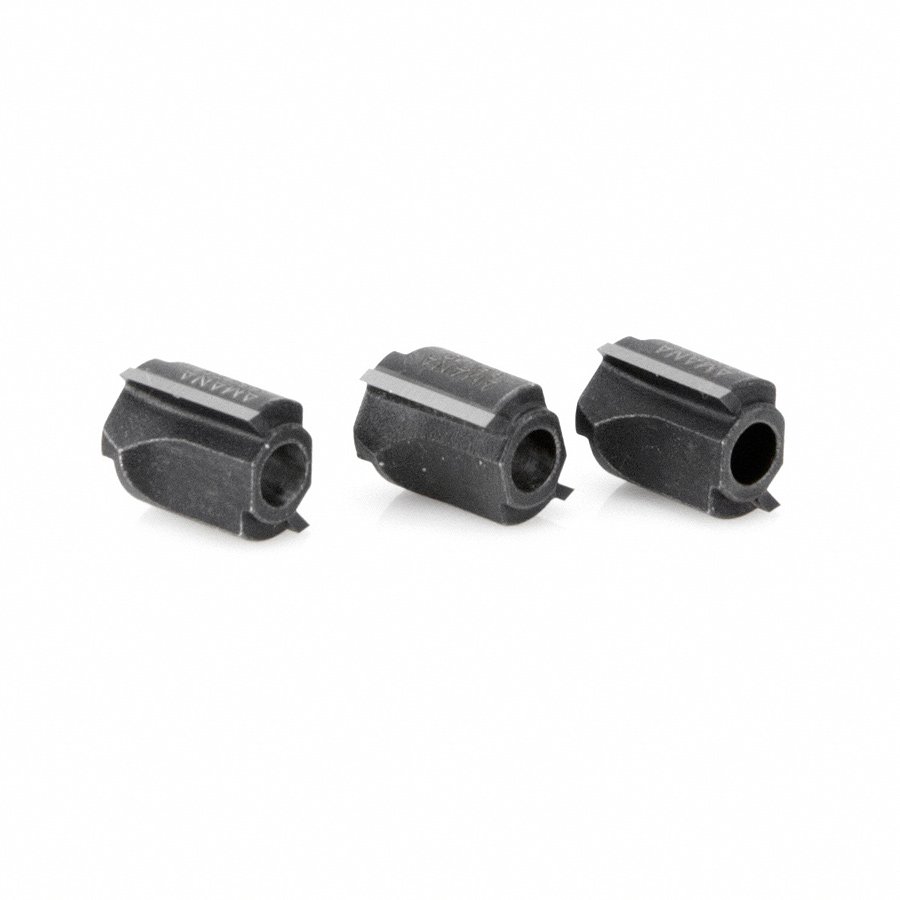

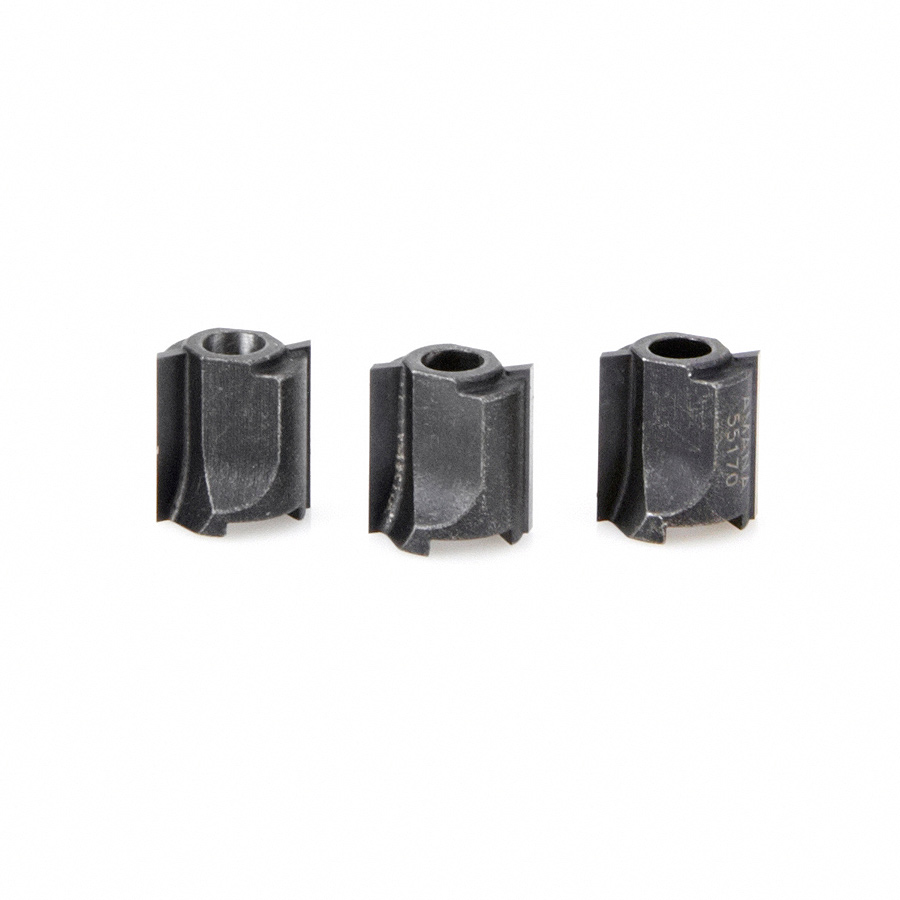

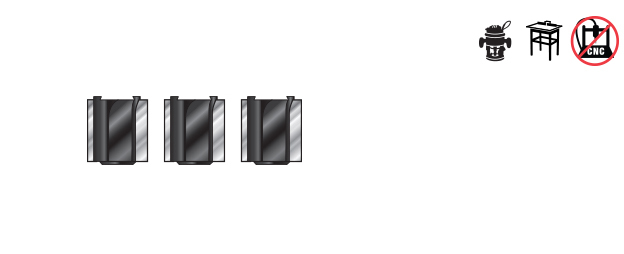

55170 3-Pack Cutters for #47170 (Replaces Ocemco #TA-156)

Amana 55170 3-Pack Cutters for #47170 (Replaces Ocemco #TA-156)

Name: Amana 55170 3-Pack Cutters for #47170 (Replaces Ocemco #TA-156)
SKU: Amana 55170
Availability: InStock

Original price was: $59.90.Current price is: $44.93.

3 CUTTERS,47170/ OCEMCO TA-156

UPC: 738685055175 SKU: Amana 55170 Categories: Amana Tool, E-Z Change Replacement Head Router Bits, Router Bits, Trimming Router Bits

Item Description

E-Z Change™ router bits are an economical alternative to standard router bits. They feature replaceable head carbide tipped cutters, saving you money by replacing only the cutters when the knives become dull, instead of the entire tool. You won’t need a second bit while yours is in the sharpening shop; instead, just change the cutters. You won’t even lose your set-up because the E-Z Change™ cutters can be replaced with the bit in the router collet. The interlocking hex design guarantees that the cutting surfaces will not slip during use.

Excellent for Cutting:

Laminates
MDF
Plywood
Wood
Acrylic

Specifications

Description	3 Pack

Other Sizes Available

Shank (d)	Diameter (D)	Cutting Height (B)	Overall Length (L)	Replacement Bearing	Flutes	Tool No.
1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	1-31/32	47706	2	47170
1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	1-31/32	47706	2	47170-5
1/4 (6.35mm)	–	–	–	–	—-	47624

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
