Sale!

55430 Carbide Tipped 2-Piece Ogee Stile and Rail 1-5/8 Dia x 1-1/16 x 1/4 Radius x 1/2 Inch Shank Set

Amana 55430 Carbide Tipped 2-Piece Ogee Stile and Rail 1-5/8 Dia x 1-1/16 x 1/4 Radius x 1/2 Inch Shank Set

Name: Amana 55430 Carbide Tipped 2-Piece Ogee Stile and Rail 1-5/8 Dia x 1-1/16 x 1/4 Radius x 1/2 Inch Shank Set
SKU: Amana 55430
Availability: InStock

Original price was: $205.00.Current price is: $153.75.

2 PIECE OGEE STILE & RAIL SET

UPC: 738685554302 SKU: Amana 55430 Categories: 2-pc Stile & Rail Router Bit Sets, Amana Tool, Door Making Router Bits, Router Bits

Item Description

These sets include two trim cutters for stock 7/8″ through 1″ in thickness. (These trim cutters can be removed for making bearing-guided cuts on stock under 7/8″ thick.)

Use in a table-mounted router. Guide straight cuts with the fence, setting it tangent to the trim cutters. Use the pilot bearing only for cuts on curved rails or stiles; for cuts on curved parts 7/8″ to 1″ thick, a template must to used.

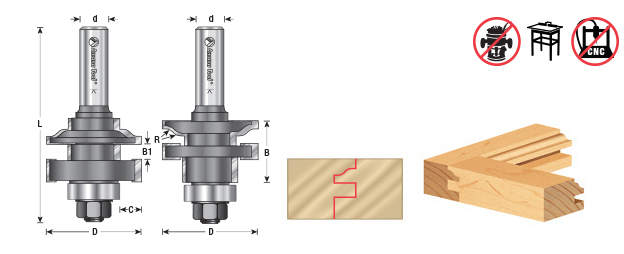

Specifications

Diameter (D)	1-5/8
Radius (R)	1/4
Cutting Height (B)	1-1/16
B1	1/4
Shank (d)	1/2
Overall Length (L)	3-5/16
Type	Ogee
Replacement Bearing	47708
Material size	3/4"-1"
Flutes	2
C	3/8

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	B1	C	Shank (d)	Overall Length (L)	Type	Tool No.
1-5/8	1/4 (6.35mm)	1-1/16	–	3/8 (9.53mm)	1/2 (12.70mm)	3-5/16	Concave	55420
1-5/8	3/16 (4.76mm)	1-1/16	1/4 (6.35mm)	3/8 (9.53mm)	1/2 (12.70mm)	3-5/16	Bead	55440

Weight	0.9 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
