Sale!

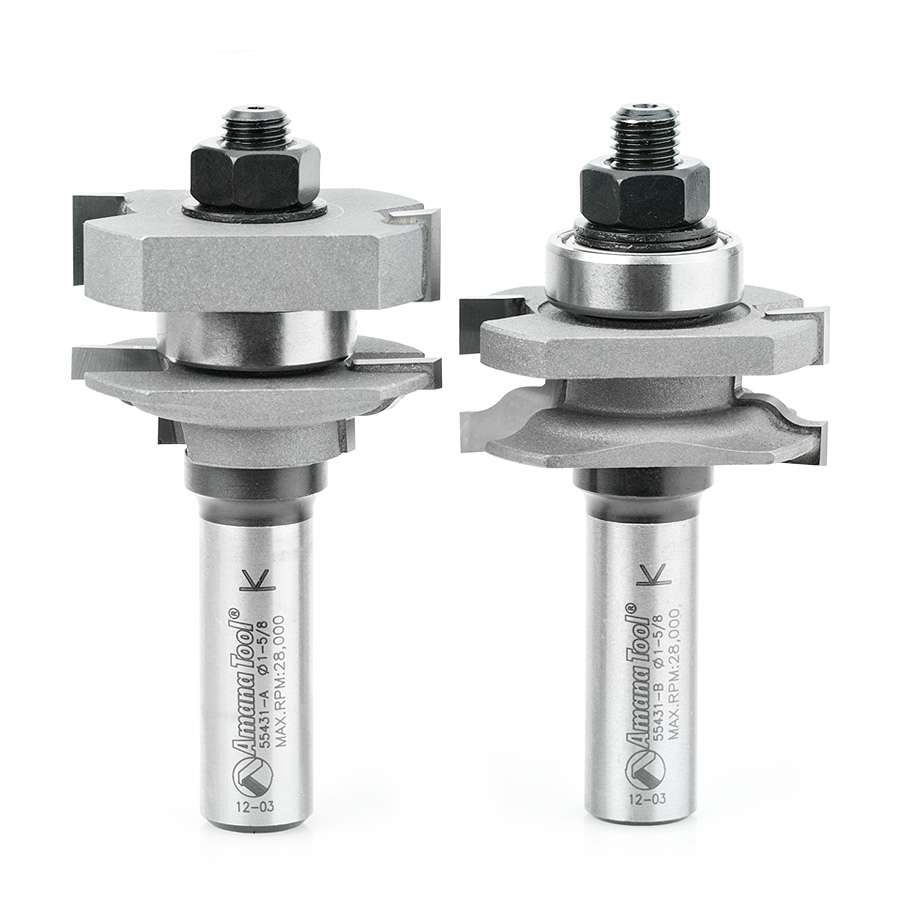

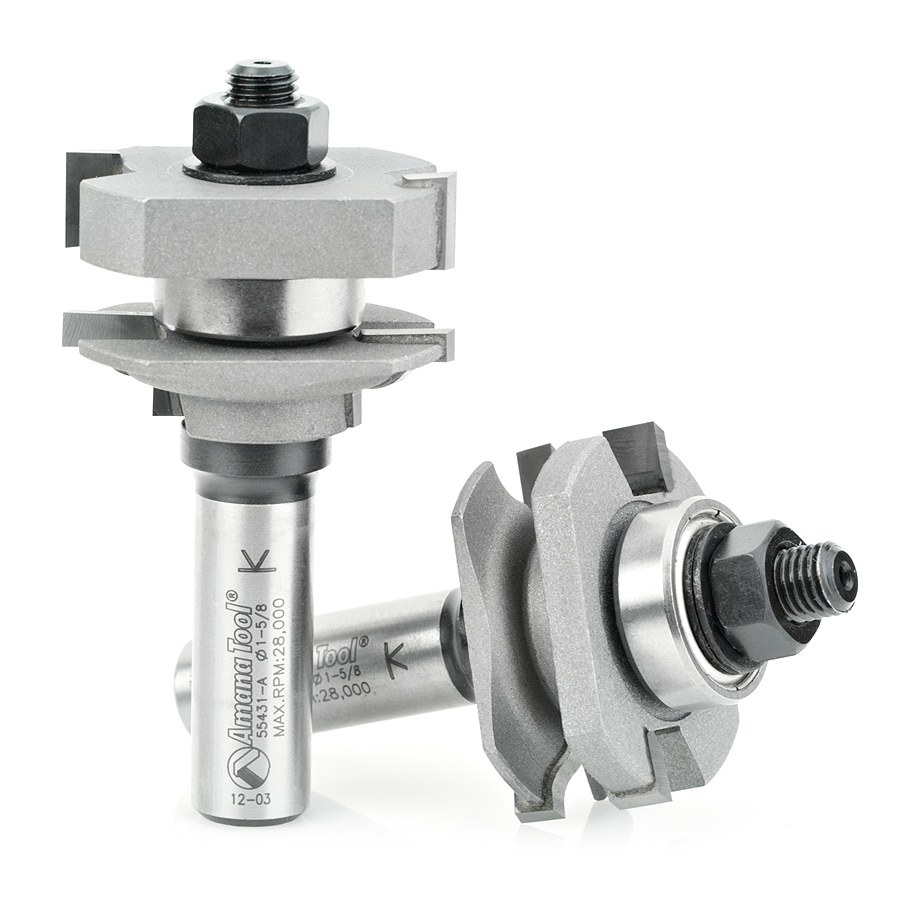

55431 Carbide Tipped 2-Piece Ogee Stile and Rail 1-5/8 Dia x 11/16 x 1/2 Inch Shank Set

Amana 55431 Carbide Tipped 2-Piece Ogee Stile and Rail 1-5/8 Dia x 11/16 x 1/2 Inch Shank Set

Name: Amana 55431 Carbide Tipped 2-Piece Ogee Stile and Rail 1-5/8 Dia x 11/16 x 1/2 Inch Shank Set
SKU: Amana 55431
Availability: InStock

Original price was: $217.80.Current price is: $163.35.

2 PC OGEE STILE/RAIL 3/4 MAT.

UPC: 738685554319 SKU: Amana 55431 Categories: 2-pc Stile & Rail Router Bit Sets, Amana Tool, Door Making Router Bits, Router Bits

Item Description

Our stile and rail sets give you two complete bits, one for doing the rail cuts, one for the stiles. Make cabinet doors and all varieties of frame-and-panel assemblies for furniture and architectural applications. These sets are offered in two configurations, one for working material up to 1″ thick, the other for material between 5/8″ and 7/8″ in thickness. The same three profiles are available in either configuration.

3/4″ Material

Bits in this set have profile and groove or rabbet cutters and ball-bearing guide mounted on a 1/2″ shank. Respacing of the components should only be necessary – using the provided shims – after the cutters have been resharpened. Use in a table-mounted router. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.

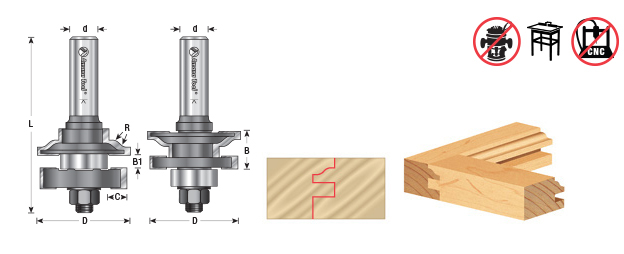

Specifications

Diameter (D)	1-5/8
Radius (R)	1/4
Cutting Height (B)	11/16
B1	1/4
Shank (d)	1/2
Overall Length (L)	3-1/8
Type	Ogee
Replacement Bearing	47708
Material size	3/4
Flutes	2
C	3/8

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	B1	C	Shank (d)	Overall Length (L)	Type	Tool No.
1-5/8	1/4 (6.35mm)	11/16 (17.46mm)	1/4 (6.35mm)	3/8 (9.53mm)	1/2 (12.70mm)	3-1/8	Concave	55421

Weight	0.79 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
