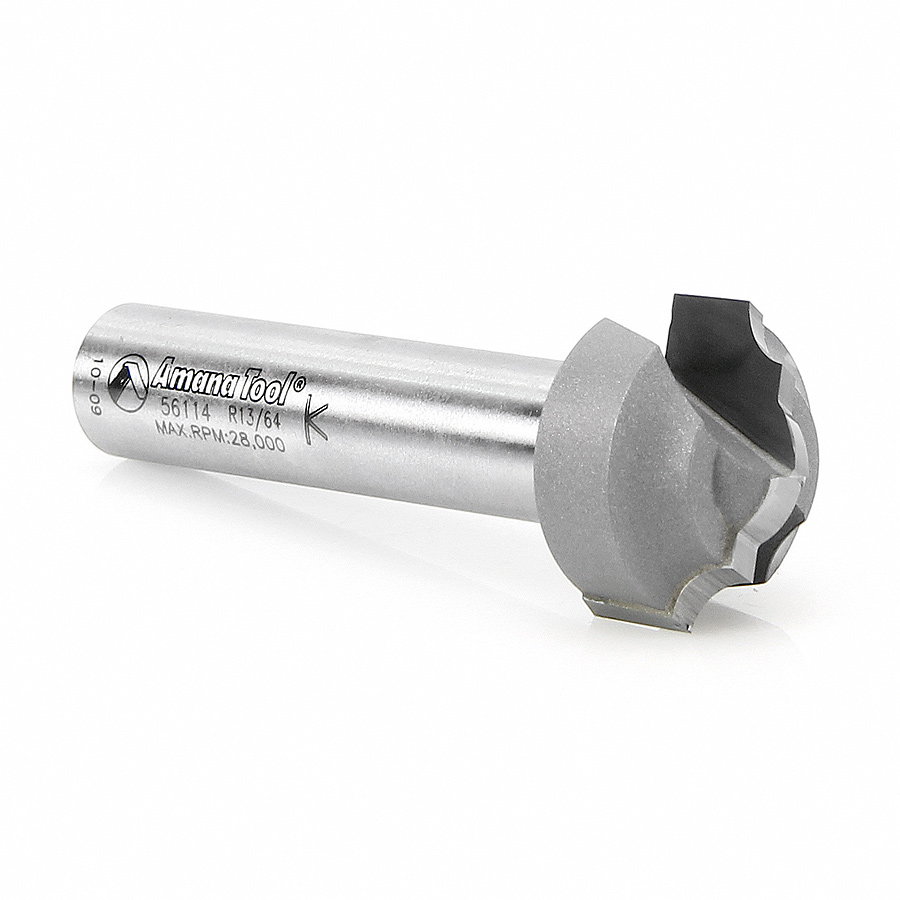

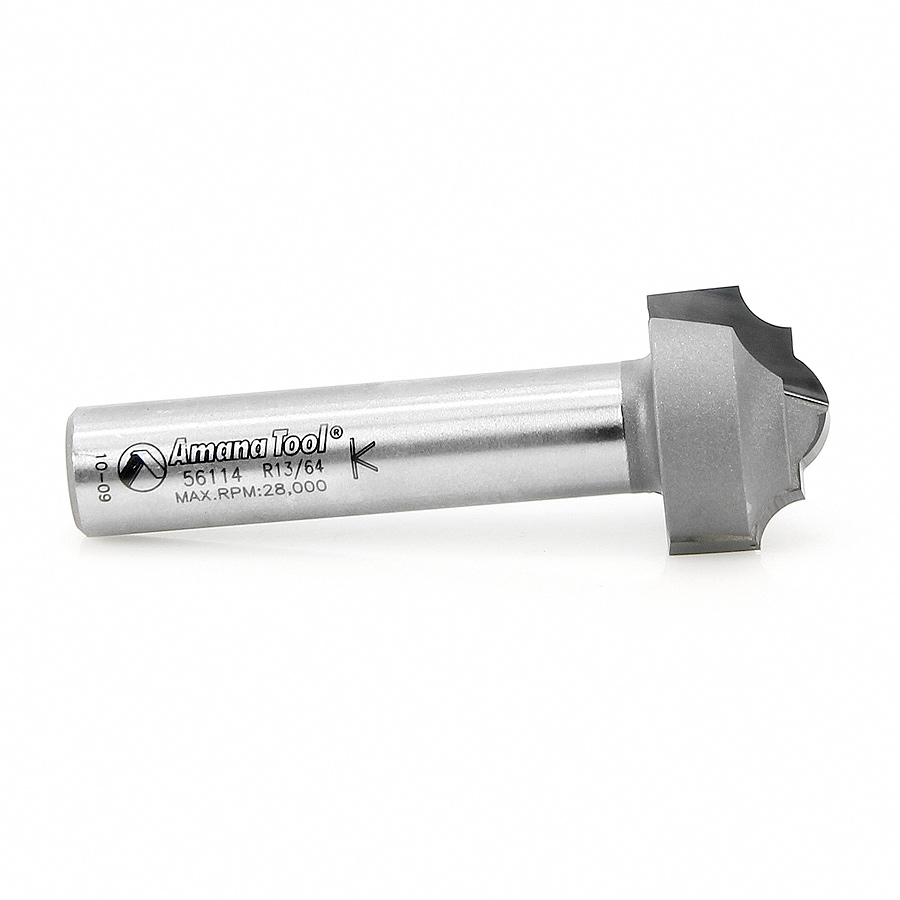

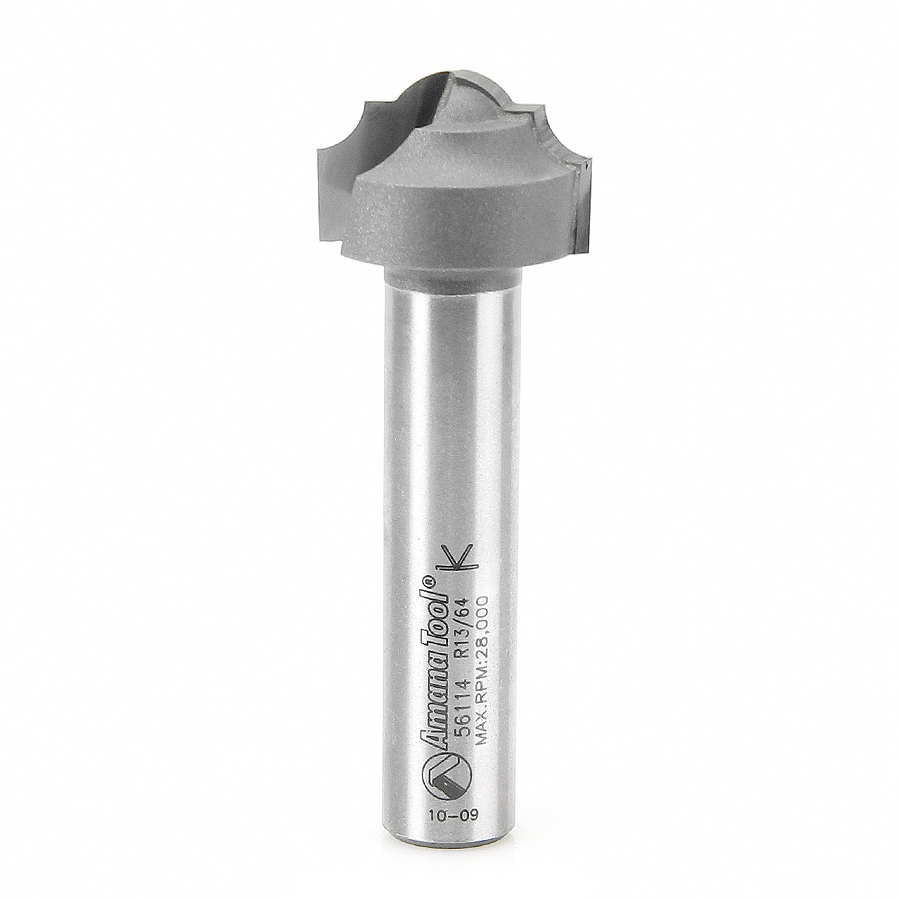

56114 Carbide Tipped Plunging Classical 13/64 Radius x 1 Inch Dia x 11/16 x 1/2 Shank

Amana 56114 Carbide Tipped Plunging Classical 13/64 Radius x 1 Inch Dia x 11/16 x 1/2 Shank

Name: Amana 56114 Carbide Tipped Plunging Classical 13/64 Radius x 1 Inch Dia x 11/16 x 1/2 Shank
SKU: Amana 56114
Availability: InStock

Original price was: $76.85.Current price is: $57.64.

CLASSICAL 1″ DIA. 1/2 SHANK

UPC: 738685961148 SKU: Amana 56114 Categories: Amana Tool, Classical Groove Router Bits, Grooving Router Bits, Router Bits

Item Description

Use this bit to form a bead-sided groove with a rounded bottom to embellish solid wood surfaces. It can be used in handheld, table-mounted and CNC routers, guided with an edge guide, fence, or in conjunction with a template guide bushing.

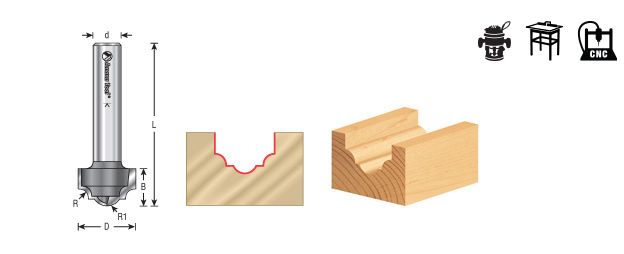

Specifications

Diameter (D)	1
Radius (R)	13/64
Cutting Height (B)	11/16
Shank (d)	1/2
Overall Length (L)	3
R1	1/4
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	R1	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
3/4 (19.05mm)	9/64 (3.57mm)	5/32 (3.97mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	56110
3/4 (19.05mm)	9/64 (3.57mm)	5/32 (3.97mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/4	56112

Weight	0.2 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
