Sale!

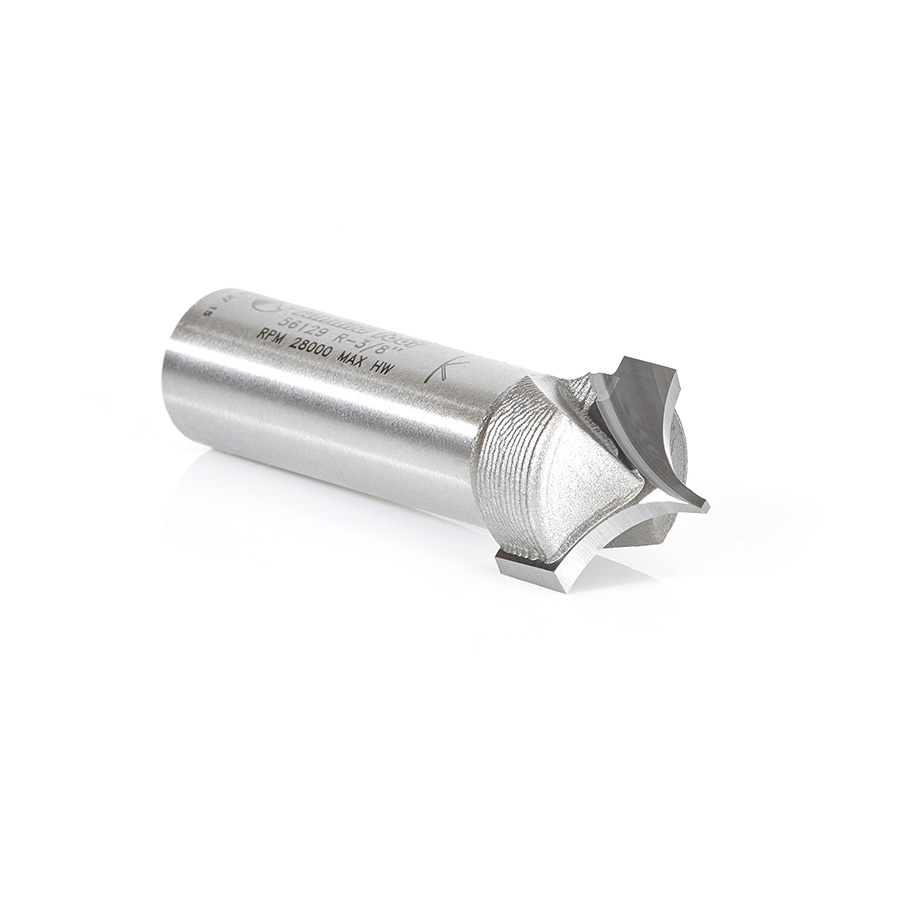

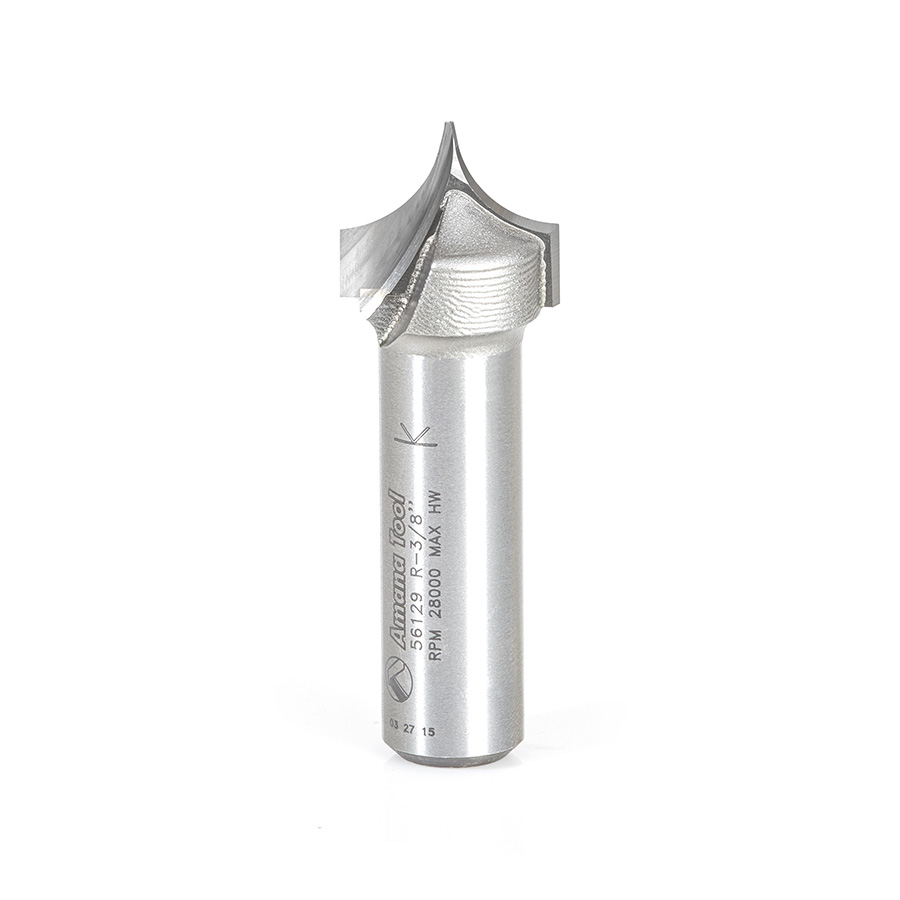

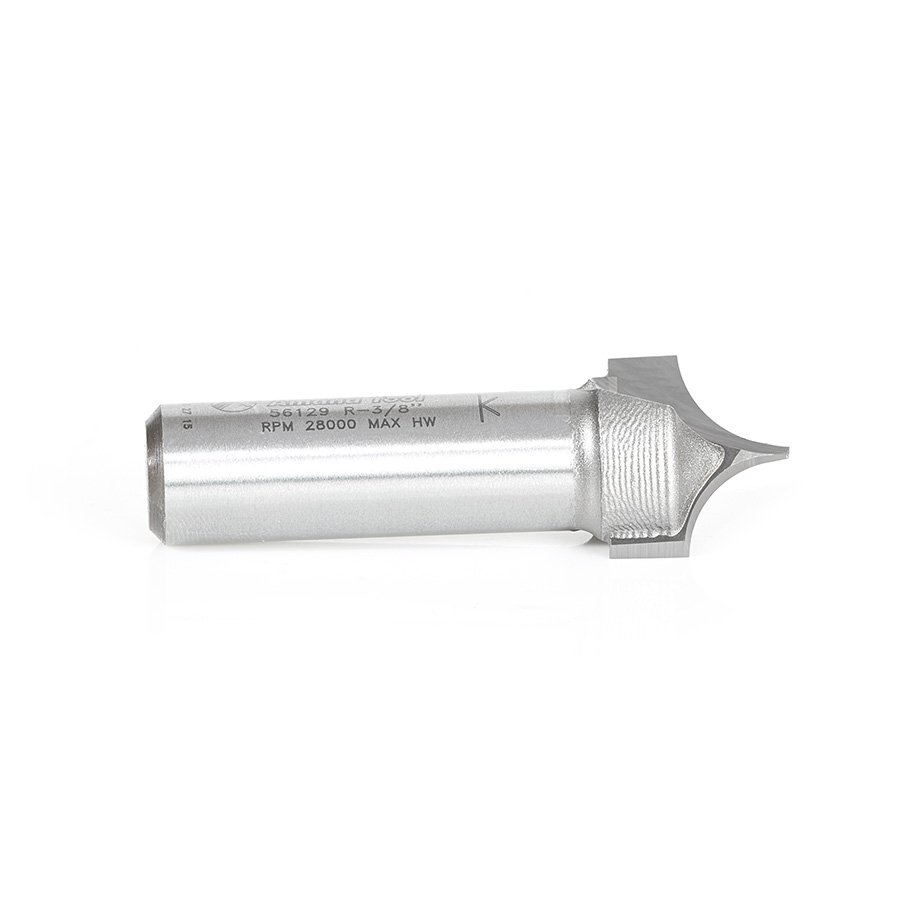

56129 Carbide Tipped Point Cutting Roundover 3/8 Radius x 3/4 Dia x 5/8 x 1/2 Shank Router Bit

Amana 56129 Carbide Tipped Point Cutting Roundover 3/8 Radius x 3/4 Dia x 5/8 x 1/2 Shank Router Bit

Name: Amana 56129 Carbide Tipped Point Cutting Roundover 3/8 Radius x 3/4 Dia x 5/8 x 1/2 Shank Router Bit
SKU: Amana 56129
Availability: InStock

Original price was: $79.75.Current price is: $59.82.

POINT/ROUNDOVER 3/8R 1/2″SHK

UPC: 738685561294 SKU: Amana 56129 Categories: Amana Tool, CNC Router Bits, Point Cutting Roundover Router Bits, Profiling CNC Router Bits

Item Description

For lettering, engraving, signmaking, fluting and decorative trimming.

Note:** Due to very fine plunge point, bit is not guaranteed against breakage.

Vectric compatible tool file for 56129 available for download,click here.

Specifications

Diameter (D)	3/4
D1	.043"
Radius (R)	3/8
Cutting Height (B)	5/8
B1	3/8
Shank (d)	1/2
Overall Length (L)	2
Type	Carbide Tipped
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Flutes	Type	Description	Tool No.
5/64 (1.98mm)	1/32 (0.79mm)	3/16 (4.76mm)	1/32 (0.79mm)	1/4 (6.35mm)	2-1/4	1	Solid Carbide	–	56141
9/64 (3.57mm)	1/16 (1.59mm)	7/32 (5.56mm)	1/16 (1.59mm)	1/4 (6.35mm)	2-1/4	1	Solid Carbide	–	56142
13/64 (5.16mm)	3/32 (2.38mm)	1/4 (6.35mm)	3/32 (2.38mm)	1/4 (6.35mm)	2-1/4	1	Solid Carbide	–	56143
6mm	3mm	8mm	3mm	6mm	50mm	1	Solid Carbide	–	56125-M
1/4 (6.35mm)	1/8 (3.18mm)	5/16 (7.94mm)	1/8 (3.18mm)	1/4 (6.35mm)	2 (50.80mm)	1	Solid Carbide	–	56125
1/4 (6.35mm)	1/8 (3.18mm)	5/16 (7.94mm)	1/8 (3.18mm)	1/4 (6.35mm)	2 (50.80mm)	1	Solid Carbide	5	56125-5
3/8 (9.53mm)	3/16 (4.76mm)	5/16 (7.94mm)	3/16 (4.76mm)	1/2 (12.70mm)	2-1/8	2	Carbide Tipped	–	56121
3/8 (9.53mm)	3/16 (4.76mm)	19/64 (7.54mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-7/8	2	Carbide Tipped	–	56126
3/8 (9.53mm)	3/16 (4.76mm)	19/64 (7.54mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-7/8	2	Carbide Tipped	5	56126-5
12mm	6mm	13mm	6mm	6mm	51mm	2	Carbide Tipped	–	56123-M
1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	2	Carbide Tipped	–	56123
1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	2	Carbide Tipped	5	56123-5
1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	2-1/4	2	Carbide Tipped	–	56146
19/32 (15.08mm)	19/64 (7.54mm)	1/2 (12.70mm)	19/64 (7.54mm)	1/4 (6.35mm)	2-9/64	2	Carbide Tipped	–	56128
3/4 (19.05mm)	3/8 (9.53mm)	5/8 (15.88mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	2	Carbide Tipped	–	56127
1 (25.40mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	Carbide Tipped	–	56144
1 (25.40mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	Carbide Tipped	5	56144-5
1 (25.40mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	2	Carbide Tipped	–	56145

Weight	0.12 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
