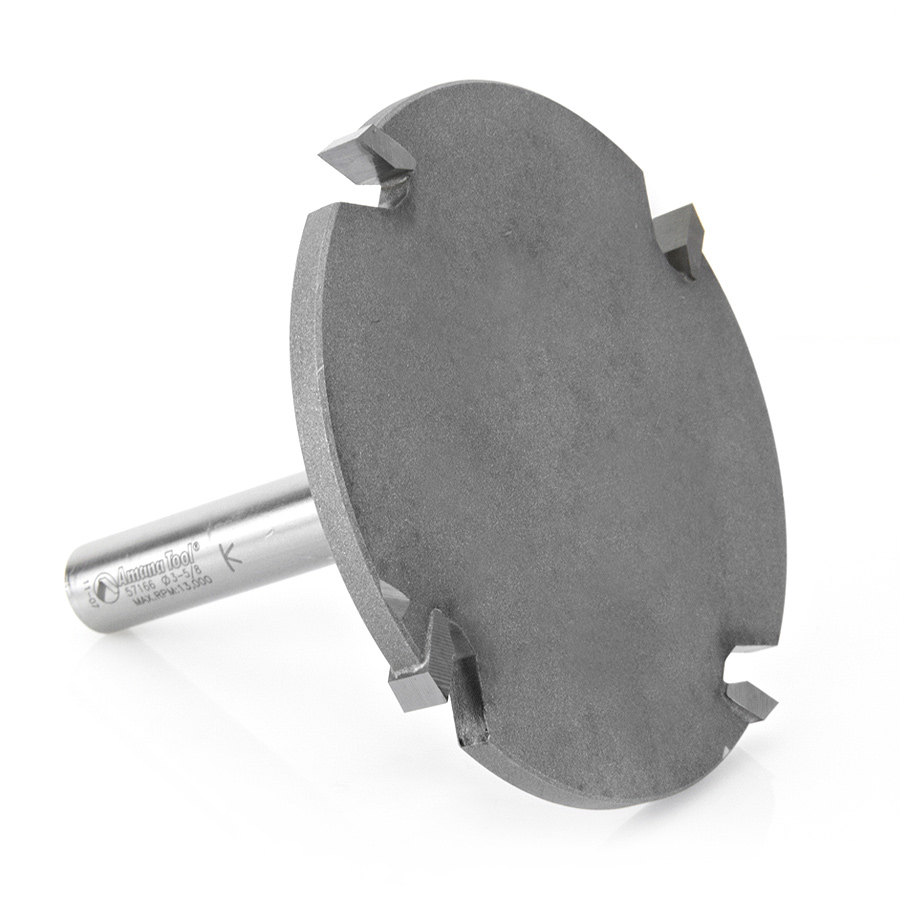

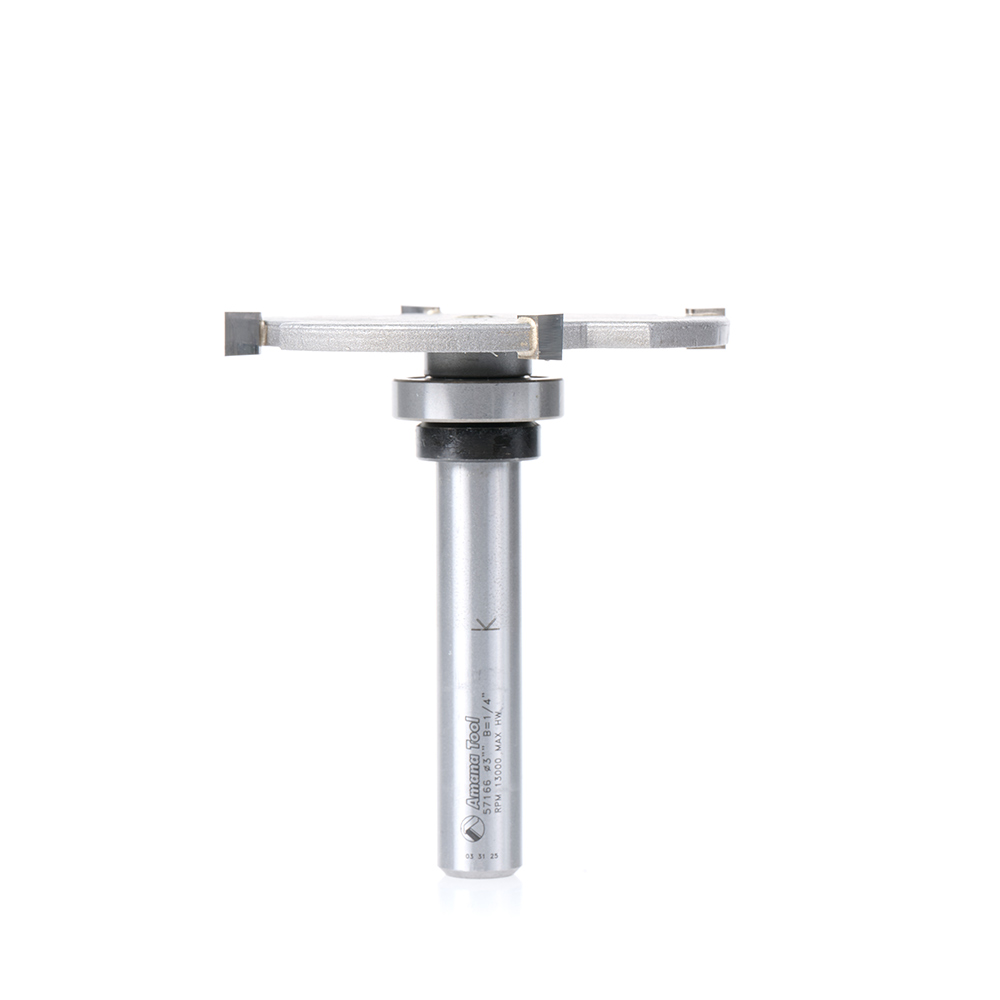

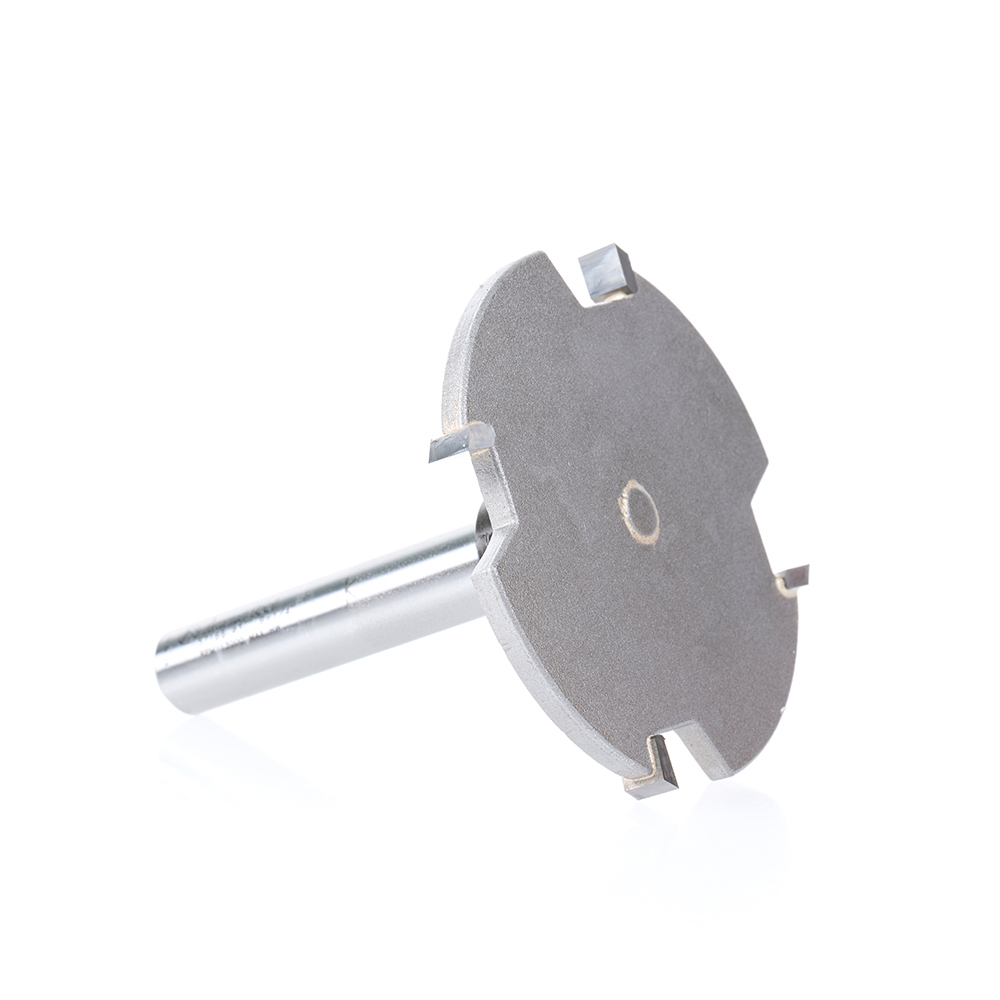

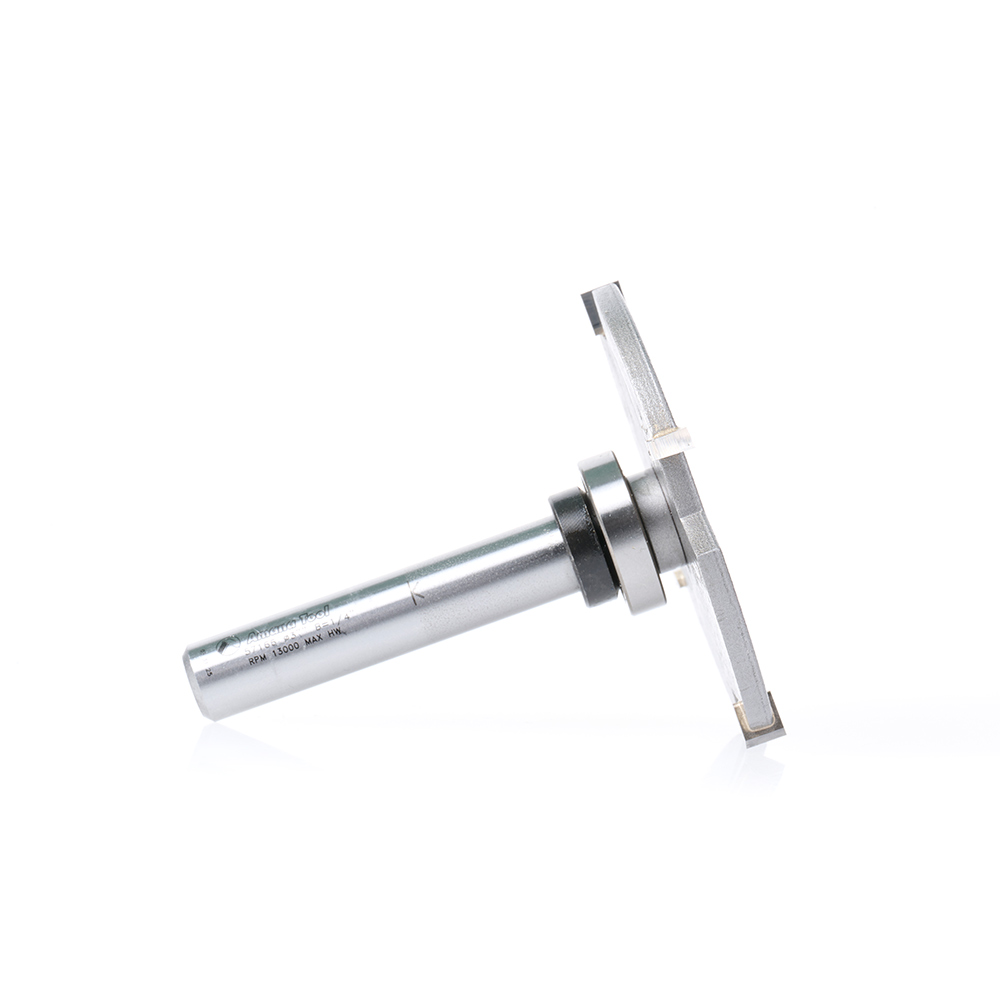

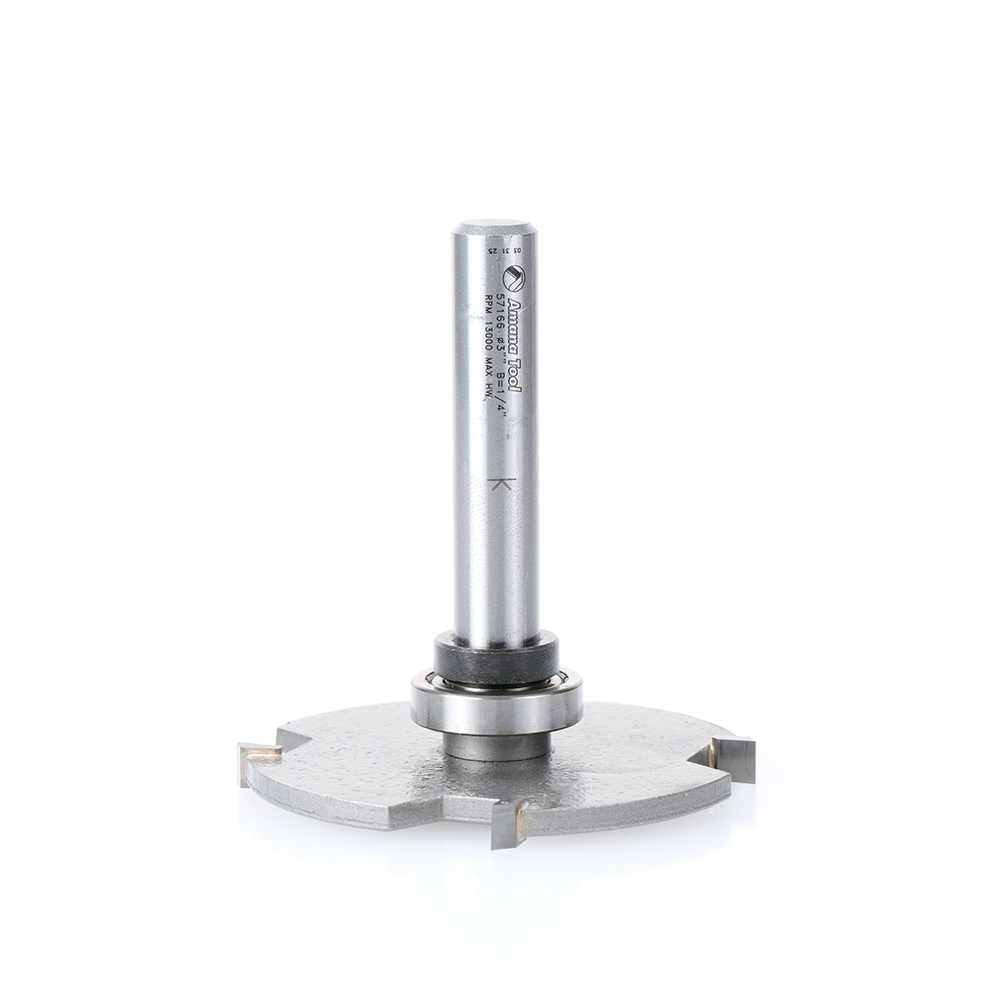

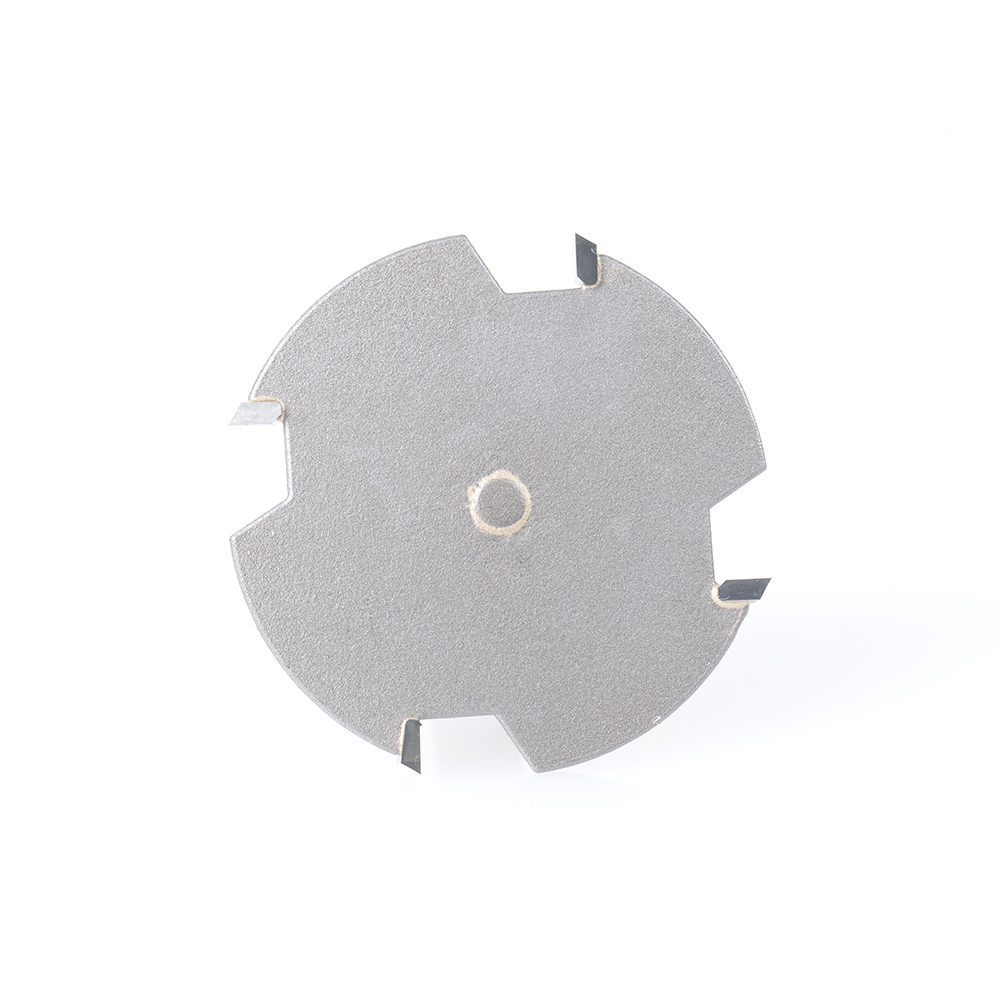

57166 Carbide Tipped 4 Wing Cut Out Solid Surface 3 Dia x 1/4 x 1/2 Inch Shank x 1 Depth of Cut

Amana 57166 Carbide Tipped 4 Wing Cut Out Solid Surface 3 Dia x 1/4 x 1/2 Inch Shank x 1 Depth of Cut

Name: Amana 57166 Carbide Tipped 4 Wing Cut Out Solid Surface 3 Dia x 1/4 x 1/2 Inch Shank x 1 Depth of Cut
SKU: Amana 57166
Availability: InStock

Original price was: $192.15.Current price is: $144.12.

BOWL CUT OUT BIT 1/2 SHANK

UPC: 738685571668 SKU: Amana 57166 Categories: Amana Tool, Cut-Out Router Bits, Router Bits, Solid Surface Router Bits

Item Description

Use for cutting out undermount bowls, Surell®, Fountainhead® and other solid surface undermount bowls. For Corian® bowls, must be used with a Corian® bowl template.

Note:** To achieve the best possible results use this bit with a variable speed router: Minimum horsepower: 2-1/2 Speed: 12,000 RPM or less.

Maximum RPM 13,000.

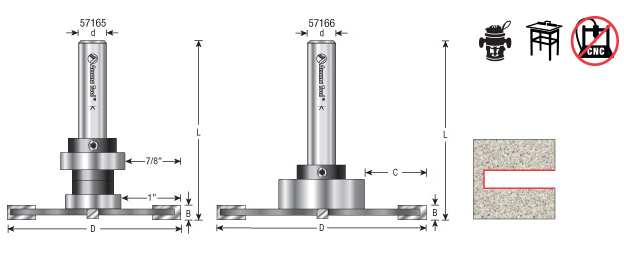

Specifications

Diameter (D)	3
Cutting Height (B)	1/4
Shank (d)	1/2
Overall Length (L)	3-9/32
Replacement Collar	47739
Replacement Bearing	47745
C	1

Other Sizes Available

Diameter (D)	Cutting Height (B)	C	Shank (d)	Overall Length (L)	Replacement Bearing	Replacement Collar	Tool No.
3 (76.20mm)	3/16 (4.76mm)	7/8 & 1	1/2 (12.70mm)	3-5/32	47745, 47747	47739	57165

Weight	0.44 lbs
