59740 Solid Carbide CNC Spiral Diamond-Like Carbon (DLC) Coated 9.8mm Dia x 23mm x 12mm Shank Lamello Router Bit

Amana 59740 Solid Carbide CNC Spiral Diamond-Like Carbon (DLC) Coated 9.8mm Dia x 23mm x 12mm Shank Lamello Router Bit

Original price was: $349.95.Current price is: $262.47.

SC 12mmx23mmx12mm FOR LAMELLO

Item Description

Suitable for making the groove for**Lamello P-System** with CNC router with 3 and/or 5 axis. RH Rotation.

Suitable for making Clamex P Connecting Fitting (Clamex P – Tenso P – Divario P) for furniture, shelves unit and Kitchen.

Recommended for grooving corner and longitudinal joints on Hardwoods, Veneered and Laminated MDF

Diamond-Like Carbon (DLC) is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness and high corrosion resistance.

Benefits of the DLC coating:

* Up to 3 times longer life
Smoother insert surface resulting in finer cuts
High corrosion resistance

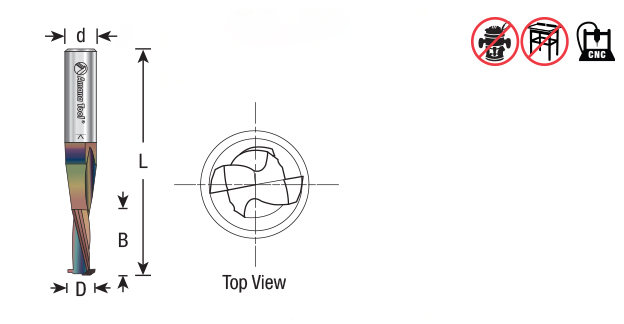

Specifications

(D) Diameter	9.8mm
(B) Cutting Height	23mm
(d) Shank	12mm
Overall Length (L)	80mm
Flutes	2

Weight	0.22 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
