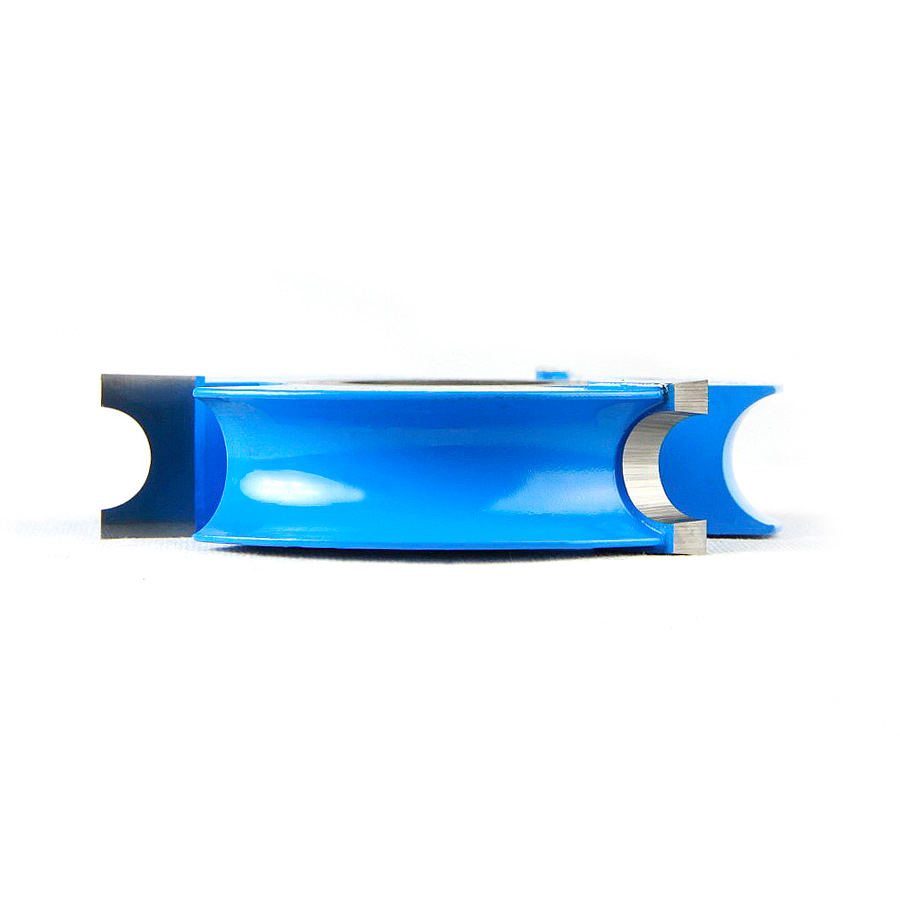

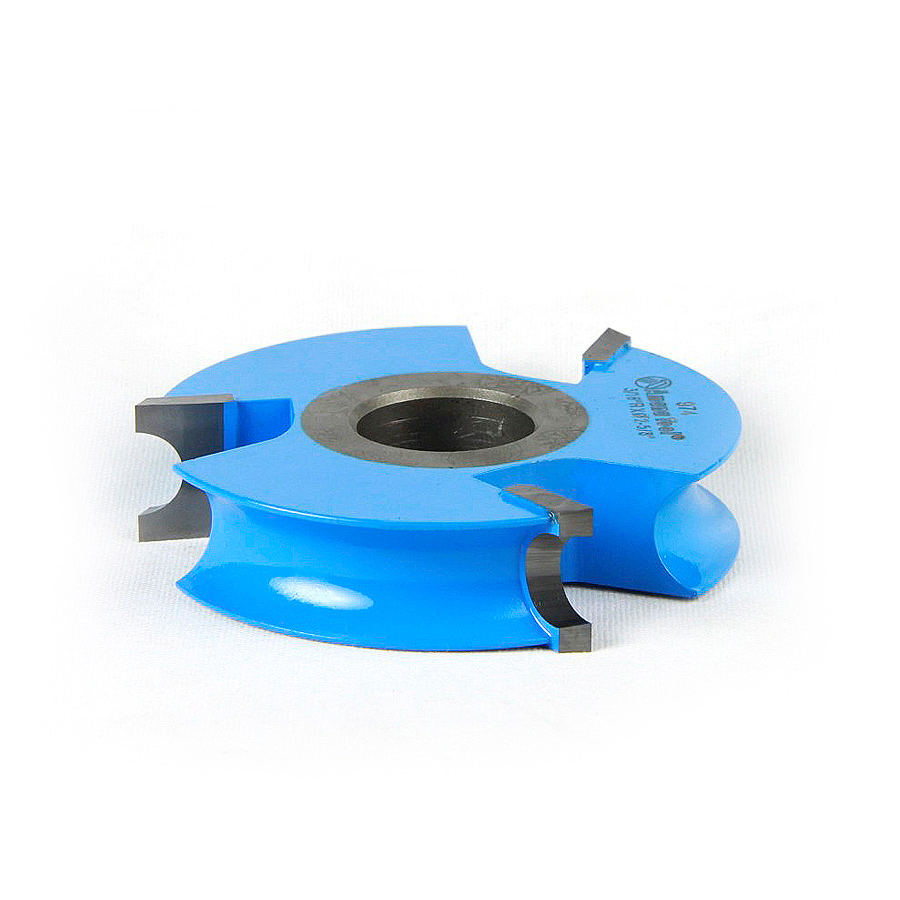

974 Carbide Tipped 3-Wing Bullnose 3/16 Radius x 3/8 Bead Radius x 2-5/8 Dia x 5/8 x 1/2 & 3/4 Bore

Amana 974 Carbide Tipped 3-Wing Bullnose 3/16 Radius x 3/8 Bead Radius x 2-5/8 Dia x 5/8 x 1/2 & 3/4 Bore

Name: Amana 974 Carbide Tipped 3-Wing Bullnose 3/16 Radius x 3/8 Bead Radius x 2-5/8 Dia x 5/8 x 1/2 &amp; 3/4 Bore
SKU: Amana 974
Availability: InStock

Original price was: $131.35.Current price is: $91.95.

BEAD CONCAVE 3/8″ CUTTER

UPC: 738685009741 SKU: Amana 974 Categories: Amana Tool, Bullnose Shaper Cutters, Carbide Tipped Shaper Cutters, Profiling Shaper Cutters, Shaper Cutters

Item Description

Rub collar for 3/4″ arbor only!

Specifications

(D) Diameter	2-5/8
(d) Bore	1/2 & 3/4
(B) Cutting Height	5/8
(R) Radius	3/16
B1	3/8
D1	2-1/4
Description	3/8 bead

Other Sizes Available

Description	(D) Diameter	D1	(B) Cutting Height	B1	(R) Radius	(d) Bore	Optional Rub Collar	Tool No.
1-1/4	3-9/16	2-5/16	1-5/8	1-1/4	5/8 (15.88mm)	1 & 1-1/4	C-040	SC570
2	4-5/16	2-5/16	2-1/2	2 (50.80mm)	1 (25.40mm)	1 & 1-1/4	C-040	SC574
5/8	2-5/8	2 (50.80mm)	15/16 (23.81mm)	5/8 (15.88mm)	5/16 (7.94mm)	1/2 & 3/4	C-010	923
1/2	2-5/8	2-1/8	13/16 (20.64mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/2 & 3/4	C-011	925
3/4	2-5/8	1-7/8	1-1/16	3/4 (19.05mm)	3/8 (9.53mm)	1/2 & 3/4	C-008	927
1	2-5/8	1-5/8	1-1/2	1 (25.40mm)	1/2 (12.70mm)	1/2 & 3/4	C-005	929
1/4	2-5/8	2-3/8	9/16 (14.29mm)	1/4 (6.35mm)	1/8 (3.18mm)	1/2 & 3/4	C-015	973
1/4	4 (101.60mm)	3-3/4	1/2 (12.70mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-1/4	C-038	A-29-100
3/8	4 (101.60mm)	3-5/8	11/16 (17.46mm)	3/8 (9.53mm)	3/16 (4.76mm)	1-1/4	–	A-29-102
1/2	4 (101.60mm)	3-1/2	13/16 (20.64mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-1/4	C-035	A-29-104
3/4	4 (101.60mm)	3-1/4	1-3/16	3/4 (19.05mm)	3/8 (9.53mm)	1-1/4	C-033	A-29-106
1	4 (101.60mm)	3 (76.20mm)	1-5/16	1 (25.40mm)	1/2 (12.70mm)	1-1/4	C-032	A-29-108
1-1/8	3-7/8	2-3/8	1-1/2	1-1/8	9/16 (14.29mm)	1-1/4	C-020	A-29-109
1-1/2	3-13/16	2-5/16	2 (50.80mm)	1-1/2	3/4 (19.05mm)	1 & 1-1/4	C-040	SC572

Weight	0.52 lbs
