Sale!

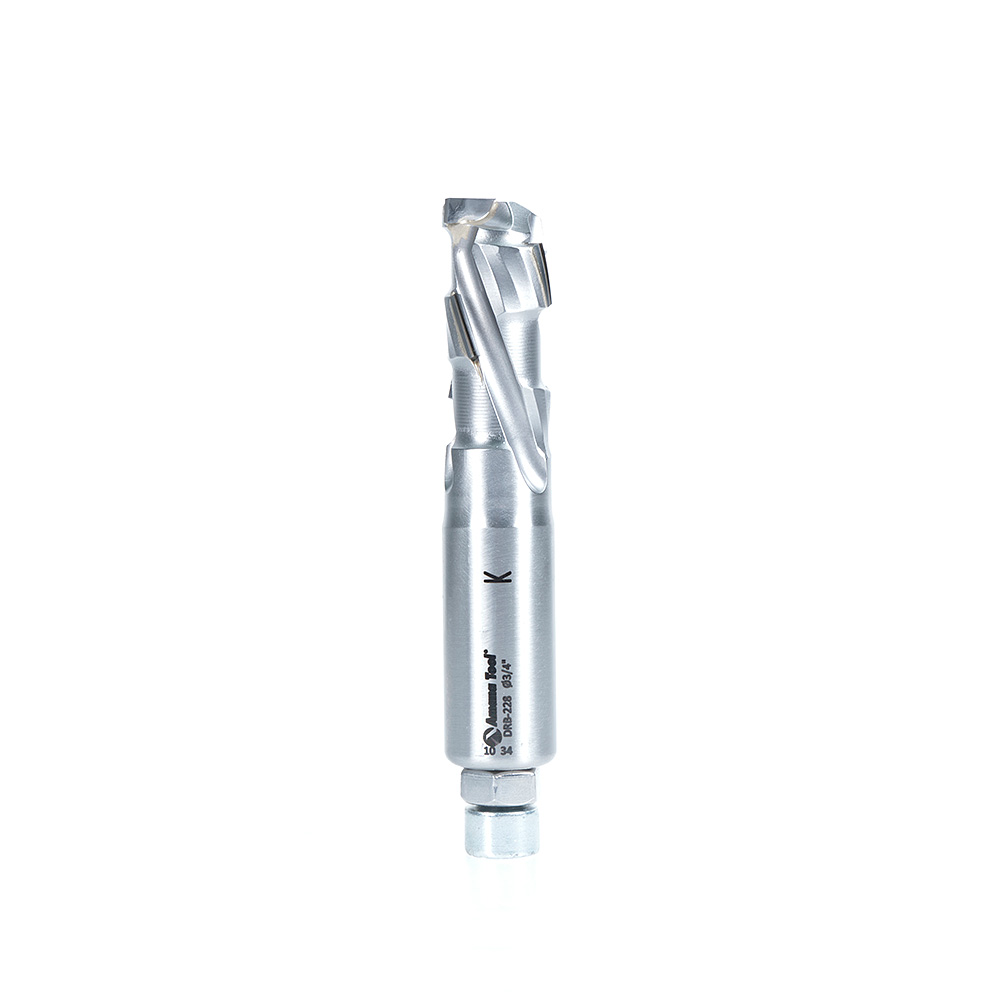

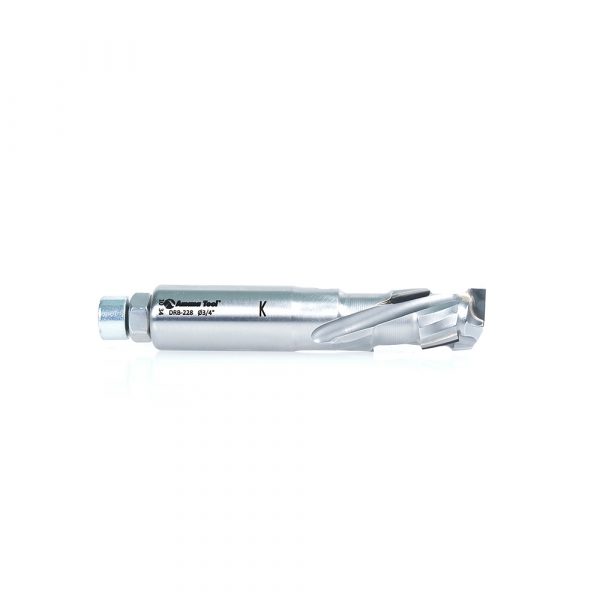

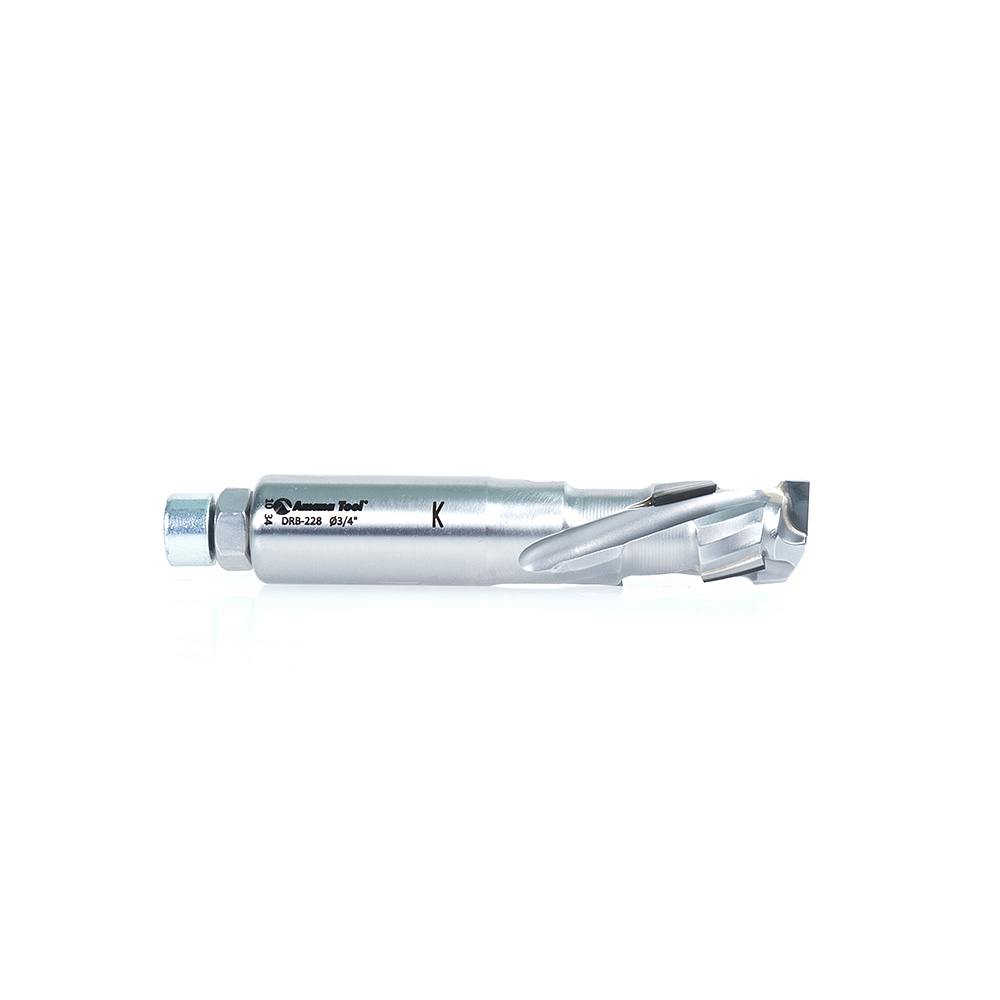

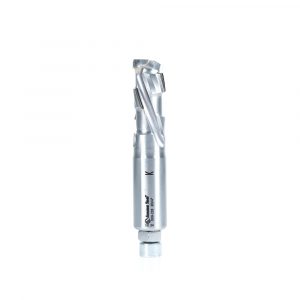

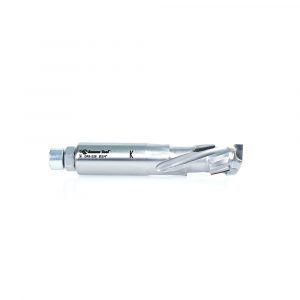

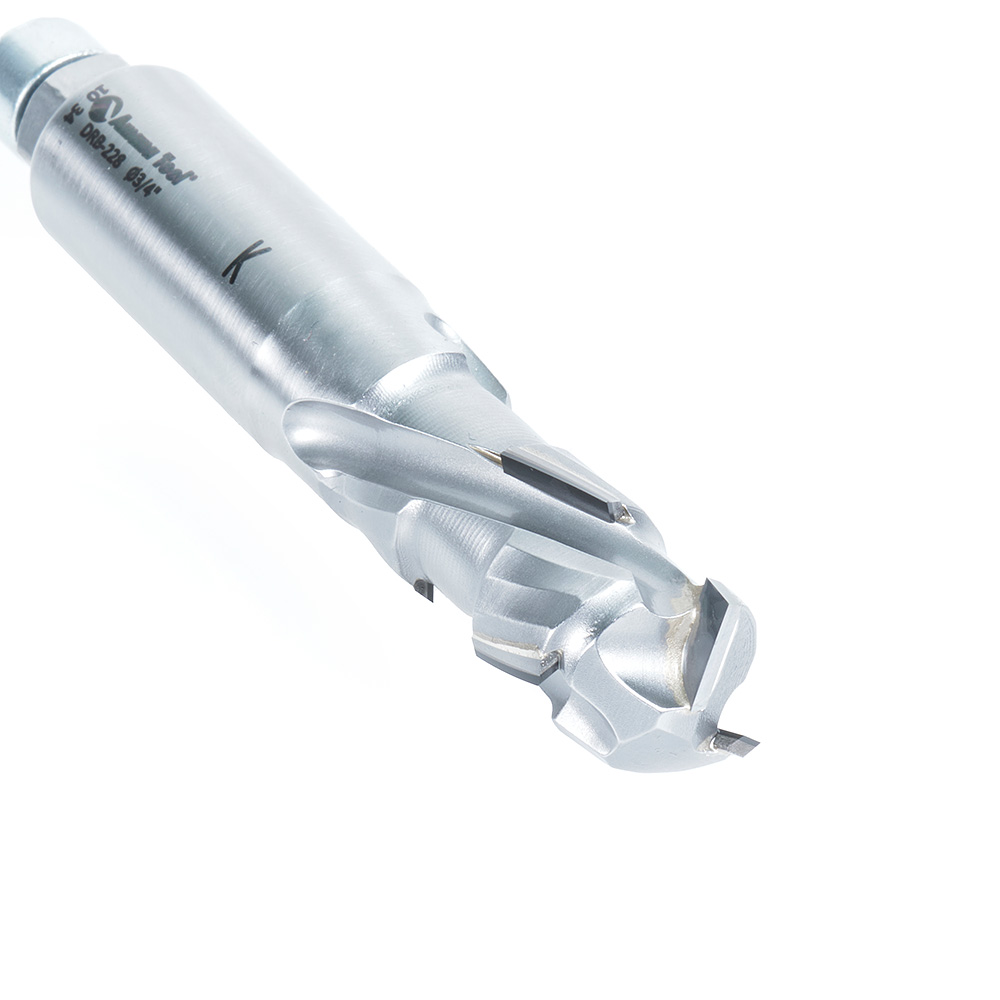

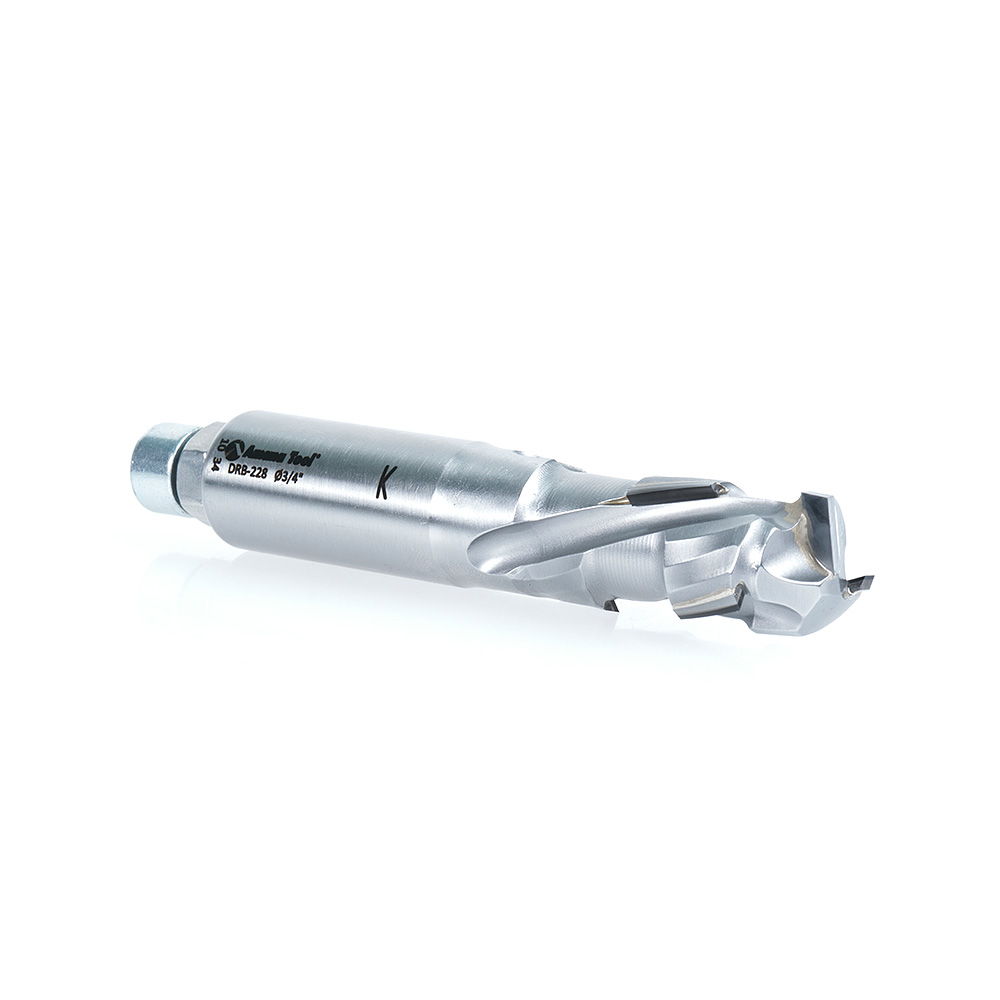

Amana DRB-228 3/4×1-5/8CL 3/4SHK PCD UP/DOWN

Original price was: $256.25.Current price is: $230.63.

3/4×1-5/8CL 3/4SHK PCD UP/DOWN

UPC: N/A SKU: Amana DRB-228 Categories: CNC Router Bits, Diamond Tipped (PCD)

#DRB-228

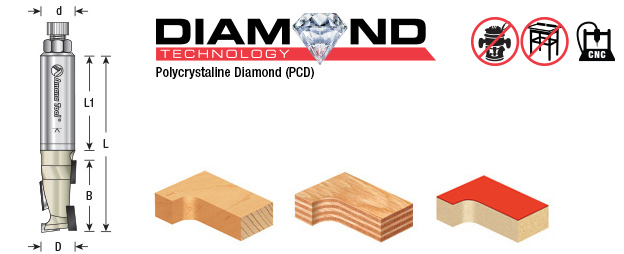

Specification
(D) Diameter	3/4
(B) Cutting Height	1-5/8
(d) Shank	3/4
Overall Length (L)	1-5/8
L1	2
Max RPM	18,000

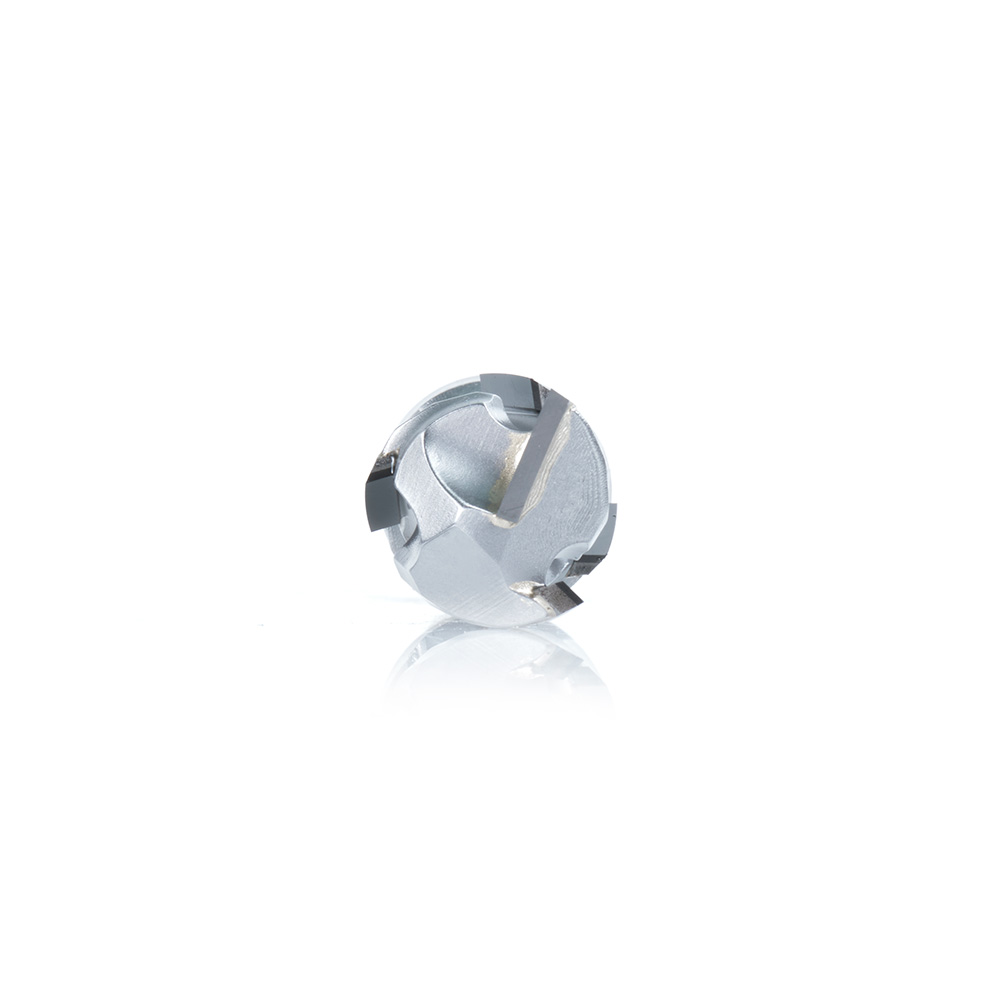

Flutes	1+1

Diamond is the hardest material on the earth. Polycrystalline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate, which allows the diamond to be brazed onto a tool body.

If you’re looking for the ultimate in tooling you’ve found it! Amana Tool®’s PCD tipped compression CNC router bits will groove joint and rabbet a wide variety of tough abrasive materials including composites, particleboard, MDF (both raw or with melamine), veneer and hardwoods. The cutting edge lasts much longer than carbide for extremely long life.

Multipliers for different materials:
Chipboard without coating: Max RPM x 1.1%
Cross grain veneer: Max RPM x 0.7%
MDF: Max RPM x 0.8%

Excellent for Cutting:

Aluminum
Aluminum Composites
Aluminum Composite Material (ACM)
Composites
Composite Panels
Custom Composite Materials (CCM)
Fiberglass
Fiberglass PCB Board

Fiberglass Reinforced Composites
Fiber-Reinforced Urethane
Fiber-Reinforced Structural Foam Floors
Hard and Soft Wood
Lightweight Composites
MDF
Plastic

Benefits of Diamond Technology

Harder cutting edge provides higher resistance to wear
Cut thousands of feet more than carbide without changing tool saving setup time
Optimized machine tool efficiency
Quality of finish is often significantly improved

Weight	0.44 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
