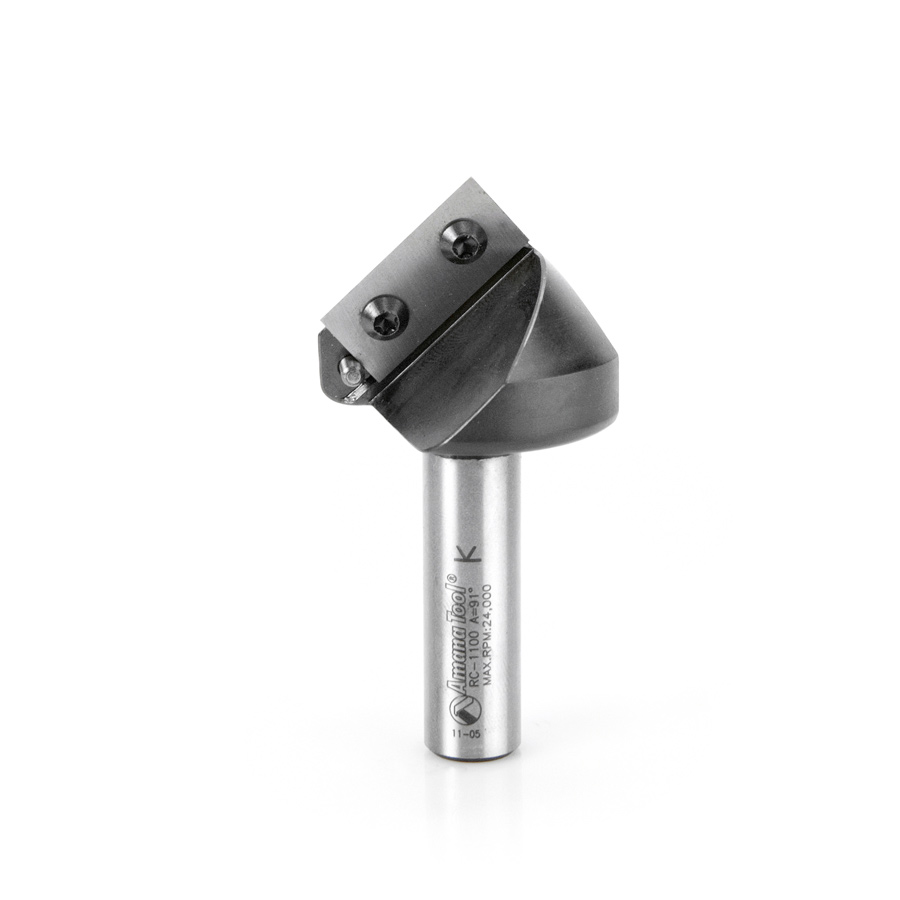

Amana RC-1100 1-1/2 x 3/4 x 91 Degree 1FL Carbide Insertable V Groove Router Bit 1/2″ Shank

Name: Amana RC-1100 1-1/2 x 3/4 x 91 Degree 1FL Carbide Insertable V Groove Router Bit 1/2" Shank
SKU: Amana RC-1100
Price: 152.66 USD
Availability: InStock

Original price was: $169.60.Current price is: $152.66.

RC-1100 CNC Insert V-Groove 91 Deg x 1-1/2 Dia x 3/4 x 1/2 Inch Shank

Specification
(a°) Angle 91°
a1° 45.5°
(D) Diameter 1-1/2
(B) Cutting Height 3/4
B1 1-1/16
Cutting Edges 2
(d) Shank 1/2
Overall Length (L) 3
L1 1-25/32
Max RPM 18,000
Flutes 1
# of knives 1

UPC: 738685720004 SKU: Amana RC-1100 Categories: CNC Router Bits, Signmaking

MITER FOLD 91° DEGREE 1/2″ SHK

The innovative CNC tool design uses the highest grade carbide insert knife which allows you to get two uses out of each insert. Once the knife shows signs of wear you can rotate the insert for a brand new cutting edge. These industrial V-Groove insert router bits were especially designed for applications including:

Miter folds – “create the perfect joint”
Signmaking and lettering

Excellent for cutting:

Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber
(Engraving Only)
Acrylic/Plastic
Composites
Composite Decking
Epoxy (Epoxy Resins)
Foam
High Density Polyethylene (HDPE)
Laminate

*When working with Xanita LightBoard panel (X-board® X-board® plus) we recommend using MDF knives for better results.

Advantages of Insert Tooling:

Long lasting insert knives provide superior smooth quality cuts every time
Quick and precise replacements of dull knives
Due to insert accuracy tool life is extended
Insert tooling allows for harder grades of carbide
Special carbide grades for special applications
Cost effective solution compared to replacing brazed router bits

Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.

Warning: Before using any insert tool, make sure the set screw is tightened firmly. When replacing a dull insert, first clean the tool and remove all dust prior to inserting the new knife.

Vectric and Fusion 360 compatible tool files for RC-1100 available for download.

OTHER SIZES AVAILABLE

(a°) Angle	a1°	(D) Diameter	(B) Cutting Height	B1	Flutes	Cutting Edges	# of knives	(d) Shank	Overall Length (L)	L1	Max RPM	Tool No.
–	–	–	–	–	–	–	–	1/2	–	–	–	AMS-150
–	–	–	–	–	–	–	–	1/4	–	–	–	AMS-153
60°	30°	15/32	21/64	25/64	–	2	1	1/4	1-15/16	1-1/8	24,000	RC-1147
70°	35°	1-7/32	7/8	1-1/16	1	1	1	1/2	2-9/16	1-1/2	18,000	RC-1048
140°	70°	3-5/64	1/2	1-1/2	2	1	2	1/2	3-3/16	1-31/32	16,000	RC-1111
120°	60°	2-1/32	9/16	1-5/32	2	1	2	1/2	3-1/16	2	18,000	RC-1104
60°	30°	1-1/16	29/32	1-1/16	1	1	1	1/2	2-15/32	1-3/8	24,000	RC-1108
60°	30°	1-1/16	59/64	1-1/16	–	1	1	1/4	2-25/64	1-1/8	24,000	RC-1148
40°	20°	47/64	1	1-1/16	1	1	1	1/2	2-9/16	1-1/2	28,000	RC-1040
40°	20°	47/64	1	1-1/16	1	1	1	1/4	2-9/16	1-3/8	28,000	RC-1041
45°	22.5°	13/16	7/8	1-1/16	1	1	1	1/2	2-3/8	1-3/8	24,000	RC-1045
45°	22.5°	13/16	1	1-1/16	1	1	1	1/2	3-21/32	2-1/2	18,000	RC-1049
45°	22.5°	13/16	63/64	1-1/16	1	1	1	1/4	2-5/16	1-3/8	35,000	RC-1145
46°	23°	27/32	63/64	1-1/16	1	1	1	1/2	2-3/8	1-3/8	24,000	RC-1047
50°	25°	7/8	31/32	1-1/16	1	1	1	1/2	2-9/16	1-1/2	22,000	RC-1046
90°	45°	1	1/2	47/64	–	2	1	1/4	2	1-1/8	24,000	RC-1141
60°	30°	27mm	23mm	27mm	–	1	1	6mm	61mm	29mm	24,000	RC-1148-M
160°	80°	2-5/16	13/64	1-5/32	2	1	2	1/2	2-25/32	2	22,000	RC-1109
100°	50°	1-5/8	11/16	1-1/16	1	2	1	1/2	3-3/16	1-25/32	18,000	RC-1103
120°	60°	1-23/64	25/64	25/32	1	2	1	1/4	2-31/64	1-27/64	14,000	RC-1146
150°	75°	1-33/64	13/64	25/32	1	2	1	1/4	2-3/8	1-27/64	24,000	RC-1101
130°	65°	2-1/8	1/2	1-5/32	2	1	2	1/2	3	2	22,000	RC-1107
72°	36°	1-1/4	7/8	1-1/16	1	1	1	1/2	2-19/32	1-1/2	18,000	RC-1072
90°	45°	3	1-1/2	2-1/8	1	2	1	3/4	4-3/8	2-23/64	18,000	RC-1034
91°	45.5°	2-5/8	1-5/16	1-13/16	1	2	1	3/4	3-7/8	2-3/8	18,000	RC-1028
90°	45°	2-5/8	1-9/32	1-27/32	–	2	1	3/4	3-13/16	2-5/32	18,000	RC-1030
110°	55°	1-3/4	5/8	1-1/16	1	2	1	1/2	3-3/16	2	18,000	RC-1105
140°	70°	2-13/64	13/32	1-11/64	2	1	2	1/2	3-1/16	2	18,000	RC-1110
150°	75°	2-1/4	19/64	1-3/16	2	1	2	1/2	2-15/16	2	22,000	RC-1106
45°	22.5°	1-1/2	1-3/4	1-15/16	1	1	1	3/4	4-1/4	2-3/16	18,000	RC-1031
90°	45°	1-1/2	3/4	1-1/16	1	2	1	1/2	3	1-25/32	18,000	RC-1102
91°	45.5°	1-1/2	3/4	1-3/64	–	2	1	1/4	2-19/32	1-3/8	18,000	RC-1140
90°	45°	1-1/2	3/4	1-1/16	–	2	1	1/4	2-5/8	1-3/8	35,000	RC-1142
120°	60°	3-13/32	1	2	2	1	2	3/4	3-27/32	2-3/8	15,000	RC-1029

Weight	0.34 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
