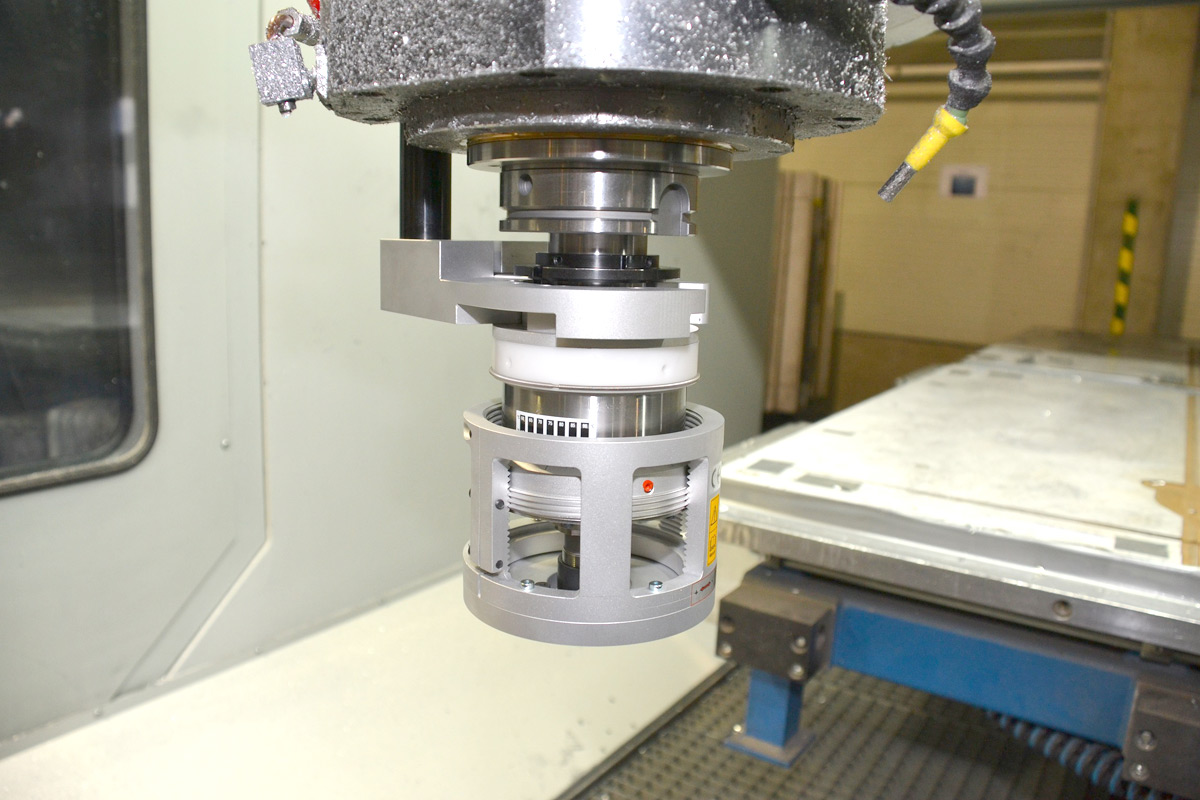

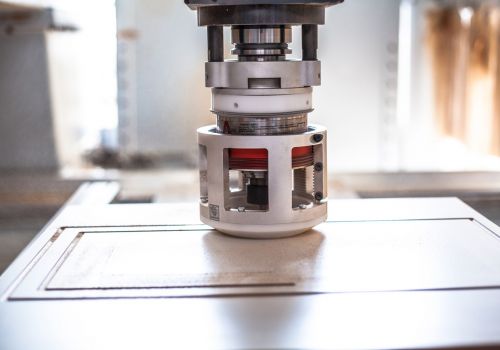

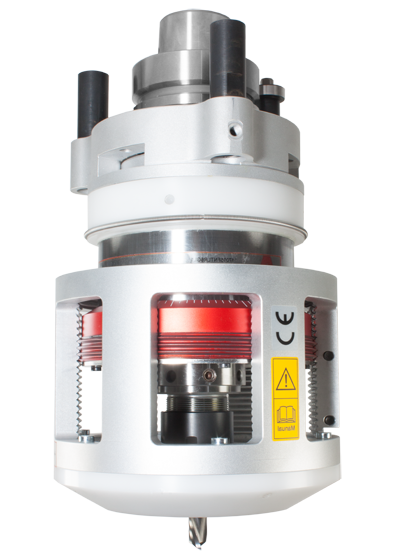

ATEMAG Soft Touch One Function Line

Floating aggregate for constant and defined machining depth despite clamping unevenness and thickness fluctuations.

Request a Quote

Technical Data

Machining options:	Drilling	Milling	Sawing	Grinding
Max. input speed:	18.000 rpm
Max. output speed:	18.000 rpm
Gear ratio:	1 : 1
Max. torque:	10 Nm
Permissible operating temperature:	max. 85°C
Machining angle:	0°
Number of tool outputs:	1 / fixed
Lubrication:	Grease / Lifetime lubrication
Floating capacity:	10 mm
Adjustment range:	70 mm
Setting precision:	0,01 mm
Probing direction:	Axial

UPC: N/A Categories: Aggregates, FUNCTION LINE

Description
Brand

Product Information

Machining options:

Routing – Drilling – Sawing (horiz.) – Grinding for standard applications

Typical applications:

Facade installation: Routing of V-grooves in ALUCOBOND
Stairs: Edge machining of stair treads
Doors: Decorative grooves
Kitchens: Routing of recesses in countertops
Formwork installation: Drilling at a defined depth
Automotive and aerospace: Edge machining of molded parts and countersinking

Tool connections:

ER 32
Modular interface
Other connections on request

Machine connection:

ATEMAG aggregates are used on all CNC machines and robot systems. The machine connection is precisely matched to the technical requirements of the CNC machine or robot.

Brand

ATEMAG

ATEMAG is a leader in the engineering, production, and marketing of CNC aggregates and accessories, and has been since 2004. They are on the cutting edge of both technology and customer service. We at General Cutting Tools are proud to be a national distributor of ATEMAG products.
