Sale!

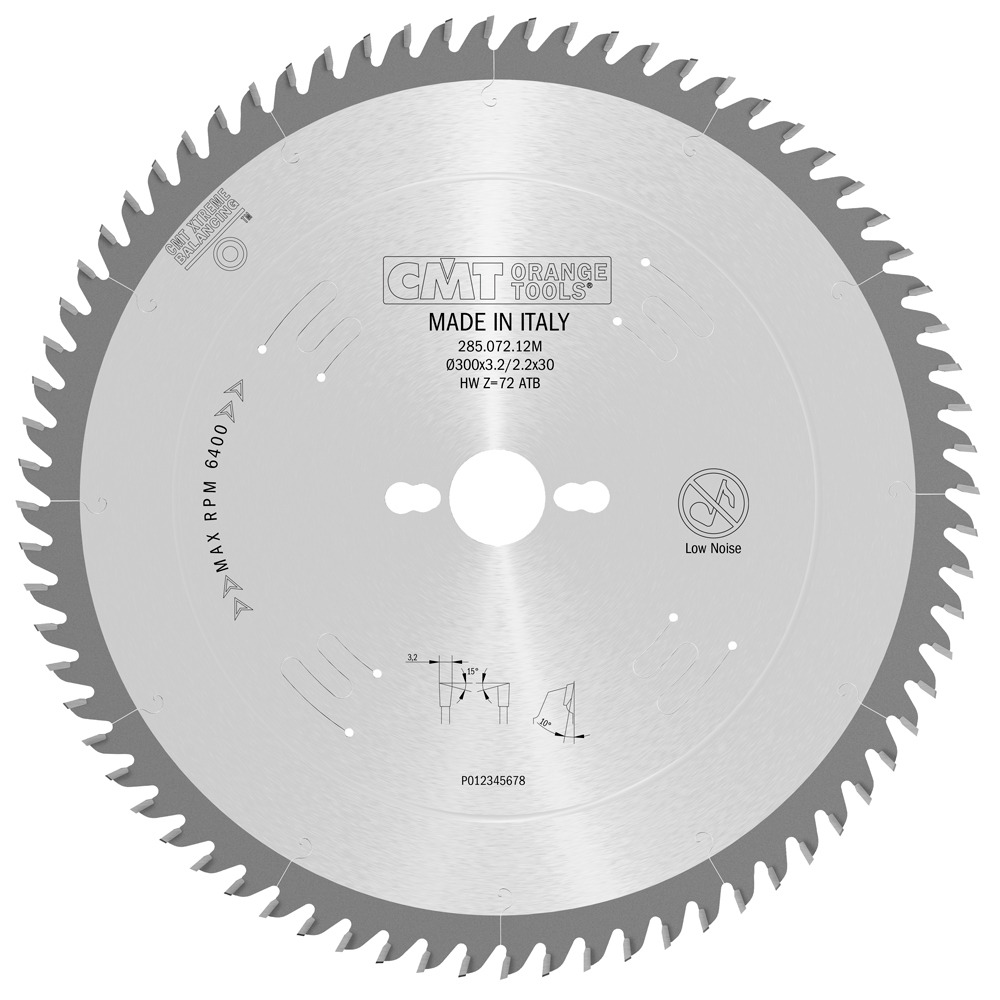

CMT 285.072.14M – Industrial rip & crosscut circular saw blades

Original price was: $165.50.Current price is: $107.60.

UPC: N/A SKU: 285.072.14M Category: New

Industrial rip & crosscut circular saw blades
285-294-295

LASER-CUT PREMIUM QUALITY STEEL PLATE BODY
Made with 46-48 HRC premium quality harmonic steel from Germany
and laser-cut to perfection providing tighter tolerances translating
to longer life and accurate cutting ability.

LASER-CUT SOUND DAMPENING SLOTS
Slots reduce vibrations and noise by 10% compared to blades without it.
This feature improves cut quality and extends blade life.
In full compliance with National Noise Emission Standards and Regulations.

TENSIONING RING (∅250mm and above)
A visible tensioning ring on blade body provides stability during the cut
and perfect concentricity during rotation. For improved performance,
tensioning is fine-tuned according to machine/application.

TRI-METAL BRAZING
Silver-Copper-Silver Tri-Metal Brazing prevents carbide from breaking
during the cooling process and allows teeth to withstand high stress
and impact especially when cutting harder woods and composite materials.

INDUSTRIAL CHROME CARBIDE
Cutting teeth are made from a specially formulated chrome carbide
which stays sharper longer by reducing cutting edge abrasion, improving cut quality and tool life.

PRECISION MIRROR FINISH SHARPENING
Each tooth is precision ground on a multi-axis CNC machine creating perfect edge angles
that provide extra-clean cutting performance and extended life.
Featuring less than 0.25 µm Rmax in edge roughness.

HARD LAQUERING
Protects against corrosion and rust.

CMT XTREME BALANCING*
This system allows for extremely accurate dynamic balancing of the blade,
several orders of magnitude above and beyond that which is currently available in the marketplace.
*TRADEMARK & INT. PAT. PEND.

Brand

CMT

Over the years, CMT has been making massive investments in the most advanced technology in CNC machine equipment and in innovative software to manufacture woodworking cutting tools. Furthermore, CMT has hired highly skilled engineers and operators to manage the production operations. The result, the entire woodworking cutting tool manufacturing process is completely automated.
