CMT 663.201.11 – ADJUSTABLE CHAMFERING CNC ROUTER BIT

Name: CMT 663.201.11 - ADJUSTABLE CHAMFERING CNC ROUTER BIT
SKU: 663.201.11
Price: 566.06 USD
Availability: InStock

$566.06

Adjustable chamfering CNC cutter

663.201.11

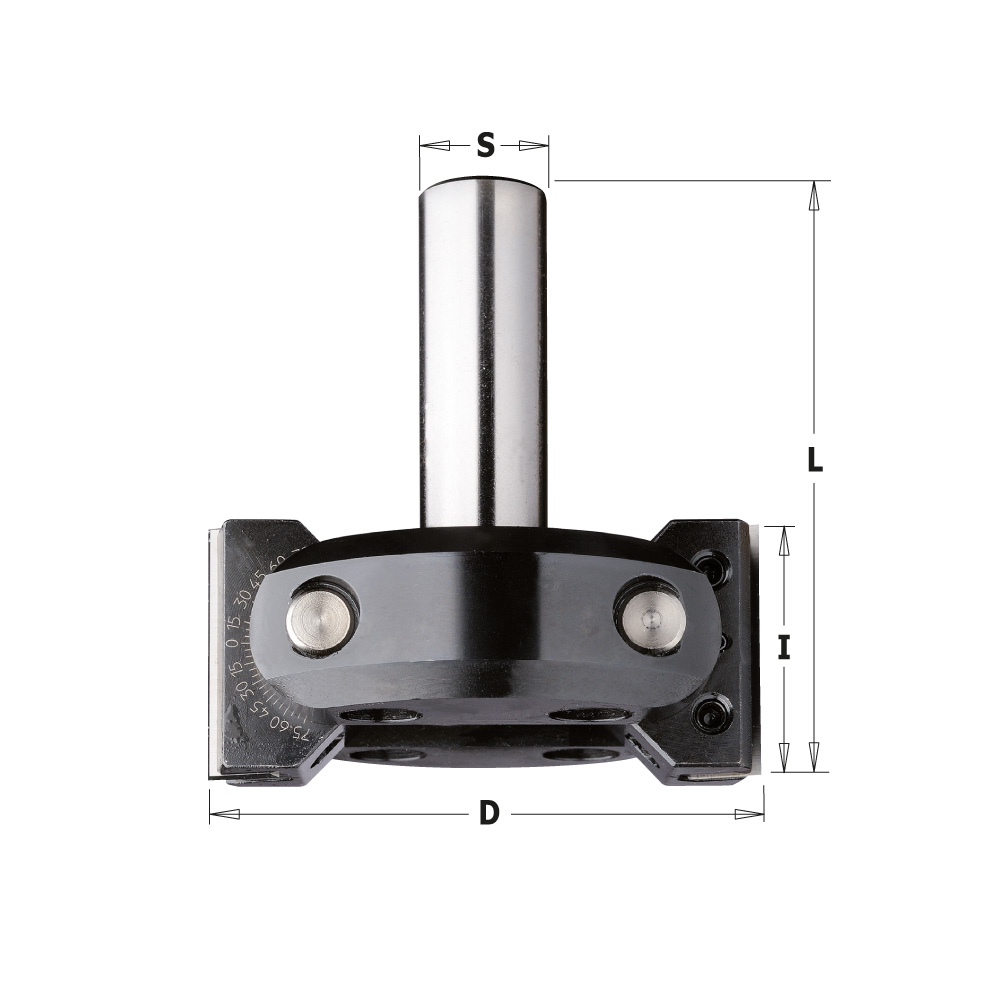

Specifications

Item Code	663.201.11
D	3-11/32″
l	39.5mm
A	0°-45° – 0°+90°
RPM	7500~12000
L	3-5/8″
S	20mm
RH-LH	RH

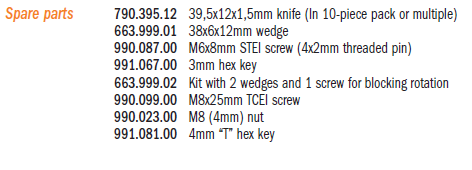

	991.067.00
	790.395.12
	663.999.02
	663.999.01
	990.087.00
	990.099.00
	990.023.00
	991.081.00

UPC: 664252033249 SKU: 663.201.11 Category: Cutter Heads & Knives

Description
Brand

Technical Details

Tool body in steel;
2 reversible HWM knives 39,5x12x1,5mm [Z2];
Peripheral cutting on both sides;

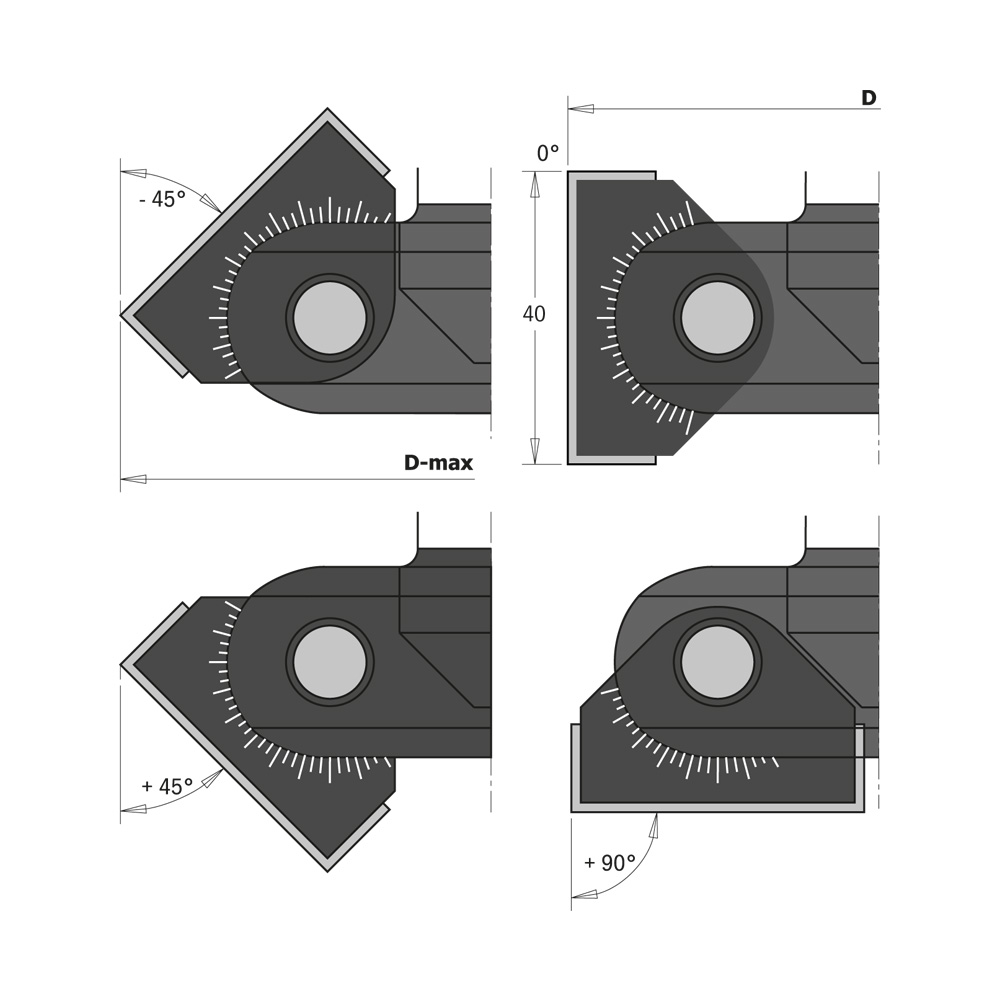

Adjustable swivelling blade (Rotates at 7,5° intervals; Precision = 7,5°);
Swivelling range 0-45° towards top, and 0-90° towards bottom.

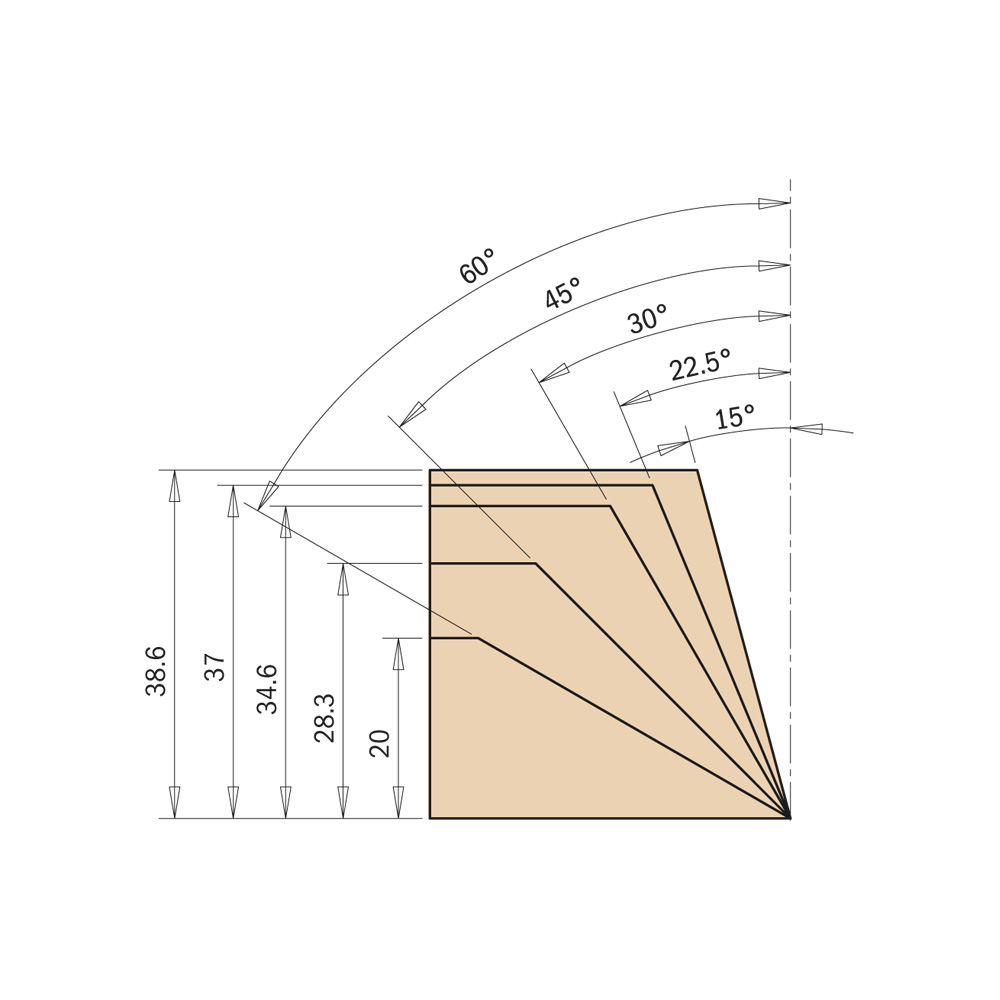

Inclination:

Min.	Max
-45°	+90°

Details

For jointing, rebating and chamfering of solid wood and wooden boards. Suitable for CNC router machines and stationary router machine with manual or mechanical feed.

Safety Tips:

The TW-006 Torque Screwdriver is recommended for the proper fastening of screws.
