CMT 694.004.31 – MULTIRADIUS ROUNDOVER CUTTER HEAD

Name: CMT 694.004.31 - MULTIRADIUS ROUNDOVER CUTTER HEAD
SKU: 694.004.31
Price: 304.64 USD
Availability: InStock

Original price was: $451.50.Current price is: $304.64.

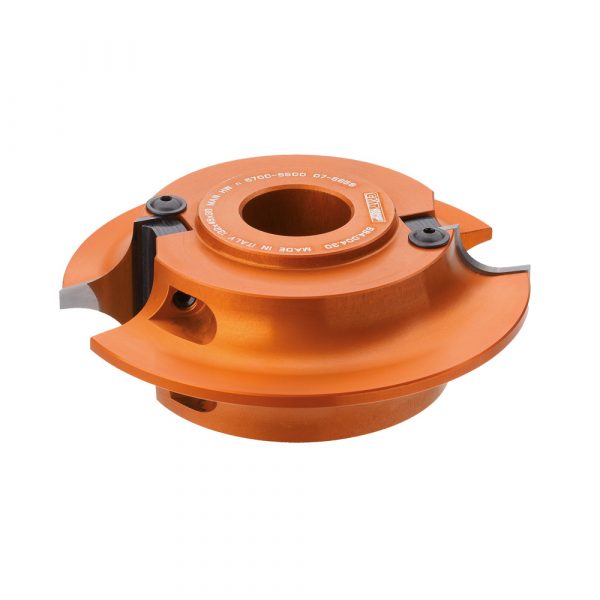

Multiradius roundover cutter heads

694.004

Specifications

Item Code	694.004.31
D	5-13/64″
B	1-1/4″
Z	2
RPM	5700~9500
MAT	HW
	695.004.15
	695.999.42
	990.064.00
	991.064.00
	695.004.12

UPC: 664252027910 SKU: 694.004.31 Categories: Cutter Heads, Cutter Heads & Knives

Description
Brand

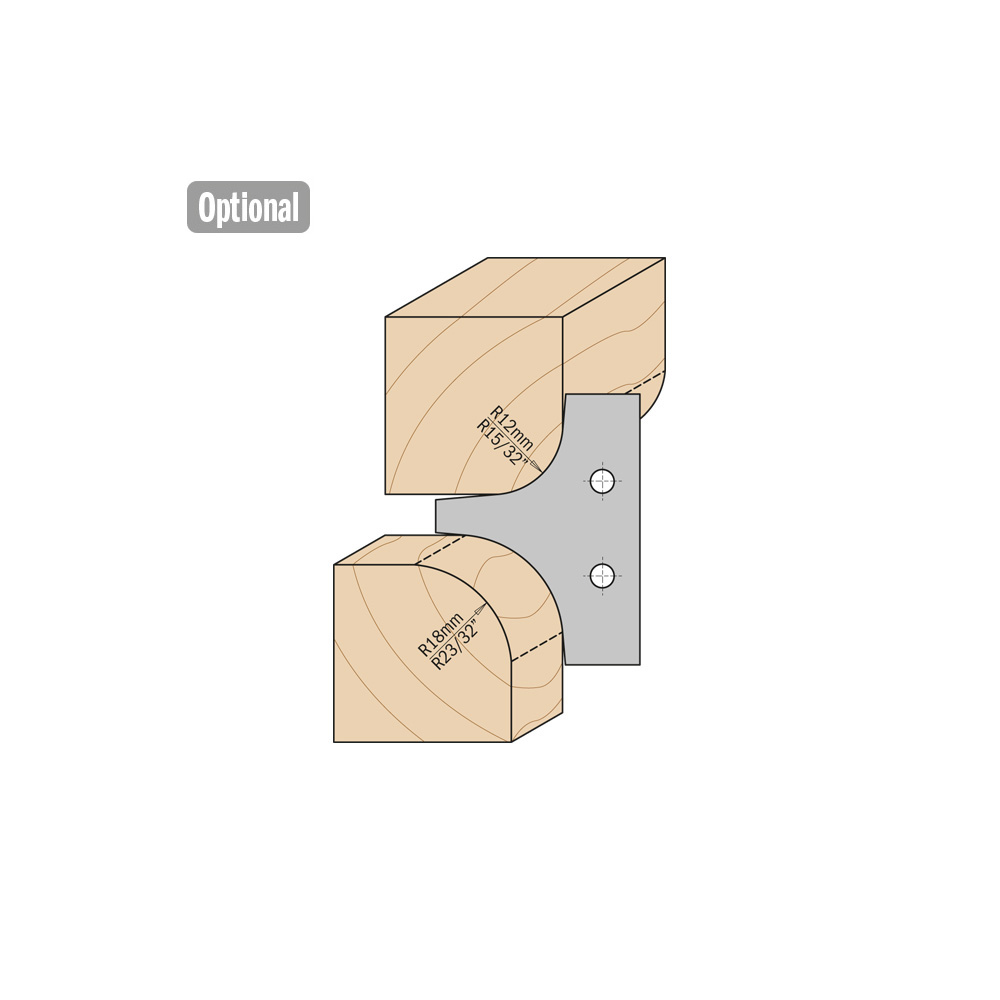

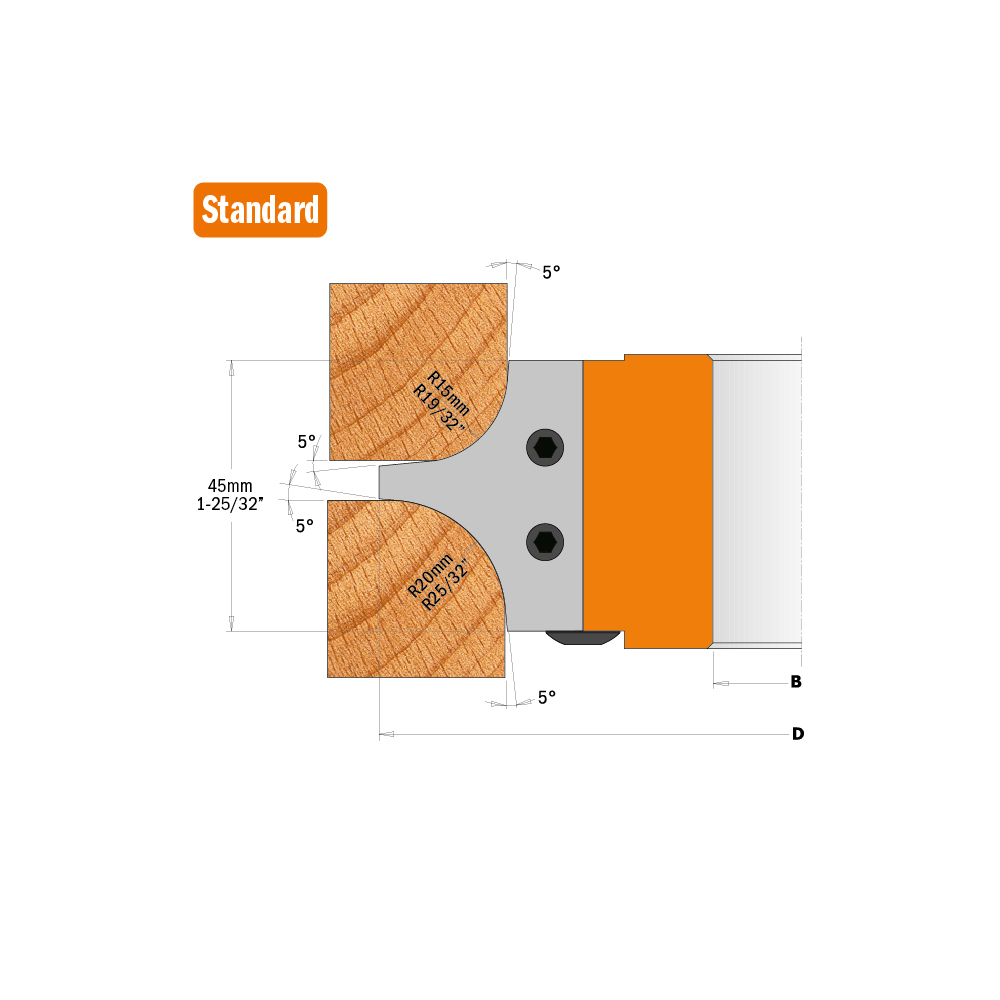

Innovative cutter heads supporting two different knives for making four radius roundover profiles. Standard cutter heads are sold with knives featuring radii 15 and 20mm; one more knife set is available for radii 12-18mm.
For use on spindle moulder machines, double-end tenorer and shaper machines.
Suitable for all materials, but ideal on solid wood and panel materials.

Technical Details

Hard aluminium alloy body with high resistance to tensile and yield stress.

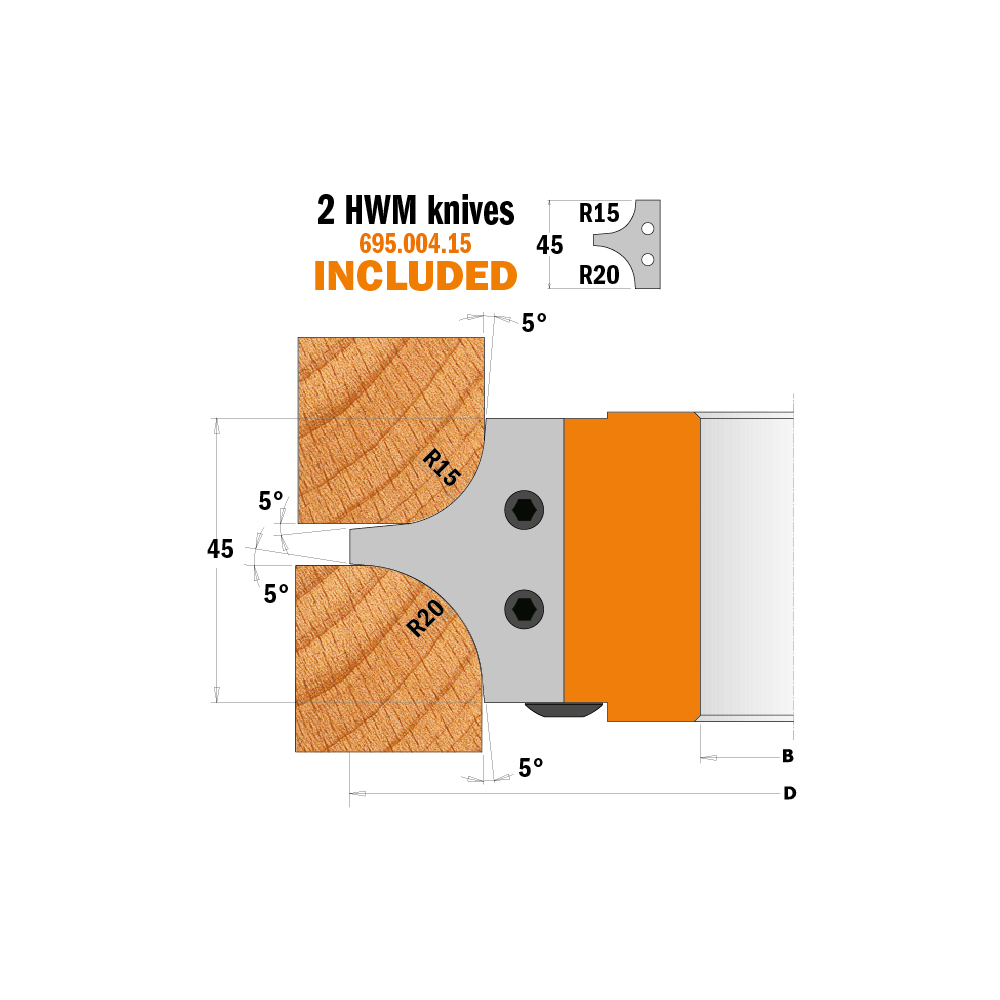

2 HWM knives radius 15/20mm (45×34,5x2mm) [Z2].
Tools for manual feed (MAN).
Pins for the automatic positioning of the knives.

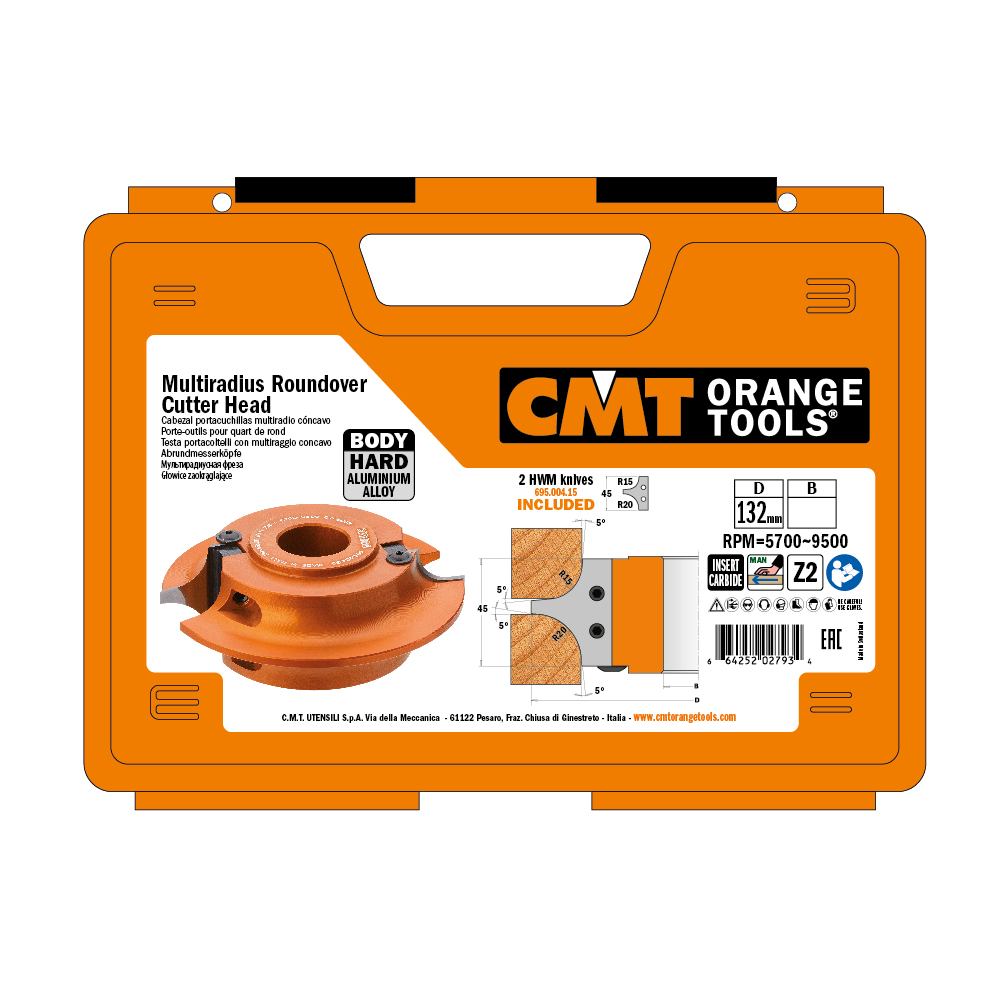

Supplied in a solid plastic box.

Details

Safety Tips:

The TW-006 Torque Screwdriver is recommended for the proper fastening of screws.

Brand

CMT

Over the years, CMT has been making massive investments in the most advanced technology in CNC machine equipment and in innovative software to manufacture woodworking cutting tools. Furthermore, CMT has hired highly skilled engineers and operators to manage the production operations. The result, the entire woodworking cutting tool manufacturing process is completely automated.
