CMT 694.021.31 – 2 PCS ADJ GROOVING SET

Name: CMT 694.021.31 - 2 PCS ADJ GROOVING SET
SKU: 694.021.31
Price: 284.80 USD
Availability: InStock

Original price was: $422.10.Current price is: $284.80.

2 Piece Adjustable Grooving Sets

694.021-022

Item Code	694.021.31
D	5-29/32″
l	9/16″ – 1-1/16″
B	1-1/4″
T	44mm
Z	4
Spurs	4
RPM	5000~8000
MAT	HW

	790.136.00
	990.093.00

UPC: 664252037803 SKU: 694.021.31 Categories: Cutter Heads, Cutter Heads & Knives

Description
Brand

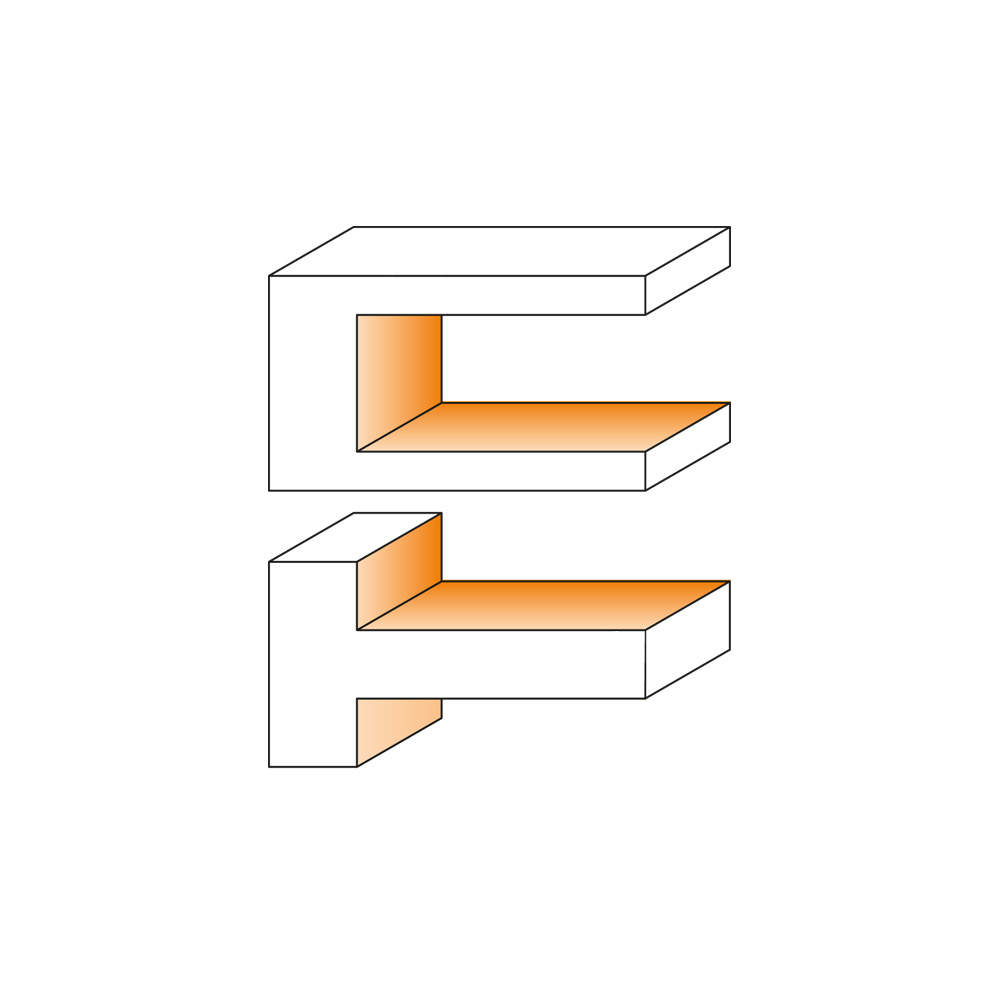

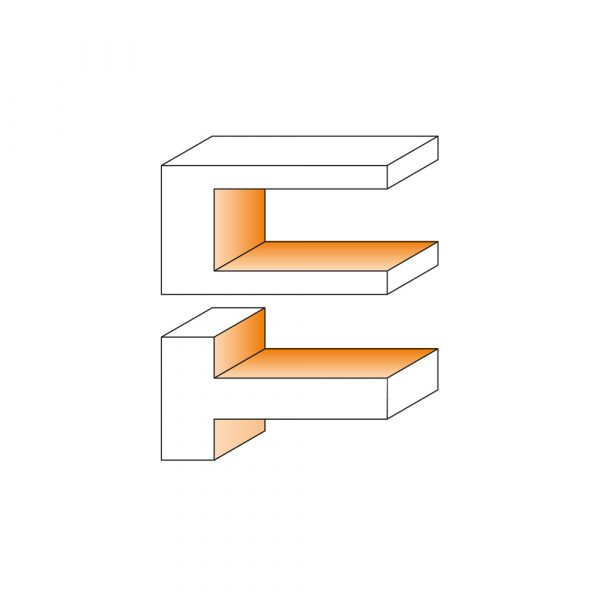

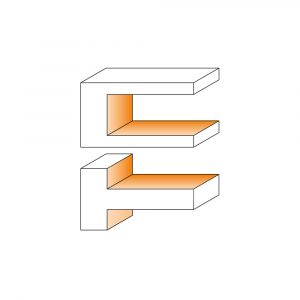

These cutter heads are the ideal tools to create precision slots and grooves on material from 14 to 39mm deep.

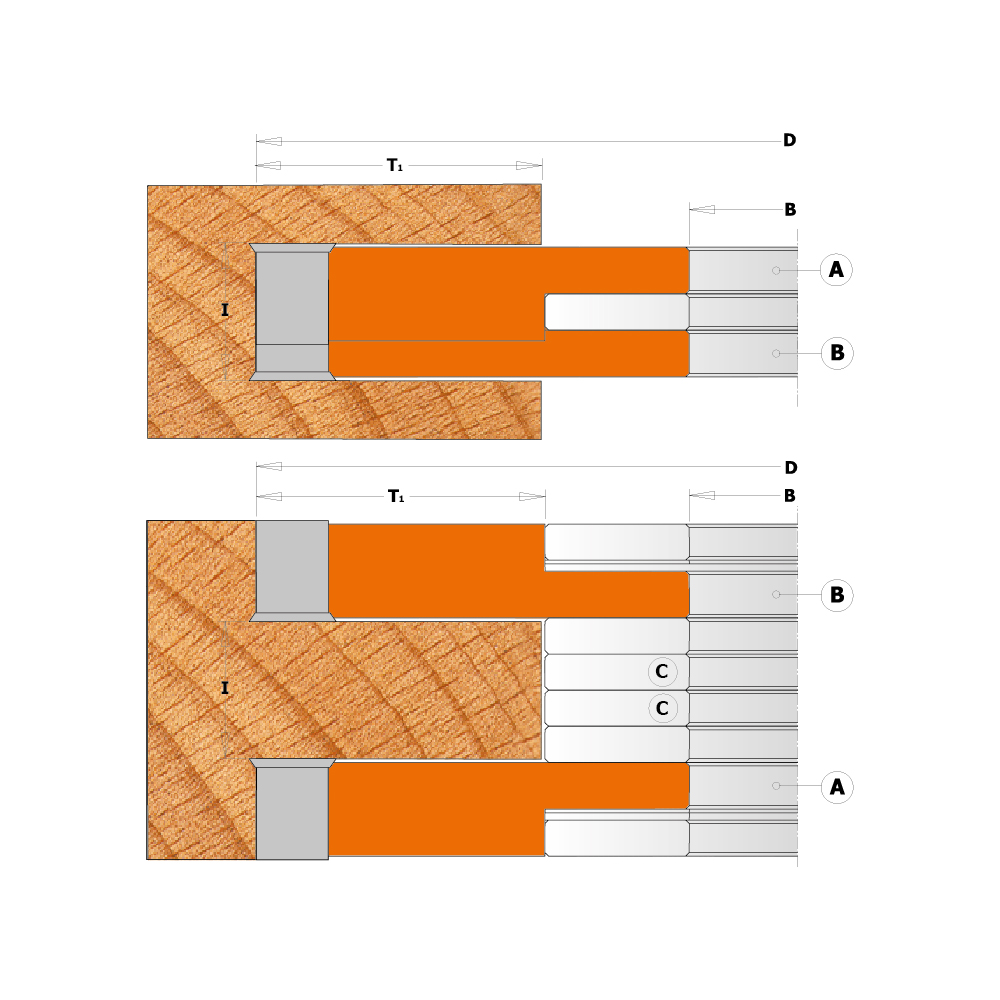

The 694.021-022 set includes:

1 cutter head type (A) [Z2 + V2];
1 cutter head type (B) [Z2 + V2];
Spacer rings set.

For use on spindle moulder machines, double-end tenoners and shaper machines.
Perfect grooving on all materials, but ideal on solid wood, plywood and laminated panels.

Technical Details

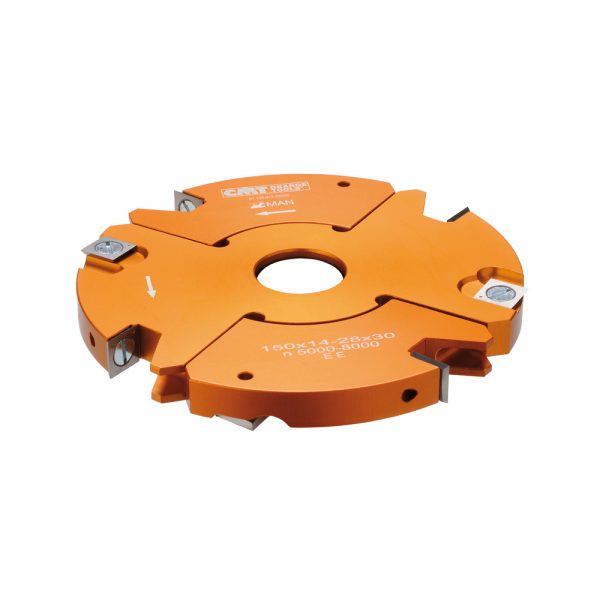

Super-strength hard aluminium alloy body.
694.021: 8 HWM knives 13,6×13,6x2mm.
694.022: 4 HWM knives 19,5x12x1,5mm; 4 HWM knives 14x14x2mm.
Tools for manual feed (MAN).
Pins for the automatic positioning of the knives.

Supplied in a solid plastic box.

Details

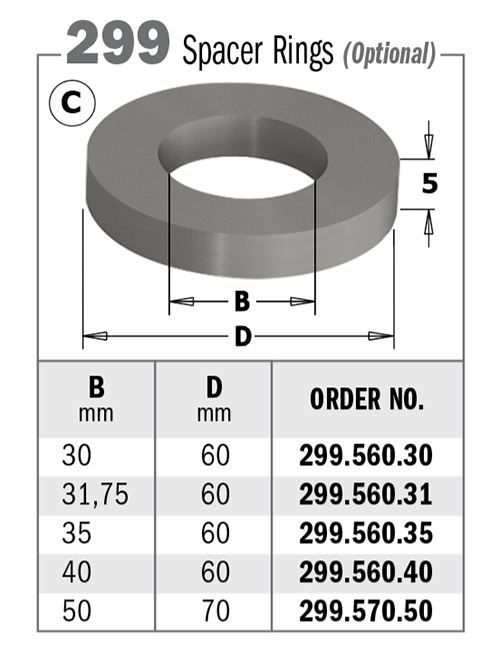

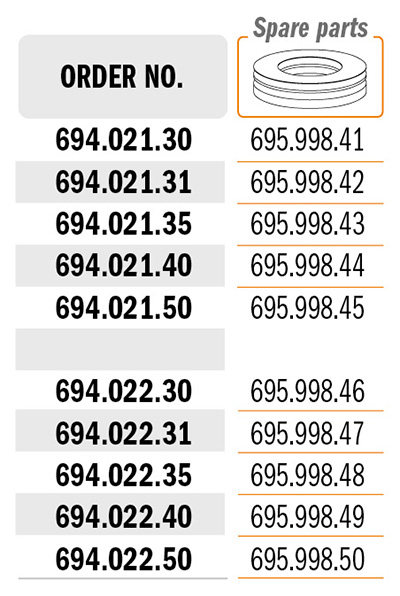

Spacers Set:

790.136.00, 790.140.00 and 790.195.12 are supplied in 10-piece pack or multiple.

Safety Tips:

The TW-006 Torque Screwdriver is recommended for the proper fastening of screws.
