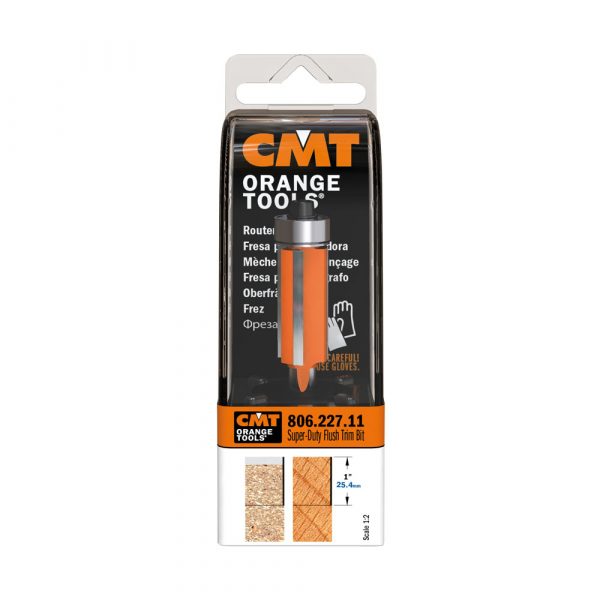

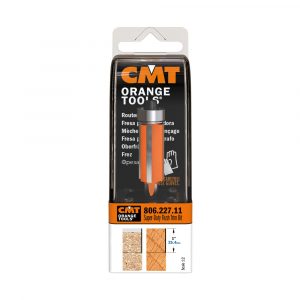

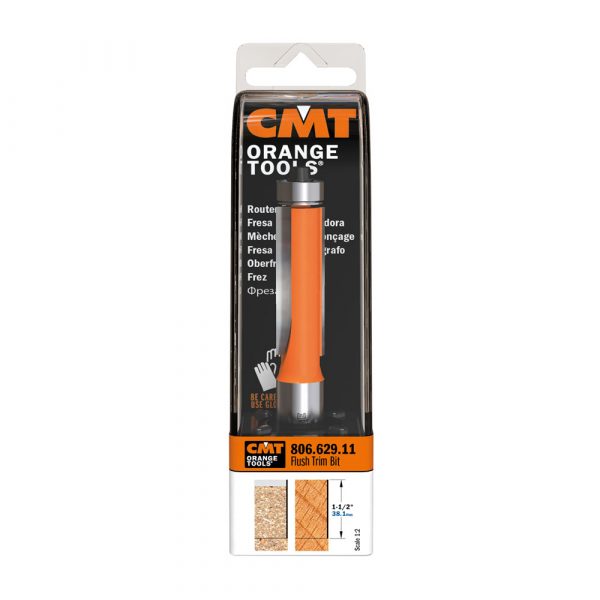

CMT 806.096.11-X10 – 10-PCS FLUSH TRIM BIT

CMT 806.096.11-X10 – 10-PCS FLUSH TRIM BIT

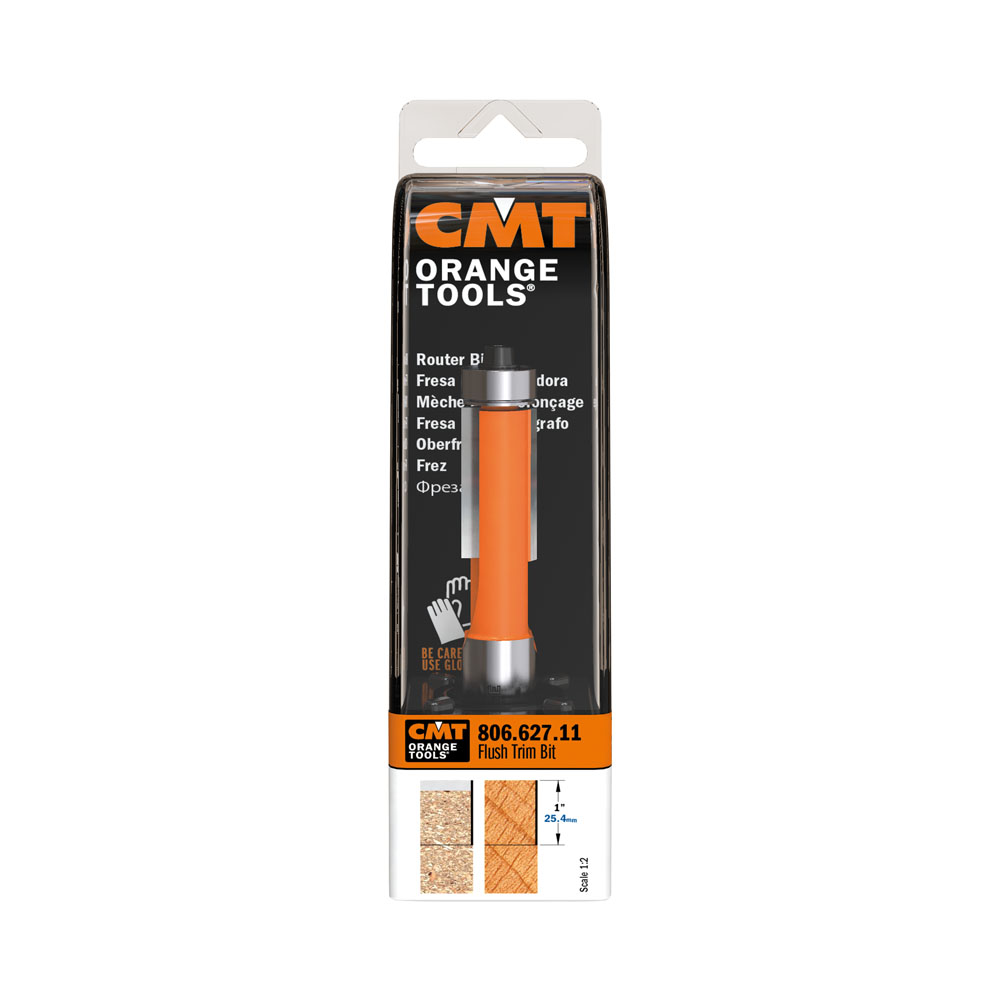

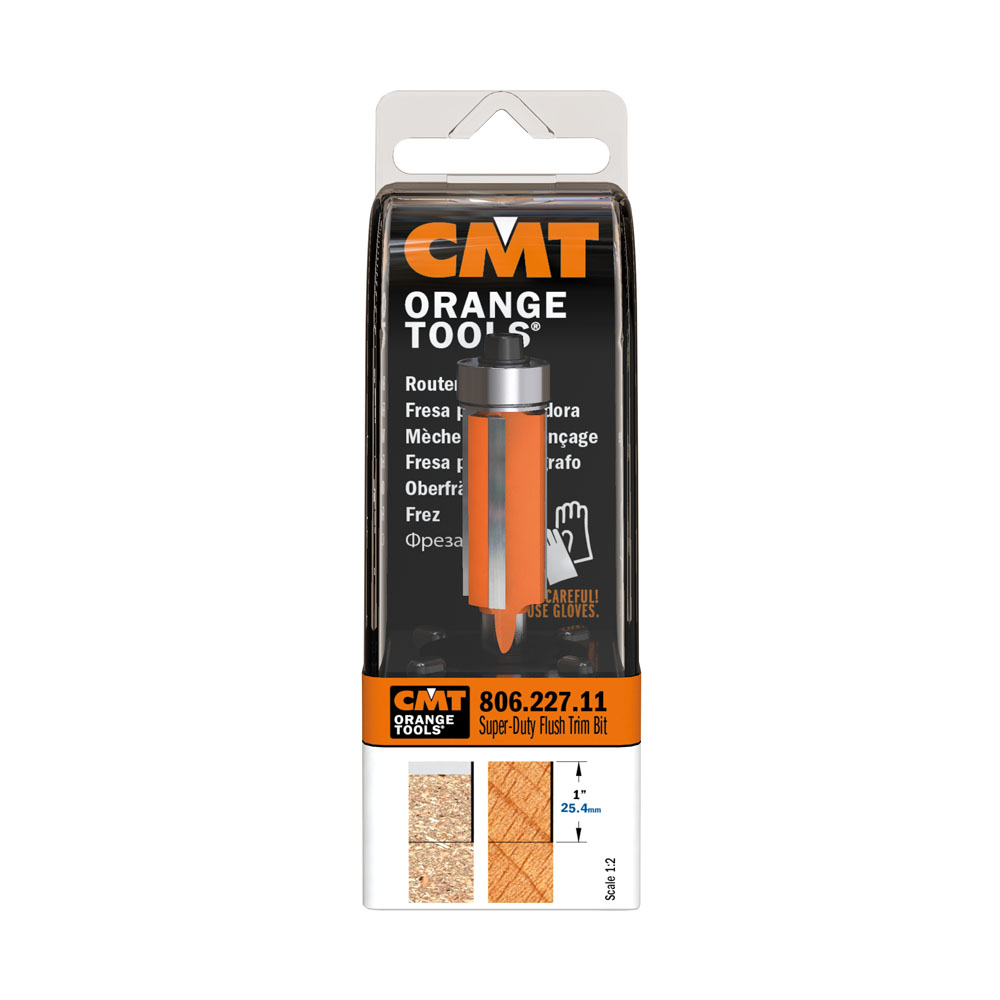

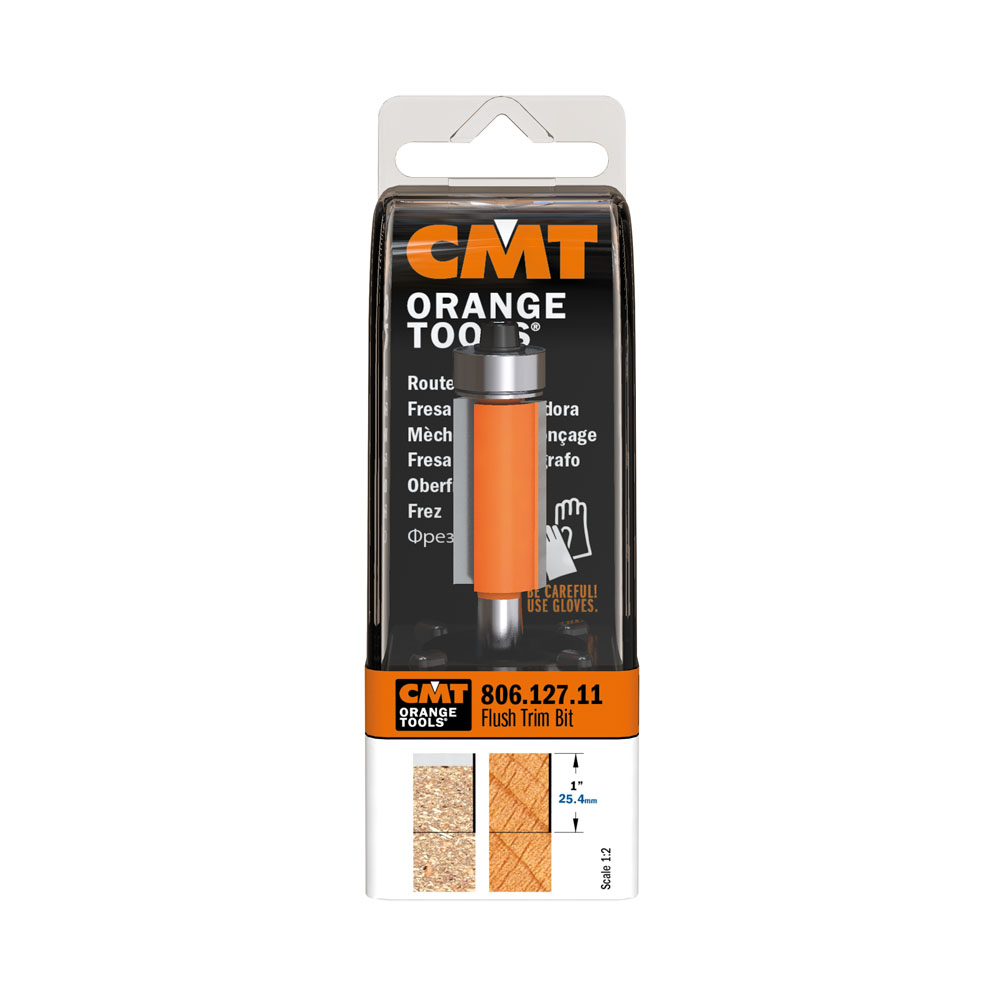

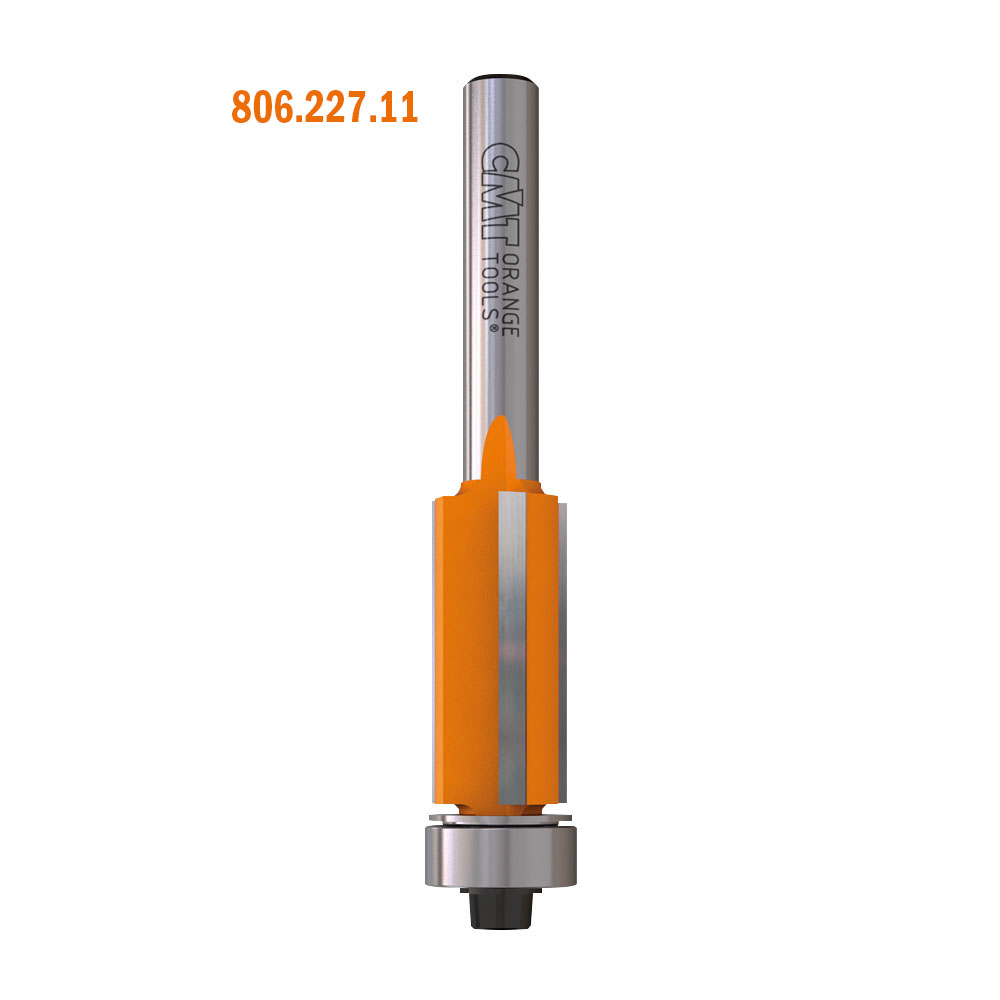

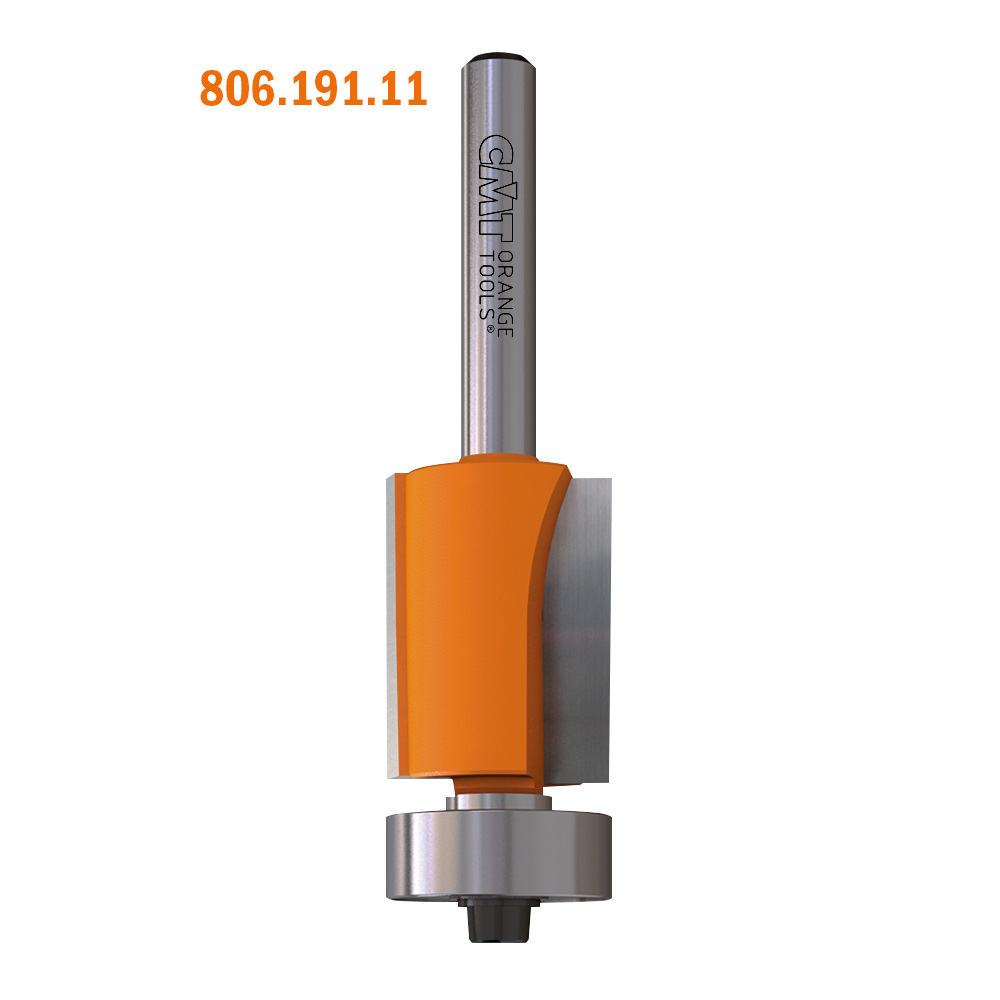

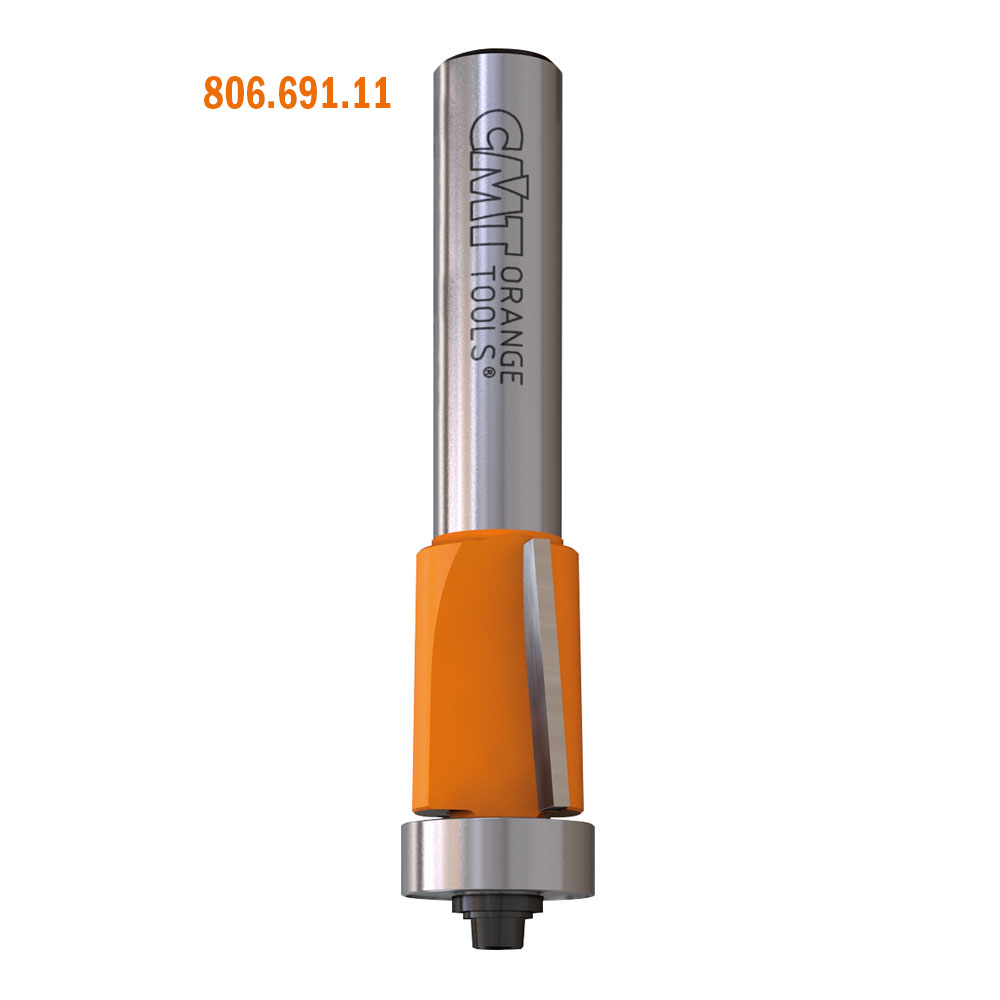

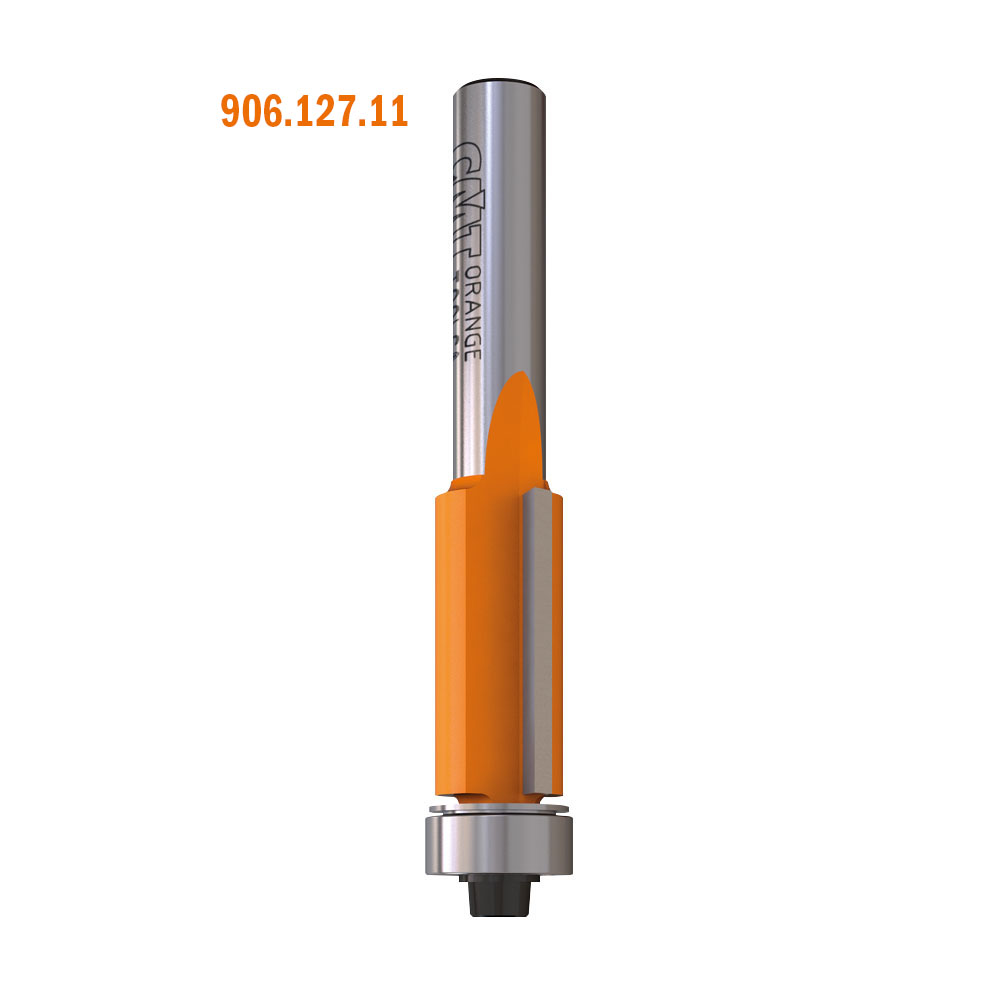

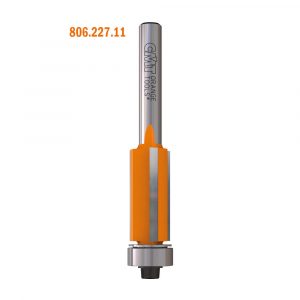

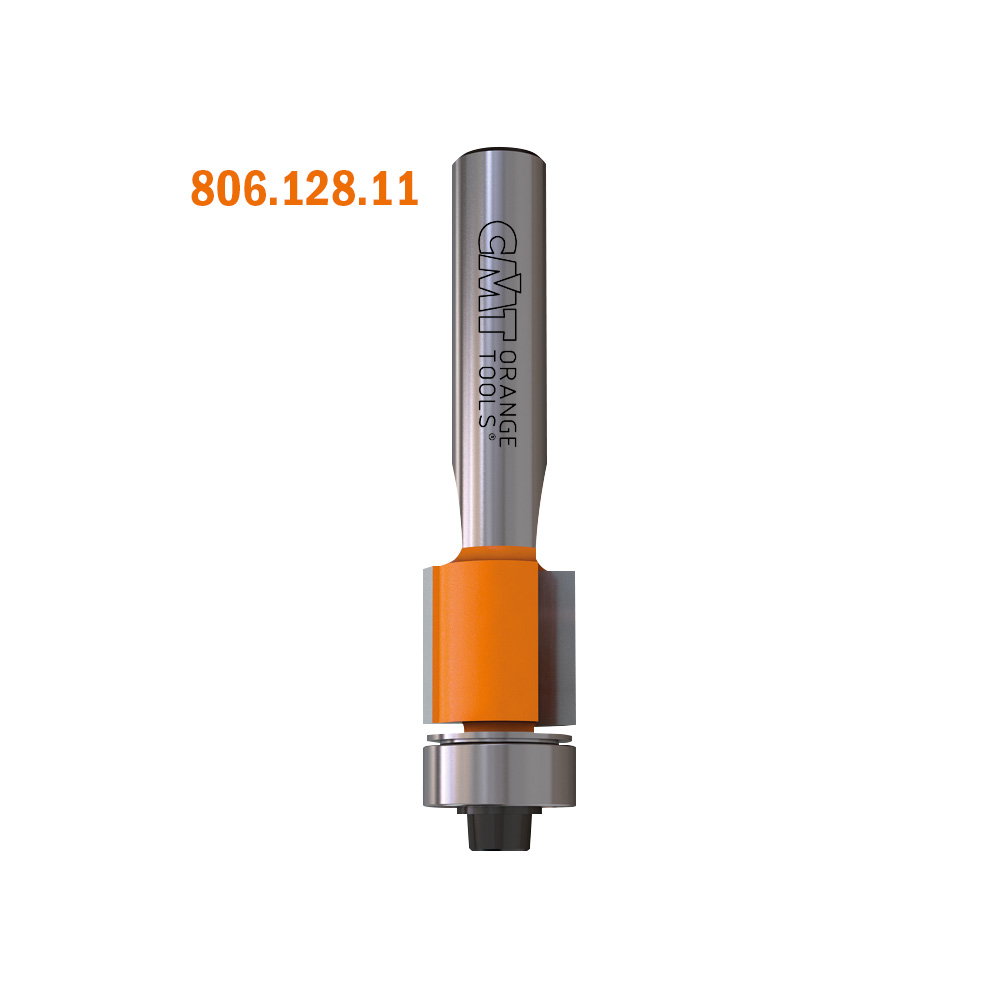

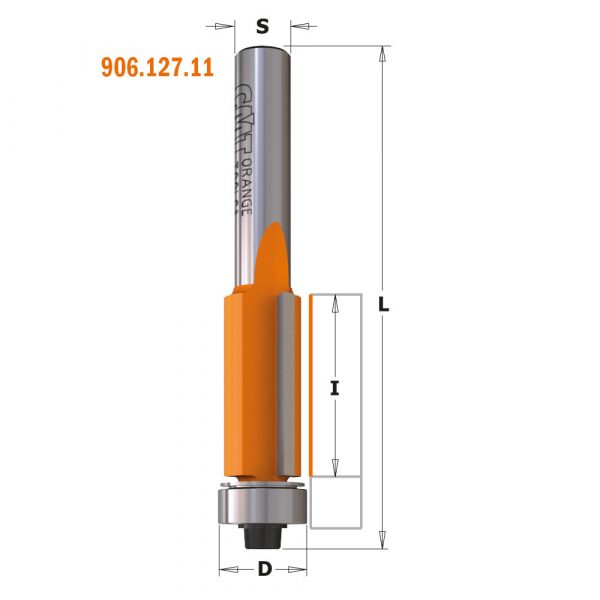

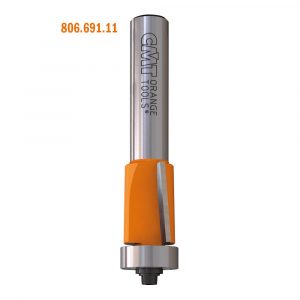

FLUSH TRIM ROUTER BITS
7/8/906
We have designed a series of truly indispensable bits available in a wide range of sizes for your woodworking needs.

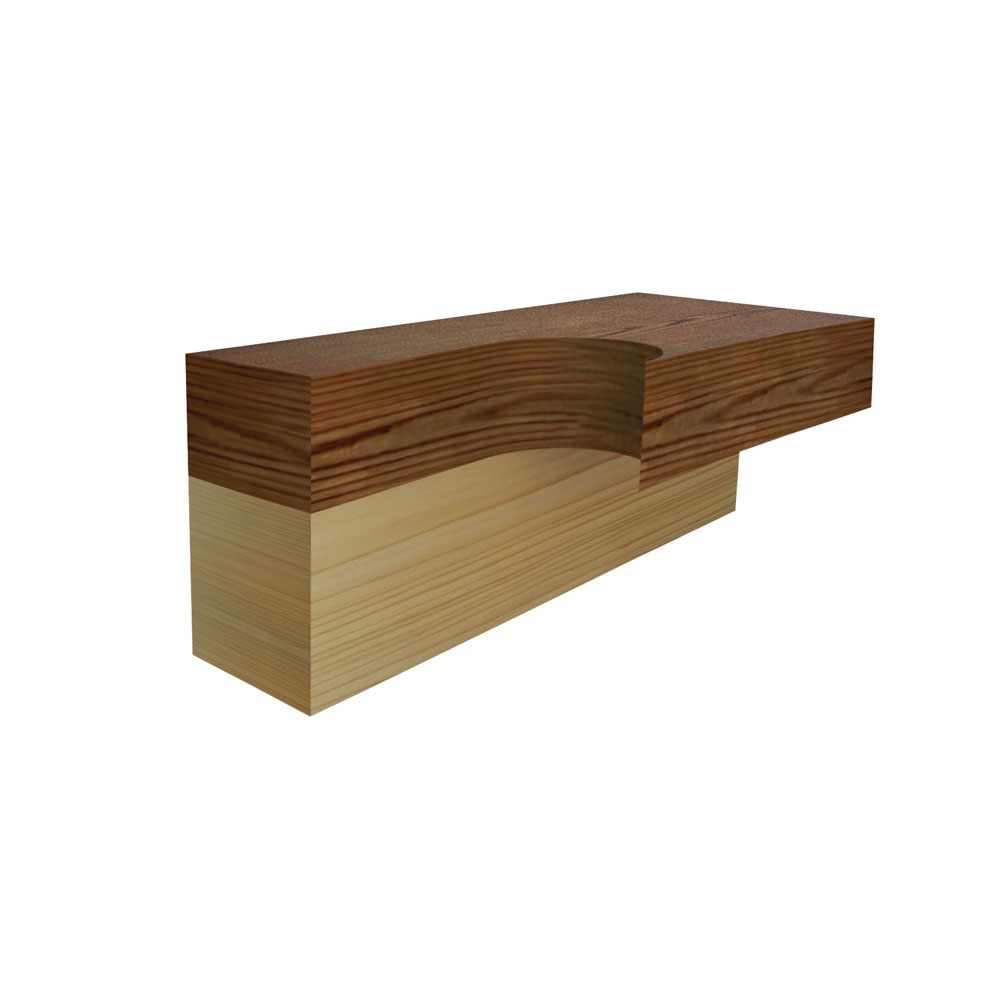

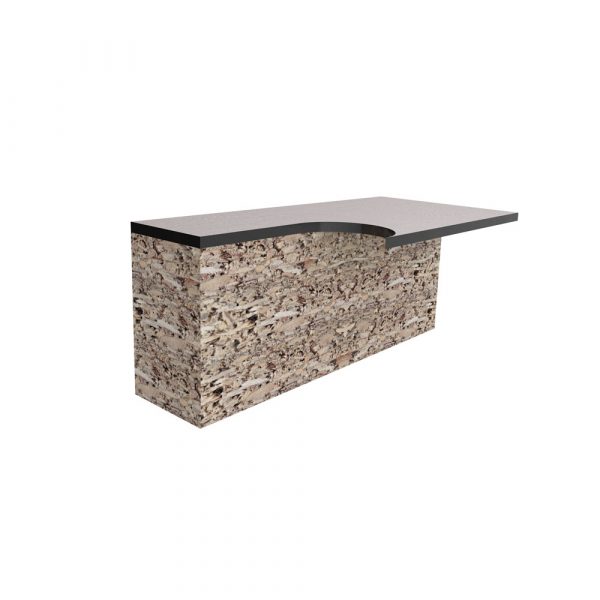

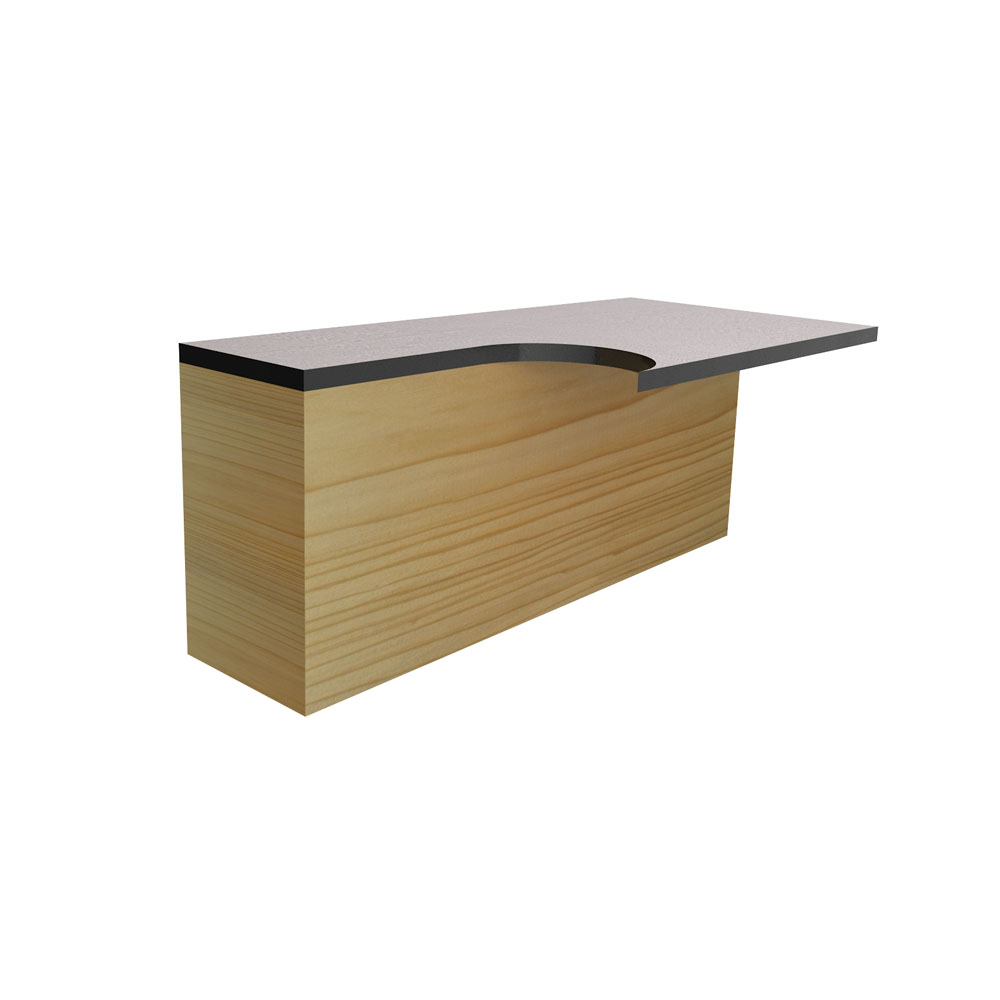

For precision work on laminates or quick template work with excellent finishing.

SHOP TIPS: these bits are excellent for making through mortises. Use a straight bit (#711.130.11) to groove the through mortise area, then use the drill bit (#517.130.31) to bore a through hole at the end of the groove.
Turn the workpiece over to end the mortise. Use the flush trim bit with a cutting length slightly longer than the fillet, following the groove made on the opposite side of the workpiece with the ball bearing guide.

SHOP TIPS: undersized bearing to use after resharpening.
791.062.00 Ø9,3 replace bearing 791.002.00 (Ø9,5) after resharpening.
791.063.00 Ø12,5 replace bearing 791.003.00 (Ø12,7) after resharpening.

706.064.11 – HWM
806.064.11 – HWM

906.693.11 WARNING!

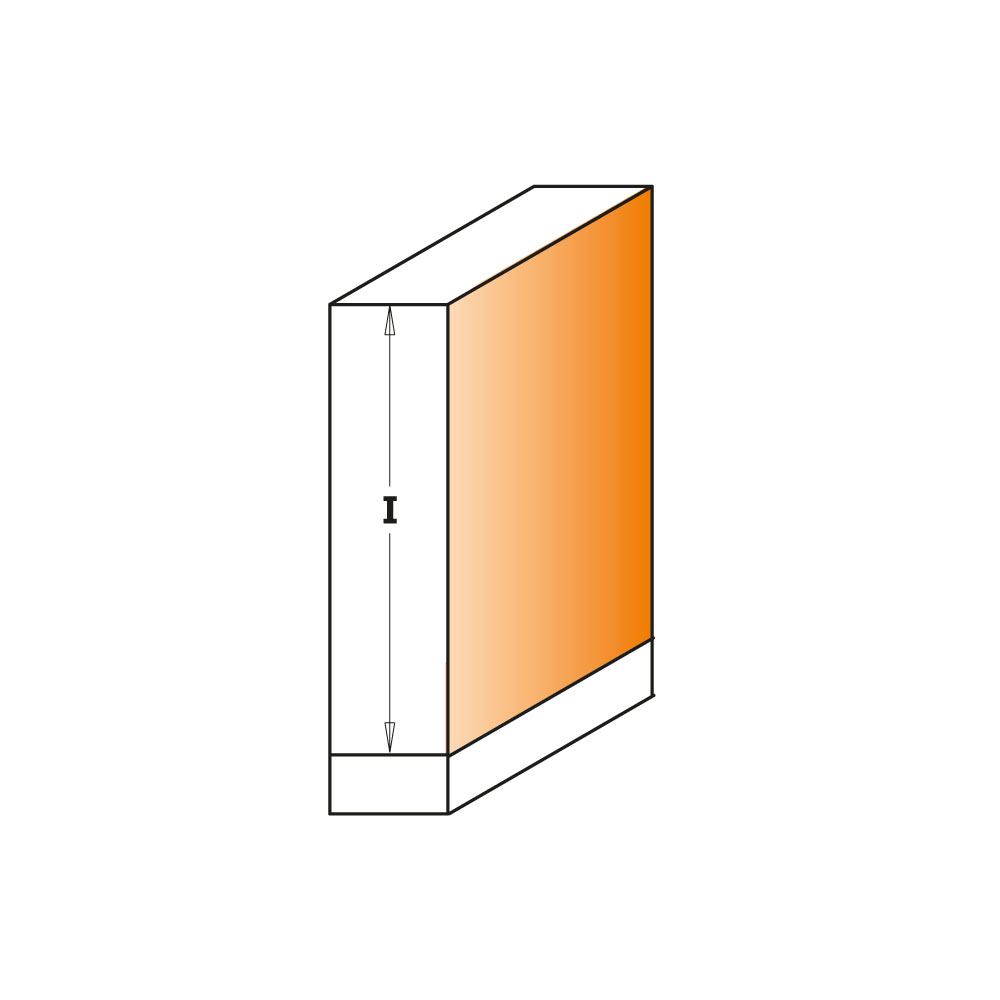

Long cutting edge. Carefully make several shallow passes to prevent damaging the tool.
The warranty does not cover improper or incorrect use of the tool.
