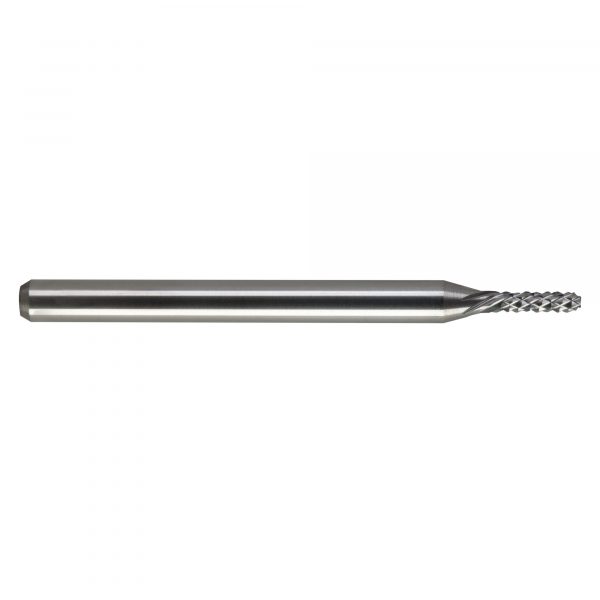

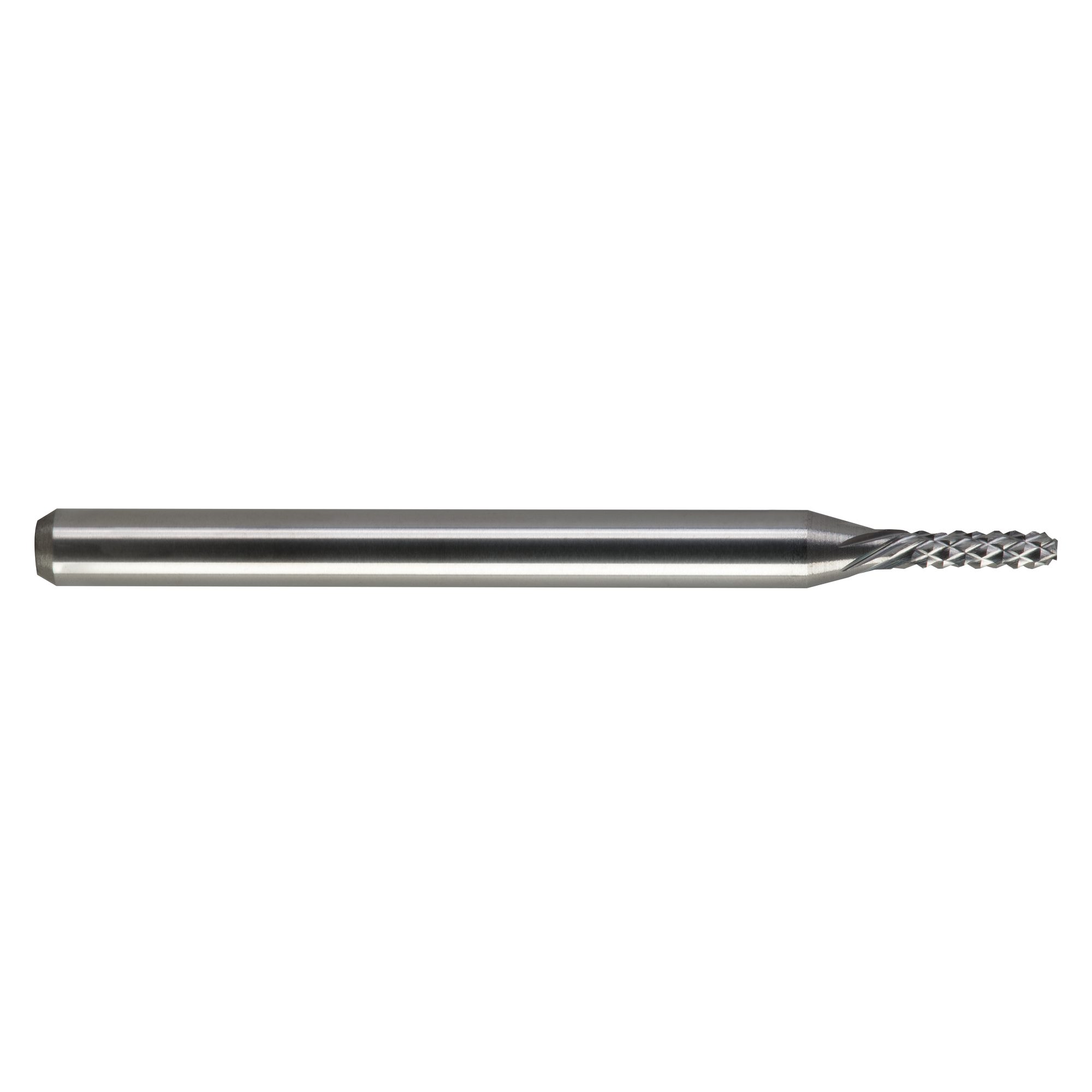

M.A.Ford 90913 Diamond Grind Router Down Cut 0.80mmx3.0x38 End Mill

M.A. Ford 90913 .8MM DIA-GR ROUTER EN

Name: M.A. Ford 90913 .8MM DIA-GR ROUTER EN
SKU: 23103150
Availability: InStock

Original price was: $27.13.Current price is: $18.75.

90913

UPC: 697604909138 SKU: 23103150 Category: New

M.A. Ford .8MM DIA-GR ROUTER EN

EDP: 90913

Sizes

Diameter	0.8mm
Diameter Decimal	.0315
Shank Diameter	3.175mm
Shank Type	Straight
OAL	38mm
Length of Cut	3mm

Specifications

Coating	Uncoated
End Grind	End Mill
Type of Cut	Down Cut
Country of Origin	USA
Material	Carbide
No. Flutes LH	7
No. Flutes RH	5

Brand

M.A. Ford

Since 1919 M.A. Ford® has grown from a small mid-west maker of rotary files to a leading manufacturer of Standard, High Performance and Custom Cutting tools with manufacturing and distribution facilities all over the world.
