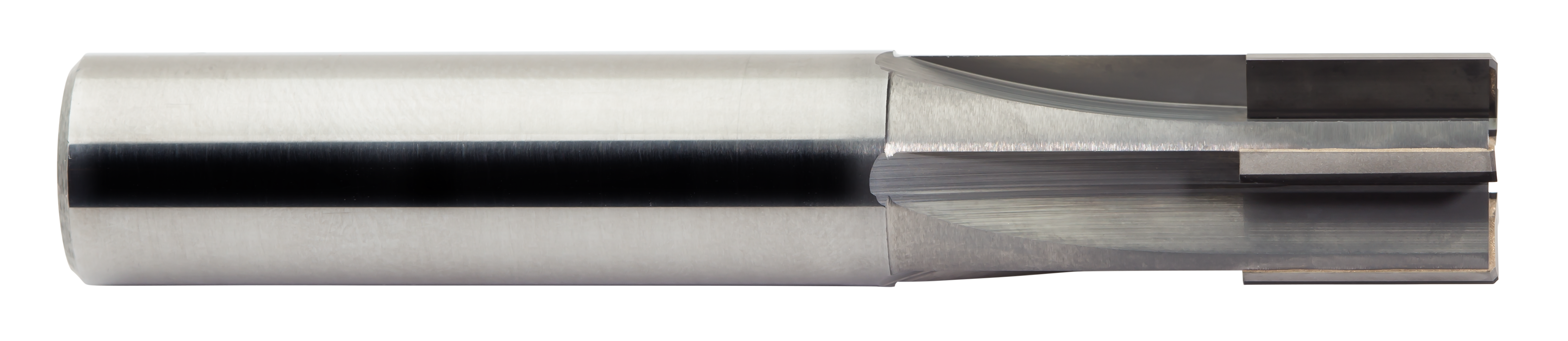

M.A. Ford® DE9S5000 PCD End Mill 9 FL 1/2×1/2×1-1/4x3x1/2shk .01Chf
$1,560.88
M.A. Ford® M.A. Ford® PCD End Mill 9 FL 1/2×1/2×1-1/4x3x1/2shk .01Chf
Product Id: DE9S5000
EDP: 90148

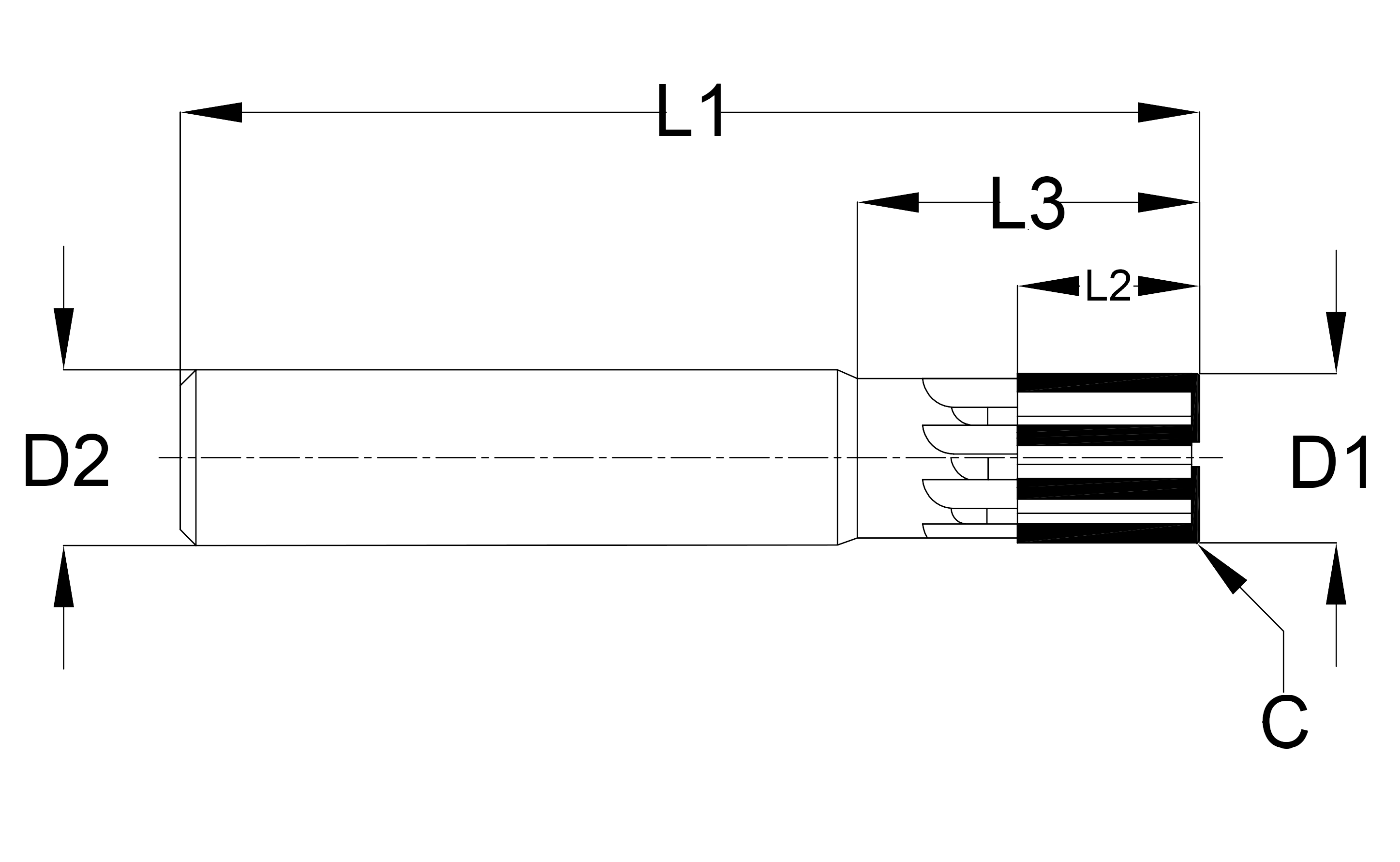

Sizes
| Neck Length (L3) | 1-1/4 |
|---|---|
| Neck Length Dec | 1.2500 |
| Diameter (D/D1) | 1/2 |
| Diameter Dec | .5000 |
| Flute Length (L2) | 1/2 |
| Flute Length Dec | .5000 |
| Overall Length (L1) | 3 |
| Overall Length Dec | 3.0000 |
| Shank Diameter (D2) | 1/2 |
| Shank Diameter Dec | .5000 |
Specifications
| Center Cutting | No |
|---|---|
| Chamfer | .010 |
| Chamfer Angle (A) | 45° |
| Chamfer Dec | .010 |
| Coating | Uncoated |
| Country of Origin | USA |
| End Grind | Chamfer |
| Helix Angle | Straight |
| Material | PCD |
| Neck Diameter (D3) | 0.48 |
| Neck Diameter Dec | 0.480 |
| # Flutes RH | 9 |
| Shank Type | Straight |
| Tool Construction | Brazed |
| Trade Name | M.A. Ford® PCD |
| Weight | 0.3 |
Brand
M.A. Ford
Since 1919 M.A. Ford® has grown from a small mid-west maker of rotary files to a leading manufacturer of Standard, High Performance and Custom Cutting tools with manufacturing and distribution facilities all over the world.
