Micro 100 — Micro-QuickchangeGrooving-002_ALTIN_Rep

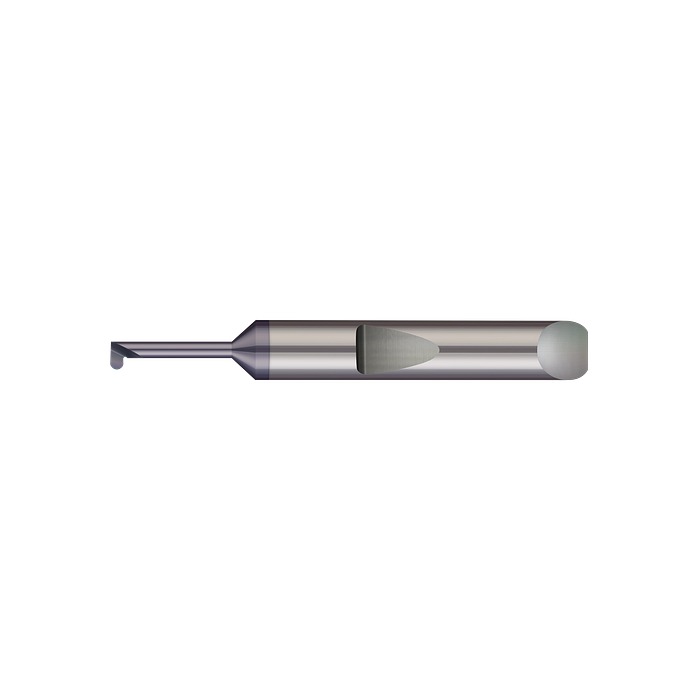

Micro 100 – QMFR-020-375-080X Quick Change – Full Radius Grooving Tool

$75.95

Quick Change – Right Hand – 0.0900" Min Bore DIA x 0.375" (3/8) Max Bore Depth x 0.0200" Tooth Width x 0.0250" Projection x 1.50" (1-1/2) OAL x 0.0100" Radius – AlTiN Coated

UPC: N/A SKU: micro100-qmfr-020-375-080x Categories: Full Radius - Miniature, Internal Diameter (ID) - Quick Change, Micro 100, Quick Change - Grooving Tools, Turning Tools

0.0900" Min Bore DIA x 0.375" (3/8) Max Bore Depth x 0.0200" Tooth Width x 0.0250" Projection x 0.1875" (3/16) Shank DIA x 1.50" (1-1/2) Overall Length x 0.0100" Radius – Carbide Quick Change – Miniature Full Radius Grooving Right Hand, AlTiN Coated

Specifications
Tooth Width	0.0200"
Radius	0.0100"
Head Width	0.080"
Projection	0.0250"
Length From Holder	0.590"
Centerline Offset	0.0525"
Shank Diameter	0.1875" (3/16)
Overall Length	1.50" (1-1/2)
Coating	AlTiN
Profile	Full Radius

Weight	0.018 lbs
Dimensions	1.5 × 0.315 × 0.315 in

Brand

Micro 100
