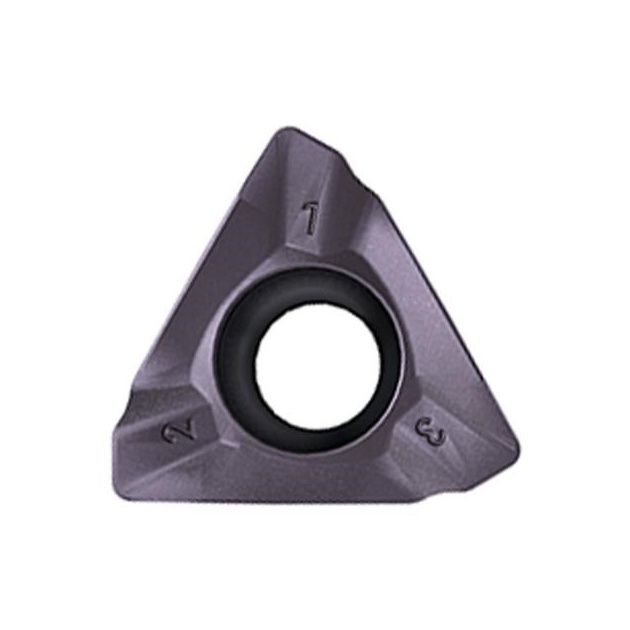

YG1-12000995 – TPKT070304R-GN-YG501 – Indexable Milling Insert

Original price was: $28.43.Current price is: $19.45.

TPKT070304R-GN-YG501 — YG-1 Indexable Milling Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-12000995 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	12000995
Description	TPKT070304R-GN-YG501
Size/Dimension	TPKT070304R-GN-YG501
Material	Carbide
Series	TPKT
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	TPKT
ANSI Code	TPKT070304R-GN
ISO Code	TPKT070304R-GN
ANSI	ISO
Shape	Triangle
# of Cutting Edges	3
Depth of Cut	4.5
Clearance Angle	Special
IC Tolerance (± inch)	0.002
IC Tolerance (± mm)	0.051
Height Tolerance (± inch)	0.001
Height Tolerance (± mm)	0.025
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With Screw hole, chipbreaker on one side only
Insert IC (inch)	0.217
Insert IC (mm)	5.5118
Thickness (in)	0.115
Thickness (mm)	2.921
Corner Radius (in)	0.016
Corner Radius (mm)	0.406
Edge Length (in)	0.035
Edge Length (mm)	0.89
Cutting Edge Lgth (in)	0.177
Cutting Edge Lgth (mm)	4.5
Insert Diam (in)	0.217
Insert Diam (mm)	5.51
Chipbreaker Geometry	GN
Chipbreaker Application	General Application
Cutting Edge Angle	90°
Wiper Edge Clearance	11
Feed Direction	Right hand Insert
Wiper Edge Length	0.035
Grade	YG501
Material	Carbide
Coating Process	PVD
Coating	TiAlN
Type	MILLING INSERT
Application	Cast Iron
System of Measurement	Inch
Application code	K

Hard Milling grade for Cast Iron. Substrate especially designed for high wear resistance. Excellent wear resistance in cast iron milling applications.
