YG1-22001934 – CNMG190612-MM-YG214/CNMG644-MM – Indexable Turning Insert

Original price was: $49.65.Current price is: $34.00.

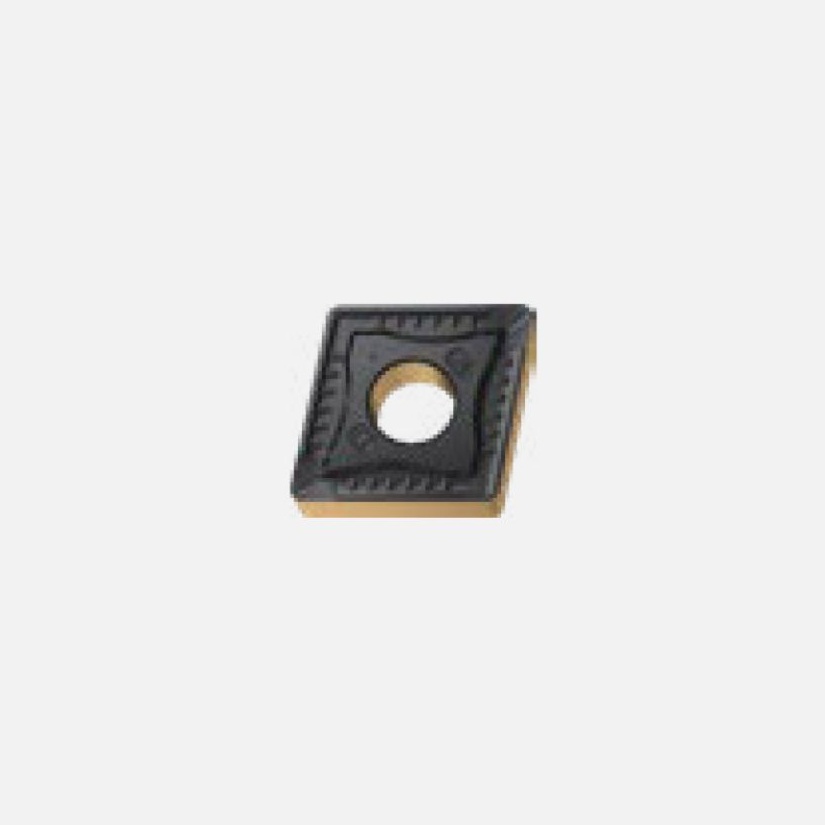

CNMG190612-MM-YG214/CNMG644-MM — YG-1 Indexable Turning Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-22001934 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	22001934
Description	CNMG190612-MM-YG214/CNMG644-MM
Size/Dimension	CNMG190612-MM-YG214/CNMG644-MM
Material	Carbide
Series	CNMG, CNMG64
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	CNMG
ANSI Code	CNMG644-MM
ISO Code	CNMG190612-MM
ANSI	ANSI
Shape	Rhombic 80°
# of Cutting Edges	4
Depth of Cut	5
Clearance Angle	0°
IC Tolerance (± inch)	0.004
IC Tolerance (± mm)	0.1016
Height Tolerance (± inch)	0.005
Height Tolerance (± mm)	0.127
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With clamping hole, chipbreaker on both sides
Insert IC (inch)	0.75
Insert IC (mm)	19.05
Thickness (in)	0.25
Thickness (mm)	6.35
Corner Radius (in)	0.0625
Corner Radius (mm)	1.587
Edge Length (in)	0.472
Edge Length (mm)	11.989
Chipbreaker Geometry	MM
Chipbreaker Application	Stainless Steel Medium
Wiper Edge Clearance	0°
Grade	YG214
Material	Carbide
Coating Process	PVD
Coating	TiAlN
Type	TURNING NEGATIVE INSERT
Application	Stainless Steel, Super Alloys
System of Measurement	Inch
Application code	M,S

Heavy Interrupted cut for Stainless steel. For Heavy Interrupted cut on Stainless steel. Minimize risk of Mechanical fracture or Chipping
